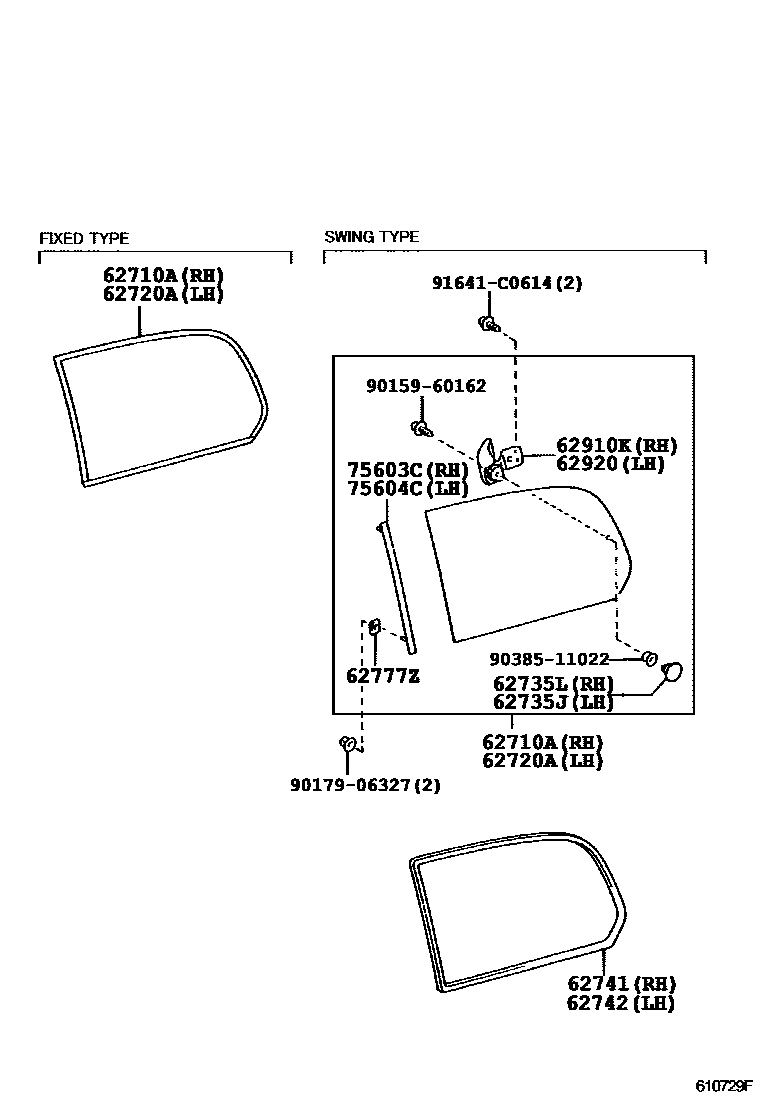

SIDE WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-60690iFZJ10#,HZJ105..STD199801-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62710-60A20

main62710-60700iUZJ100..5F;HZJ105..GX..ARL;HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX;HDJ100,UZJ100..LHD..5FC199801-200301

*UVCT,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62710-60A30

main62710-60710iUZJ100..LHD;HDJ100..LUB..GEN;FZJ10#,HDJ100,HZJ105..GX199801-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62710-60A00

main62710-60720-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62710-60721

main62710-60720-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62710-60721

main62710-60720-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62710-60721

main62710-60721-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62710-60723

main62710-60721-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62710-60723

main62710-60721-A1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC200208-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

sub62710-60723

main62710-60721-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62710-60723

main62710-60721-B1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC200208-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

sub62710-60723

main62710-60723-A1iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200301-200505

*TT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62710-60723-A1iFZJ100..CHI200309-200506

*TT,T=4.0,GREEN,IVORY,TRIM0#

main62710-60723-B1iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200301-200505

*TT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

main62710-60750-A0iHDJ100,UZJ100..GCC,GEN;FZJ105,HZJ105..GX..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62710-60751

main62710-60750-A0iUZJ100..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62710-60751

main62710-60750-B0iHDJ100,UZJ100;FZJ105,HZJ105..GX..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62710-60751

main62710-60751-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62710-60753

main62710-60751-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62710-60753

main62710-60751-A1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC200208-200301

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

sub62710-60753

main62710-60751-B0iHDJ100,UZJ100;FZJ105,HZJ105..GX..ARL199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62710-60753

main62710-60751-B1iUZJ100..5F..GCC;HDJ100,HZJ105..5F..GX..ARL200208-200301

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

sub62710-60753

main62710-60753-A1iUZJ100..VX..CHI200309-200506

*UVCTT,T=4.0,GREEN,IVORY,TRIM0#

main62710-60753-A1iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN200301-200505

*UVCTT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62710-60753-B1iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN200301-200505

*UVCTT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

main62710-60A01iFZJ105,HZJ105..GX..(GCC,GEN)200301-200505

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62710-60A21iFZJ10#,HZJ105..STD200301-200505

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62710-60A31iUZJ100..5F;HZJ105..GX..ARL;HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN)200301-200505

*UVCT,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62710-60A90-A0iHDJ100,UZJ100..VX..ARL200505

*UVCTT,T=4,DARK GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62710-60A90-B0iHDJ100,UZJ100..VX..ARL200505

*UVCTT,T=4,DARK GRAY,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

62720AWINDOW ASSY, QUARTER, LH

main62720-60600iFZJ10#,HZJ105..STD199801-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62720-60A30

main62720-60610iUZJ100..LHD;HDJ100..LUB..GEN;FZJ105,HDJ100,HZJ105..GX..ARL199801-200301

*UVCT,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62720-60A40

main62720-60620iHDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX;HDJ100,UZJ100..LHD..5FC;FZJ10#,HZJ105,UZJ100..(4FC,5F)..(GX,VX)199801-200301

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

sub62720-60A00

main62720-60630-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62720-60631

main62720-60630-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62720-60631

main62720-60630-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199801-199808

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62720-60631

main62720-60631-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

main62720-60631-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

main62720-60631-A1iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX200208-200301

*TEM,T=4.0,GREEN,IVORY,TRIM0#

main62720-60631-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199808-200208

*TEM,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

main62720-60631-B1iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100200208-200301

*TEM,T=4.0,GREEN,STONE,TRIM1#

main62720-60633-A1iFZJ100..CHI200309-200506

*TT,T=4.0,GREEN,IVORY,TRIM0#

main62720-60633-A1iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200301-200505

*TT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62720-60633-B1iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN200301-200505

*TT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

main62720-60660-A0iHDJ100,UZJ100..GCC,GEN;FZJ105,HZJ105..GX..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62720-60661

main62720-60660-A0iUZJ100..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62720-60661

main62720-60660-B0iHDJ100,UZJ100;FZJ105,HZJ105..GX..ARL199801-199808

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62720-60661

main62720-60661-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM4#

sub62720-60663

main62720-60661-A0iUZJ100;HDJ100..LUB..GEN199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM40,41

sub62720-60663

main62720-60661-A1iHDJ100,UZJ100;HZJ105..GX..ARL200208-200301

*UVCT,T=4.0,GREEN,IVORY,TRIM0#

sub62720-60663

main62720-60661-B0iHDJ100,UZJ100;FZJ105,HZJ105..GX..ARL199808-200208

*UVCT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),MD.GRAY,TRIM1#

sub62720-60663

main62720-60661-B1iHDJ100,UZJ100;HZJ105..GX..ARL200208-200301

*UVCT,T=4.0,GREEN,STONE,TRIM1#

sub62720-60663

main62720-60663-A1iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN200301-200505

*UVCTT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62720-60663-A1iUZJ100..VX..CHI200309-200506

*UVCTT,T=4.0,GREEN,IVORY,TRIM0#

main62720-60663-B1iHZJ105..GX..ARL;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5F..(ARL,GCC,GEN)200301-200505

*UVCTT,T=4.0,GREEN,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

main62720-60A01iHDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200301-200505

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62720-60A31iFZJ10#,HZJ105..STD200301-200505

*TEM,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62720-60A41iUZJ100..5F;HZJ105..GX..ARL;HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN)200301-200505

*UVCT,T=4.0,GREEN,W(SIDE WINDOW FIX TYPE)

main62720-60A60-A0iHDJ100,UZJ100..VX..ARL200505

*UVCTT,T=4,DARK GRAY,W(SIDE WINDOW SWING TYPE),IVORY,TRIM0#

main62720-60A60-B0iHDJ100,UZJ100..VX..ARL200505

*UVCTT,T=4,DARK GRAY,W(SIDE WINDOW SWING TYPE),STONE,TRIM1#

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-0G010iFZJ100,UZJ100..CHI200408-200501

(L)

main62735-28040iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN199801-200505

main62735-28040iFZJ100,UZJ100..CHI200309-200506

(J)

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-0G010iFZJ100,UZJ100..CHI200408-200501

(L)

main62735-28040iFZJ105..GX;FZJ100,HDJ100;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105,UZJ100..LHD..(STD,VX)199801-200505

main62735-28040iFZJ100,UZJ100..CHI200309-200506

(J)

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60090iFZJ100,UZJ100..CHI199801-200403

sub62741-60091

main62741-60091iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200403-200506

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-60080iUZJ100..ARL199801-200403

sub62742-60081

main62742-60081iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200403-200506

62777ZPLATE, QUARTER WINDOW RETAINER

main62777-60010iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200208-200708

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-60050-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199812

IVORY,TRIM40,41

sub62920-60020

main62910-60050-A0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-199812

IVORY,TRIM4#

sub62920-60020

main62910-60050-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199801-199812

MD.GRAY,TRIM1#

sub62920-60020

main62920-60020-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199812-200208

IVORY,TRIM40,41

main62920-60020-A0iUZJ100;HDJ100..LUB..GEN199812-200208

IVORY,TRIM4#

main62920-60020-A1iFZJ100..CHI;UZJ100..5FC..CHI200208-200506

IVORY,TRIM0#

main62920-60020-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199812-200208

MD.GRAY,TRIM1#

main62920-60020-B1iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-60050-A0iUZJ100..ARL199801-199812

IVORY,TRIM4#

sub62920-60020

main62910-60050-A0iUZJ100..ARL199801-199812

IVORY,TRIM40,41

sub62920-60020

main62910-60050-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199801-199812

MD.GRAY,TRIM1#

sub62920-60020

main62920-60020-A0iUZJ100;HDJ100..LUB..GEN199812-200208

IVORY,TRIM4#

main62920-60020-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199812-200208

IVORY,TRIM40,41

main62920-60020-A1iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200506

IVORY,TRIM0#

main62920-60020-B0iFZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100199812-200208

MD.GRAY,TRIM1#

main62920-60020-B1iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH

main75641-60021iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN199801-200709

75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH

main75642-60021iUZJ100..ARL199801-200709

9015960162

main90159-60162

9017906327

main90179-06327

9038511022

main90385-11022

91641C0614

main91641-C0614

15 parts on this diagram · 2 diagrams in section
