FLOOR MAT & SILENCER PAD

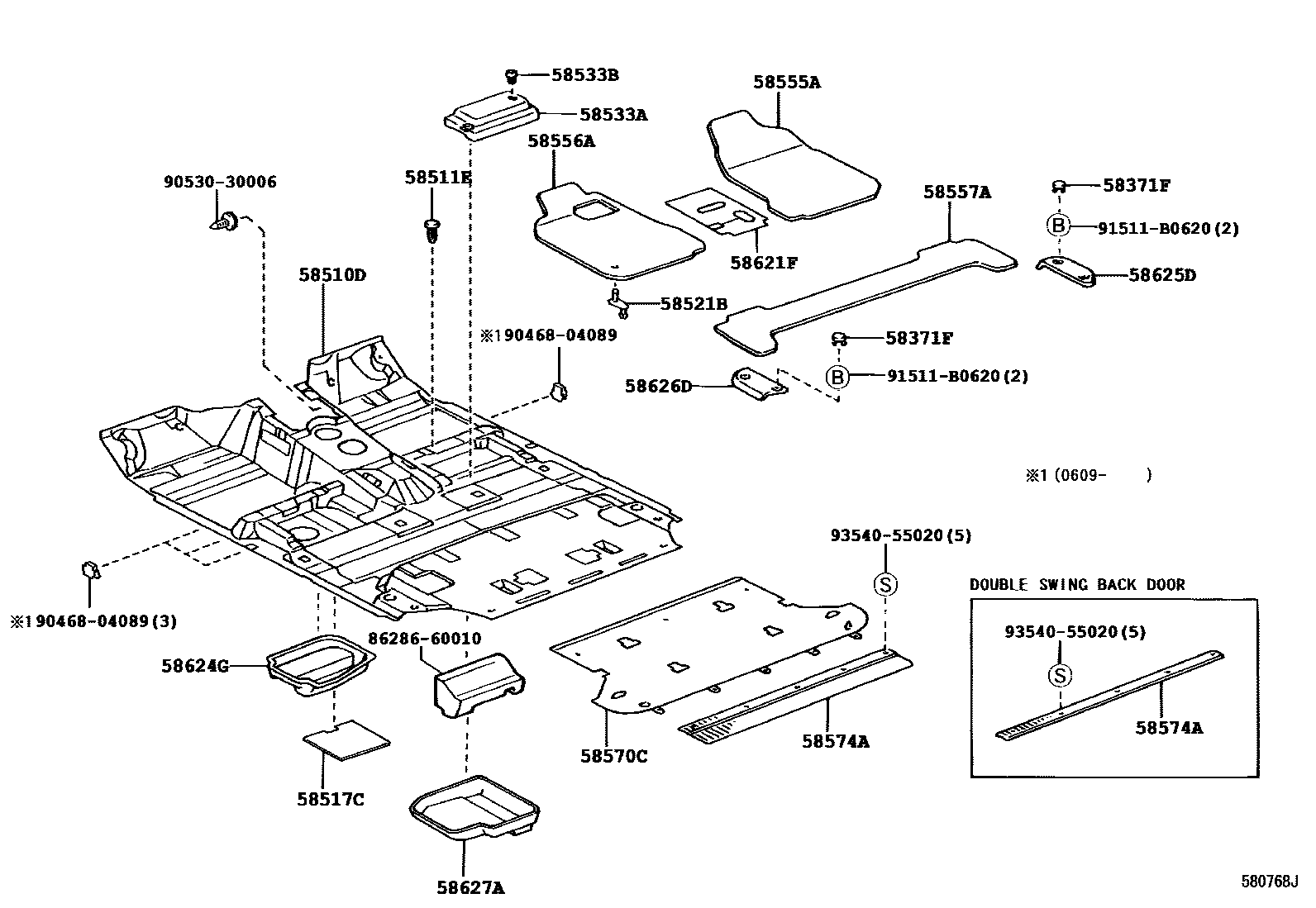

Parts diagram
58371FCOVER, REAR FLOOR STEP, NO.1
main58371-60100-A0×4i199801-200208
IVORY,TRIM40,41
sub58371-60100
main58371-60100-A1×4i200208-200506
IVORY,TRIM0#
sub58371-60100
main58371-60100-B0×4i199801-200208
MD.GRAY,TRIM1#
sub58371-60100
main58371-60100-B1×4i200208-200505
STONE,TRIM1#
sub58371-60100
58510DCARPET ASSY, FLOOR, FRONT
main58510-0G010-A0i200309
IVORY,TRIM0#
main58510-0G010-A0i200309-200407
IVORY,TRIM0#,(L)
main58510-0G020-A0i200309
IVORY,TRIM0#
main58510-0G020-A0i200309-200501
IVORY,TRIM0#,(L)
main58510-60D10-A0i200611
IVORY,TRIM0#
main58510-60D20-A0i200611
IVORY,TRIM0#
sub58510-60D21
main58510-6B420-A0i199801-199910
W(REAR HEATER),IVORY,TRIM4#
main58510-6B420-B0i199801-199910
W(REAR HEATER),GRAY,TRIM1#
main58510-6B421-A0i199910-200008
W(REAR HEATER),IVORY,TRIM4#
main58510-6B421-B0i199910-200008
W(REAR HEATER),GRAY,TRIM1#
main58510-6B422-A0i200008-200208
W(REAR HEATER),IVORY,TRIM4#
main58510-6B422-B0i200008-200208
W(REAR HEATER),GRAY,TRIM1#
main58510-6B423-A1i200208-200505
W(REAR HEATER),IVORY,TRIM0#
main58510-6B423-B1i200208-200505
W(REAR HEATER),STONE,TRIM1#
main58510-6B430-A0i199801-199910
W(FRONT SEPARATE SEAT & REAR HEATER),IVORY,TRIM4#
main58510-6B430-B0i199801-199910
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B431-A0i199910-200008
W(FRONT SEPARATE SEAT & REAR HEATER),IVORY,TRIM4#
main58510-6B431-B0i199910-200008
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B432-A0i200008-200208
W(FRONT SEPARATE SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B432
main58510-6B432-B0i200008-200208
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B432
main58510-6B433-A1i200208-200505
W(FRONT SEPARATE SEAT & REAR HEATER),IVORY,TRIM0#
main58510-6B433-B1i200208-200505
W(FRONT SEPARATE SEAT & REAR HEATER),STONE,TRIM1#
main58510-6B440-A0i199801-200008
W(REAR HEATER),IVORY,TRIM4#
sub58510-6B440
main58510-6B440-B0i199801-200008
W(REAR HEATER),GRAY,TRIM1#
sub58510-6B440
main58510-6B441-A0i200008-200208
W(REAR HEATER),IVORY,TRIM4#
main58510-6B441-A1i200208-200505
W(REAR HEATER),IVORY,TRIM0#
main58510-6B441-B0i200008-200208
W(REAR HEATER),GRAY,TRIM1#
main58510-6B441-B1i200208-200505
W(REAR HEATER),STONE,TRIM1#
main58510-6B450-A0i199801-199910
W(REAR HEATER),IVORY,TRIM4#
main58510-6B450-B0i199801-199910
W(REAR HEATER),GRAY,TRIM1#
main58510-6B451-A0i199910-200008
IVORY,TRIM4#
main58510-6B451-B0i199910-200008
GRAY,TRIM1#
main58510-6B452-A0i200008-200208
IVORY,TRIM4#
sub58510-6B452
main58510-6B452-B0i200008-200208
GRAY,TRIM1#
sub58510-6B452
main58510-6B460-A0i199801-199910
W(REAR HEATER),IVORY,TRIM4#
sub58510-6B460
main58510-6B460-B0i199801-199910
W(REAR HEATER),GRAY,TRIM1#
sub58510-6B460
main58510-6B461-A0i199910-200008
W(REAR HEATER),IVORY,TRIM4#
sub58510-6B461
main58510-6B461-B0i199910-200008
W(REAR HEATER),GRAY,TRIM1#
sub58510-6B461
main58510-6B462-A0i200008-200208
W(REAR HEATER),IVORY,TRIM40,41
sub58510-6B462
sub58510-60X90
main58510-6B462-B0i200008-200208
W(REAR HEATER),GRAY,TRIM1#
sub58510-6B462
sub58510-60X90
main58510-6B463-A1i200208-200401
W(REAR HEATER),IVORY,TRIM0#
sub58510-6B464
main58510-6B463-B1i200208-200401
W(REAR HEATER),STONE,TRIM1#
sub58510-6B464
main58510-6B464-A1i200402-200505
W(REAR HEATER),IVORY,TRIM0#
sub58510-60Y10
main58510-6B464-B1i200402-200505
W(REAR HEATER),STONE,TRIM1#
sub58510-60Y10
main58510-6B470-A0i199801-200008
W(REAR HEATER),IVORY,TRIM4#
sub58510-6B470
main58510-6B470-B0i199801-200008
W(REAR HEATER),GRAY,TRIM1#
sub58510-6B470
main58510-6B471-A0i200008-200208
W(REAR HEATER),IVORY,TRIM4#
main58510-6B471-B0i200008-200208
W(REAR HEATER),GRAY,TRIM1#
main58510-6B472-A1i200208-200401
W(REAR HEATER),IVORY,TRIM0#
sub58510-6B473
main58510-6B472-B1i200208-200401
W(REAR HEATER),STONE,TRIM1#
sub58510-6B473
main58510-6B473-A1i200402-200505
W(REAR HEATER),IVORY,TRIM0#
sub58510-60Y50
main58510-6B473-B1i200402-200505
W(REAR HEATER),STONE,TRIM1#
sub58510-60Y50
main58510-6B480-A0i199801-199910
IVORY,TRIM4#
main58510-6B480-B0i199801-199910
GRAY,TRIM1#
main58510-6B481-A0i199910-200008
IVORY,TRIM4#
main58510-6B481-B0i199910-200008
GRAY,TRIM1#
main58510-6B482-A0i200008-200208
IVORY,TRIM4#
main58510-6B482-B0i200008-200208
GRAY,TRIM1#
main58510-6B483-A1i200208-200505
IVORY,TRIM0#
main58510-6B483-B1i200208-200505
STONE,TRIM1#
main58510-6B490-A0i199801-199910
W(FRONT SEPARATE SEAT),IVORY,TRIM4#
main58510-6B490-B0i199801-199910
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6B491-A0i199910-200008
W(FRONT SEPARATE SEAT),IVORY,TRIM4#
main58510-6B491-B0i199910-200008
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6B492-A0i200008-200208
W(FRONT SEPARATE SEAT),IVORY,TRIM4#
sub58510-6B492
main58510-6B492-B0i200008-200208
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
sub58510-6B492
main58510-6B493-A1i200208-200505
W(FRONT SEPARATE SEAT),IVORY,TRIM0#
main58510-6B493-B1i200208-200505
W(FRONT SEPARATE SEAT),STONE,TRIM1#
main58510-6B500-A0i199801-200008
IVORY,TRIM4#
sub58510-6B500
main58510-6B500-B0i199801-200008
GRAY,TRIM1#
sub58510-6B500
main58510-6B501-A0i200008-200208
IVORY,TRIM4#
main58510-6B501-A1i200208-200505
IVORY,TRIM0#
main58510-6B501-B0i200008-200208
GRAY,TRIM1#
main58510-6B501-B1i200208-200505
STONE,TRIM1#
main58510-6B520-A0i199801-199907
IVORY,TRIM4#
main58510-6B520-B0i199801-199907
GRAY,TRIM1#
main58510-6B530-A0i199801-199910
IVORY,TRIM4#
sub58510-6B530
main58510-6B530-B0i199801-199910
GRAY,TRIM1#
sub58510-6B530
main58510-6B531-A0i199910-200008
IVORY,TRIM4#
main58510-6B531-B0i199910-200008
GRAY,TRIM1#
main58510-6B532-A0i200008-200208
IVORY,TRIM40,41
sub58510-6B532
main58510-6B532-B0i200008-200208
GRAY,TRIM1#
sub58510-6B532
main58510-6B533-A1i200208-200401
IVORY,TRIM0#
sub58510-6B534
main58510-6B533-B1i200208-200401
STONE,TRIM1#
sub58510-6B534
main58510-6B534-A1i200402-200505
IVORY,TRIM0#
sub58510-60Z40
main58510-6B534-B1i200402-200505
STONE,TRIM1#
sub58510-60Z40
main58510-6B540-A0i199801-200008
IVORY,TRIM4#
sub58510-6B540
main58510-6B540-B0i199801-200008
GRAY,TRIM1#
sub58510-6B540
main58510-6B541-A0i200008-200208
IVORY,TRIM4#
main58510-6B541-B0i200008-200208
GRAY,TRIM1#
main58510-6B542-A1i200208-200401
IVORY,TRIM0#
sub58510-6B543
main58510-6B542-B1i200208-200401
STONE,TRIM1#
sub58510-6B543
main58510-6B543-A1i200402-200505
IVORY,TRIM0#
sub58510-60Z80
main58510-6B543-B1i200402-200505
STONE,TRIM1#
sub58510-60Z80
main58510-6B610-A0i199801-199910
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B480
main58510-6B610-B0i199801-199910
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B480
main58510-6B611-A0i199910-200008
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B481
main58510-6B611-B0i199910-200008
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B481
main58510-6B612-A0i200008-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B482
main58510-6B612-B0i200008-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B482
main58510-6B613-A1i200208-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B483
main58510-6B613-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B483
main58510-6B620-A0i199801-199910
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B490
main58510-6B620-B0i199801-199910
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B490
main58510-6B621-A0i199910-200008
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B491
main58510-6B621-B0i199910-200008
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B491
main58510-6B622-A0i200008-200208
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B492
main58510-6B622-B0i200008-200208
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B492
main58510-6B623-A1i200208-200505
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B493
main58510-6B623-B1i200208-200505
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B493
main58510-6B630-A0i199801-200008
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B500
main58510-6B630-B0i199801-200008
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B500
main58510-6B631-A0i200008-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B501
main58510-6B631-A1i200208-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B501
main58510-6B631-B0i200008-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B501
main58510-6B631-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B501
main58510-6B650-A0i199801-199910
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B420
main58510-6B650-B0i199801-199910
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B420
main58510-6B651-A0i199910-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B421
main58510-6B651-B0i199910-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B421
main58510-6B652-A0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B422
main58510-6B652-B0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B422
main58510-6B653-A1i200208-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
main58510-6B653-B1i200208-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
main58510-6B660-A0i199801-199910
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B430
main58510-6B660-B0i199801-199910
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B430
main58510-6B661-A0i199910-200008
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B431
main58510-6B661-B0i199910-200008
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B431
main58510-6B662-A0i200008-200208
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B432
main58510-6B662-B0i200008-200208
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B432
main58510-6B663-A1i200309-200506
IVORY,TRIM0#,(J)
sub58510-60D10
sub58510-6B433
main58510-6B663-A1i200208-200505
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-60D10
sub58510-6B433
main58510-6B663-A1i200506-200611
IVORY,TRIM0#
sub58510-60D10
sub58510-6B433
main58510-6B663-B1i200208-200505
W(FRONT SEPARATE SEAT & TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-60D10
sub58510-6B433
main58510-6B670-A0i199801-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B440
main58510-6B670-B0i199801-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B440
main58510-6B671-A0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B441
main58510-6B671-A1i200208-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-6B441
main58510-6B671-B0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B441
main58510-6B671-B1i200208-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-6B441
main58510-6B680-A0i199801-199910
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B530
main58510-6B680-B0i199801-199910
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B530
main58510-6B681-A0i199910-200008
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B531
main58510-6B681-B0i199910-200008
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B531
main58510-6B682-A0i200008-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
sub58510-6B532
main58510-6B682-B0i200008-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B532
main58510-6B683-A1i200208-200401
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B684
main58510-6B683-B1i200208-200401
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B684
main58510-6B684-A1i200402-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B534
main58510-6B684-B1i200402-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B534
main58510-6B690-A0i199801-200008
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B540
main58510-6B690-B0i199801-200008
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B540
main58510-6B691-A0i200008-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58510-6B541
main58510-6B691-B0i200008-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58510-6B541
main58510-6B692-A1i200208-200401
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B693
main58510-6B692-B1i200208-200401
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B693
main58510-6B693-A1i200402-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58510-6B543
main58510-6B693-B1i200402-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58510-6B543
main58510-6B700-A0i199801-199910
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B460
main58510-6B700-B0i199801-199910
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B460
main58510-6B701-A0i199910-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B461
main58510-6B701-B0i199910-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B461
main58510-6B702-A0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM40,41
sub58510-6B462
main58510-6B702-B0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B462
main58510-6B703-A1i200309-200403
IVORY,TRIM0#,(J)
sub58510-6B704
main58510-6B703-A1i200208-200401
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-6B704
main58510-6B703-B1i200208-200401
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-6B704
main58510-6B704-A1i200402-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-6B464
main58510-6B704-A1i200403-200501
IVORY,TRIM0#,(J)
sub58510-6B464
main58510-6B704-B1i200402-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-6B464
main58510-6B710-A0i199801-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B470
main58510-6B710-B0i199801-200008
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B470
main58510-6B711-A0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#
sub58510-6B471
main58510-6B711-B0i200008-200208
W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#
sub58510-6B471
main58510-6B712-A1i200208-200401
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-6B713
main58510-6B712-B1i200208-200401
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-6B713
main58510-6B713-A1i200402-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM0#
sub58510-6B473
main58510-6B713-B1i200402-200505
W(TRANSVERSE THIRD SEAT & REAR HEATER),STONE,TRIM1#
sub58510-6B473
main58510-6C153-A1i200501-200611
IVORY,TRIM0#
sub58510-6B464
main58510-6C200-A0i200505
W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),IVORY,TRIM0#
sub58510-6B534
main58510-6C200-B0i200505
W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),STONE,TRIM1#
sub58510-6B534
main58510-6C210-A0i200505
W(TRANSVERSE THIRD SEAT & ELECTRO MULTI VISION & NAVIGATION SYSTEM),IVORY,TRIM0#
sub58510-6B534
main58510-6C210-B0i200505
W(TRANSVERSE THIRD SEAT & ELECTRO MULTI VISION & NAVIGATION SYSTEM),STONE,TRIM1#
sub58510-6B534
main58510-6C520-A0i200208-200401
IVORY,TRIM0#
sub58510-6C521
main58510-6C520-B0i200208-200401
STONE,TRIM1#
sub58510-6C521
main58510-6C521-A0i200402-200505
IVORY,TRIM0#
sub58510-6AD30
main58510-6C521-B0i200402-200505
STONE,TRIM1#
sub58510-6AD30
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-07158-A0i200008-200208
IVORY,TRIM40,41
sub90467-07158
main90467-07158-A1i200208-200506
IVORY,TRIM0#
sub90467-07158
main90467-07158-B1i200008-200208
MD.GRAY,TRIM1#
sub90467-07158
main90467-07158-B2i200208-200505
STONE,TRIM1#
sub90467-07158
58517CPAD, FRONT FLOOR MAT
main58517-60030i199801-200506
58521BHOOK, FLOOR CARPET
main58521-60011i199801-199904
sub58521-60030
main58521-60030i199904-200506
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-60031-A1i200501-200506
IVORY,TRIM0#
main58533-60031-B1i200505
STONE,TRIM1#
58533BCLIP(FOR FLOOR CARPET COVER)
main90467-04017-A0×2i200501-200506
IVORY,TRIM0#
main90467-04017-B2×2i200505
STONE,TRIM1#
58555AMAT, FRONT, RH
main58555-60020-A0i199801-200208
IVORY,TRIM40,41
sub58555-60020
main58555-60020-A1i200208-200506
IVORY,TRIM0#
sub58555-60020
main58555-60020-B0i199801-200208
GRAY,TRIM1#
sub58555-60020
main58555-60020-B1i200208-200505
STONE,TRIM1#
sub58555-60020
58556AMAT, FRONT, LH
main58556-60030-A0i199801-200208
IVORY,TRIM40,41
sub58556-60030
main58556-60030-A1i200208-200506
IVORY,TRIM0#
sub58556-60030
main58556-60030-B0i199801-200208
GRAY,TRIM1#
sub58556-60030
main58556-60030-B1i200208-200505
STONE,TRIM1#
sub58556-60030
58557AMAT, REAR
main58557-60040-A0i199801-200208
IVORY,TRIM40,41
sub58557-60040
main58557-60040-A1i200208-200506
IVORY,TRIM0#
sub58557-60040
main58557-60040-B0i199801-200208
GRAY,TRIM1#
sub58557-60040
main58557-60040-B1i200208-200505
STONE,TRIM1#
sub58557-60040
58570CCARPET ASSY, REAR FLOOR
main58570-0G010-A0i200309-200407
IVORY,TRIM0#,(L)
main58570-0G020-A0i200309-200407
IVORY,TRIM0#,(L)
main58570-60420-A0i199801-200208
IVORY,TRIM4#
sub58570-60420
main58570-60420-A1i200208-200505
IVORY,TRIM0#
sub58570-60420
main58570-60420-B0i199801-200208
GRAY,TRIM1#
sub58570-60420
main58570-60420-B1i200208-200505
STONE,TRIM1#
sub58570-60420
main58570-60500-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58570-60500
main58570-60500-A1i200208-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58570-60500
main58570-60500-B0i199801-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58570-60500
main58570-60500-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58570-60500
main58570-60510-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#
main58570-60510-A1i200208-200505
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main58570-60510-B0i199801-200208
W(DUAL AIR CONDITIONER),GRAY,TRIM1#
main58570-60510-B1i200208-200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
main58570-60520-A0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#
sub58570-60520
sub58570-60A20
main58570-60520-B0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#
sub58570-60520
sub58570-60A20
main58570-60521-A1i200309-200611
IVORY,TRIM0#
sub58570-60A20
main58570-60521-A1i200208-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub58570-60A20
main58570-60521-B1i200508
STONE,TRIM1#
sub58570-60A20
main58570-60521-B1i200208-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub58570-60A20
main58570-60530-A0i199801-200208
IVORY,TRIM40,41
sub58570-60531
main58570-60530-A1i200208-200401
IVORY,TRIM0#
sub58570-60531
main58570-60530-B0i199801-200208
GRAY,TRIM1#
sub58570-60531
main58570-60530-B1i200208-200401
STONE,TRIM1#
sub58570-60531
main58570-60531-A1i200402-200505
IVORY,TRIM0#
main58570-60531-B1i200402-200505
STONE,TRIM1#
main58570-60540-A0i200008-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
sub58570-60541
main58570-60540-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
sub58570-60541
main58570-60540-A1i200208-200401
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub58570-60541
main58570-60540-B0i199801-200208
W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#
sub58570-60541
main58570-60540-B1i200208-200401
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub58570-60541
main58570-60541-A1i200402-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main58570-60541-B1i200402-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main58570-60550-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#
sub58570-60552
main58570-60550-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#
sub58570-60552
main58570-60551-A1i200208-200401
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub58570-60552
main58570-60551-B1i200208-200401
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub58570-60552
main58570-60552-A1i200402-200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main58570-60552-B1i200402-200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main58570-60560-A0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
sub58570-60A30
sub58570-60561
main58570-60560-A0i199801-200008
W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
sub58570-60A30
sub58570-60561
main58570-60560-A1i200208-200401
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub58570-60A30
sub58570-60561
main58570-60560-B0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#
sub58570-60A30
sub58570-60561
main58570-60560-B0i199801-200008
W(DUAL AIR CONDITIONER),GRAY,TRIM1#
sub58570-60A30
sub58570-60561
main58570-60560-B1i200208-200401
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub58570-60A30
sub58570-60561
main58570-60561-A1i200402-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub58570-60A30
main58570-60561-B1i200402-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub58570-60A30
main58570-60700-A0i199801-199907
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
main58570-60700-B0i199801-199907
W(OPPOSING TYPE THIRD SEAT),GRAY,TRIM1#
main58570-60770-A1i200401-200402
IVORY,TRIM0#,(J)
sub58570-60771
main58570-60771-A1i200403-200611
IVORY,TRIM0#
main58570-60A20-A1i200611
IVORY,TRIM0#
main58570-60A30-A1i200611
IVORY,TRIM0#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
main58574-60040-A0i199801-200208
IVORY,TRIM40,41
sub58574-60040
sub58574-60100
main58574-60040-A1i200208-200612
IVORY,TRIM0#
sub58574-60040
sub58574-60100
main58574-60040-B0i199801-200208
MD.GRAY,TRIM1#
sub58574-60040
sub58574-60100
main58574-60040-B1i200208-200505
STONE,TRIM1#
sub58574-60040
sub58574-60100
main58574-60050-A0i199801-200208
IVORY,TRIM4#
sub58574-60050
main58574-60050-A1i200208-200505
IVORY,TRIM0#
sub58574-60050
main58574-60050-B0i199801-200208
MD.GRAY,TRIM1#
sub58574-60050
main58574-60050-B1i200208-200505
STONE,TRIM1#
sub58574-60050
main58574-60100-A0i200612
IVORY,TRIM0#
sub58574-60100
58621FSILENCER, CENTER CONSOLE, NO.1
main58621-60110i199801-200506
main58621-60150i199801-200506
58624GPAD, FRONT FLOOR SILENCER
main58624-60110i199801-200505
58625DPLATE, REAR FLOOR MAT, NO.1
main58625-60020-A0i199801-200208
IVORY,TRIM40,41
sub58625-60020
main58625-60020-A1i200208-200506
IVORY,TRIM0#
sub58625-60020
main58625-60020-B0i199801-200208
MD.GRAY,TRIM1#
sub58625-60020
main58625-60020-B1i200208-200505
STONE,TRIM1#
sub58625-60020
58626DPLATE, REAR FLOOR MAT, NO.2
main58626-60020-A0i199801-200208
IVORY,TRIM40,41
sub58626-60020
main58626-60020-A1i200208-200506
IVORY,TRIM0#
sub58626-60020
main58626-60020-B0i199801-200208
MD.GRAY,TRIM1#
sub58626-60020
main58626-60020-B1i200208-200505
STONE,TRIM1#
sub58626-60020
58627APAD, CENTER FLOOR SILENCER, REAR
main58627-60030i199801-200506
main58627-60030i200110-200505
AMBULANCE SPEC(IRAN)
8628660010BRACKET, AMPLIFIER, NO.2
main86286-60010
9046804089
main90468-04089
9053030006
main90530-30006
91511B0620
main91511-B0620
9354055020
main93540-55020

22 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
