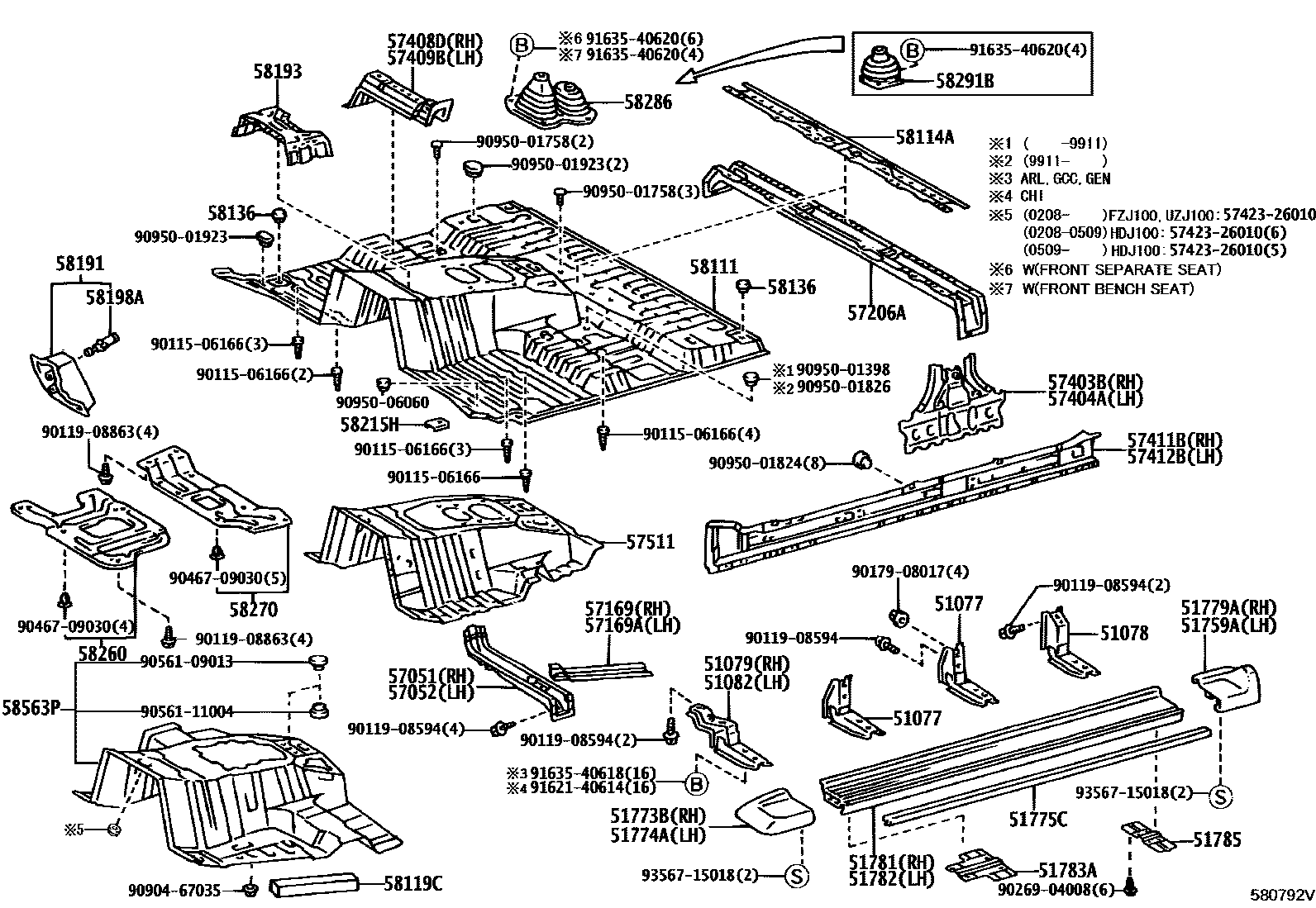

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51077BRACKET SUB-ASSY, SIDE STEP, NO.2

main51077-60070iFZJ10#,HDJ100,HZJ105,UZJ100199801-199812

main51077-60071iFZJ100..CHI;UZJ100..5FC..CHI199812-200506

51078BRACKET SUB-ASSY, SIDE STEP, NO.3

main51078-60060iFZJ10#,HDJ100,HZJ105,UZJ100199801-199812

main51078-60061iFZJ105,UZJ100..(STD,VX)..ARL199812-200506

51079BRACKET SUB-ASSY, SIDE STEP

main51079-60070iFZJ10#,HDJ100,HZJ105,UZJ100199801-199812

main51079-60071iFZJ100,UZJ100..CHI199812-200506

51082STAY SUB-ASSY, SIDE STEP, NO.1 LH

main51082-60020iFZJ10#,HDJ100,HZJ105,UZJ100199801-199812

main51082-60021iFZJ105,UZJ100..(STD,VX)..ARL199812-200506

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-60070iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-60080iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-60080iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

51775CMOULDING, SIDE DOOR STEP PLATE, NO.1

main51775-60050iHDJ100,UZJ100199801-199812

main51775-60051iFZJ100,UZJ100..CHI199810-200312

sub51775-60052

main51775-60052iFZJ100,UZJ100..CHI200310-200506

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-60070iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

51781PANEL, STEP, RH

main51781-60160iFZJ10#,HZJ105199801-199812

main51781-60161iFZJ105..STD..ARL199812-200506

main51781-60170iHDJ100,UZJ100199801-199812

main51781-60171iUZJ100..ARL199812-200506

51782PANEL, STEP, LH

main51782-60140iHDJ100,UZJ100199801-199812

main51782-60141iUZJ100..ARL199812-200506

main51782-60160iFZJ10#,HZJ105199801-199812

main51782-60161iFZJ105..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GX,STD199812-200506

51783AGUSSET, SIDE STEP EXTENSION

main51783-60030iHZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN199810-200506

51785GUSSET, STEP BRACKET, NO.2

main51785-60010iFZJ105,UZJ100..(STD,VX)..ARL199810-200506

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60040iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200508

sub57051-60050

main57051-60050iFZJ105,HZJ105199801-200505

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60040iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

main57052-60050iFZJ105,HZJ105199801-200208

sub57052-60040

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-60010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

57169AMEMBER, FRONT FLOOR, FRONT LH

main57169-60010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-60100iHDJ100..LUB;FZJ100,UZJ100..ARL,GCC,GEN200309-200506

main57206-60100iUZJ100..ARL199801-200505

W(FRONT SEPARATE SEAT)

main57206-60110iFZJ105,HZJ105199801-200505

W(FRONT SEPARATE SEAT)

main57206-60110iFZJ105,HZJ105200505

main57206-60120iHDJ100..SOB;FZJ100..5F..GCC199801-200505

W(FRONT BENCH SEAT)

main57206-60130iFZJ105..LHD;HZJ105..STD;HZJ105..LHD..GX199801-200505

W(FRONT BENCH SEAT)

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200201

sub57403-60031

main57403-60031iFZJ10#,HDJ100,HZJ105,UZJ100200201-200506

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200201

sub57404-60031

main57404-60031iFZJ100..CHI;UZJ100..5FC..CHI200201-200506

57408DMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57408-60020iFZJ10#,HDJ100,HZJ105,UZJ100199801-200004

sub57408-60021

main57408-60021iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200004-200506

57409BMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57409-60020iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

57411BMEMBER, FLOOR SIDE, INNER RH

main57401-60080iFZJ100,UZJ100..CHI200208-200506

main57401-60080iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

W(SIDE STEP)

main57411-60070iFZJ105,HZJ105..GX..ARL199801-200208

sub57401-60080

57412BMEMBER, FLOOR SIDE, INNER LH

main57402-60090iFZJ100..CHI;UZJ100..VX..CHI200208-200506

main57402-60090iFZJ105,UZJ100..(STD,VX)..ARL199801-200208

W(SIDE STEP)

main57412-60070iFZJ105,HZJ105..GX..ARL199801-200208

sub57402-60090

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-60030iFZJ105..STD..ARL199801-200505

W(FRONT SEPARATE SEAT)

main57511-60030iHDJ100..LUB..5F;FZJ10#,HZJ105..5F..(ARL,GCC,GEN)200309-200606

main57511-60040iFZJ10#,HDJ100,HZJ105,UZJ100..4FC199801-199903

sub57511-60041

main57511-60041iFZJ100..4FC..GCC199903-200606

main57511-60050iUZJ100..5F..(ARL,GCC)200505

main57511-60050iUZJ100..5F..ARL199801-200505

W(FRONT SEPARATE SEAT)

main57511-60060iFZJ100..5F;HZJ105..STD;HZJ105..LHD..GX;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-200505

W(FRONT BENCH SEAT)

main58102-60070iHDJ100,UZJ100..5FC..ARL200208-200505

main58102-60080iHDJ100,UZJ100..5FC..(GCC,GEN)200208-200506

58111PAN, FRONT FLOOR

main58111-60770iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

sub58111-60771

main58111-60771iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

main58111-60780iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

W(COOL BOX)

sub58111-60781

main58111-60781iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

W(COOL BOX)

main58111-60790iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

W(REAR HEATER)

sub58111-60791

main58111-60791iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

W(REAR HEATER)

main58111-60800iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

W(COOL BOX & REAR HEATER)

sub58111-60801

main58111-60801iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

W(COOL BOX & REAR HEATER)

main58111-60810iFZJ100,HDJ100,UZJ100..LHD..4FC199801-199907

sub58111-60811

main58111-60811iFZJ100,HDJ100,UZJ100..LHD..4FC199907-200208

main58111-60820iFZJ100,HDJ100,UZJ100..LHD..4FC199801-199907

W(COOL BOX)

sub58111-60821

main58111-60821iFZJ100,HDJ100,UZJ100..LHD..4FC199907-200208

W(COOL BOX)

main58111-60830iHDJ100,UZJ100..4FC..GEN199801-199907

W(REAR HEATER)

sub58111-60831

main58111-60831iHDJ100,UZJ100..4FC..GEN199907-200208

W(REAR HEATER)

main58111-60840iHDJ100,UZJ100..LHD..LUB..4FC199801-199907

W(COOL BOX & REAR HEATER)

sub58111-60841

main58111-60841iHDJ100,UZJ100..4FC..GEN199907-200208

W(COOL BOX & REAR HEATER)

main58111-60850iFZJ105,HDJ100,HZJ105..RHD..GEN199801-200308

W(FRONT SEPARATE SEAT)

sub58111-60851

sub86286-60040

main58111-60851iFZJ105,HDJ100,HZJ105..RHD..5F200308-200505

W(FRONT SEPARATE SEAT)

main58111-60860iHDJ100..RHD..GEN200208-200308

W(COOL BOX)

sub58111-60861

sub86286-60040

main58111-60860iFZJ105,HDJ100,HZJ105..RHD..5F..(GX,VX)199801-200308

W(COOL BOX & FRONT SEPARATE SEAT)

sub58111-60861

sub86286-60040

main58111-60861iFZJ105,HDJ100,HZJ105..RHD..5F..(GX,VX)200308-200505

W(COOL BOX & FRONT SEPARATE SEAT)

main58111-60870iFZJ105,HDJ100,HZJ105..RHD..5F..(GX,STD)200208-200308

W(REAR HEATER)

sub58111-60871

sub86286-60040

main58111-60870iFZJ105,HDJ100,HZJ105..RHD..5F199801-200308

W(FRONT SEPARATE SEAT & REAR HEATER)

sub58111-60871

sub86286-60040

main58111-60871iFZJ105,HDJ100,HZJ105..RHD..5F200308-200505

W(FRONT SEPARATE SEAT & REAR HEATER)

main58111-60880iHDJ100..RHD..GEN199801-200308

W(COOL BOX & FRONT SEPARATE SEAT & REAR HEATER)

sub58111-60881

sub86286-60040

main58111-60880iHDJ100..RHD..GEN200208-200308

W(COOL BOX & REAR HEATER)

sub58111-60881

sub86286-60040

main58111-60881iFZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN200308-200505

W(COOL BOX & FRONT SEPARATE SEAT & REAR HEATER)

main58111-60890iHDJ100..LHD..LUB..5F199801-200308

W(FRONT SEPARATE SEAT)

sub58111-60891

sub86286-60040

main58111-60891iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105..LHD..5F..(GCC,GEN)200308-200505

W(FRONT SEPARATE SEAT)

main58111-60A20iUZJ100..5F..CHI200606

main58111-6A010iHDJ100..LHD..LUB..5F200208-200308

W(COOL BOX)

sub58111-6A011

sub86286-60040

main58111-6A010iFZJ10#..LHD..5F..GX;HDJ100..LHD..LUB..5F;HZJ105..LHD..GX..GEN199801-200308

W(COOL BOX & FRONT SEPARATE SEAT)

sub58111-6A011

sub86286-60040

main58111-6A011iHDJ100..LHD..LUB..5F;HZJ105..LHD..GX..GEN;FZJ10#..LHD..5F..GX..(GCC,GEN)200308-200505

W(COOL BOX & FRONT SEPARATE SEAT)

main58111-6A020iFZJ100..LUB..5F;FZJ105,HZJ105..LHD199801-200308

W(FRONT SEPARATE SEAT & REAR HEATER)

sub58111-6A021

sub86286-60040

main58111-6A020iHDJ100..LHD..LUB..5F200208-200308

W(REAR HEATER)

sub58111-6A021

sub86286-60040

main58111-6A021iHDJ100..LHD..LUB..5F;FZJ105,HZJ105..LHD..GEN200308-200505

W(FRONT SEPARATE SEAT & REAR HEATER)

main58111-6A030iFZJ100,HDJ100..LHD..LUB..5F;FZJ105,HZJ105..LHD..GX..GEN199801-200308

W(COOL BOX & FRONT SEPARATE SEAT & REAR HEATER)

sub58111-6A031

sub86286-60040

main58111-6A031iHDJ100..LHD..LUB..5F;FZJ105,HZJ105..LHD..GX..GEN200308-200505

W(COOL BOX & FRONT SEPARATE SEAT & REAR HEATER)

main58111-6A031iFZJ100..5F..CHI200309-200606

main58111-6A040iUZJ100..5F199801-200308

W(FRONT SEPARATE SEAT)

sub58111-6A041

sub86286-60040

main58111-6A041iUZJ100..5F..GCC200308-200505

W(FRONT SEPARATE SEAT)

main58111-6A050iUZJ100..5F..GCC199801-200308

W(COOL BOX & FRONT SEPARATE SEAT)

sub58111-6A051

sub86286-60040

main58111-6A051iUZJ100..5F..GCC200308-200505

W(COOL BOX & FRONT SEPARATE SEAT)

main58111-6A060iUZJ100..5F..GEN199801-200208

W(FRONT SEPARATE SEAT & REAR HEATER)

main58111-6A070iUZJ100..5F..GEN199801-200208

W(COOL BOX & FRONT SEPARATE SEAT & REAR HEATER)

main58111-6A070iUZJ100..LUB..5F..GCC199808-200001

main58111-6A080iHZJ105..RHD..STD199801-200308

W(FRONT BENCH SEAT)

sub58111-6A081

sub86286-60040

main58111-6A081iHZJ105..RHD..STD200308-200505

W(FRONT BENCH SEAT)

main58111-6A090iHZJ105..RHD..STD199801-200308

W(FRONT BENCH SEAT & REAR HEATER)

sub58111-6A091

sub86286-60040

main58111-6A091iHZJ105..RHD..STD..GEN200308-200505

W(FRONT BENCH SEAT & REAR HEATER)

main58111-6A100iFZJ10#,HZJ105..LHD..5F199801-200308

W(FRONT BENCH SEAT)

sub58111-6A101

sub86286-60040

main58111-6A101iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..(GCC,GEN)200308-200505

W(FRONT BENCH SEAT)

main58111-6A110iHDJ100..SOB;FZJ105,HZJ105..LHD..GEN199801-200308

W(FRONT BENCH SEAT & REAR HEATER)

sub58111-6A111

sub86286-60040

main58111-6A111iFZJ105,HZJ105..LHD..GEN200308-200505

W(FRONT BENCH SEAT & REAR HEATER)

main58111-6A460iHDJ100,UZJ100..5FC..ARL200208-200308

W(COOL BOX)

sub58111-6A461

sub86286-60040

main58111-6A461iHDJ100,UZJ100..VX..ARL200308-200505

W(COOL BOX)

main58111-6A470iHDJ100,UZJ100..5FC..ARL200208-200308

sub58111-6A471

sub86286-60040

main58111-6A471iHDJ100,UZJ100..5FC..ARL200308-200505

main58111-6A480iHDJ100,UZJ100..5FC..ARL200208-200308

W(REAR HEATER)

sub58111-6A481

sub86286-60040

main58111-6A481iHDJ100,UZJ100..5FC..ARL200308-200505

W(REAR HEATER)

main58111-6A490iHDJ100,UZJ100..5FC..ARL200208-200308

W(COOL BOX & REAR HEATER)

sub58111-6A491

sub86286-60040

main58111-6A491iHDJ100,UZJ100..5FC..ARL200308-200505

W(COOL BOX & REAR HEATER)

main58111-6A500iHDJ100,UZJ100..LHD..5FC200208-200308

W(COOL BOX)

sub58111-6A501

sub86286-60040

main58111-6A501iHDJ100,UZJ100..5FC..(GCC,GEN)200308-200505

W(COOL BOX)

main58111-6A510iHDJ100,UZJ100..LHD..5FC200208-200308

sub58111-6A511

sub86286-60040

main58111-6A511iHDJ100,UZJ100..5FC..(GCC,GEN)200308-200505

main58111-6A520iHDJ100,UZJ100..5FC..GEN200208-200308

W(COOL BOX & REAR HEATER)

sub58111-6A521

sub86286-60040

main58111-6A521iHDJ100,UZJ100..5FC..GEN200308-200505

W(COOL BOX & REAR HEATER)

main58111-6A521iUZJ100..5FC..CHI200309-200506

main58111-6A530iHDJ100,UZJ100..5FC..GEN200208-200308

W(REAR HEATER)

sub58111-6A531

sub86286-60040

main58111-6A531iHDJ100,UZJ100..5FC..GEN200308-200505

W(REAR HEATER)

main58111-6A540iUZJ100..5F..ARL200208-200308

W(COOL BOX)

sub58111-6A541

sub86286-60040

main58111-6A541iUZJ100..5F..ARL200308-200505

W(COOL BOX)

main58111-6A550iUZJ100..5F..ARL200208-200308

sub58111-6A551

sub86286-60040

main58111-6A551iUZJ100..5F..ARL200308-200605

main58111-6A560iUZJ100..5F..ARL200208-200308

W(COOL BOX & REAR HEATER)

sub58111-6A561

sub86286-60040

main58111-6A561iUZJ100..5F..ARL200308-200505

W(COOL BOX & REAR HEATER)

main58111-6A570iUZJ100..5F..ARL200208-200308

W(REAR HEATER)

sub58111-6A571

sub86286-60040

main58111-6A571iUZJ100..5F..ARL200308-200505

W(REAR HEATER)

main58111-6A600iFZJ100..4FC200208-200308

sub58111-6A601

sub86286-60040

main58111-6A601iFZJ100..4FC..GCC200308-200505

main58111-6A610iFZJ100..4FC200208-200308

W(COOL BOX)

sub58111-6A611

sub86286-60040

main58111-6A611iFZJ100..4FC..GCC200308-200505

W(COOL BOX)

main58111-6A620iFZJ100..LUB..4FC200211-200307

W(REAR HEATER)

main58111-6A630iFZJ100..LUB..4FC200211-200307

W(COOL BOX & REAR HEATER)

sub58111-6A631

sub86286-60040

main58111-6A631iFZJ100..4FC..CHI200309-200606

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-60040iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

58119CCUSHION, FRONT FLOOR

main58119-60050iHDJ100..ARL200008-200606

58136COVER, FRONT FLOOR HOLE

main58136-60020iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200001-200505

W(SIDE STEP)

main58136-60020iFZJ105..STD..ARL200001-200506

58191FOOTREST, FRONT FLOOR

main58190-60040iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)199801-200505

main58190-60050iFZJ10#,HDJ100,HZJ105,UZJ100..LHD199801-200208

main58190-60120iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)200208-200506

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200201

sub58193-60031

main58193-60031iFZJ10#,HDJ100,HZJ105,UZJ100200201-200506

58198ACLIP, FOOTREST, NO.1

main58198-20130iFZJ10#,HDJ100,HZJ105,UZJ100..LHD199801-200208

main58198-53050iFZJ100..CHI;UZJ100..5FC..CHI200208-200506

main58198-60020iFZJ105,HDJ100,HZJ105..RHD199801-200505

UPPER

main58198-60040iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)199801-200505

LOWER

58215HRETAINER, FRONT FLOOR

main58215-60020iFZJ10#,HDJ100,HZJ105,UZJ100199801-200308

sub58215-60021

main58215-60021iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200308-200506

58260COVER ASSY, TRANSMISSION, FRONT

main58260-60070iHZJ105..LHD..SOB..GEN199801-200505

58270COVER ASSY, TRANSMISSION, REAR

main58270-60080iHZJ105..LHD..SOB..GEN199801-200505

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-60110iHDJ100,UZJ100..RHD..5F199801-200505

W(FRONT SEPARATE SEAT)

main58280-60110iFZJ105,HDJ100,HZJ105,UZJ100..RHD..5F200008-200208

main58280-60120iFZJ100,UZJ100..5F..CHI200309-200506

main58280-60120iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105,UZJ100..LHD..5F199801-200505

W(FRONT SEPARATE SEAT)

main58280-60130iFZJ105,HZJ105..RHD..STD199801-200505

W(FRONT BENCH SEAT)

main58280-60140iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F199801-200505

W(FRONT BENCH SEAT)

58291BBOOT, TRANSFER SHIFT LEVER

main58290-60080iUZJ100..ARL199801-200506

58563PSILENCER, FRONT FLOOR

main58563-0G010iFZJ100,UZJ100..CHI200506

sub58563-60042

main58563-0G010iFZJ100..CHI;UZJ100..5FC..CHI200408-200506

(L)

sub58563-60042

main58563-60030iHDJ100..LUB199801-200204

sub58563-60031

main58563-60031iHDJ100..LUB200204-200505

main58563-60040iFZJ100,UZJ100..GX,VX199801-200204

sub58563-60041

main58563-60041iFZJ100,UZJ100..CHI200309-200412

(J)

sub58563-60042

main58563-60041iFZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200204-200411

sub58563-60042

main58563-60042iFZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200412-200505

main58563-60042iFZJ100..CHI;UZJ100..5FC..CHI200412-200506

(J)

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9011506166

main90115-06166

9011908594

main90119-08594

9011908863

main90119-08863

9017908017

main90179-08017

9026904008

main90269-04008

9046709030

main90467-09030

9056109013

main90561-09013

9056111004

main90561-11004

9090467035

main90904-67035

9095001398

main90950-01398

9095001758

main90950-01758

9095001824

main90950-01824

9095001826

main90950-01826

9095001923

main90950-01923

9095006060

main90950-06060

9162140614

main91621-40614

9163540618

main91635-40618

9163540620

main91635-40620

9356715018

main93567-15018

58 parts on this diagram · 1 diagram in section
