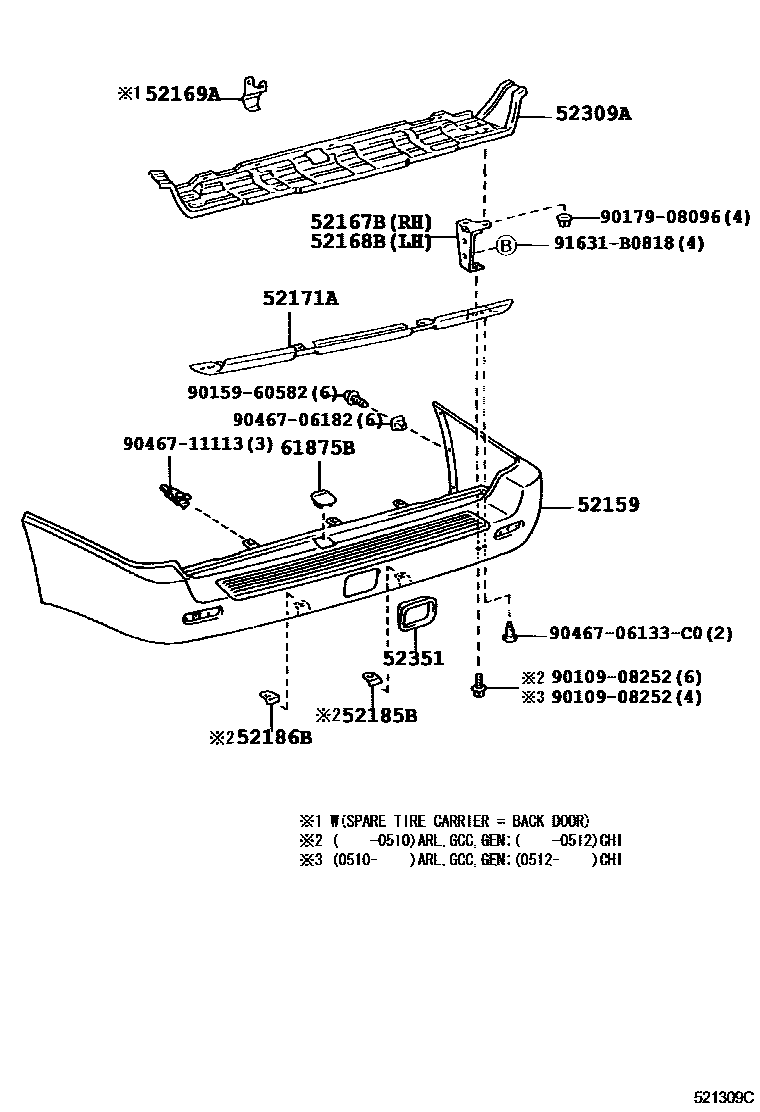

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-60110iFZJ10#,HZJ105..GCC,GEN199801-199808

sub52159-60111

main52159-60111iFZJ10#,HZJ105..GCC,GEN199808-200505

sub52159-6A917

main52159-60120iFZJ10#,HZJ105199801-199808

W(JACK HOLE)

sub52159-60121

main52159-60121iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN199808-200505

W(JACK HOLE)

sub52159-6A920

main52159-60150iFZJ10#,HZJ105..GCC,GEN199801-199808

W(PINTLE HOOK)

sub52159-60151

main52159-60151iFZJ10#,HZJ105..GCC,GEN199808-200505

W(PINTLE HOOK)

sub52159-6A921

main52159-60160iFZJ10#,HZJ105..GCC,GEN199801-199808

W(PINTLE HOOK & JACK HOLE)

sub52159-60161

main52159-60161iFZJ10#,HZJ105..GCC,GEN199808-200505

W(PINTLE HOOK & JACK HOLE)

sub52159-6A922

main52159-60902iUZJ100..LUB..4FC..GCC199801-199808

sub52159-60906

main52159-60903iHDJ100,UZJ100199801-199808

W(JACK HOLE)

sub52159-60907

main52159-60904iUZJ100..LUB..4FC..GCC199801-199808

W(PINTLE HOOK & SPARE TIRE CARRIER = BACK DOOR)

sub52159-60908

main52159-60905iUZJ100..LUB..4FC..GCC199801-199808

W(PINTLE HOOK)

sub52159-60909

main52159-60906iHDJ100,UZJ100..GCC,GEN199808-199908

sub52159-6A913

main52159-60906iHZJ105..GCC;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN)199907-200505

W(PAINTED BUMPER)

sub52159-6A913

main52159-60907iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..SOB..(GX,VX)199907-200505

W(PAINTED BUMPER & JACK HOLE)

sub52159-6A914

main52159-60907iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA),8J8

sub52159-6A914

main52159-60907iHDJ100,UZJ100199808-199908

W(JACK HOLE)

sub52159-6A914

main52159-60907iFZJ105,HZJ105..GX..ARL199904-199905

SNOWY EDITION(AUSTRALIA)

sub52159-6A914

main52159-60907iHDJ100..ARL200008-200208

sub52159-6A914

main52159-60908iUZJ100..5F..GCC199907-200505

W(PAINTED BUMPER & PINTLE HOOK)

sub52159-6A915

main52159-60908iHDJ100,UZJ100..GCC,GEN199808-200505

W(PINTLE HOOK)

sub52159-6A915

main52159-60909iUZJ100..5F..GCC199907-200505

W(PAINTED BUMPER & PINTLE HOOK & JACK HOLE)

sub52159-6A916

main52159-60909iUZJ100..5F..GCC199808-200505

W(PINTLE HOOK & JACK HOLE)

sub52159-6A916

main52159-60909iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

sub52159-6A916

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60030iUZJ100..ARL199801-200506

main52167-60040iFZJ105,HZJ105199801-200505

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60030iFZJ100,UZJ100..CHI199801-200506

main52168-60040iFZJ105,HZJ105199801-200505

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-60030iFZJ10#,HDJ100,HZJ105,UZJ100..SOB199801-200505

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199808-200512

main52171-60070iFZJ100,UZJ100..CHI200510

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60080iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200512

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60080iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200512

52309AREINFORCEMENT SUB-ASSY, BACK STEP

main52309-60010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

52351STEP, REAR BUMPER

main51775-60040iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-60020-A0iFZJ105..GEN;HZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN);FZJ10#..STD..(ARL,GCC)199801-200208

WHITE PM.,057

sub61875-60020

main61875-60020-A3iFZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC)200505

WHITE PEARL CS.,062

sub61875-60020

main61875-60020-B0iFZJ100..CHI;UZJ100..5FC..CHI200506

GRAY ME.,056 ,1B1 ,1F7

sub61875-60020

main61875-60020-B0iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

GRAY ME.,056 ,1D2 ,1F7 ,4R3

sub61875-60020

main61875-60020-B0iFZJ100,UZJ100..LUB..GCC200507-200512

LIMITED(G.C.C.),GRAY ME.,4Q8

sub61875-60020

main61875-60020-B0iUZJ100..5F..CHI200606

GRAY ME.,056 ,1B1

sub61875-60020

main61875-60020-B0iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200008-200505

GRAY ME.,1D2

sub61875-60020

main61875-60020-B1iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

GRAY ME.,8R3

sub61875-60020

main61875-60020-D0iFZJ100,HZJ105,UZJ100..GCC200408-200505

GRAYISH BLUE M.M.(G.C.C.),DK.GRAY ME.,8Q3

sub61875-60020

main61875-60020-D0iFZJ100..LUB..5F..GCC200208-200505

DK. GRAY M.,1A0 ,1E9 ,202 ,3Q2 ,6P2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-D0iFZJ100,UZJ100..CHI200506

DK. GRAY M.,202 ,6R4

sub61875-60020

main61875-60020-D0iFZJ100,UZJ100..LUB..GCC200607

LIMITED(G.C.C.),DK. GRAY M.,8K2

sub61875-60020

main61875-60020-D0iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4

sub61875-60020

main61875-60020-D0iHZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

DK. GRAY M.,1A0 ,1C0 ,1E3 ,1E9 ,202 ,3Q2 ,6P2 ,6R4

sub61875-60020

main61875-60020-D0iFZJ100,UZJ100..LUB..GCC200602-200606

LIMITED(G.C.C.),DK. GRAY M.,768

sub61875-60020

main61875-60020-D0iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

DK. GRAY M.,6Q7

sub61875-60020

main61875-60020-D0iFZJ100..LUB..5F..GCC200208-200505

DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-E0iHZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX199801-199909

LT. GRAYISH BEIGE ME,056 ,1B1

sub61875-60020

main61875-60020-E1iHZJ105..GX..(ARL,GCC);HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)199909-200506

LT.GRAYISH BEIGE ME.,056 ,1B1

sub61875-60020

main61875-60020-E1iHDJ100,UZJ100..VX..ARL200208-200505

LT.GRAYISH BEIGE ME.,056 ,1B1 ,4R3

sub61875-60020

main61875-60020-E1iFZJ100..LUB..5F200003-200208

LT.GRAYISH BEIGE ME.,056 ,1A0 ,1B1 ,6P2

sub61875-60020

main61875-60020-H0iFZJ105,HZJ105..GX..ARL199904-199905

SNOWY EDITION(AUSTRALIA),MEDIUM GRAY ME,049 ,8L6

sub61875-60020

main61875-60020-H0iHDJ100,UZJ100199801-199909

MEDIUM GRAY ME.,1C3 ,202 ,4E9 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H1iHDJ100,UZJ100199801-199909

DK. TAUPE ME.,3N2 ,4P3

sub61875-60020

main61875-60020-H2iHDJ100..VX..ARL200008-200208

MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,4E9 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iHDJ100..VX..ARL200008-200208

MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iFZJ100..4FC;FZJ100..SOB..5F..GX;HDJ100,UZJ100..GCC,GEN;FZJ105,HDJ100,HZJ105..GX..(ARL,GCC)200008-200208

MEDIUM GRAY ME.,1A0 ,1C3 ,202 ,3N2 ,4E9 ,6P2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iFZJ100..LUB..5F200003-200008

MEDIUM GRAY ME.,1A0 ,1C3 ,202 ,4E9 ,6P2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iFZJ100..4FC;HDJ100,UZJ100;FZJ100,HZJ105..SOB..5F..GX..GCC199909-200008

MEDIUM GRAY ME.,1C3 ,202 ,4E9 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H3iHZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX199909-200008

DK.TAUPE ME.,3N2 ,4P3

sub61875-60020

main61875-60020-J0iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA),LT.BLUE ME.,8J8

sub61875-60020

main61875-60030iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN199801-200505

UNPAINTED

9010908252

main90109-08252

9015960582

main90159-60582

9017908096

main90179-08096

9046706133C0

main90467-06133C0

9046706182

main90467-06182

9046711113

main90467-11113

91631B0818

main91631-B0818

17 parts on this diagram · 2 diagrams in section
