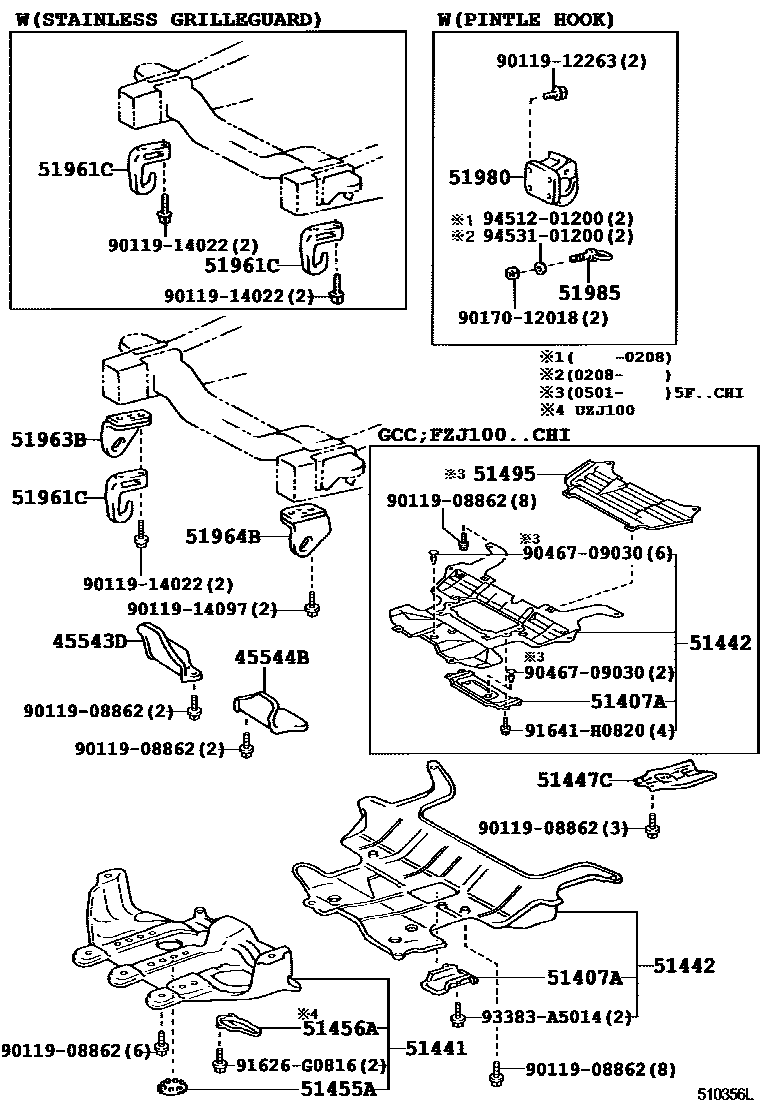

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60010iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60010iUZJ100..ARL199801-200506

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-60060iFZJ100..5F..CHI200501-200606

main51443-60170iUZJ100..CHI199801-200506

main51443-60180iFZJ100..4FC..CHI200309-200606

51441COVER, ENGINE UNDER, NO.1

main51410-60010iFZJ100,HDJ100..ARL,GCC,GEN199801-200606

sub51410-60030

main51410-60020iUZJ100..LHD199801-200506

main51410-60050iFZJ100..5F..CHI200501-200606

main51440-60040iHZJ105..LHD..SOB..GEN199801-200505

RUSSIA SPEC

main51441-60190iFZJ105,HZJ105..LHD199801-200505

main51441-60200iFZJ105,HZJ105..RHD199801-200505

51442COVER, ENGINE UNDER, NO.2

main51420-60010iHDJ100;UZJ100..5F..GEN;FZJ100,UZJ100..4FC199801-200506

main51420-60030iFZJ100,UZJ100..GCC199801-200606

main51420-60050iFZJ100..5F..CHI200501-200606

51447CPROTECTOR, TRANSFER CASE

main51447-60050iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-60060iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199909-200506

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-60060iUZJ100..ARL199909-200506

51495COVER, TRANSMISSION UNDER

main58260-60120iFZJ100..5F..CHI200501-200606

51961CHOOK, FRONT

main51961-60190iFZJ100..CHI;UZJ100..VX..CHI199801-200506

main51961-60190iFZJ100,HDJ100,UZJ100..GCC,GEN199808-200308

W(STAINLESS GRILLE GUARD)

main51961-60190iFZJ100,HDJ100,UZJ100..GCC,GEN200002-200505

W(WINCH)

main51967-60010iFZJ105,HZJ105199801-200505

W(WINCH)

main51967-60010iFZJ105,HZJ105200505

main51967-60020iFZJ105,HZJ105200002-200208

sub51967-60010

51963BHOOK, TRANSPORT, FRONT RH

main51963-60030iUZJ100..ARL199801-200506

51964BHOOK, TRANSPORT, FRONT LH

main51964-60030iUZJ100..ARL199801-200506

51980HOOK ASSY, PINTLE

main51980-60012iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN199801-200506

51985HOOK, EYELET PINTLE

main51985-60011iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN199801-200506

9011908862

main90119-08862

9011912263

main90119-12263

9011914022

main90119-14022

9011914097

main90119-14097

9017012018

main90170-12018

9046709030

main90467-09030

91626G0816

main91626-G0816

91641H0820

main91641-H0820

93383A5014

main93383-A5014

9451201200

main94512-01200

9453101200

main94531-01200

25 parts on this diagram · 2 diagrams in section
