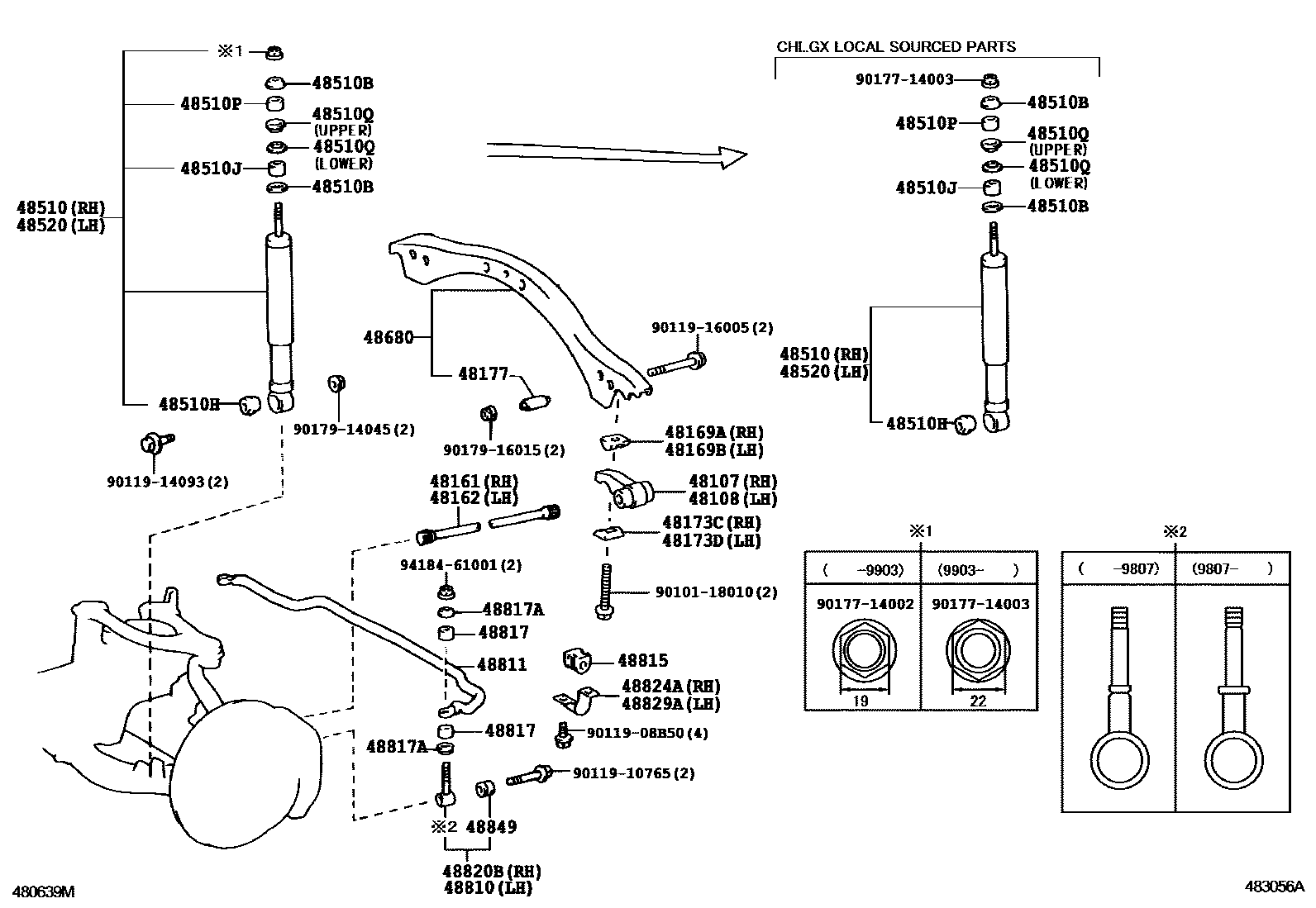

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1W(ACTIVE HEIGHT CONTROL) 0005 1 0006 1W(ACTIVE HEIGHT CONTROL) 0007 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-60010iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

48108ARM SUB-ASSY, ANCHOR, LH

main48108-60010iUZJ100..LHD;FZJ100,HDJ100199801-200506

48161SPRING, TORSION BAR, RH

main48161-60020iHDJ100..LUB..5F..GEN199801-200505

W(ACTIVE HEIGHT CONTROL & WINCH)

main48161-60030iUZJ100..GCC,GEN199801-200505

main48161-60040iUZJ100199801-200505

W(ACTIVE HEIGHT CONTROL)

main48161-60040iUZJ100..VX..CHI200309-200506

main48161-60060iUZJ100..LHD199801-200505

W(WINCH)

main48161-60060iUZJ100..GX..CHI200501-200506

main48161-60080iFZJ100,HDJ100..GCC,GEN199801-200505

main48161-60100iFZJ100..CHI200309-200606

main48161-60100iFZJ100,HDJ100..(4FC,5F)..(GCC,GEN)199801-200505

W(WINCH)

main48161-60120iHDJ100..LUB..GEN199801-200505

W(ACTIVE HEIGHT CONTROL)

main48161-60140iHDJ100..ARL200008-200505

main48161-60151iUZJ100..ARL200208-200505

48162SPRING, TORSION BAR, LH

main48162-60020iHDJ100..LUB..5F..GEN199801-200505

W(ACTIVE HEIGHT CONTROL & WINCH)

main48162-60030iUZJ100199801-200505

main48162-60040iUZJ100..VX..(ARL,GCC,GEN)199801-200505

W(ACTIVE HEIGHT CONTROL)

main48162-60040iUZJ100..VX..CHI200309-200506

main48162-60060iUZJ100..LHD199801-200505

W(WINCH)

main48162-60060iUZJ100..GX..CHI200501-200506

main48162-60080iFZJ100,HDJ100..GCC,GEN199801-200505

main48162-60100iFZJ100..CHI200309-200606

main48162-60100iFZJ100,HDJ100..GCC,GEN199801-200505

W(WINCH)

main48162-60120iHDJ100..LUB..GEN199801-200505

W(ACTIVE HEIGHT CONTROL)

main48162-60140iHDJ100..ARL200008-200505

main48162-60151iUZJ100..ARL200208-200505

48169ASWIVEL, ANCHOR ARM, RH

main48169-60010iUZJ100..LHD;FZJ100,HDJ100199801-200506

48169BSWIVEL, ANCHOR ARM, LH

main48169-60010iUZJ100..ARL199801-200506

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-60010iUZJ100..ARL199801-200506

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-60010iUZJ100..ARL199801-200506

48177BUSH, ANCHOR ARM BRACKET

main48177-60010iUZJ100..ARL199801-200506

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69126iUZJ100;HDJ100..LUB199801-199903

MARK 48510-60080,W(ACTIVE HEIGHT CONTROL)

main48510-69127iUZJ100..GCC,GEN;HDJ100..LUB..GEN199903-200505

MARK 48510-60081,W(ACTIVE HEIGHT CONTROL)

main48510-69127iUZJ100..VX..CHI200309-200506

MARK 48510-60081

main48510-69765iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)199903-200505

*731,W(ACTIVE HEIGHT CONTROL),FOR EGYPT

main48510-69765iUZJ100..VX..CHI200309-200506

*731,FOR EGYPT

main48510-80C45iUZJ100;HDJ100..LUB199801-199903

*730,W(ACTIVE HEIGHT CONTROL),FOR EGYPT

main48511-0G010iFZJ100,UZJ100..GX..CHI200506-200508

MARK 48511-0G010

sub48511-0G011

main48511-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

MARK 48511-0G010,LOCAL SOURCED PARTS

sub48511-0G011

main48511-0G011iFZJ100,UZJ100..GX..CHI200509-200604

MARK 48511-0G011

sub48511-0G012

main48511-0G012iFZJ100,UZJ100..GX..CHI200605

MARK 48511-0G012

sub48511-69585

main48511-69436iFZJ105,HZJ105199801-200411

MARK 48511-60481

sub48511-69535

main48511-69476iFZJ100,HDJ100,UZJ100199801-199903

MARK 48511-60510

sub48511-69477

main48511-69477iFZJ100,HDJ100,UZJ100..GCC,GEN199903-200411

MARK 48511-60510

sub48511-69525

main48511-69477iFZJ100..CHI200309-200412

MARK 48511-60510,JAPAN SOURCED PARTS

sub48511-69525

main48511-69515iHDJ100,UZJ100..ARL199907-200411

MARK 48511-60550

sub48511-69555

main48511-69525iFZJ100,HDJ100,UZJ100..GCC,GEN200411-200609

MARK 48511-60511

sub48511-69585

main48511-69525iFZJ100..CHI;UZJ100..5FC..GX..CHI200412-200506

MARK 48511-60511,JAPAN SOURCED PARTS

sub48511-69585

main48511-69535iFZJ105,HZJ105200411-200609

MARK 48511-60482

sub48511-69595

main48511-69555iHDJ100,UZJ100..GX..ARL200411-200609

MARK 48511-60551

sub48511-69615

main48511-69585iFZJ100,HDJ100,UZJ100..GCC,GEN200609

MARK 48511-60512

main48511-69595iFZJ105,HZJ105200609

MARK 48511-60483

main48511-69615iHDJ100,UZJ100..GX..ARL200609

MARK 48511-60552

sub48511-69585

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02141iFZJ105,HZJ105199801-200505

main90948-02171iUZJ100;HDJ100..LUB199801-199903

W(ACTIVE HEIGHT CONTROL)

main90948-02174iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

main90948-02183iUZJ100;HDJ100..LUB..GEN199903-200505

W(ACTIVE HEIGHT CONTROL)

main90948-02183iUZJ100..VX..CHI200309-200506

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90903-89016iUZJ100..ARL;HDJ100..SOB;FZJ100,HDJ100..ARL,GCC199801-200506

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90540-17006iFZJ100,UZJ100..GX..CHI199801-200506

main90540-17008iUZJ100;HDJ100..LUB199801-199903

W(ACTIVE HEIGHT CONTROL)

main90948-01004iFZJ105,HZJ105199801-200505

main90948-01075iUZJ100..GCC,GEN;HDJ100..LUB..GEN199903-200506

W(ACTIVE HEIGHT CONTROL)

main90948-01075iUZJ100..VX..CHI200506

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90540-17006iFZJ100..CHI;UZJ100..5FC..GX..CHI199801-200506

main90540-17007iUZJ100;HDJ100..LUB199801-199903

W(ACTIVE HEIGHT CONTROL)

main90948-01076iUZJ100..VX..CHI199903-200506

W(ACTIVE HEIGHT CONTROL)

main90948-01076iUZJ100..VX..CHI200506

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02175iFZJ100,HDJ100,UZJ100199801-199903

UPPER

main90948-02175iFZJ100,HDJ100,UZJ100199801-199903

W(ACTIVE HEIGHT CONTROL)

main90948-02176iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)199801-200506

LOWER

main90948-02182iUZJ100..LHD;FZJ100,HDJ100199903-200506

UPPER

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69126iUZJ100;HDJ100..LUB199801-199903

MARK 48510-60080,W(ACTIVE HEIGHT CONTROL)

main48510-69127iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)199903-200505

MARK 48510-60081,W(ACTIVE HEIGHT CONTROL)

main48510-69127iUZJ100..VX..CHI200309-200506

MARK 48510-60081

main48510-69765iUZJ100;HDJ100..LUB..GEN199903-200505

*731,W(ACTIVE HEIGHT CONTROL),FOR EGYPT

main48510-69765iUZJ100..VX..CHI200309-200506

*731,FOR EGYPT

main48510-80C45iUZJ100;HDJ100..LUB199801-199903

*730,W(ACTIVE HEIGHT CONTROL),FOR EGYPT

main48511-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

MARK 48511-0G010,LOCAL SOURCED PARTS

sub48511-0G011

main48511-0G010iFZJ100,UZJ100..GX..CHI200506-200508

MARK 48511-0G010

sub48511-0G011

main48511-0G011iFZJ100,UZJ100..GX..CHI200509-200604

MARK 48511-0G011

sub48511-0G012

main48511-0G012iFZJ100,UZJ100..GX..CHI200605

MARK 48511-0G012

sub48511-69585

main48511-69436iFZJ105,HZJ105199801-200411

MARK 48511-60481

sub48511-69535

main48511-69476iFZJ100,HDJ100,UZJ100199801-199903

MARK 48511-60510

sub48511-69477

main48511-69477iFZJ100,HDJ100,UZJ100199903-200411

MARK 48511-60510

sub48511-69525

main48511-69477iFZJ100..CHI200309-200412

MARK 48511-60510,JAPAN SOURCED PARTS

sub48511-69525

main48511-69515iHDJ100,UZJ100..ARL199907-200411

MARK 48511-60550

sub48511-69555

main48511-69525iFZJ100,HDJ100,UZJ100..GCC,GEN200411-200609

MARK 48511-60511

sub48511-69585

main48511-69525iFZJ100..CHI;UZJ100..5FC..GX..CHI200412-200506

MARK 48511-60511,JAPAN SOURCED PARTS

sub48511-69585

main48511-69535iFZJ105,HZJ105200411-200609

MARK 48511-60482

sub48511-69595

main48511-69555iHDJ100,UZJ100..GX..ARL200411-200609

MARK 48511-60551

sub48511-69615

main48511-69585iFZJ100,HDJ100,UZJ100..GCC,GEN200609

MARK 48511-60512

main48511-69595iFZJ105,HZJ105200609

MARK 48511-60483

main48511-69615iHDJ100,UZJ100..GX..ARL200609

MARK 48511-60552

sub48511-69585

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-60010iUZJ100..ARL,GCC,GEN199801-200506

main48680-60020iFZJ100,HDJ100199801-200606

48810LINK ASSY, FRONT STABILIZER, LH

main48820-60031iFZJ100,HDJ100,UZJ100199801-199807

sub48820-60032

sub90948-02180

main48820-60032iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199807-200506

48811BAR, STABILIZER, FRONT

main48804-60070iFZJ105,HZJ105199801-200505

main48811-0G010iFZJ100,UZJ100..CHI200506

sub48811-60180

main48811-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

sub48811-60180

main48811-60180iFZJ100,HDJ100,UZJ100199801-200505

main48811-60180iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(J)

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60111iUZJ100..ARL199801-200506

main48815-60160iFZJ105,HZJ105199801-200505

48817CUSHION, FRONT STABILIZER

main90948-01003iUZJ100..LHD;FZJ100,HDJ100199801-200506

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02002iFZJ100,HDJ100,UZJ100199801-199807

main90948-02180iUZJ100..ARL199807-200506

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60031iFZJ100,HDJ100,UZJ100199801-199807

sub48820-60032

sub90948-02180

main48820-60032iUZJ100..ARL199807-200506

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60070iFZJ105,HZJ105199801-200505

main48824-60100iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-60110iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

main48829-60050iFZJ105,HZJ105199801-200505

48849BUSH, STABILIZER LINK

main48849-60010iUZJ100..ARL199801-200506

9010118010

main90101-18010

9011908B50

main90119-08B50

9011910765

main90119-10765

9011914093

main90119-14093

9011916005

main90119-16005

9017714002

main90177-14002

9017714003

main90177-14003

9017914045

main90179-14045

9017916015

main90179-16015

9418461001

main94184-61001
