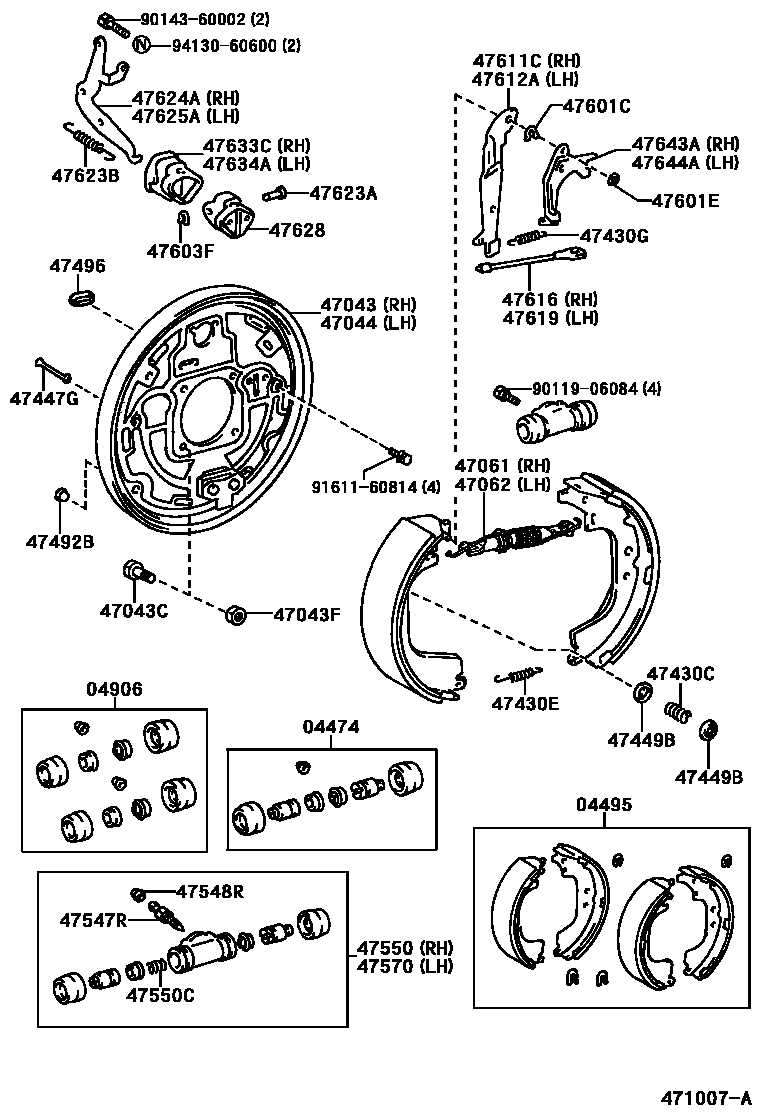

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-35100iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

04495SHOE KIT, REAR BRAKE

main04495-60060iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200208

MARK NBK LN508

sub04495-60070

main04495-60070iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN200208-200505

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60130iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12175iFZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200708

*12-1.25PX33-21

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-12119iFZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60080iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-60030iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-60020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200708

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-60120iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-60120iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

main90213-06013iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-35040iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-35040iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47616WIRE, PARKING BRAKE, RH

main47616-35030iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47619WIRE, PARKING BRAKE, LH

main47616-35030iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47624ACRANK, PARKING BRAKE BELL, RH

main47624-60010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47625ACRANK, PARKING BRAKE BELL, LH

main47625-60010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-35020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-35020iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-60010iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN199801-200505

9011906084

main90119-06084

9014360002

main90143-60002

9161160814

main91611-60814

9413060600

main94130-60600

41 parts on this diagram · 1 diagram in section
