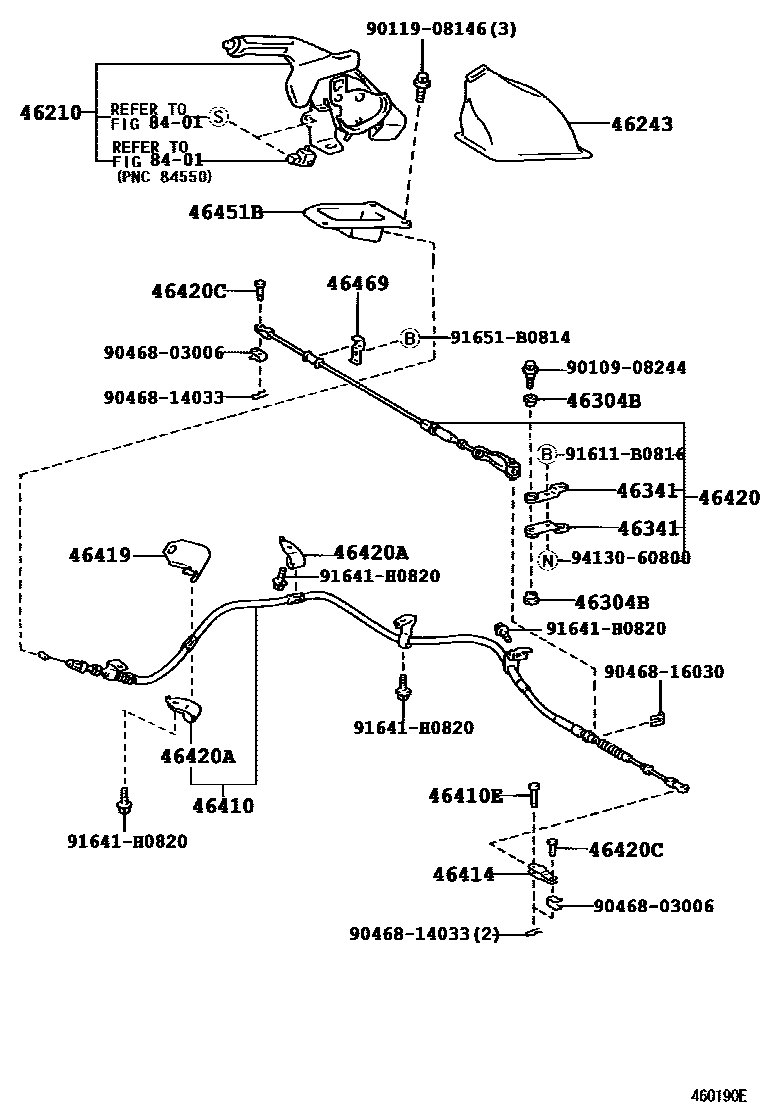

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

46210LEVER ASSY, PARKING BRAKE

main46210-60200-C0iFZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN199801-199907

BLACK,TRIM1#

sub46210-60201

main46210-60200-C0iFZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN199801-199907

BLACK,TRIM1#,4#

sub46210-60201

main46210-60201-C0iHZJ105..RHD..STD..GEN199907-200008

BLACK,TRIM1#

sub46210-60202

main46210-60201-C0iHZJ105..RHD..STD..GEN199907-200008

BLACK,TRIM1#,4#

sub46210-60202

main46210-60202-C0iHZJ105..RHD..STD..GEN200008-200708

BLACK,TRIM1#

main46210-60202-C0iFZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN200008-200208

BLACK,TRIM1#,4#

main46210-60202-C0iFZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN200208-200708

BLACK,TRIM0#,1#

main46210-60210-C0iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)199801-199907

BLACK,TRIM1#

sub46210-60211

main46210-60210-C0iFZJ10#,HZJ105..LHD..STD199801-199907

BLACK,TRIM1#,4#

sub46210-60211

main46210-60211-C0iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)199907-200008

BLACK,TRIM1#

sub46210-60212

main46210-60211-C0iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)199907-200008

BLACK,TRIM1#,4#

sub46210-60212

main46210-60212-C0iFZJ100,UZJ100..CHI200309-200506

BLACK,TRIM0#

main46210-60212-C0iFZJ10#,HZJ105..LHD..STD200008-200708

BLACK,TRIM1#

main46210-60212-C0iFZJ10#,HZJ105..LHD..STD200008-200208

BLACK,TRIM1#,4#

main46210-60212-C0iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN)200208-200708

BLACK,TRIM0#,1#

main46210-60220-C0iUZJ100..ARL199801-199907

BLACK,TRIM1#,4#

sub46210-60221

main46210-60220-C0iUZJ100..ARL199801-199907

BLACK,TRIM1#

sub46210-60221

main46210-60220-C0iFZJ105,HZJ105..GX..ARL199801-199907

BLACK,TRIM1#,40,41

sub46210-60221

main46210-60221-C0iFZJ105,HDJ100,HZJ105..LUB..ARL199907-200708

BLACK,TRIM1#

main46210-60221-C0iFZJ105,HDJ100,HZJ105..LUB..ARL199907-200208

BLACK,TRIM1#,4#

main46210-60221-C0iUZJ100..ARL199907-200008

BLACK,TRIM1#,40,41

main46210-60221-C0iHZJ105..STD..ARL200208-200708

BLACK,TRIM0#,1#

46243COVER, PARKING BRAKE LEVER

main46243-60080iFZJ100..5F;HZJ105..STD;HZJ105..LHD..GX;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-200505

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12012iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

46341EQUALIZER, PARKING BRAKE

main46341-35030iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0G010iFZJ100,UZJ100..CHI200506

sub46410-60711

main46410-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

sub46410-60711

main46410-60700iHDJ100..RHD199801-199907

sub46410-60701

main46410-60701iHDJ100..RHD199907-200505

main46410-60710iFZJ100,HDJ100,UZJ100..LHD199801-199907

sub46410-60711

main46410-60711iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN)199907-200505

main46410-60711iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(J)

main46410-60720iUZJ100..ARL199801-199907

sub46410-60721

main46410-60721iUZJ100..ARL199907-200505

main46410-60730iFZJ105,HZJ105..RHD199801-200505

W(REAR DISC BRAKE)

main46410-60740iFZJ105,HZJ105..LHD199801-200505

main46410-60750iHZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN199801-200505

main46410-60760iFZJ105,HZJ105..LHD199801-200505

W(REAR DISC BRAKE)

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-08061iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

46414CLEVIS, PARKING CABLE

main46414-60010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

46419PROTECTOR, PARKING BRAKE CABLE DIFFERENTIAL

main46419-60020iFZJ10#,HDJ100,HZJ105,UZJ100..LHD199801-200506

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

sub46420-60011

main46420-0G010iFZJ100,UZJ100..CHI200506

sub46420-60011

main46420-60010iFZJ100,HDJ100,UZJ100199801-199903

W(REAR DISC BRAKE)

main46420-60011iHDJ100..ARL200008-200208

main46420-60011iFZJ100,HDJ100,UZJ100..EFI,TD2199903-200505

W(REAR DISC BRAKE)

main46420-60011iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(J)

main46420-60030iFZJ105,HZJ105..GCC,GEN199801-200505

main46420-60050iFZJ100,HDJ100,UZJ100..GCC,GEN199801-199903

main46420-60051iFZJ100,HDJ100,UZJ100..GCC,GEN199903-200505

main46420-60060iFZJ105,HZJ105199801-200505

W(REAR DISC BRAKE)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B47iFZJ100..CHI;UZJ100..5FC..CHI200008-200506

main90949-01B47iFZJ10#,HZJ105;HDJ100,UZJ100..LHD199801-200208

W(REAR DISC BRAKE)

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059iFZJ100,UZJ100..CHI199801-200506

46451BRACKET, CABLE SUPPORT

main46451-60190iUZJ100..ARL199907-200506

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-60170iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main46452-60090iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200506

46469LEVER, CABLE GUIDE SUPPORT

main46469-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200505

main46469-60040iUZJ100..ARL199903-200506

8401

9010908244

main90109-08244

9011908146

main90119-08146

9046803006

main90468-03006

9046814033

main90468-14033

9046816030

main90468-16030

91611B0816

main91611-B0816

91641H0820

main91641-H0820

91651B0814

main91651-B0814

9413060800

main94130-60800

24 parts on this diagram · 6 diagrams in section
