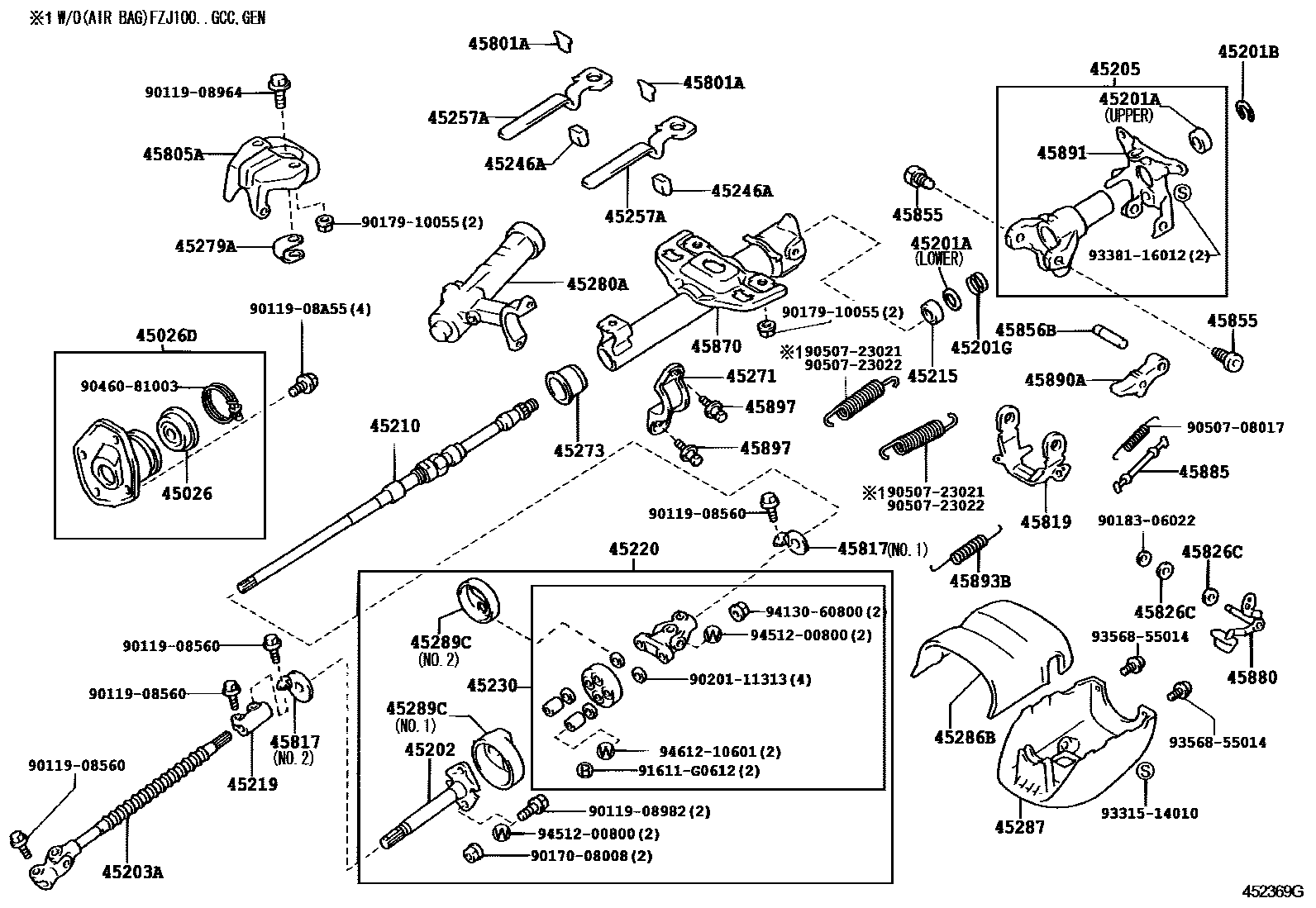

STEERING COLUMN & SHAFT

0001 1MANUAL TILT STEERING 0002 1POWER TILT STEERING 0003 1POWER TILT STEERING 0004 1 0005 1POWER TILT STEERING & W(VGRS)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60010iFZJ100,HDJ100,UZJ100199801-200506

main45026-60020iFZJ100,UZJ100..GCC199903-200505

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-60090iHDJ100..RHD..5F;HDJ100..5FC..GX;UZJ100..GX..ARL199801-200505

main45025-60100iHDJ100,UZJ100..LHD..GEN199801-200506

main45025-60110iFZJ105,HZJ105..RHD199801-200505

main45025-60120iFZJ105,HZJ105..LHD199801-200505

main45025-60130iFZJ100,UZJ100..GCC199903-200505

main45025-60140iHDJ100,UZJ100..VX..ARL200505

W(*VGRS)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main90363-18005iUZJ100..VX..CHI199801-200506

LOWER

main90363-18005iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200505

W(POWER TILT STEERING),LOWER

main90363-18009iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

UPPER

main90363-18012iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200311-200506

LOWER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main45263-60040iHDJ100,UZJ100..VX..ARL200505-200708

T=0.5,W(POWER TILT STEERING) & W(*VGRS),LOWER

main90520-17042iUZJ100..ARL199801-200708

T=1.20,W(POWER TILT STEERING),UPPER

main90520-17042iFZJ105..STD..ARL199801-200708

T=1.20

main90905-20003iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200505

T=0.5,W(POWER TILT STEERING) & W/O(*VGRS),LOWER

main90905-20003iHDJ100,UZJ100..5FC..GX..ARL200404

T=0.5,KAKADO(AUSTRALIA)

main90905-20003iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)199801-200506

T=0.5,W(POWER TILT STEERING),LOWER

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-60100iUZJ100..ARL199801-200506

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60090iFZJ100,UZJ100..CHI199801-200506

main45203-60100iFZJ105,HZJ105199801-200505

main45203-60110iHDJ100,UZJ100..VX..ARL200505

W(*VGRS)

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60170iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

45210SHAFT ASSY, STEERING MAIN

main45210-60090iFZJ10#,HDJ100,HZJ105,UZJ100199801-200212

W(MANUAL TILT STEERING)

sub45210-60091

main45210-60091iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200212-200505

W(MANUAL TILT STEERING)

main45210-60091iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

main45210-60100iUZJ100;HDJ100..LUB..GEN199801-200201

W(POWER TILT STEERING)

sub45210-60101

main45210-60101iUZJ100..VX..CHI200309-200506

main45210-60101iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main45210-60101iUZJ100;HDJ100..LUB..GEN200201-200708

W(POWER TILT STEERING)

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

main45215-12010iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

45219YOKE, STEERING SLIDING

main45219-60080iUZJ100..LHD;FZJ100,HDJ100199801-200506

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60110iHDJ100,UZJ100..ARL,GEN199801-200506

main45220-60130iFZJ100,UZJ100..GCC199902-200505

main45220-60201iHDJ100,UZJ100..VX..ARL200505-200701

W(*VGRS)

sub45220-60202

main45220-60202iHDJ100,UZJ100..VX..ARL200702

W(*VGRS)

45230COUPLING ASSY, FLEXIBLE

main45230-60010iFZJ105,HZJ105199801-200505

main45230-60030iHDJ100..5F;HDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN199801-200506

main45230-60050iFZJ100,UZJ100..GCC199902-200505

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110iUZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2200006-200311

W(MANUAL TILT STEERING)

main45246-12110iFZJ10#,HDJ100,HZJ105,UZJ100199801-200006

main45246-50040iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200311-200506

main45246-50040iUZJ100..ARL200006-200311

W(POWER TILT STEERING)

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iFZJ105,UZJ100..(STD,VX)..ARL199801-200505

W(MANUAL TILT STEERING)

main45271-12060iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

main45271-60030iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main45271-60030iUZJ100..LHD;HDJ100..LUB..GEN199801-200505

W(POWER TILT STEERING)

main45271-60030iUZJ100..VX..CHI200309-200506

45273BUSH, STEERING MAIN SHAFT

main45273-33030iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45279AATTACHMENT, STEERING COLUMN TUBE, LWR

main45279-33030iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60470iFZJ10#,HZJ105199801-200208

sub45280-60480

main45280-60480iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

W(*80 & MANUAL TILT STEERING)

main45280-60500iUZJ100;HDJ100..LUB..GEN199801-200208

W(POWER TILT STEERING)

main45280-60580iFZJ100..4FC..CHI200309-200506

sub45280-60590

main45280-60580iFZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)200208-200505

W(MANUAL TILT STEERING)

sub45280-60590

main45280-60590iHDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..ATM..GX..(ARL,GCC)200407-200505

W(MANUAL TILT STEERING)

main45280-60590iFZJ100,UZJ100..ATM..GX..CHI200501-200506

main45280-60600iUZJ100..5F..GCC;HDJ100..LUB..5F..GEN200208-200505

W(POWER TILT STEERING)

sub45280-60610

main45280-60600iUZJ100..CHI200309-200501

sub45280-60610

main45280-60610iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main45280-60610iHDJ100,UZJ100..5FC..VX..(ARL,GCC,GEN)200407-200505

W(POWER TILT STEERING)

main45280-60610iUZJ100..VX..CHI200501-200506

45286BCOVER, STEERING COLUMN, UPR

main45286-60340-B0iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

SHADOW GRAY,TRIM1#

sub45286-60340

main45286-60340-B1iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

DK.GRAY,TRIM1#

sub45286-60340

main45286-60340-E0iUZJ100..ARL199801-200008

OAK,TRIM40,41

sub45286-60340

main45286-60340-E0iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-200208

OAK,TRIM4#

sub45286-60340

main45286-60340-E1iFZJ100..CHI;UZJ100..5FC..CHI200208-200506

SANDAL WOOD,TRIM0#

sub45286-60340

45287COVER, STEERING COLUMN, LWR

main45287-60330-B0iFZJ10#,HDJ100,HZJ105,UZJ100199801-200202

W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60331

main45287-60330-E0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200202

W(MANUAL TILT STEERING),OAK,TRIM4#

sub45287-60331

main45287-60331-B0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI200202-200208

W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60331

main45287-60331-B0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI200202-200208

W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#,40

sub45287-60331

main45287-60331-B1iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

W(MANUAL TILT STEERING),DK.GRAY,TRIM1#

sub45287-60331

main45287-60331-E0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)200202-200208

W(MANUAL TILT STEERING),OAK,TRIM4#

sub45287-60331

main45287-60331-E0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)200202-200208

W(MANUAL TILT STEERING),OAK,TRIM41

sub45287-60331

main45287-60331-E1iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200505

W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0#

sub45287-60331

main45287-60331-E1iFZJ100,UZJ100..GX..CHI200309-200506

SANDAL WOOD,TRIM0#

sub45287-60331

main45287-60340-B0iUZJ100;HDJ100..LUB..GEN199801-200202

W(POWER TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-60341

main45287-60340-E0iUZJ100;HDJ100..LUB..GEN199801-200202

W(POWER TILT STEERING),OAK,TRIM4#

sub45287-60341

main45287-60341iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main45287-60341-B0iUZJ100;HDJ100..LUB..GEN200202-200208

W(POWER TILT STEERING),SHADOW GRAY,TRIM1#,41

sub45287-60341

main45287-60341-B1iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200208-200505

W(POWER TILT STEERING),DK.GRAY,TRIM1#

sub45287-60341

main45287-60341-E0iUZJ100;HDJ100..LUB..GEN200202-200208

W(POWER TILT STEERING),OAK,TRIM40

sub45287-60341

main45287-60341-E1iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200208-200505

W(POWER TILT STEERING),SANDAL WOOD,TRIM0#

sub45287-60341

main45287-60341-E1iUZJ100..VX..CHI200309-200506

SANDAL WOOD,TRIM0#

sub45287-60341

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-60020iUZJ100..LHD;FZJ100,HDJ100199801-200506

NO.1

main45289-60030iFZJ100,HDJ100,UZJ100199801-199806

NO.2

sub45289-60031

main45289-60031iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)199806-200506

NO.2

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-60010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

main45805-60020iHDJ100,UZJ100..VX..ARL200505-200708

W(*VGRS)

45817STOPPER, STEERING SHAFT THRUST

main45808-60010iHDJ100,UZJ100..VX..ARL200505-200708

W(*VGRS),NO.2

main45817-60020iFZJ105,HZJ105199801-200208

NO.1 & NO.2

main45817-60020iFZJ105,HZJ105200208-200708

NO.1

main45817-60040iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200208-200708

NO.2

45819RETAINER, TILT LEVER

main45819-60010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45826CBUSH(FOR STEERING TILT LEVER)

main90389-08120iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45855BOLT, TILT STEERING, NO.1

main45855-35010iFZJ100..CHI;UZJ100..5FC..GX..CHI199801-200506

OD=10

main45855-60010iUZJ100..VX..CHI199801-200506

OD=11.993-11.979

main45855-60010iHDJ100,UZJ100..5FC..GX..ARL200404

OD=11.993-11.979,KAKADO(AUSTRALIA)

45856BSHAFT, T1LT STEERING, NO.2

main45856-42010iFZJ105,UZJ100..(STD,VX)..ARL199801-200505

W(MANUAL TILT STEERING)

main45856-42010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

main45856-60010iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

main45856-60010iUZJ100..VX..CHI200309-200506

main45856-60010iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)199801-200505

W(POWER TILT STEERING)

45870TUBE ASSY, STEERING COLUMN

main45870-60130iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

main45870-60130iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

W(MANUAL TILT STEERING)

main45870-60130iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

W(AIR BAG)

main45870-60150iFZJ10#,HZJ105199801-200505

main45870-60160iUZJ100..VX..CHI199801-200506

main45870-60160iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200208-200505

W(POWER TILT STEERING)

main45870-60160iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

45880LEVER ASSY, STEERING TILT

main45880-60030iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45885LINK, TILT LEVER

main45885-35010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45890APAWL ASSY, TILT STEERING

main45890-35010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

45891BRACKET, TURN SIGNAL

main45891-60030iFZJ105,UZJ100..(STD,VX)..ARL199801-200505

W(MANUAL TILT STEERING)

main45891-60030iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

main45891-60040iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)199801-200505

W(POWER TILT STEERING)

main45891-60040iUZJ100..VX..CHI200309-200506

main45891-60040iHDJ100,UZJ100..5FC..GX..ARL200404

KAKADO(AUSTRALIA)

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90905-07013iFZJ100..CHI;UZJ100..5FC..GX..CHI199801-200506

45897BOLT, STEERING LOCK SET

main45897-12020iFZJ100..CHI;UZJ100..5FC..CHI199812-200506

main45897-60010iFZJ10#,HDJ100,HZJ105,UZJ100199801-199812

sub45897-12020

9011908560

main90119-08560

9011908964

main90119-08964

9011908982

main90119-08982

9011908A55

main90119-08A55

9017008008

main90170-08008

9017910055

main90179-10055

9018306022

main90183-06022

9020111313

main90201-11313

9046081003

main90460-81003

9050708017

main90507-08017

9050723021

main90507-23021

9050723022

main90507-23022

91611G0612

main91611-G0612

9331514010

main93315-14010

9338116012

main93381-16012

9356855014

main93568-55014

9413060800

main94130-60800

9451200800

main94512-00800

9461210601

main94612-10601

55 parts on this diagram · 5 diagrams in section
