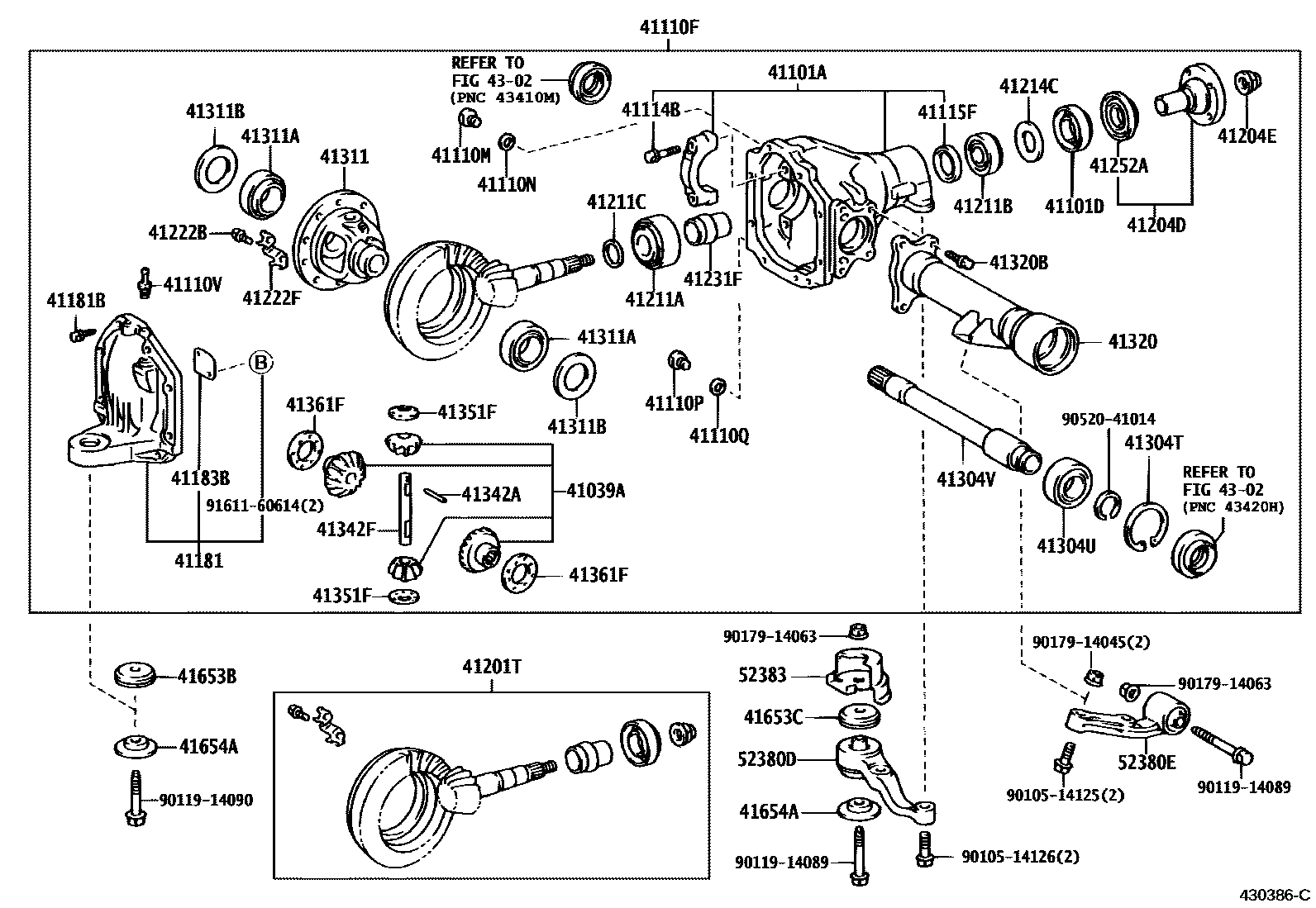

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1W(REAR DIFFERENTIAL LOCK) 0005 1W(REAR DIFFERENTIAL LOCK) 0006 1 0007 1

41039AGEAR KIT, DIFFERENTIAL

main41039-22010iFZJ100,HDJ100,UZJ100199801-199908

main41039-34020iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200005-200506

main41039-34060iFZJ105,HZJ105..ARL,GEN200005-200505

W(REAR DIFFERENTIAL LOCK)

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-60090iFZJ105,HZJ105199801-200708

sub41101-60091

main41101-60110iFZJ105,HZJ105..ARL,GEN199801-200208

W(REAR DIFFERENTIAL LOCK)

sub41102-60010

main41101-60170iUZJ100..LHD;FZJ100,HDJ100199801-200708

main41102-60010iFZJ105,HZJ105..ARL,GEN200208-200707

W(REAR DIFFERENTIAL LOCK)

sub41102-60011

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38047iFZJ105,HZJ105199801-200201

main90311-38066iFZJ100,HDJ100,UZJ100199801-200201

main90311-41009iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200201-200506

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-60801iUZJ100..5FC..CHI200008-200708

*FGR=41:10=4.100

main41110-60811iHDJ100..5FC200208-200708

*FGR=43:11=3.909

main41110-60820iHDJ100;FZJ100,UZJ100..4FC199801-199908

*FGR=43:10=4.300

sub41110-60821

main41110-60821iHDJ100..GEN;FZJ100,UZJ100..LHD..4FC199908-200708

*FGR=43:10=4.300

sub41110-6A171

main41110-60830iHZJ105199801-200708

*FGR=43:10=4.300

sub41110-60831

main41110-60840iHZJ105..ARL,GEN199801-200708

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41110-60841

main41110-6A150iFZJ105199801-200708

*FGR=43:10=4.300

sub41110-6A151

main41110-6A160iFZJ105199801-200708

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41110-6A161

main41110-6A170iFZJ100,UZJ100..5F199801-199908

*FGR=43:10=4.300

sub41110-6A171

main41110-6A171iFZJ100,UZJ100..5F199908-200708

*FGR=43:10=4.300

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iUZJ100..ARL199801-200506

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iUZJ100..ARL199801-200506

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-18035iUZJ100..LHD;FZJ100,HDJ100199801-200506

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main12157-10010iUZJ100..LHD;FZJ100,HDJ100199801-200506

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-51077iUZJ100..LHD;FZJ100,HDJ100199801-200506

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iFZJ105,HZJ105199801-200505

main90105-12164iFZJ100,UZJ100..CHI199801-200506

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-35010iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

main41115-35010iUZJ100..LHD;FZJ100,HDJ100199801-200208

W(REAR DIFFERENTIAL LOCK)

main41115-60010iFZJ105,HZJ105199801-200208

sub41115-35010

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-60010iFZJ100,UZJ100..CHI199801-200511

sub41108-60011

main41108-60011iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200511

41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)

main90105-10117iFZJ100,HDJ100,UZJ100199801-200208

*10-1.25PX26-17

sub90105-10417

main90105-10264iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

*10-1.25PX40-30

main90105-10417iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200208-200506

*10-1.25PX26-17

41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER

main41183-60010iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-69795iHDJ100..5FC200505

*FGR=43:11=3.909

main41201-69805iHDJ100..5F;UZJ100..5FC..(ARL,GCC,GEN)200505

*FGR=41:10=4.100

main41201-69815iHZJ105;FZJ100..4FC..GCC200508-200606

*FGR=43:10=4.300

main41201-69825iFZJ10#,UZJ100..5F..(ARL,GCC,GEN)200508-200606

*FGR=43:10=4.300

main41201-80127iHDJ100..GEN;FZJ100,UZJ100..4FC199801-200201

*FGR=43:10=4.300

sub41201-80170

sub41204-60041

sub41214-26011

main41201-80129iHDJ100..ARL200008-200201

*FGR=41:10=4.100

sub41201-80169

sub41204-60041

sub41214-26011

main41201-80130iHZJ105199801-200201

*FGR=43:10=4.300

sub41201-80172

sub41204-35081

sub41214-60011

main41201-80131iHZJ105..ARL,GEN199801-200201

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41201-80172

sub41204-35081

sub41214-60011

main41201-80137iFZJ105199801-200201

*FGR=43:10=4.300

sub41201-80171

sub41204-35081

sub41214-60011

main41201-80138iFZJ105199801-200201

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41201-80175

sub41204-35081

sub41214-60011

main41201-80140iFZJ100,UZJ100..5F199801-200201

*FGR=43:10=4.300

sub41201-80171

sub41204-60041

sub41214-26011

main41201-80168iHDJ100..5FC200208-200505

*FGR=43:11=3.909

sub41201-69795

main41201-80169iUZJ100..CHI200201-200508

*FGR=41:10=4.100

sub41201-69805

main41201-80170iFZJ100..4FC..CHI200201-200508

*FGR=43:10=4.300

sub41201-69815

main41201-80171iFZJ105;FZJ100,UZJ100..5F200201-200508

*FGR=43:10=4.300

sub41201-69825

main41201-80172iHZJ105200201-200505

*FGR=43:10=4.300

sub41201-69815

main41201-80175iFZJ105200201-200508

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

sub41201-80469

main41201-80469iFZJ105200508

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

main41201-80470iHZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN)200508

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

main41201-80471iHZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN)200505-200508

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35080iFZJ105,HZJ105..ARL,GEN199801-200201

W(REAR DIFFERENTIAL LOCK)

main41204-35081iFZJ105,HZJ105200201-200405

sub41204-35082

main41204-35082iFZJ105,HZJ105200405-200505

main41204-60040iFZJ100,HDJ100,UZJ100199801-200201

main41204-60041iFZJ100,HDJ100,UZJ100200201-200506

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90177-22003iFZJ10#,HDJ100,HZJ105,UZJ100200201-200506

main90179-20018iFZJ10#,HDJ100,HZJ105,UZJ100199801-200201

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35087iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30067iUZJ100..ARL199801-200506

41211CGEAR, DIFFERENTIAL RING

main90201-35497iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

OD=47,T=1.70

main90201-35498iFZJ100,UZJ100..CHI199801-200506

OD=47,T=1.73

main90201-35499iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

OD=47,T=1.76

main90201-35500iFZJ100,UZJ100..CHI199801-200506

OD=47,T=1.79

main90201-35501iFZJ100,UZJ100..CHI199801-200506

OD=47,T=1.82

main90201-35502iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

OD=47,T=1.85

main90201-35503iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

OD=47,T=1.88

main90201-35504iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

OD=47,T=1.91

main90201-35505iFZJ100,UZJ100..CHI199801-200506

OD=47,T=1.94

main90201-35506iFZJ100,UZJ100..CHI199801-200506

OD=47,T=1.97

main90201-35507iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

OD=47,T=2.00

main90201-35508iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

OD=47,T=2.03

main90201-35509iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

OD=47,T=2.06

main90201-35510iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

OD=47,T=2.09

main90201-35511iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

OD=47,T=2.12

main90201-35512iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

OD=47,T=2.15

main90201-35513iFZJ100,UZJ100..CHI199801-200506

OD=47,T=2.18

main90201-35514iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

OD=47,T=2.21

main90201-35515iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

OD=47,T=2.24,MARK 01

main90201-35516iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

OD=47,T=2.27,MARK 02

main90201-35517iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

OD=47,T=2.30,MARK 03

main90201-35518iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

OD=47,T=2.33,MARK 04

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26010iFZJ100,HDJ100,UZJ100199801-200201

main41214-26011iFZJ100..CHI;UZJ100..5FC..CHI200201-200506

main41214-60010iFZJ105,HZJ105199801-200201

main41214-60011iFZJ105,HZJ105200201-200505

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010iFZJ100,HDJ100,UZJ100199801-200007

main41222-35020iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

main41222-60010iFZJ105,HZJ105..ARL,GEN199801-200505

W(REAR DIFFERENTIAL LOCK)

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35040iHZJ105..GCC199801-200201

W(REAR DIFFERENTIAL LOCK)

main41252-35041iFZJ105,HZJ105200201-200505

main41252-60010iFZJ100,HDJ100,UZJ100199801-200201

main41252-60011iFZJ100,UZJ100..CHI200201-200506

41304TRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT LH)

main90520-75002iUZJ100..CHI199805-200709

main90521-86002iFZJ100,HDJ100,UZJ100199801-199805

sub90520-75002

41304UBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH)

main90363-43001iUZJ100..ARL199801-200709

41304VSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41337-60010iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200709

41311CASE, FRONT DIFFERENTIAL

main41301-60060iFZJ105,HZJ105..ARL,GEN199801-200505

W(REAR DIFFERENTIAL LOCK)

sub41301-60061

main41311-22080iFZJ100,HDJ100,UZJ100199801-199908

main41311-60060iFZJ105,HZJ105199801-200505

sub41311-60061

sub90105-11063

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-50001iUZJ100..ARL199801-200506

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-52001iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

T=2.58,MARK 01

main90201-52003iUZJ100..ARL199801-200506

T=2.64,MARK 03

main90201-52005iUZJ100..ARL199801-200506

T=2.70,MARK 05

main90201-52007iFZJ100,UZJ100..CHI199801-200506

T=2.76,MARK 07

main90201-52009iUZJ100..LHD;FZJ100,HDJ100199801-200506

T=2.82,MARK 09

main90201-52011iUZJ100..ARL199801-200506

T=2.88,MARK 11

main90201-52013iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.94,MARK 13

main90201-52015iUZJ100..ARL199801-200506

T=3.00,MARK 15

main90201-52017iFZJ100,UZJ100..CHI199801-200506

T=3.06,MARK 17

main90201-52019iUZJ100..ARL199801-200506

T=3.12,MARK 19

main90201-52021iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

T=3.18,MARK 21

main90201-52023iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=3.24,MARK 23

main90201-52025iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=3.30,MARK 25

main90201-52027iUZJ100..LHD;FZJ100,HDJ100199801-200406

T=3.36,MARK 27

main90201-52029iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200406

T=3.42,MARK 29

main90201-52031iUZJ100..LHD;FZJ100,HDJ100199801-200406

T=3.48,MARK 31

main90564-46014iFZJ100,UZJ100..CHI199801-200506

T=2.60,MARK 32

main90564-46015iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.62,MARK 33

main90564-46016iUZJ100..ARL199801-200506

T=2.66,MARK 34

main90564-46017iFZJ100,UZJ100..CHI199801-200506

T=2.68,MARK 35

main90564-46018iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.72,MARK 36

main90564-46019iUZJ100..ARL199801-200506

T=2.74,MARK 37

main90564-46020iUZJ100..ARL199801-200506

T=2.78,MARK 38

main90564-46021iUZJ100..ARL199801-200506

T=2.80,MARK 39

main90564-46022iUZJ100..LHD;FZJ100,HDJ100199801-200506

T=2.84,MARK 40

main90564-46023iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.86,MARK 41

main90564-46024iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.90,MARK 42

main90564-46025iUZJ100..LHD;FZJ100,HDJ100199801-200506

T=2.92,MARK 43

main90564-46026iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=2.96,MARK 44

main90564-46027iUZJ100..LHD;FZJ100,HDJ100199801-200506

T=2.98,MARK 45

main90564-46028iUZJ100..ARL199801-200506

T=3.02,MARK 46

main90564-46029iFZJ100,UZJ100..CHI199801-200506

T=3.04,MARK 47

main90564-46030iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

T=3.08,MARK 48

main90564-46031iFZJ100,UZJ100..CHI199801-200506

T=3.10,MARK 49

main90564-46032iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=3.14,MARK 50

main90564-46033iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=3.16,MARK 51

main90564-46034iFZJ100,UZJ100..CHI199801-200506

T=3.20,MARK 52

main90564-46035iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

T=3.22,MARK 53

main90564-46036iUZJ100..ARL199801-200506

T=3.26,MARK 54

main90564-46037iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

T=3.28,MARK 55

main90564-46038iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

T=3.32,MARK 56

main90564-46039iUZJ100..LHD;FZJ100,HDJ100199801-200406

T=3.34,MARK 57

main90564-46040iUZJ100..ARL199801-200406

T=3.38,MARK 58

main90564-46041iFZJ100,UZJ100..CHI199801-200406

T=3.40,MARK 59

main90564-46042iUZJ100..LHD;FZJ100,HDJ100199801-200406

T=3.44,MARK 60

main90564-46043iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200406

T=3.46,MARK 61

main90564-46044iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200406-200506

T=2.42,MARK 62

main90564-46045iFZJ100,UZJ100..CHI200406-200506

T=2.44,MARK 63

main90564-46046iFZJ100,UZJ100..CHI200406-200506

T=2.46,MARK 64

main90564-46047iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200406-200506

T=2.48,MARK 65

main90564-46048iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200406-200506

T=2.50,MARK 66

main90564-46049iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200406-200506

T=2.52,MARK 67

main90564-46050iFZJ100..CHI;UZJ100..5FC..CHI200406-200506

T=2.54,MARK 68

main90564-46051iFZJ100,UZJ100..CHI200406-200506

T=2.56,MARK 69

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-60010iUZJ100..LHD;FZJ100,HDJ100199801-200506

41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)

main90105-12292iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iFZJ100,HDJ100,UZJ100199801-199908

main90250-06085iFZJ105,HZJ105199801-200505

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22030iFZJ100,HDJ100,UZJ100199801-199908

main41342-39610iFZJ105,HZJ105199801-200505

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30052iFZJ105,HZJ105199801-200505

main41351-30060iFZJ100..CHI;UZJ100..5FC..CHI199908-200506

main41351-30060iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200505

W(REAR DIFFERENTIAL LOCK)

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310iHZJ105..ARL,GEN200008-200708

T=0.9,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35320iFZJ105200008-200708

T=1.0,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35330iFZJ105200008-200708

T=1.1,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35340iFZJ105200008-200708

T=1.2,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35350iHZJ105..ARL,GEN200008-200708

T=1.3,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-40021iFZJ100,UZJ100199801-200708

T=1.6

main41361-40100iFZJ100,UZJ100199801-199908

T=1.50

main41361-40110iFZJ100,UZJ100199801-199908

T=1.55

main41361-40120iFZJ100,UZJ100199801-199908

T=1.65

main41361-40130iFZJ100,UZJ100199801-199908

T=1.75

main41361-40140iFZJ100,UZJ100199801-199908

T=1.85

main41361-40150iFZJ100,UZJ100199801-199908

T=1.90

main41361-60290iHZJ105..ARL,GEN199801-200708

T=0.90,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60300iHZJ105..ARL,GEN199801-200708

T=1.00,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60310iFZJ105199801-200708

T=1.10,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60320iFZJ105199801-200708

T=1.20,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60330iFZJ105,HZJ105..ARL,GEN199801-200708

T=1.30,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60E00iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199908-200708

T=0.875

main41361-60E10iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199908-200708

T=0.900

main41361-60E20iFZJ105,UZJ100..(STD,VX)..ARL199908-200708

T=0.925

main41361-60E30iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=0.950

main41361-60E40iFZJ105,UZJ100..(STD,VX)..ARL199908-200708

T=0.975

main41361-60E50iFZJ100,UZJ100..CHI199908-200708

T=1.000

main41361-60E60iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.025

main41361-60E70iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.050

main41361-60E80iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199908-200708

T=1.075

main41361-60E90iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.100

main41361-60F00iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.125

main41361-60F10iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.150

main41361-60F20iFZJ100,UZJ100..CHI199908-200708

T=1.175

main41361-60F30iFZJ100..CHI;UZJ100..5FC..CHI199908-200708

T=1.200

main41361-60F40iFZJ100..CHI;UZJ100..5FC..CHI199908-200708

T=1.225

main41361-60F50iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199908-200708

T=1.250

main41361-60F60iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199908-200708

T=1.275

main41361-60F70iFZJ100,UZJ100..CHI199908-200708

T=1.300

main41361-60F80iFZJ105,UZJ100..(STD,VX)..ARL199908-200708

T=1.325

main41362-40021iFZJ105,HZJ105199801-200708

T=1.7

main41363-40021iFZJ105,HZJ105199801-200708

T=1.8

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-60010iUZJ100..ARL199801-200506

41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER

main41653-60020iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60010iUZJ100..LHD;FZJ100,HDJ100199801-200506

4302

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-60030iUZJ100..LHD;FZJ100,HDJ100199801-200506

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-60040iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

52383PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1

main52383-60010iFZJ100..GCC199801-200606

9010514125

main90105-14125

9010514126

main90105-14126

9011914089

main90119-14089

9011914090

main90119-14090

9017914045

main90179-14045

9017914063

main90179-14063

9052041014

main90520-41014

9161160614

main91611-60614

52 parts on this diagram · 7 diagrams in section
