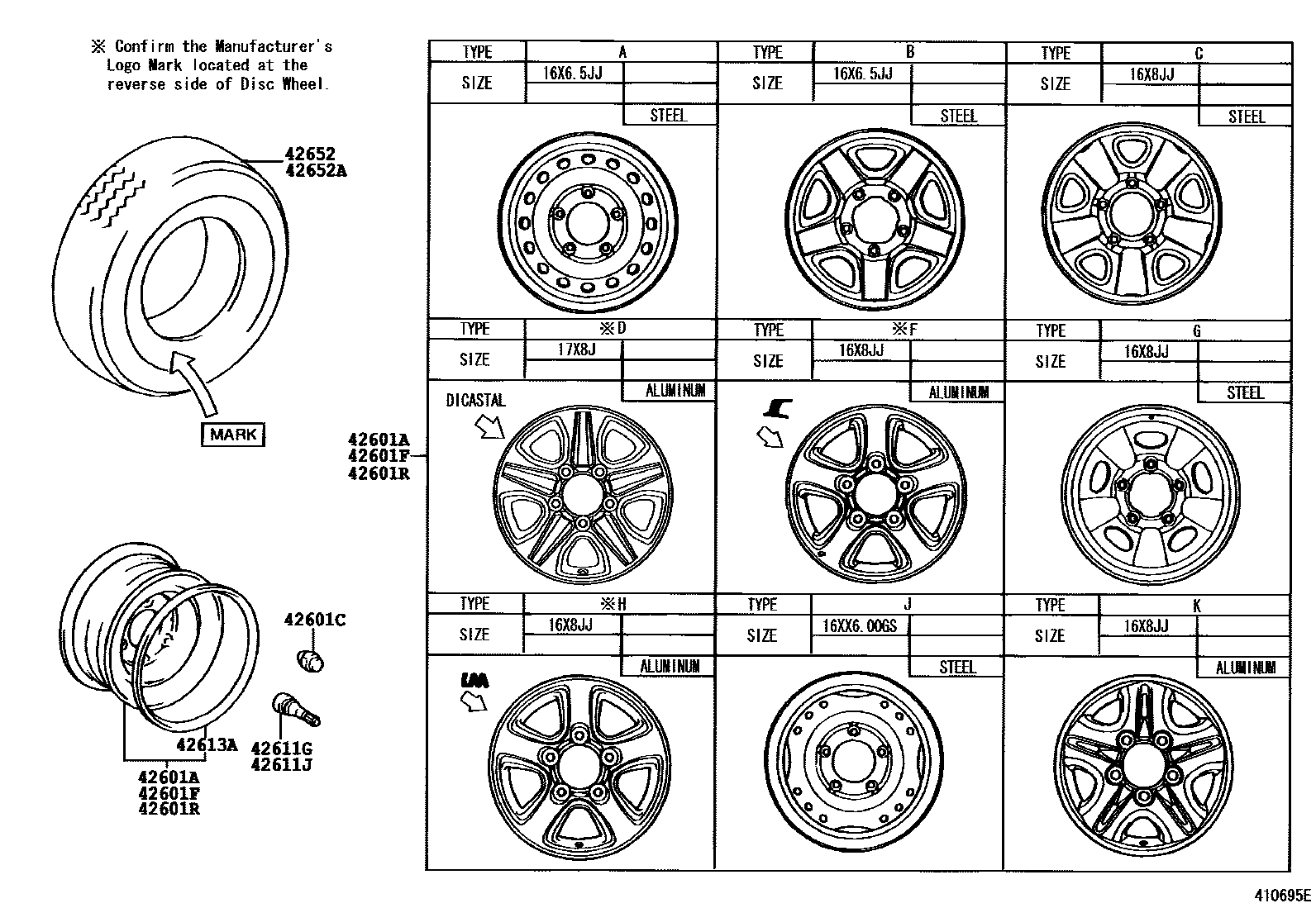

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE A:REFER ILLUST.
16X6.5JJ,TYPE A:REFER ILLUST.
16X6.5JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE B:REFER ILLUST.
sub42601-60591
main42601-60590iHDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ100,HDJ100..(4FC,5F)..(ARL,GCC,GEN)200208-200505
16X6.5JJ,TYPE B:REFER ILLUST.
sub42601-60591
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION
sub42601-60591
16X8JJ, #,TYPE C:REFER ILLUST.
sub42601-60601
main42601-60600iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200208-200505
16X8JJ, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE C:REFER ILLUST.
sub42601-60601
16X8JJ, #,TYPE C:REFER TO ILLUSTRATION
sub42601-60601
16X6.5J,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE B:REFER ILLUST.
sub42601-60611
16X6.5J,TYPE A:REFER TO ILLUSTRATION
sub42601-60621
16X6.5J,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE A:REFER ILLUST.
sub42601-60621
16X6.00GS,TYPE J:REFER ILLUST.
16X6.00GS,TYPE J:REFER TO ILLUSTRATION
16X6.00GS,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE J:REFER ILLUST.
17X8JJ,TYPE N:REFER ILLUST.
17X8J,TYPE D:REF.ILL.,(L)
16X8JJ,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE G:REFER ILLUST.
16X8JJ,TYPE G:REFER ILLUST.
16X8JJ,TYPE G:REFER TO ILLUSTRATION, W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
16X8JJ,TYPE G:REFER TO ILLUSTRATION
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
sub42611-60180
16X8JJ,50TH ANNIVERSARY LIMITED EDITION(G.C.C.),TYPE K:REFER TO ILLUSTRATION
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60361
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
sub42611-60371
17X8J, #,TYPE P:REFER ILLUST.
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
17X8JJ, #,TYPE L:REFER ILLUST.
sub42611-60460
17X8JJ, #,TYPE M:REFER ILLUST.
sub42611-60461
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL)
42601FWHEEL, DISC (FOR FRONT)
16X6.5JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,TYPE A:REFER ILLUST.
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION
sub42601-60591
16X8JJ, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE C:REFER ILLUST.
sub42601-60601
main42601-60600iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200505
16X8JJ, #,TYPE C:REFER ILLUST.
sub42601-60601
16X8JJ, #,TYPE C:REFER TO ILLUSTRATION
sub42601-60601
16X6.00GS,TYPE J:REFER ILLUST.
16X6.00GS,TYPE J:REFER TO ILLUSTRATION
16X6.00GS,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE J:REFER ILLUST.
17X8JJ,TYPE N:REFER ILLUST.
17X8J,TYPE D:REF.ILL.,(L)
16X8JJ, #,TYPE F:REFER TO ILLUSTRATION
sub42611-60181
16X8JJ,TYPE G:REFER TO ILLUSTRATION
16X8JJ,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE G:REFER ILLUST.
16X8JJ,TYPE G:REFER ILLUST.
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
sub42611-60180
16X8JJ,50TH ANNIVERSARY LIMITED EDITION(G.C.C.),TYPE K:REFER TO ILLUSTRATION
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60361
17X8J, #,TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
sub42611-60371
17X8J, #,TYPE P:REFER ILLUST.
sub42611-60371
17X8J, #,TYPE P:REFER ILLUST.
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
17X8JJ, #,TYPE L:REFER ILLUST.
sub42611-60460
17X8JJ, #,TYPE L:REFER TO ILLUSTRATION
sub42611-60460
17X8JJ, #,TYPE M:REFER ILLUST.
sub42611-60461
17X8JJ, #,TYPE M:REFER TO ILLUSTRATION
sub42611-60461
42601RWHEEL, DISC (FOR REAR)
16X6.5JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,TYPE A:REFER ILLUST.
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION
sub42601-60591
main42601-60600iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)199801-200505
16X8JJ, #,TYPE C:REFER TO ILLUSTRATION
sub42601-60601
main42601-60600iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200505
16X8JJ, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE C:REFER ILLUST.
sub42601-60601
main42601-60600iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200505
16X8JJ, #,TYPE C:REFER ILLUST.
sub42601-60601
16X6.00GS,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE J:REFER ILLUST.
16X6.00GS,TYPE J:REFER TO ILLUSTRATION
16X6.00GS,TYPE J:REFER ILLUST.
17X8JJ,TYPE N:REFER ILLUST.
17X8J,TYPE D:REF.ILL.,(L)
16X8JJ, #,TYPE F:REFER TO ILLUSTRATION
sub42611-60181
16X8JJ,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE G:REFER ILLUST.
16X8JJ,TYPE G:REFER ILLUST.
16X8JJ,TYPE G:REFER TO ILLUSTRATION
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
sub42611-60180
16X8JJ,50TH ANNIVERSARY LIMITED EDITION(G.C.C.),TYPE K:REFER TO ILLUSTRATION
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60361
17X8J, #,TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE O:REFER ILLUST.
sub42611-60371
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
sub42611-60371
17X8J, #,TYPE P:REFER ILLUST.
17X8J, #,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),TYPE P:REFER ILLUST.
17X8JJ, #,TYPE L:REFER TO ILLUSTRATION
sub42611-60460
17X8JJ, #,TYPE L:REFER ILLUST.
sub42611-60460
17X8JJ, #,TYPE M:REFER ILLUST.
sub42611-60461
17X8JJ, #,TYPE M:REFER TO ILLUSTRATION
sub42611-60461
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
42613ARING, DISC WHEEL SIDE
W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
42652TIRE
7.50R16-6,SAHARA*D/L
7.50R16-6,SAHARA*B/S
275/70R16,*D/L
275/70R16,*D/L
275/70R16,*D/L
275/70R16,*B/S
275/70R16,*B/S,TUBE TYPE
275/70R16,*B/S
235/85R16,*D/L
main42605-6A491iHDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ105,HDJ100,HZJ105..5F..(ARL,GEN)199811-200505
235/85R16,*D/L
235/85R16,*D/L,TUBE TYPE
235/85R16,*D/L,W(16X6.5J DISC WHEEL)
235/85R16,*Y/H
235/85R16,*Y/H,W(16X6.5J DISC WHEEL)
235/85R16,*Y/H
235/85R16,*Y/H,TUBE TYPE
7.50R16-6,*D/L
7.50R16-6,*D/L,W(16X6.00GS DISC WHEEL)
275/70R16,*D/L
275/70R16 114T,*D/L
275/70R16,*D/L,TUBELESS
275/70R16,*D/L,TUBELESS
275/70R16,*D/L,TUBELESS
sub42652-60313
275/70R16 114T,*D/L
275/70R16 114T,*D/L,TUBELESS
235/85R16,*D/L,TUBELESS
235/85R16,*D/L,TUBELESS,MARK KW232A
235/85R16,*D/L
275/70R16,*B/S,TUBELESS
275/70R16,*B/S,TUBELESS
sub42652-60412
275/70R16,*B/S,TUBELESS
275/70R16,*B/S
275/70R16,*B/S,TUBELESS
275/70R16,*B/S
275/70R16,*Y/H,TUBELESS
235/85R16,*Y/H,TUBELESS,MARK G-011A
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & REAR UNDER MIRROR)
235/85R16,*D/L,TUBELESS
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & REAR UNDER MIRROR)
sub42652-60482
235/85R16,*D/L,TUBELESS
235/85R16,*D/L,TUBELESS,MARK KW232
235/85R16,*Y/H,TUBELESS
235/85R16,*Y/H,TUBELESS
sub42652-60492
235/85R16,*Y/H,TUBELESS,MARK G-011R
sub42652-60492
235/85R16,*Y/H,TUBELESS
275/70R16,*Y/H
sub42652-60571
275/70R16,*Y/H,TUBELESS
sub42652-60571
275/70R16,*Y/H,TUBELESS
275/70R16,*Y/H
275/65R17 115T,*D/L
275/65R17 115T,*D/L
275/65R17,*B/S
275/65R17,*Y/H
42652ATIRE (FOR SPARE)
7.50R16-6,SAHARA*D/L
7.50R16-6,SAHARA*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
7.50R16-6,SAHARA*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
7.50R16-6,SAHARA*B/S
275/70R16,*D/L
275/70R16,*D/L
275/70R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
sub42605-6A473
275/70R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/70R16,*D/L
275/70R16,*B/S
275/70R16,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/70R16,*B/S
275/70R16,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBE TYPE
275/70R16,*B/S,TUBE TYPE
235/85R16,*D/L
main42605-6A491iHDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ105,HDJ100,HZJ105..5F..(ARL,GEN)199811-200505
235/85R16,*D/L
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBE TYPE
235/85R16,*D/L,TUBE TYPE
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
235/85R16,*D/L,W(16X6.5J DISC WHEEL)
235/85R16,*Y/H
235/85R16,*Y/H
235/85R16,*Y/H,W(16X6.5J DISC WHEEL)
235/85R16,*Y/H,TUBE TYPE
235/85R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBE TYPE
235/85R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
7.50R16-6,*D/L
7.50R16-6,*D/L,W(16X6.00GS DISC WHEEL)
275/70R16,*D/L
275/70R16 114T,*D/L
275/70R16,*D/L,TUBELESS
275/70R16,*D/L,TUBELESS
275/70R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
sub42652-60313
275/70R16,*D/L,TUBELESS
sub42652-60313
275/70R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
sub42652-60313
275/70R16 114T,*D/L
275/70R16 114T,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/70R16 114T,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
275/70R16 114T,*D/L,TUBELESS
235/85R16,*D/L,TUBELESS
235/85R16,*D/L,TUBELESS;W(SPARE TIRE CARRIER = BACK DOOR)
235/85R16,*D/L,TUBELESS,MARK KW232A
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
275/70R16,*B/S,TUBELESS
275/70R16,*B/S,TUBELESS
sub42652-60412
275/70R16,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/70R16,*B/S
275/70R16,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
275/70R16,*B/S,TUBELESS
275/70R16,*B/S,TUBELESS
275/70R16,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
275/70R16,*Y/H,TUBELESS
235/85R16,*Y/H,TUBELESS,MARK G-011A
235/85R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & REAR UNDER MIRROR)
235/85R16,*D/L,TUBELESS
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & REAR UNDER MIRROR)
sub42652-60482
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
235/85R16,*D/L,TUBELESS,MARK KW232
235/85R16,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER),MARK KW232
235/85R16,*Y/H,TUBELESS
235/85R16,*Y/H,TUBELESS,MARK G-011R
sub42652-60492
235/85R16,*Y/H,TUBELESS,MARK G-011R
235/85R16,*Y/H,TUBELESS
235/85R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER);TUBELESS
275/70R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
sub42652-60571
275/70R16,*Y/H,TUBELESS
sub42652-60571
275/70R16,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/70R16,*Y/H,TUBELESS
275/70R16,*Y/H
275/65R17 115T,*D/L
275/65R17 115T,*D/L,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/65R17 115T,*D/L
275/65R17,*B/S
275/65R17,*B/S,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
275/65R17,*Y/H
275/65R17,*Y/H,W(SPARE TIRE CARRIER = BACK DOOR & UNDER)
