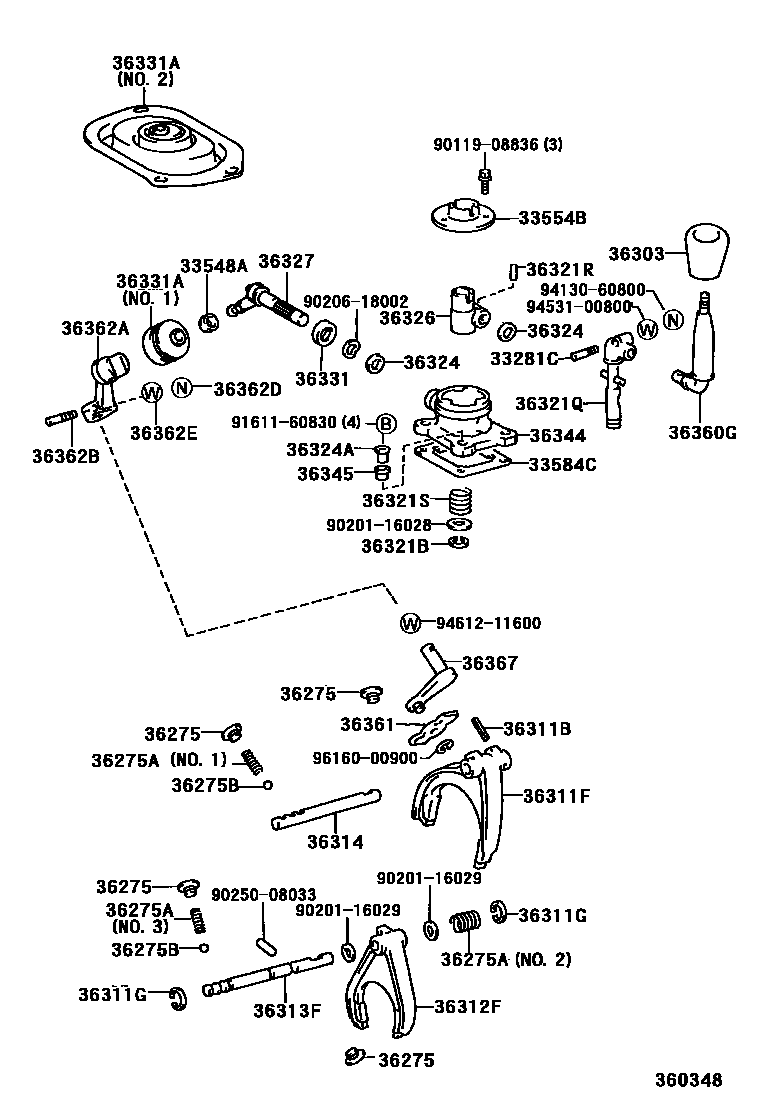

TRANSFER LEVER & SHIFT ROD

0001 1W(2-4 SELECT LEVER & SEPARATE0002 1W(2-4 SELECT LEVER & SEPARATE0003 1W(2-4 SELECT LEVER & SEPARATE0004 1SEPARATE SEAT TYPE 0006 1BENCH SEAT TYPE 0007 1BENCH SEAT TYPE 0009 1 0010 1 0012 1

33281CPIN, LEVER LOCK

main33281-16020iFZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105,UZJ100..5F199801-200506

33548ABUSH, TRANSFER SHIFT LEVER

main33548-60030iHDJ100..LUB..5F;FZJ10#,HZJ105,UZJ100..5F..(ARL,GCC,GEN)199801-200506

33554BCAP, TRANSFER SHIFT LEVER

main33554-60081iFZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105,UZJ100..5F199801-200506

33584CGASKET,TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12008iUZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

main90341-12008iUZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN199801-200505

W/O(2-4 SELECTOR)

main90341-12008iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-12128iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

L=26.9,W/O(2-4 SELECTOR),NO.3

main90501-14134iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

L=27.1,W/O(2-4 SELECTOR),NO.1

main90501-18090iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

L=31.6,W/O(2-4 SELECTOR),NO.2

main90501-18093iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

L=23.8

main90501-18093iUZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN199801-200505

L=23.8,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

36275BBALL, SHIFT DETENT

main90360-08009iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

OD=7.94,STEEL

main90360-10003iFZJ10#..STD;HZJ105..STD..ARL199801-200506

OD=9.52,STEEL

main90360-10003iHZJ105..GCC,GEN;FZJ10#..GX..(GCC,GEN)199801-200505

OD=9.52,STEEL,W/O(2-4 SELECTOR)

main90360-10003iHZJ105..GCC,GEN;FZJ10#..GX..(GCC,GEN)199801-200505

OD=9.52,STEEL,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60161-C0iFZJ10#,HZJ105..5F..GX..(GCC,GEN)200208-200505

URETHANE & W(2H-4H SELECT LEVER),BLACK,TRIM0#,1#

sub36303-60161

main36303-60161-C0iFZJ10#,HZJ105..5F..GX..(GCC,GEN)199801-200208

URETHANE & W(2H-4H SELECT LEVER),BLACK,TRIM1#,4#

sub36303-60161

main36303-60161-C0iFZJ10#,HZJ105..5F..GX..(GCC,GEN)199801-200505

URETHANE & W(2H-4H SELECT LEVER),BLACK,TRIM1#

sub36303-60161

main36303-60181-C0iHDJ100..LHD..5F;FZJ10#,HZJ105..GX..(ARL,GCC,GEN)199801-200505

URETHANE & PART TIME 4WD,BLACK,TRIM1#

main36303-60181-C0iFZJ100,HZJ105..LHD..STD200208-200505

URETHANE & PART TIME 4WD,BLACK,TRIM0#,1#

main36303-60181-C0iHDJ100..LHD..5F;HDJ100,UZJ100..5F..ARL200208-200505

URETHANE & FULL TIME 4WD,BLACK,TRIM0#,1#

main36303-60181-C0iFZJ100..CHI200309-200506

BLACK,TRIM0#

main36303-60181-C0iUZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,VX199801-200208

URETHANE & PART TIME 4WD,BLACK,TRIM1#,4#

main36303-60181-C0iFZJ10#,HZJ105..GX;HDJ100,UZJ100..LHD..GEN200008-200208

URETHANE & W(2-4 SELECTOR),BLACK,TRIM1#,4#

main36303-60211-C0iHZJ105..RHD..STD..GEN200208-200505

URETHANE & W(2-4 SELECTOR),BLACK,TRIM0#,1#

sub36303-60211

main36303-60211-C0iHZJ105..RHD..STD..GEN199801-200505

URETHANE & W(2-4 SELECTOR),BLACK,TRIM1#

sub36303-60211

main36303-60211-C0iHZJ105..RHD..STD..GEN199801-200208

URETHANE & W(2-4 SELECTOR),BLACK,TRIM1#,4#

sub36303-60211

main36303-60240-C0iUZJ100..5F..GCC200208-200505

LEATHER & FULL TIME 4WD,BLACK,TRIM0#,1#

main36303-60240-C0iUZJ100..5F..GCC200208-200505

LEATHER & PART TIME 4WD,BLACK,TRIM0#,1#

main36303-60240-C0iUZJ100..LHD;HDJ100..4FC;FZJ105..GX..ARL;HDJ100..5F..GEN199801-200208

LEATHER & PART TIME 4WD,BLACK,TRIM1#,4#

main36303-60240-C0iHDJ100,UZJ100..ARL,GCC,GEN200505

LEATHER,BLACK,TRIM0#,1#

main36303-60240-C0iUZJ100..5FC..CHI200309-200506

BLACK,TRIM0#

main36303-60240-C0iUZJ100..ARL199801-200008

LEATHER & PART TIME 4WD,BLACK,TRIM1#,40,41

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05016iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

L=25.5

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-60100iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR)

main36311-60110iHZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN)199801-200505

W(2-4 SELECTOR)

main36311-60120iHZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN)199801-200505

FULL TIME 4WD

main36311-60120iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13004iUZJ100..ARL199801-200506

main90520-13004iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200208

W/O(2-4 SELECTOR)

main90520-13004iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60150iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR)

main36302-60160iHZJ105..RHD..STD..GEN;FZJ10#,HZJ105..LHD..GX199808-200208

W(2-4 SELECTOR) & *DMALH

main36302-60170iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199808-200505

W/O(2-4 SELECTOR) & *DMALH

main36312-60050iHZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

main36312-60050iFZJ100,UZJ100..CHI199801-200506

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-60090iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR)

main36313-60100iHDJ100..ARL;UZJ100..LHD..4FC;FZJ105,HZJ105..4FC199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

main36313-60100iUZJ100..ARL199801-200506

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60050iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90520-13004iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

36321QLEVER, TRANSFER SHIFT

main36321-60390iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & SEPARATE SEAT TYPE

main36321-60400iHZJ105..STD;HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & BENCH SEAT TYPE

main36321-60410iFZJ100..5F..GCC;FZJ105,HZJ105..LHD..GX;HDJ100,HZJ105..SOB..(STD,VX)..GEN199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & BENCH SEAT TYPE

main36321-60420iFZJ100..5F..CHI200309-200506

main36321-60420iUZJ100..5F..ARL;HDJ100..LUB..5F..GEN199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE

36321RPIN, SLOTTED SPRING (FOR TRANSFER SHIFT LEVER)

main90254-05002iFZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105,UZJ100..5F199801-200506

main90254-05011iHDJ100,UZJ100..5FC..ARL199801-200505

36321SSPRING, COMPRESSION (FOR TRANSFER SHIFT LEVER)

main90501-14142iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

36324BUSH, TRANSFER SHIFT LEVER

main36324-60060iFZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105,UZJ100..5F199801-200506

36324ABUSH, TRANSFER SHIFT LEVER

main36324-60070iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

36326SUPPORT, TRANSFER SHIFT LEVER

main36326-60050iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

36327SHAFT, TRANSFER SHIFT LEVER

main36327-60050iHDJ100..SOB199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & BENCH SEAT TYPE

main36327-60090iHZJ105..STD;HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & BENCH SEAT TYPE

main36327-60130iFZJ100..5F..CHI200309-200506

main36327-60130iHDJ100..LUB..5F;HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ10#,UZJ100..5F..(GX,VX)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE

main36327-60140iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & SEPARATE SEAT TYPE

main36327-60150iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199801-200505

36331BOOT, TRANSFER SHIFT LEVER

main36331-60010iHDJ100,UZJ100..5FC..ARL199801-200505

NO.1

main36331-60040iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

main36331-60040iHDJ100,UZJ100..5FC..ARL199801-200505

NO.2

36331ABOOT, TRANSFER SHIFT LEVER, NO.2

main36331-60070iFZJ100,HDJ100,UZJ100..ATM..(GCC,GEN)199801-200506

main36331-60080iFZJ100..5F..CHI199801-200506

SEPARATE SEAT TYPE,NO.1

main36331-60080iFZJ100,UZJ100..5F..CHI200506

NO.1

main36331-60090iFZJ105..STD..ARL199801-200506

SEPARATE SEAT TYPE,NO.2

main36331-60090iFZJ100..5F..CHI200506-200606

NO.2

main36331-60100iHZJ105..STD;HZJ105..LHD..GX199801-200505

BENCH SEAT TYPE

main36331-60110iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-200505

BENCH SEAT TYPE

main36331-60120iUZJ100..5F..CHI200606

NO.2

main36331-60120iUZJ100..5F199801-200505

SEPARATE SEAT TYPE,NO.2

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-60030iFZJ105..STD..ARL199801-200506

main36344-60080iFZJ100,UZJ100..ATM..CHI199801-200506

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60020iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60590iHDJ100..RHD..5F199801-200505

main36360-60600iHZJ105..RHD..GEN;FZJ105..RHD..5F..GX;HZJ105..5F..GX..ARL199801-200505

W(2-4 SELECTOR) & SEPARATE SEAT TYPE

main36360-60610iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..(GCC,GEN)199801-200505

BENCH SEAT TYPE

main36360-60620iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105,UZJ100..LHD..5F199801-200505

SEPARATE SEAT TYPE

main36360-60620iFZJ100,UZJ100..5F..CHI200309-200506

main36360-60630iHZJ105..RHD..STD199801-200505

BENCH SEAT TYPE

main36360-60640iFZJ100,HDJ100..ATM..(GCC,GEN)199801-200606

main36360-60650iHDJ100,UZJ100..5FC..ARL199801-200505

main36360-60660iFZJ105,HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN199801-200505

W/O(2-4 SELECTOR) & SEPARATE SEAT TYPE

main36360-60730iUZJ100..5FC..CHI200001-200506

main36360-6A090iUZJ100..5F..ARL200208-200605

36361LEVER, TRANSFER SHIFT, INNER

main36361-60030iUZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH)

main36361-60030iUZJ100..ARL199801-200506

main36361-60040iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR)

36362ALEVER, TRANSFER SHIFT, OUTER

main36362-60030iHZJ105..STD..GEN;FZJ10#,HZJ105..LHD..5F..GX..(GCC,GEN)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & BENCH SEAT TYPE

main36362-60030iFZJ100,UZJ100..ATM..CHI199801-200506

main36362-60050iHZJ105..STD;HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & BENCH SEAT TYPE

main36362-60060iUZJ100..5F..ARL;HDJ100..LUB..5F..GEN199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE

main36362-60060iFZJ100,UZJ100..5F..CHI200309-200506

main36362-60070iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

W/O(2-4 SELECTOR) & SEPARATE SEAT TYPE

36362BPIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER)

main33281-16020iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

36362DNUT (FOR TRANSFER SHIFT OUTER LEVER)

main94130-60800iFZJ10#..LHD..5F..GX..(GCC,GEN)199801-200505

BENCH SEAT TYPE

main94130-60800iHDJ100,HZJ105..SOB..(STD,VX)..GEN;FZJ10#,HZJ105..LHD..5F..GX..(GCC,GEN)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE

main94130-60800iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

36362EWASHER (FOR TRANSFER SHIFT OUTER LEVER)

main94531-00800iFZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC199801-200506

main94531-00800iHZJ105..GCC,GEN;HZJ105..5F..GX..ARL;HDJ100..LUB..5F..GEN;FZJ10#,UZJ100..5F..(GX,VX)199801-200505

W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE

main94531-00800iHZJ105..GCC,GEN;HZJ105..5F..GX..ARL;HDJ100..LUB..5F..GEN;FZJ10#,UZJ100..5F..(GX,VX)199801-200505

BENCH SEAT TYPE

36367SHAFT, TRANSFER SHIFT INNER LEVER

main36367-60030iHZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)199801-200505

9011908836

main90119-08836

9020116028

main90201-16028

9020116029

main90201-16029

9020618002

main90206-18002

9025008033

main90250-08033

9161160830

main91611-60830

9413060800

main94130-60800

9453100800

main94531-00800

9461211600

main94612-11600

9616000900

main96160-00900

43 parts on this diagram · 9 diagrams in section
