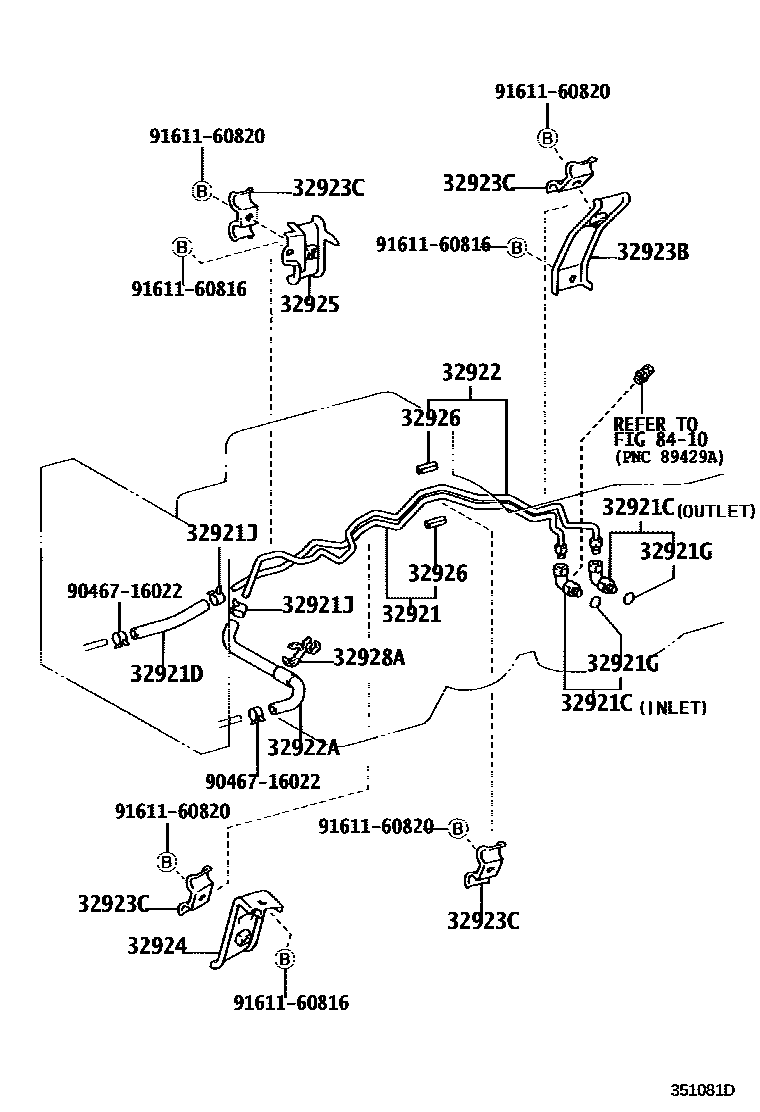

OIL COOLER & TUBE (ATM)

0001 1A442F 0002 1A442F 0003 1A442F,AIR COOLING OIL COOLER 0004 1A442F,AIR COOLING OIL COOLER 0005 1A442F 0006 1A442F,AIR COOLING OIL COOLER 0007 1A442F 0008 1A442F 0009 1A442F 0010 1A750F 0011 1A750F,AIR COOLING OIL COOLER 0012 1A750F 0013 1A750F,AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-0G010iUZJ100..5FC..CHI200309-200506

(L)

sub32921-60371

main32921-0G010iUZJ100..5FC..CHI200506

sub32921-60371

main32921-0G020iFZJ100..4FC..CHI200309-200506

(L)

sub32921-60371

main32921-0G020iFZJ100..4FC..CHI200506-200606

sub32921-60371

main32921-60110iUZJ100..4FC199801-200010

sub32921-60111

main32921-60111iUZJ100..4FC200010-200208

main32921-60170iFZJ10#..4FC199801-200206

main32921-60171iFZJ100..4FC200206-200208

main32921-60180iHDJ100..4FC199801-200208

main32921-60190iHZJ105..4FC199801-200208

main32921-60210iFZJ105..4FC200005-200206

main32921-60211iFZJ100..4FC..CHI200309-200506

(J)

main32921-60211iFZJ105..4FC200206-200505

main32921-60220iHDJ100..5FC200308-200505

main32921-60350iUZJ100..LHD..5FC200208-200209

main32921-60351iUZJ100..5FC..(GCC,GEN)200209-200511

main32921-60360iHDJ100..5FC200208-200308

main32921-60370iUZJ100..5FC..(ARL,GEN)200208-200209

AIR COOLING OIL COOLER

main32921-60371iUZJ100..5FC..GCC200511

sub32921-60351

main32921-60371iUZJ100..5FC..(ARL,GEN)200209-200505

AIR COOLING OIL COOLER

sub32921-60351

main32921-60371iUZJ100..5FC..CHI200309-200506

(J)

sub32921-60351

32921CUNION(FOR OIL COOLER TUBE)

main90407-16009iHDJ100..5FC200208-200505

main90407-16037iUZJ100..5FC..(ARL,GCC,GEN)200209-200506

main90407-20004iFZJ100..4FC..CHI199801-200606

OUTLET

main90407-20006iFZJ100..4FC..CHI199801-200606

INLET

main90407-20007iUZJ100..4FC199801-200208

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60190iUZJ100..4FC199801-200208

main32941-60200iFZJ100..4FC199804-200208

main32941-60210iFZJ105..4FC200005-200208

main32941-60290iUZJ100..5FC..CHI200208-200506

main32941-60300iFZJ100..4FC..CHI200208-200606

main32942-22280iHZJ105..4FC199905-200208

main90445-17096iHDJ100..5FC199801-200505

main90445-17152iFZJ100..4FC199801-199804

main90445-17153iFZJ105..4FC199801-200005

sub32941-60220

sub32926-10010

sub90463-12011

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iUZJ100..ARL199801-200506

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iFZJ10#,HDJ100,HZJ105,UZJ100..4FC199801-200505

sub90467-16022

main90467-16022iFZJ100,UZJ100..ATM..CHI200309-200506

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0G010iUZJ100..5FC..CHI200506

sub32922-60401

main32922-0G010iUZJ100..5FC..CHI200309-200506

(L)

sub32922-60401

main32922-0G020iFZJ100..4FC..CHI200309-200506

(L)

sub32922-60231

main32922-0G020iFZJ100..4FC..CHI200506-200606

sub32922-60231

main32922-60180iUZJ100..4FC199801-200010

sub32922-60181

main32922-60181iUZJ100..4FC200010-200208

main32922-60190iFZJ10#..4FC199801-200111

sub32922-60230

main32922-60200iHDJ100..4FC199801-200208

main32922-60210iHZJ105..4FC199801-200208

main32922-60230iFZJ10#..4FC200111-200206

main32922-60231iFZJ100..4FC..CHI200309-200506

(J)

main32922-60231iFZJ100..4FC..GCC200206-200505

main32922-60240iHDJ100..5FC200308-200505

main32922-60370iUZJ100..LHD..5FC200208-200209

main32922-60371iUZJ100..5FC..(GCC,GEN)200209-200511

main32922-60380iHDJ100..5FC200208-200308

main32922-60400iUZJ100..5FC..(ARL,GEN)200208-200209

AIR COOLING OIL COOLER

main32922-60401iUZJ100..5FC..CHI200309-200506

(J)

sub32922-60371

main32922-60401iUZJ100..5FC..(ARL,GEN)200209-200505

AIR COOLING OIL COOLER

sub32922-60371

main32922-60401iUZJ100..5FC..GCC200511

sub32922-60371

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-60180iHDJ100..4FC..GEN199801-200208

main32941-60290iHDJ100..5FC..GEN200208-200505

main32942-60290iUZJ100..4FC..(ARL,GEN)199801-200505

AIR COOLING OIL COOLER

main32942-60290iUZJ100..5FC..CHI200309-200506

main32942-60300iFZJ105..4FC199801-200208

main32942-60310iHDJ100..4FC199905-200208

AIR COOLING OIL COOLER

main32942-60320iHDJ100,HZJ105..4FC199801-199905

AIR COOLING OIL COOLER

main32942-60330iUZJ100..LHD..4FC199801-200505

main32942-60340iHZJ105..4FC199905-200208

main32942-60430iHDJ100..5FC200208-200505

AIR COOLING OIL COOLER

main90445-17096iFZJ100..4FC199801-200606

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60120iUZJ100..5FC..CHI200208-200506

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iFZJ100..4FC..GCC199801-200606

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iFZJ100..4FC..CHI199801-200606

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-60020iFZJ10#..4FC199801-200606

main32924-60070iUZJ100..4FC199801-200208

main32924-60110iHDJ100..5FC199801-200505

main32924-60120iHZJ105..4FC199801-200208

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-60070iFZJ10#..4FC199801-200606

main32925-60120iUZJ100..4FC199801-200208

main32925-60130iHDJ100..5FC199801-200505

main32925-60190iUZJ100..5FC..(ARL,GCC,GEN)200208-200506

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010iUZJ100..4FC199801-200208

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60120iFZJ100,HDJ100..ATM..(ARL,GCC,GEN)200208-200705

sub32928-60160

main32928-60130iUZJ100..5FC..CHI200208-200705

sub32928-60150

main32928-60150iUZJ100..5FC..CHI200706

main32928-60160iFZJ100,HDJ100..ATM200706

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-60080iHDJ100..4FC199801-200208

main32928-60090iHZJ105..4FC199905-200208

main90949-01B51iUZJ100..4FC199801-200208

8410

9046716022

main90467-16022

9161160816

main91611-60816

9161160820

main91611-60820

19 parts on this diagram · 13 diagrams in section
