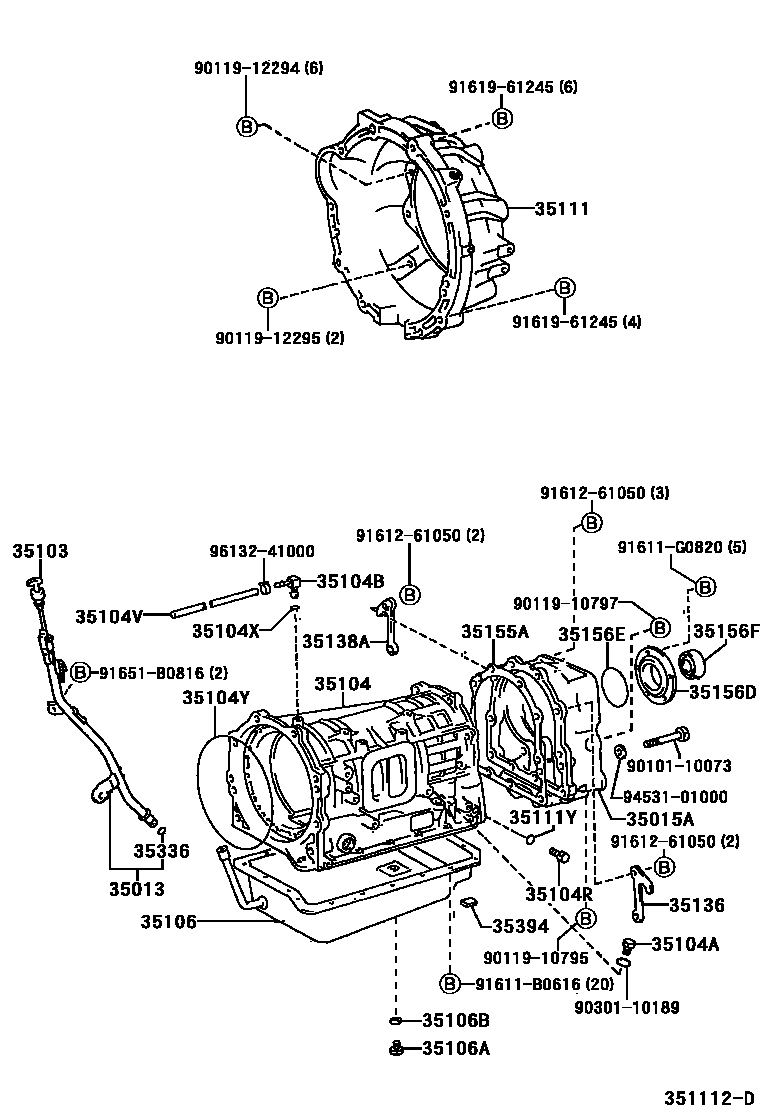

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A442F 0002 1A442F 0003 1A750F 0004 1A750F 0005 1A442F 0006 1A750F 0007 1A750F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-60160iUZJ100..4FC199801-200010

main35013-60161iUZJ100..4FC200010-200208

main35013-60170iFZJ100..4FC..CHI200506-200606

main35013-60180iHDJ100,HZJ105..4FC..(DSL2,TD2)199801-200208

main35013-60190iHDJ100..4FC..ARL200008-200208

main35013-60280iUZJ100..5FC200208-200308

main35013-60300iHDJ100..5FC200208-200308

35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR

main35015-60080iFZJ100..4FC..GCC200505

main35015-60110iUZJ100..4FC199801-200208

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-60120iUZJ100..4FC199801-200208

main35103-60130iFZJ10#..4FC199801-200208

main35103-60140iHDJ100,HZJ105..4FC..(DSL2,TD2)199801-200208

main35103-60150iHDJ100..4FC..ARL200008-200208

main35103-60220iUZJ100..5FC200208-200308

main35103-60230iHDJ100..5FC200208-200308

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60100iHDJ100,HZJ105..4FC..(DSL2,TD2)199801-200208

main35104-60130iUZJ100..4FC199801-199909

main35104-60131iUZJ100..4FC199909-200208

main35104-60140iFZJ10#..4FC199801-200208

main35104-60160iHDJ100..4FC..ARL200008-200208

main35104-60210iUZJ100..5FC200208-200308

main35104-60220iUZJ100..5FC..(ARL,GCC,GEN)200308-200409

main35104-60221iUZJ100..5FC..(ARL,GCC,GEN)200409-200505

main35104-60230iHDJ100..5FC200208-200308

main35104-60240iHDJ100..5FC200505

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iUZJ100..5FC..CHI200309-200506

main90341-13001iFZJ10#,HDJ100..4FC..(ARL,GCC)199801-200208

main90341-16010iHDJ100,HZJ105..4FC..(DSL2,TD2)199801-200208

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iUZJ100..ARL199801-200008

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001×7iFZJ100..4FC..CHI200309-200506

35104VHOSE (FOR BREATHER PLUG)

main90445-11096iUZJ100..5FC200208-200308

main90445-11113iHDJ100,HZJ105..4FC199801-200208

main90445-11114iFZJ100..4FC..CHI200506-200606

main90445-11131iUZJ100..4FC199801-200208

sub35121-65020

main90445-11153iHDJ100..5FC200208-200308

sub90445-11125

main90445-11156iUZJ100..5FC..CHI200506

main90445-11157iHDJ100..5FC200308-200505

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iUZJ100..ARL199801-200008

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-99067iUZJ100..ARL199801-200008

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60050iFZJ100..4FC..CHI200309-200506

main35106-60120iUZJ100..4FC199801-200208

main35106-60160iUZJ100..5FC200208-200308

main35106-60170iHDJ100..5FC200208-200308

main35106-60180iHDJ100,UZJ100..5FC..(ARL,GCC,GEN)200308-200505

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUZJ100..5FC..CHI200506

main90341-10018iHDJ100,UZJ100..5FC200208-200308

main90341-18057iFZJ100..4FC..CHI200506-200606

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iUZJ100..ARL199801-200008

main35178-30010×2iUZJ100..5FC..(ARL,GCC,GEN)200308-200505

main35178-50010iHDJ100,UZJ100..5FC200208-200308

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60041iHDJ100,HZJ105..4FC199801-200208

main35111-60072iFZJ100..4FC..GCC200505

main35111-60110iUZJ100..4FC199801-200208

main35111-60130iUZJ100..5FC..CHI200506

main35111-60140iHDJ100..5FC200208-200505

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×7iFZJ100..4FC..GCC200505

35136HANGER, TRANSMISSION,NO.1

main35136-60020iFZJ100..4FC..GCC200208-200505

35138AHANGER, TRANSMISSION, NO.2

main35136-60020iUZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC199801-200208

35155AGASKET, TRANSMISSION CASE ADAPTER

main35182-60010iUZJ100..ARL199801-200008

35156DCOVER, TRANSMISSION CASE REAR ADAPTER

main35156-60010iUZJ100..ARL199801-200008

35156ERING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90301-81005iUZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC199801-200208

35156FSEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90311-48016iUZJ100..ARL199801-200008

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iFZJ10#,HDJ100..4FC..(ARL,GCC)199801-200208

main90301-09173iHDJ100,HZJ105,UZJ100..4FC..(DSL2,EFI,TD2)199801-200208

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iUZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC199801-200208

9010110073

main90101-10073

9011910795

main90119-10795

9011910797

main90119-10797

9011912294

main90119-12294

9011912295

main90119-12295

9030110189

main90301-10189

91611B0616

main91611-B0616

91611G0820

main91611-G0820

9161261050

main91612-61050

9161961245

main91619-61245

91651B0816

main91651-B0816

9453101000

main94531-01000

9613241000

main96132-41000

36 parts on this diagram · 7 diagrams in section
