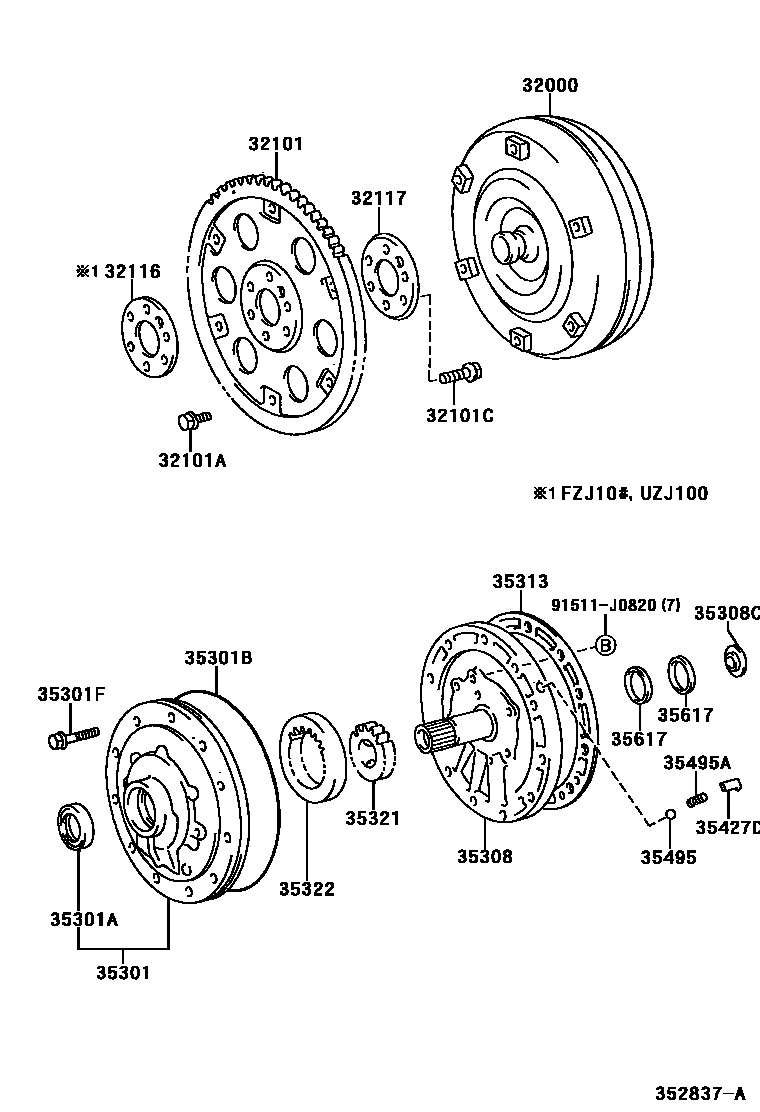

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-9,GREEN OR BLACK
*9-1.25PX12.8-9,GREEN
*9-1.25PX12.8-8.8,SILVER
*9-1.25PX12.8-8.8,YELLOW
*9-1.25PX12.8-8.8,YELLOW OR SILVER
*10-1.25PX14-9,BLACK
*10-1.25PX14-9,GREEN
*10-1.25PX14-9,GREEN OR BLACK
*10-1.25PX14-9,SILVER
*10-1.25PX14-9,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX23-16
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
OUTER
INNER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX60-30
*8-1.25PX60-20
*8-1.25PX40-30
*8-1.25PX40-30
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
T=0.8
T=1.0
T=1.4
35313GASKET, FRONT OIL PUMP COVER
35321GEAR, FRONT OIL PUMP DRIVE
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
35427DSEAT, CHECK VALVE SPRING
35495BALL, CHECK
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
91511J0820
main91511-J0820
20 parts on this diagram · 2 diagrams in section
