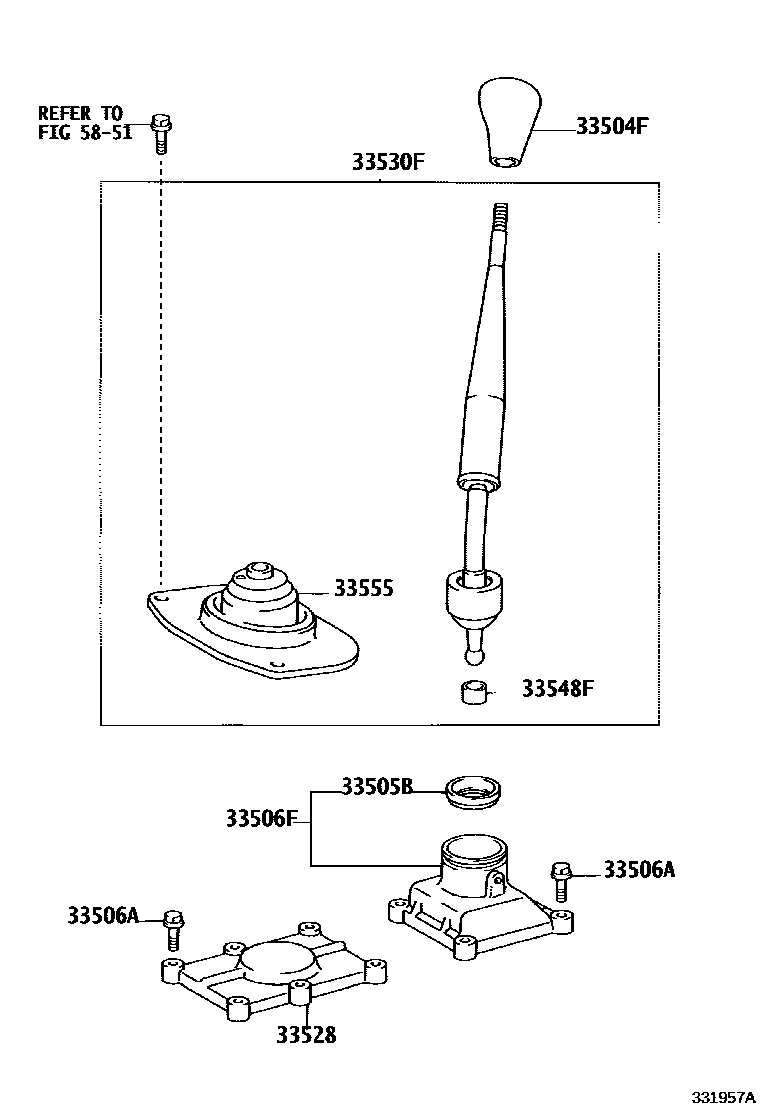

SHIFT LEVER & RETAINER

0001 1SEPARATE SEAT TYPE 0002 1BENCH SEAT TYPE 0003 1SEPARATE SEAT TYPE 0004 1BENCH SEAT TYPE 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1W/O(SHIFT LOCK) 0014 1W(SHIFT LOCK) 0017 1 0019 1W/O(SHIFT LOCK) 0020 1W(SHIFT LOCK) 0021 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60121-C0iHDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..5F..GX..(ARL,GCC,GEN)200208-200505

URETHANE,BLACK,TRIM0#,1#

sub33504-60121¥5,400

main33504-60121-C0iHDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..5F..GX..(ARL,GCC,GEN)199801-200505

URETHANE,BLACK,TRIM1#

sub33504-60121¥5,400

main33504-60121-C0iFZJ100..5F..CHI200309-200506

BLACK,TRIM0#

sub33504-60121¥5,400

main33504-60121-C0iHDJ100,UZJ100..LUB..5F..GEN199801-200208

URETHANE,BLACK,TRIM1#,40,41

sub33504-60121¥5,400

main33504-60121-C0iHDJ100..SOB;UZJ100..5F..GCC;FZJ10#,HZJ105..5F..GX199801-200208

URETHANE,BLACK,TRIM1#,4#

sub33504-60121¥5,400

main33504-60130-C0iUZJ100..5F;HDJ100..LUB..5F..GEN199801-200208

LEATHER,BLACK,TRIM1#,4#

main33504-60130-C0iHDJ100..SOB;FZJ105..5F..GX..ARL199801-200208

LEATHER,BLACK,TRIM1#,40,41

main33504-60130-C0iHDJ100,UZJ100..5F200208-200505

LEATHER,BLACK,TRIM0#,1#

main33504-60180-C0iHDJ100,UZJ100..5FC..(ARL,GCC,GEN)200208-200505

BLACK,TRIM0#,1#

main33504-60180-C0iUZJ100..5FC..CHI200309-200506

BLACK,TRIM0#

main33542-20100-C0iFZJ105,HDJ100,HZJ105..4FC..GX199801-200208

URETHANE,BLACK,TRIM1#,4#

sub33542-20100¥4,900

main33542-20140-C0iFZJ105,HDJ100..4FC..ARL199801-200208

LEATHER,BLACK,TRIM1#,4#

sub33542-20140¥14,700

main33542-20140-C0iUZJ100..ARL199801-200008

LEATHER,BLACK,TRIM1#,40,41

sub33542-20140¥14,700

main33542-20150-C0iFZJ100..4FC..CHI200309-200606

BLACK,TRIM0#

sub33542-20150¥4,910

main33542-20150-C0iFZJ100..4FC..GCC200208-200505

URETHANE,BLACK,TRIM0#,1#

sub33542-20150¥4,910

main33542-20150-C0iUZJ100..4FC..GEN;FZJ100,HDJ100..LHD..4FC199801-200208

URETHANE,BLACK,TRIM1#,4#

sub33542-20150¥4,910

main33542-20150-C0iFZJ100..4FC..GCC200505

BLACK,TRIM0#,1#

sub33542-20150¥4,910

main33542-20160-C0iHDJ100,UZJ100..LHD..4FC199801-200208

LEATHER,BLACK,TRIM1#,40,41

sub33542-20160¥14,700

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35030iHZJ105¥1,380199801-200505

main33505-60011iFZJ100..5F..CHI¥1,740199801-200506

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08332iFZJ100,UZJ100..5F..CHI¥370200309-200506

main90119-08332iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB¥370199801-200505

BENCH SEAT TYPE

main90119-08332iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB¥370199801-200505

SEPARATE SEAT TYPE

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60070iHZJ105..STD;HZJ105..LHD..GX¥11,600199801-200505

BENCH SEAT TYPE

main33506-60080iHZJ105..5F¥6,000199801-200505

SEPARATE SEAT TYPE

main33506-60090iHDJ100..SOB¥8,100199801-200505

BENCH SEAT TYPE

main33506-60100iUZJ100..5F..ARL;HDJ100..LUB..5F..GEN¥8,200199801-200505

SEPARATE SEAT TYPE

main33506-60100iFZJ100..5F..CHI¥8,200200309-200506

33528COVER, CONTROL SHAFT

main33528-60040iFZJ105..STD..ARL¥4,900199801-200506

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60350iFZJ105..STD..ARL¥10,300199801-200008

BENCH SEAT TYPE

main33530-60360iHDJ100..SOB¥10,300199801-200505

BENCH SEAT TYPE

main33530-60370iHDJ100..RHD..5F¥10,700199801-200505

SEPARATE SEAT TYPE

main33530-60380iFZJ10#..LHD..5F..(GCC,GEN)¥10,700199801-200505

SEPARATE SEAT TYPE

main33530-60380iFZJ100..5F..CHI¥10,700200309-200606

main33530-60390iFZJ105..RHD..5F¥10,700199801-200505

SEPARATE SEAT TYPE

main33530-60400iUZJ100..5F..GCC¥10,700199801-200505

SEPARATE SEAT TYPE

main33530-60400iUZJ100..5F..CHI¥10,700200606

main33530-60410iHZJ105..LHD¥10,300199801-200505

BENCH SEAT TYPE

sub33530-60411

main33530-60420iHZJ105..RHD..STD¥10,300199801-200505

BENCH SEAT TYPE

sub33530-60421¥10,300

main33530-60430iHZJ105..LHD¥10,900199801-200505

SEPARATE SEAT TYPE

sub33530-60431

main33530-60440iHZJ105..RHD¥10,900199801-200505

SEPARATE SEAT TYPE

sub33530-60441

main33530-60550iUZJ100..5F..ARL¥10,700200208-200505

main33530-60550iUZJ100..5F..ARL¥10,700200505-200605

SEPARATE SEAT TYPE

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-22020iFZJ100,UZJ100..5F..CHI¥170200008-200506

main33548-31010iHZJ105¥270199801-200505

33555BOOT, SHIFT LEVER

main33555-22170iUZJ100..CHI¥320200208-200501

main33555-60090iHDJ100..SOB;FZJ10#..LHD..5F..(GCC,GEN)¥1,520199801-200505

BENCH SEAT TYPE

main33555-60100iHDJ100..LUB..5F..GEN¥1,480199801-200505

SEPARATE SEAT TYPE

main33555-60100iFZJ100..5F..CHI¥1,480200309-200606

main33555-60110iUZJ100..5F..(ARL,GCC)¥1,480200505

SEPARATE SEAT TYPE

main33555-60110iUZJ100..5F..CHI¥1,480199801-200505

main33555-60120iHZJ105..STD;HZJ105..LHD..GX¥1,480199801-200505

BENCH SEAT TYPE

main33555-60130iHZJ105..5F¥1,480199801-200505

SEPARATE SEAT TYPE

main33555-60140iUZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC¥910199801-200606

5851

9 parts on this diagram · 15 diagrams in section
