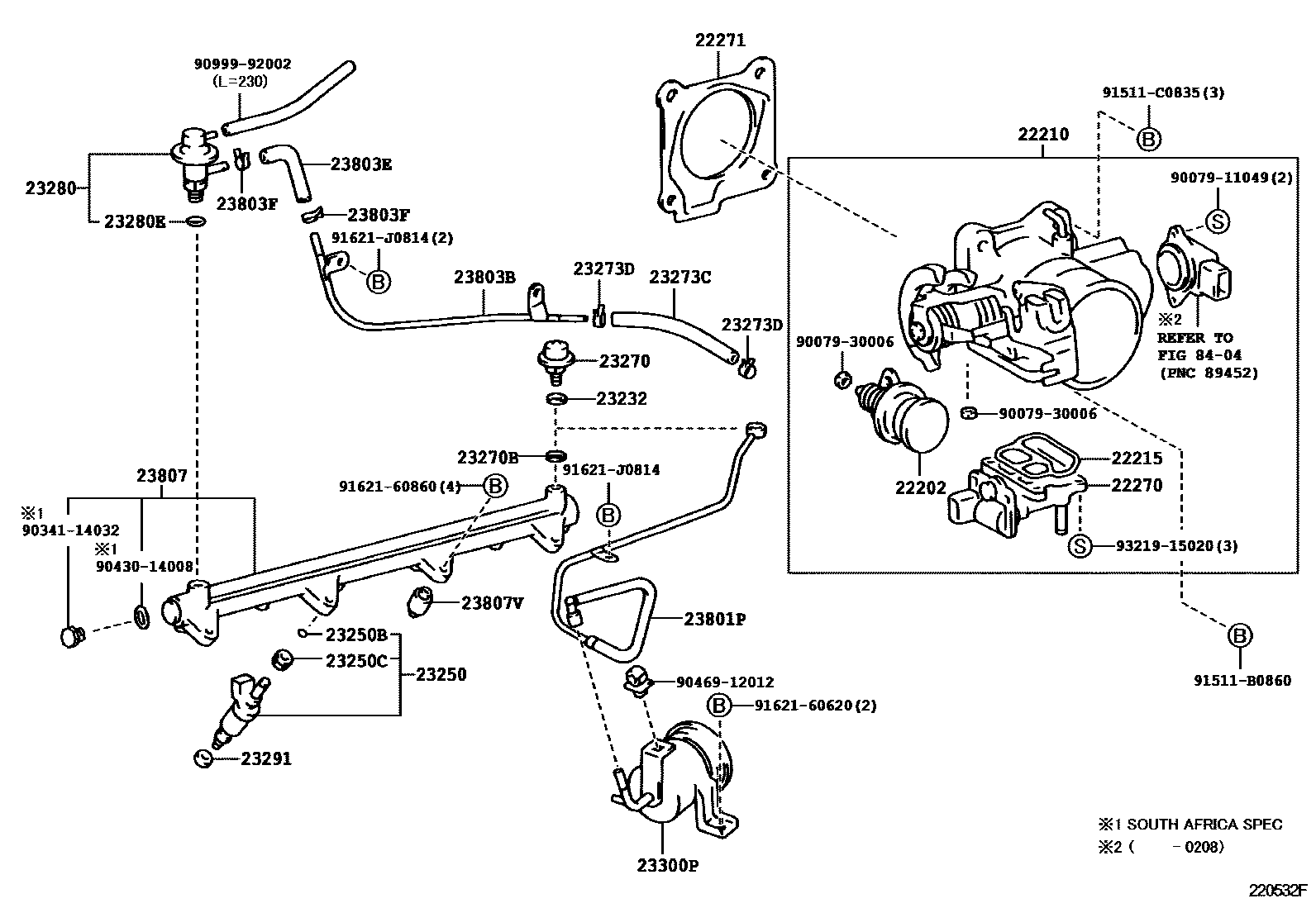

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

22202DASH POT SUB-ASSY

main22202-66070i1FZFE..FZJ105..STD..ARL199801-200606

22210BODY ASSY, THROTTLE

main22210-66070i1FZFE..FZJ100..5F;1FZFE..FZJ105..5F..GX;1FZFE..FZJ105..STD..GEN199801-200606

main22210-66080i1FZFE..FZJ100..4FC..CHI199801-200606

main22210-66090i1FZFE..FZJ105..5F..GX..ARL199801-200208

W(CRUISE CONTROL)

main22210-66100i1FZFE..FZJ105..4FC199801-200208

W(CRUISE CONTROL)

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1FZFE..FZJ105..STD..ARL199801-200606

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-66020i1FZFE..FZJ105..STD..ARL199801-200606

22271GASKET, THROTTLE BODY

main22271-50040i2UZFE..UZJ100199801-199808

sub22271-50041

main22271-50041i2UZFE..UZJ100199808-200006

sub22271-50042

main22271-50042i2UZFE..UZJ100..LHD200006-200506

main22271-66020i1FZFE..FZJ10#..GCC,GEN199801-200606

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i2UZFE..UZJ100..ARL199801-200606

23250INJECTOR ASSY, FUEL

main23209-50040i2UZFE..UZJ100..5FC..CHI199801-200506

main23209-66010i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1FZFE..FZJ105..STD..ARL199801-200607

main90301-07037i1FZFE..FZJ10#200607

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1FZFE..FZJ105..STD..ARL199801-200606

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i1FZFE..FZJ105..STD..ARL199801-200606

sub23207-20011

main23270-50010i2UZFE..UZJ100..5FC..CHI199801-200506

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-12026i1FZFE..FZJ105..STD..ARL199801-200606

23273CHOSE, FUEL, NO.2

main23273-50020i2UZFE..UZJ100..5FC..CHI199801-200506

main95333-06040i1FZFE..FZJ100..CHI200208-200606

main95333-06040i1FZFE..FZJ10#200004-200208

*H,L=320

main95334-06032i1FZFE..FZJ10#199801-200004

23273DCLIP(FOR FUEL HOSE NO.2)

main96132-41100i1FZFE..FZJ10#199801-200208

sub96132-51100

main96132-51100i1FZFE..FZJ10#..GCC,GEN199801-200606

23280REGULATOR ASSY, FUEL PRESSURE

main23280-50050i2UZFE..UZJ100..LHD199801-200506

main23280-75010i1FZFE..FZJ10#..GCC,GEN199801-200606

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2UZFE..UZJ100..ARL,GCC,GEN200208-200709

main90301-09002i1FZFE..FZJ100..CHI199801-200606

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1FZFE..FZJ10#..GCC,GEN199801-200606

23300PFILTER, FUEL(FOR EFI)

main23300-50090i2UZFE..UZJ100..ARL199801-200505

main23300-50110i1FZFE..FZJ10#..GCC,GEN199801-200606

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-50020i2UZFE..UZJ100199801-200208

main23801-50021i2UZFE..UZJ100..5FC..CHI200208-200506

main23801-66030i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-50100i2UZFE..UZJ100199801-200208

sub23803-50120

main23803-50120i2UZFE..UZJ100..CHI200208-200506

main23803-66030i1FZFE..FZJ100..CHI199801-200606

23803EHOSE, FUEL

main95333-06010i1FZFE..FZJ10#..GCC,GEN200004-200606

main95334-06010i1FZFE..FZJ10#199801-200004

23803FCLIP

main90467-11009i1FZFE..FZJ10#199801-200204

sub96135-51100

main96135-51100i1FZFE..FZJ10#..GCC,GEN200204-200606

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-50050i2UZFE..UZJ100199801-200208

sub23807-50051

sub23801-50021

main23807-50051i2UZFE..UZJ100200208-200306

sub23807-50052

main23807-50052i2UZFE..UZJ100..5FC..CHI200306-200506

main23807-66030i1FZFE..FZJ10#..GCC,GEN199801-200606

main23807-66040i1FZFE..FZJ105..RHD..GEN199801-200505

SOUTH AFRICA SPEC

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1FZFE..FZJ105..STD..ARL199801-200606

main90561-08029i2UZFE..UZJ100..ARL,GCC,GEN199801-200506

8404

9007911049

main90079-11049

9007930006

main90079-30006

9034114032

main90341-14032

9043014008

main90430-14008

9046912012

main90469-12012

9099992002

main90999-92002

91511B0860

main91511-B0860

91511C0835

main91511-C0835

9162160620

main91621-60620

9162160860

main91621-60860

91621J0814

main91621-J0814

9321915020

main93219-15020

36 parts on this diagram · 6 diagrams in section
