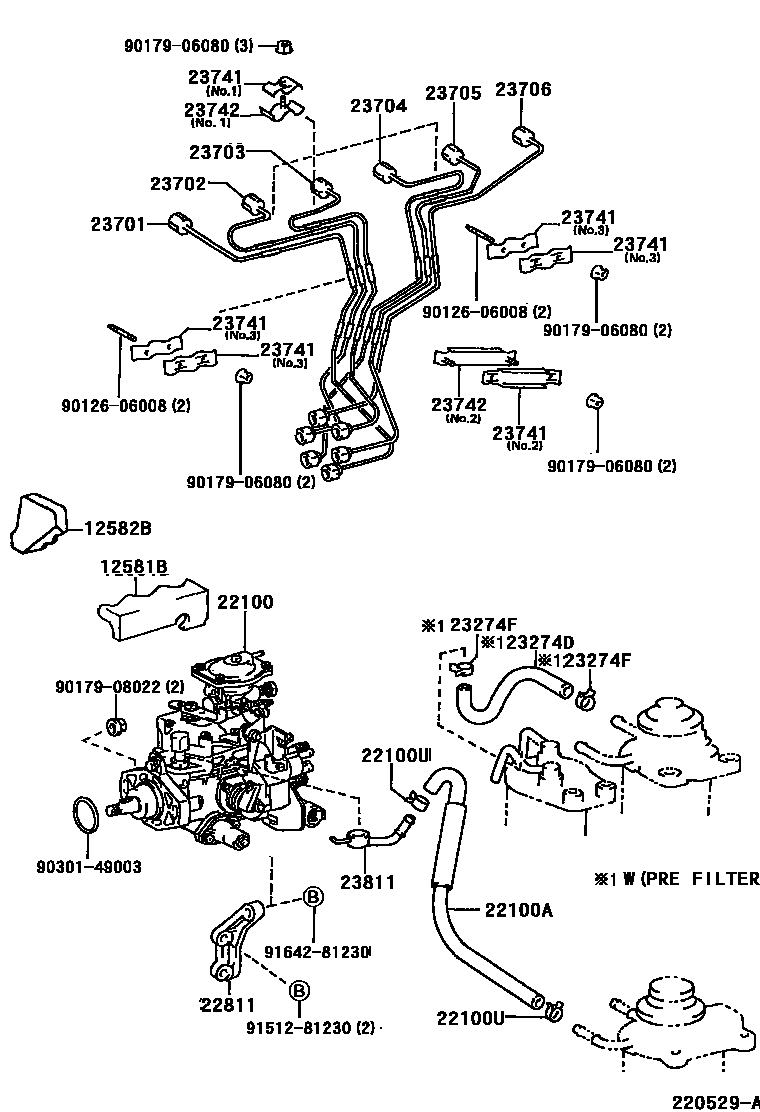

INJECTION PUMP ASSEMBLY
12581BINSULATOR, CYLINDER BLOCK, NO.1
12582BINSULATOR, CYLINDER BLOCK, NO.2
22100PUMP ASSY, INJECTION OR SUPPLY
PHILIPPINES SPEC
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA & W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
COLD AREA OR RUSSIA SPEC
RUSSIA SPEC
COLD SPEC
W(ENGINE IMMOBILIZER SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR)
W(ENGINE IMMOBILIZER SYSTEM) & (RUSSIA SPEC)
CHINA SPEC
W(ENGINE IMMOBILIZER SYSTEM) & (COLD AREA OR RUSSIA SPEC)
W(ENGINE IMMOBILIZER SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM & PHILIPPINES SPEC)
W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR)
W(ENGINE IMMOBILIZER SYSTEM)
W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR)
SOUTH AFRICA SPEC
W(HIGH ALTITUDE COMPENSATOR)
W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR)
MARK=22100-1C420
CHINA SPEC
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22811STAY, INJECTION PUMP, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
23274DHOSE, FUEL, NO.3
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23705PIPE SUB-ASSY, INJECTION, NO.5
23706PIPE SUB-ASSY, INJECTION, NO.6
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
9012606008
main90126-06008
9017906080
main90179-06080
9017908022
main90179-08022
9030149003
main90301-49003
9151281230
main91512-81230
9164281230
main91642-81230
23 parts on this diagram · 3 diagrams in section
