STARTER

0001 112V 1.4KW 0002 112V 1.4KW 0003 112V 2.0KW 0004 112V 2.5KW 0005 112V 3.0KW 0006 112V 1.4KW 0007 112V 1.4KW 0008 112V 2.0KW 0009 112V 2.5KW 0010 112V 3.0KW 0011 112V 1.4KW,2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1HDT,1HZ..HDJ100,HZJ105199801-200505

12V 2.5KW

main28011-50050i2UZFE..UZJ100199801-200410

main28011-50060i2UZFE..UZJ100..CHI200309-200410

main28011-50080i2UZFE..UZJ100..ARL,GCC,GEN200410-200505

main28011-50100i2UZFE..UZJ100..5FC..CHI200410-200506

main28011-54010i1HDFTE..HDJ100199801-200505

12V 3.0KW

main28011-54010i1HDFTE..HDJ100200008-200208

main28011-66020i1FZFE..FZJ10#199801-200505

12V 1.4KW

main28011-66060i1FZFE..FZJ105..GEN199801-200505

12V 2.0KW

main28011-66060i1FZFE..FZJ100..CHI200309-200606

28011BRING, O(FOR STARTER CLUTCH)

main96711-24040i2UZFE..UZJ100199801-200208

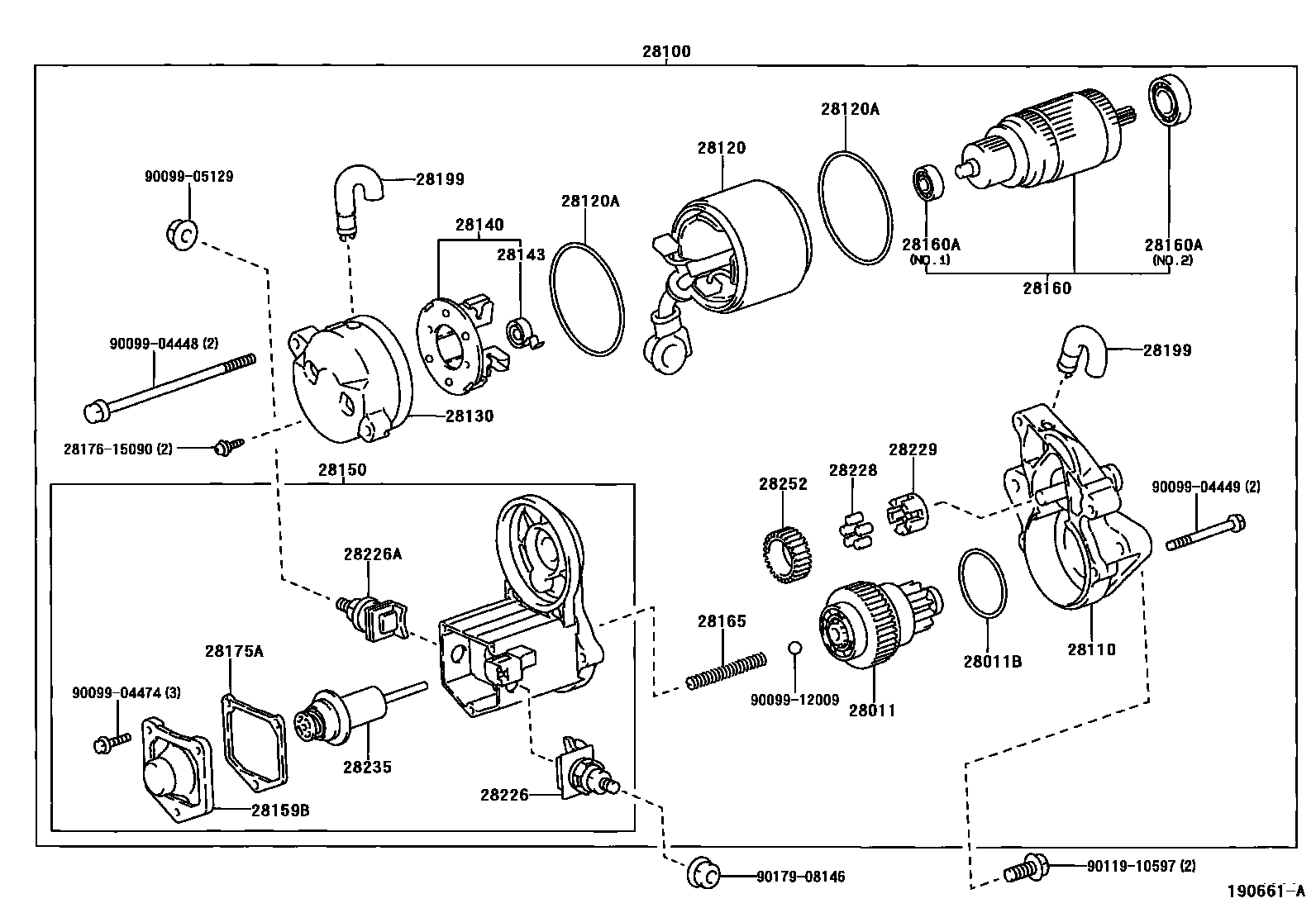

28100STARTER ASSY

main28100-0K010i1FZFE..FZJ100..CHI200506-200606

12V 2.0KW

sub28100-66060

main28100-0K010i1FZFE..FZJ100..CHI200401-200506

12V 2.0KW,(L)

sub28100-66060

main28100-17060i1HDT,1HZ..HDJ100,HZJ105199801-200505

12V 2.5KW

sub28100-17061

main28100-17070i1HDFTE..HDJ100;1HZ..HZJ105..LHD..SOB..GEN199801-200505

12V 3.0KW

sub28100-17080

main28100-50040i2UZFE..UZJ100199801-200003

12V 1.4KW

sub28100-50090

main28100-50090i2UZFE..UZJ100200003-200505

12V 1.4KW

sub28100-50091

main28100-50100i2UZFE..UZJ100..CHI200309-200403

12V 2.0KW

sub28100-50101

main28100-50101i2UZFE..UZJ100..5FC..CHI200403-200506

12V 2.0KW

main28100-66040i1FZFE..FZJ10#199801-200505

12V 1.4KW

main28100-66060i1FZFE..FZJ100..CHI199801-200505

12V 2.0KW

main28100-66060i1FZFE..FZJ100..CHI200401

12V 2.0KW,(J)

28110HOUSING ASSY, STARTER DRIVE

main28110-50040i2UZFE..UZJ100199801-200208

main28110-66020i1FZFE..FZJ10#199801-200208

12V 1.4KW

main28110-66060i1FZFE..FZJ105..GEN199801-200208

12V 2.0KW

main28115-17020i1HDT,1HZ..HDJ100,HZJ105199801-200208

12V 2.5KW

main28115-17070i1HZ..HZJ105..LHD..SOB199801-200208

12V 3.0KW

main28115-17070i1HDFTE..HDJ100200008-200208

28120YOKE ASSY, STARTER

main28120-17070i1HZ..HZJ105..LHD..GEN199801-200505

12V 3.0KW

main28120-17070i1HDFTE..HDJ100200008-200208

main28120-50040i2UZFE..UZJ100..ARL,GCC,GEN199801-200505

main28120-50070i2UZFE..UZJ100..CHI200309-200506

main28120-54380i1FZFE..FZJ105..GEN199801-200505

12V 2.0KW

main28120-54380i1FZFE..FZJ100..CHI200309-200606

main28120-56081i1HZ..HZJ105199801-200505

12V 2.5KW

main28120-66040i1FZFE..FZJ10#..GCC,GEN199801-200505

12V 1.4KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064i1FZFE,2UZFE..FZJ10#,UZJ100199801-200208

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-17070i1HZ..HZJ105..LHD..GEN199801-200208

12V 3.0KW

main28130-17070i1HDFTE..HDJ100200008-200208

main28130-50040i2UZFE..UZJ100199801-200208

main28130-56300i1HDT,1HZ..HDJ100,HZJ105199801-200208

12V 2.5KW

main28130-66020i1FZFE..FZJ10#199801-200208

12V 1.4KW

main28130-66060i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i1FZFE,2UZFE..FZJ100,UZJ100..GX..CHI200309-200506

main28140-54380i1FZFE..FZJ105199801-200505

12V 2.0KW

main28140-67090i1HDFTE..HDJ100;1HZ..HZJ105..LHD..SOB..GEN199801-200505

12V 3.0KW

main28140-67090i1HDFTE..HDJ100200008-200208

main28140-76070i1FZFE..FZJ10#..GCC,GEN199801-200505

12V 1.4KW

main28140-77090i1HDT,1HZ..HDJ100,HZJ105199801-200505

12V 2.5KW

28143SPRING, STARTER BRUSH

main28143-54380i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

main90099-17112i2UZFE..UZJ100199801-200208

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-17060i1HZ..HZJ105199801-200505

12V 2.5KW

main28150-17070i1HDFTE..HDJ100199801-200505

12V 3.0KW

main28150-17070i1HDFTE..HDJ100200008-200208

main28150-50041i2UZFE..UZJ100199801-200003

main28150-50080i2UZFE..UZJ100..ARL,GCC,GEN200003-200410

main28150-50090i2UZFE..UZJ100..ARL,GCC,GEN200410-200505

main28150-50100i2UZFE..UZJ100..CHI200309-200410

main28150-50110i2UZFE..UZJ100..CHI200410-200506

main28150-66041i1FZFE..FZJ10#199801-200505

12V 1.4KW

main28150-66060i1FZFE..FZJ105199801-200505

12V 2.0KW

main28150-66060i1FZFE..FZJ100..CHI200309-200606

28159BCOVER, MAGNET SWITCH

main28159-17030i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28159-50080i2UZFE..UZJ100200003-200208

main28159-54380i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

main28159-55050i2UZFE..UZJ100199801-200003

main28159-55050i1FZFE..FZJ10#199801-200208

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-47040i1HDT,1HZ..HDJ100,HZJ105199801-200303

12V 2.5KW

sub28160-54140

main28160-54140i1HZ..HZJ105200303-200505

12V 2.5KW

main28160-67090i1HDFTE..HDJ100200008-200208

main28160-67090i1HDFTE..HDJ100199801-200505

12V 3.0KW

main28160-74070i2UZFE..UZJ100199801-200505

12V 1.4KW

main28160-75120i1FZFE..FZJ105199801-200506

12V 2.0KW

28160ABEARING, STARTER ARMATURE

main90099-10107i1HDT,1HZ..HDJ100,HZJ105199801-200208

12V 2.5KW,NO.1

main90099-10119i1HDT,1HZ..HDJ100,HZJ105199801-200208

12V 2.5KW,NO.2

main90099-10196i1FZFE,2UZFE..FZJ10#,UZJ100199801-200208

12V 1.4KW,NO.1

main90099-10197i1FZFE..FZJ105;1FZFE,2UZFE..FZJ100,UZJ100..GX,VX199801-200208

12V 1.4KW,2.0KW,NO.2

main90099-10208i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW,NO.1

main90099-10215i1HZ..HZJ105..LHD..GEN199801-200208

12V 3.0KW,NO.2

main90099-65030i1HZ..HZJ105..LHD..GEN199801-200208

12V 3.0KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i1FZFE,2UZFE..FZJ10#,UZJ100199801-200208

main28165-77090i1HD#,1HZ..HDJ100,HZJ105199801-200208

28175AGASKET, MAGNET SWITCH COVER

main28175-50080i2UZFE..UZJ100200003-200208

main28175-54380i1FZFE..FZJ105..GEN199801-200208

12V 2.0KW

main28175-55050i2UZFE..UZJ100199801-200003

main28175-55050i1FZFE..FZJ10#199801-200208

12V 1.4KW

main28175-56310i1HD#,1HZ..HDJ100,HZJ105199801-200208

28199COVER, STARTER

main28199-46080i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28199-50040i2UZFE..UZJ100199801-200208

main28199-74110i1FZFE..FZJ10#199801-200208

28226STARTER KIT, BATTERY TERMINAL

main28226-50052i2UZFE..UZJ100199801-200003

main28226-50070i2UZFE..UZJ100200003-200208

main28226-54320i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28226-55050i1FZFE..FZJ10#199801-200208

12V 1.4KW

sub28226-64370

main28226-66060i1FZFE..FZJ105..GEN199801-200208

12V 2.0KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-50080i2UZFE..UZJ100200003-200208

main28226-54220i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28226-72010i1FZFE..FZJ105..GEN;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

main28226-74070i1FZFE..FZJ10#199801-200208

12V 1.4KW

main28226-74070i2UZFE..UZJ100199801-200003

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i1FZFE,2UZFE..FZJ10#,UZJ100199801-200208

main28228-56080i1HD#,1HZ..HDJ100,HZJ105199801-200208

28229RETAINER, STARTER IDLE GEAR

main28229-56080i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28229-74070i1FZFE,2UZFE..FZJ10#,UZJ100199801-200208

28235PLUNGER, MAGNET SWITCH

main28235-17030i1HD#,1HZ..HDJ100,HZJ105199801-200208

main28235-54380i2UZFE..UZJ100200003-200208

main28235-54380i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

main28235-55050i1FZFE..FZJ10#199801-200208

12V 1.4KW

main28235-55050i2UZFE..UZJ100199801-200003

28252GEAR, STARTER IDLE

main28254-64130i1FZFE..FZJ105..GEN;1FZFE..FZJ100..STD;1FZFE..FZJ100..LUB..5F199801-200208

12V 2.0KW

main28254-67090i1HDFTE..HDJ100200008-200208

main28254-67090i1HZ..HZJ105..LHD..GEN199801-200208

12V 3.0KW

main28254-74070i2UZFE..UZJ100199801-200208

12V 1.4KW

main28254-77090i1HDT,1HZ..HDJ100,HZJ105199801-200208

12V 2.5KW

2817615090SCREW, STARTER

main28176-15090

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9011910597

main90119-10597

9017908146

main90179-08146

30 parts on this diagram · 11 diagrams in section
