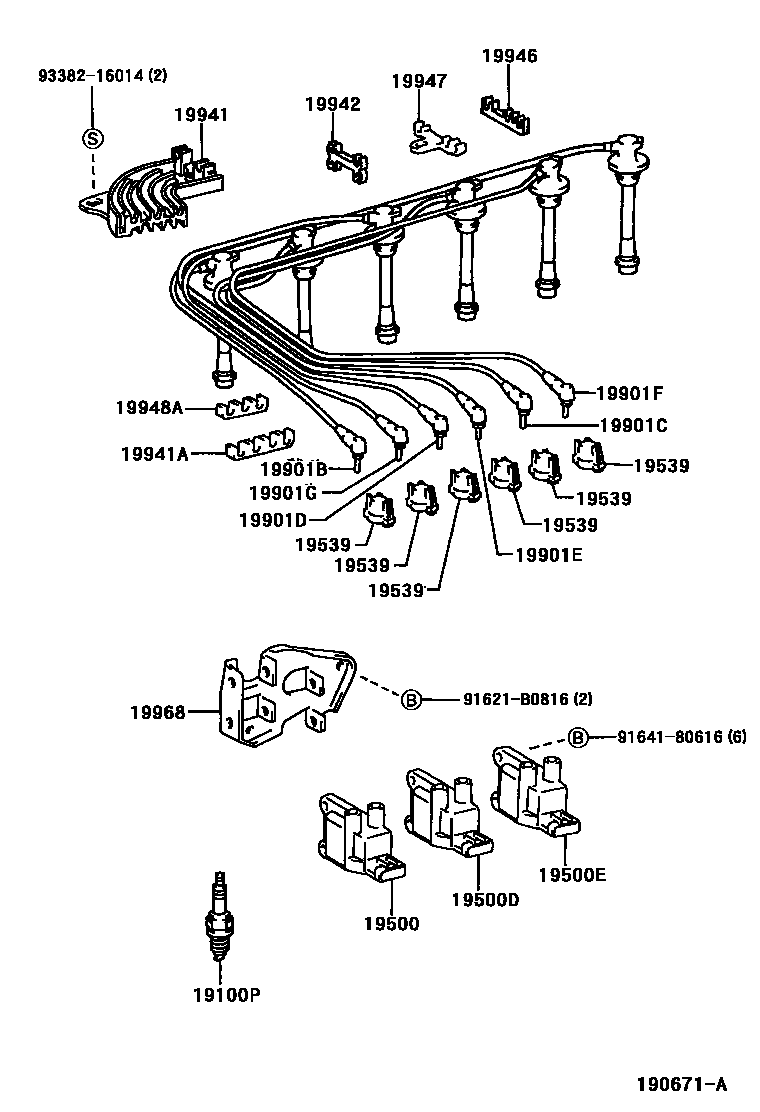

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19100PPLUG, SPARK

main90919-01166i2UZFE..UZJ100..LHD199801-200505

K20R-U

main90919-01192i1FZFE..FZJ10#199801-200606

K16TR11

main90919-01210i2UZFE..UZJ100..4FC..GCC199801-200506

SK20R11

19500COIL ASSY, IGNITION

main90919-02230i2UZFE..UZJ100199801-200308

main90919-02231i1FZFE..FZJ100..CHI199801-200606

main90919-02249i2UZFE..UZJ100..ARL,GCC,GEN200308-200506

sub90919-02259

19500DCOIL, IGNITION, NO.1

main90919-02232i1FZFE..FZJ10#..GCC,GEN199801-200606

19500ECOIL, IGNITION, NO.2

main90919-02233i1FZFE..FZJ10#..GCC,GEN199801-200606

19539HOLDER, RESISTIVE CODE, NO.4

main19539-16010i1FZFE..FZJ10#199801-200606

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15530i1FZFE..FZJ100..CHI199801-200606

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15531i1FZFE..FZJ10#199801-200606

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15532i1FZFE..FZJ10#199801-200606

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15533i1FZFE..FZJ10#199801-200606

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-15534i1FZFE..FZJ10#199801-200606

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15535i1FZFE..FZJ10#199801-200606

19941CLAMP, RESISTIVE CORD, NO.1

main19941-66010i1FZFE..FZJ10#199801-200606

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00555i1FZFE..FZJ10#199801-200606

19942CLAMP, RESISTIVE CORD, NO.2

main19942-66010i1FZFE..FZJ10#199801-200606

19946CLAMP, RESISTIVE CORD, NO.3

main19946-66010i1FZFE..FZJ10#199801-200606

19947CLAMP, RESISTIVE CORD, NO.4

main19947-66010i1FZFE..FZJ10#199801-200606

19948ACLAMP, CORD, NO.5

main90464-00556i1FZFE..FZJ10#199801-200606

19968BRACKET, IGNITION COIL

main19968-66010i1FZFE..FZJ10#199801-200606

91621B0816

main91621-B0816

9164180616

main91641-80616

9338216014

main93382-16014

21 parts on this diagram · 5 diagrams in section
