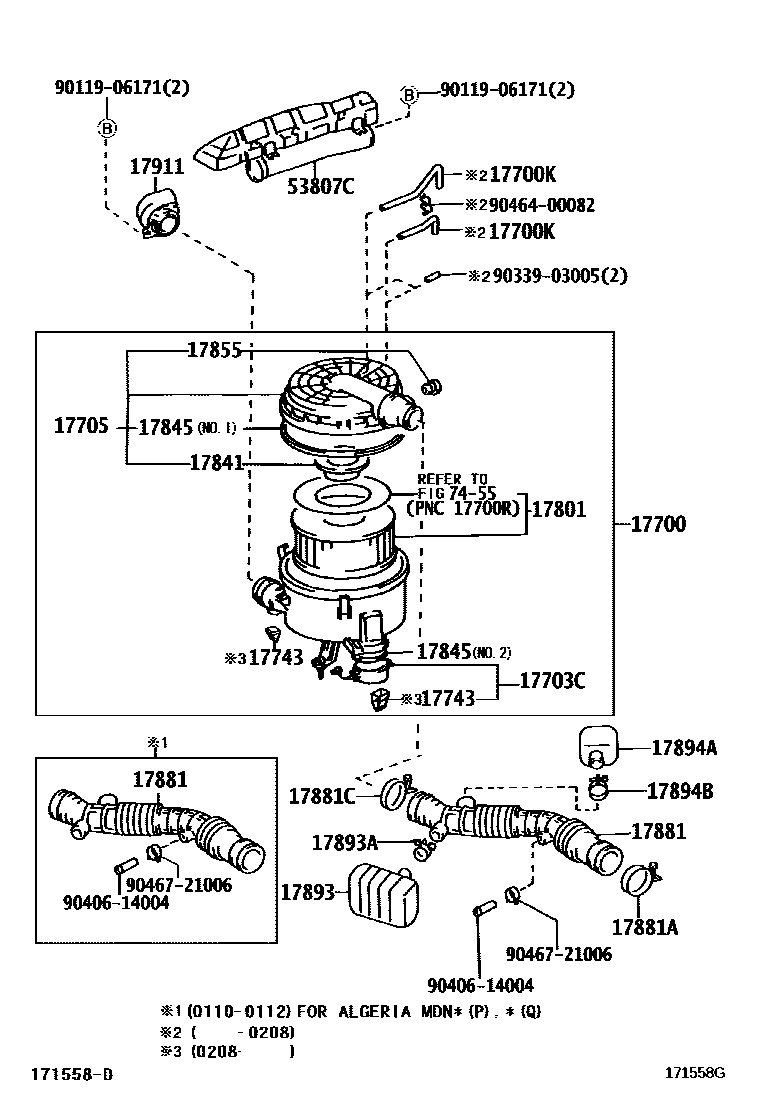

AIR CLEANER
17700CLEANER ASSY, AIR
sub17700-17231
W(SNORKEL AIR CLEANER)
W(SNORKEL AIR CLEANER)
sub17700-50181
sub17700-66181
17700KHOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR)
*H,L=90,MARK=#*
*H,L=90,MARK=#*,NO.1
*H,L=400,MARK=#*,NO.2
*H,L=330,MARK=#*,NO.2
*H,L=400,MARK=#*
*H,L=540,MARK=#*,NO.2
17703CCAP SUB-ASSY, DUST
17705CAP SUB-ASSY, AIR CLEANER
17743VALVE, DUST RELIEF
W(SNORKEL AIR CLEANER)
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
NO.1
NO.2
17855GASKET, AIR INLET DUCT, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17911DUCT, COOL AIR INTAKE, NO.1
53807CDUCT SUB-ASSY, FRONT FENDER AIR, RH
W/SNORKEL
7455
9011906171
main90119-06171
9033903005
main90339-03005
9040614004
main90406-14004
9046400082
main90464-00082
9046721006
main90467-21006
24 parts on this diagram · 7 diagrams in section
