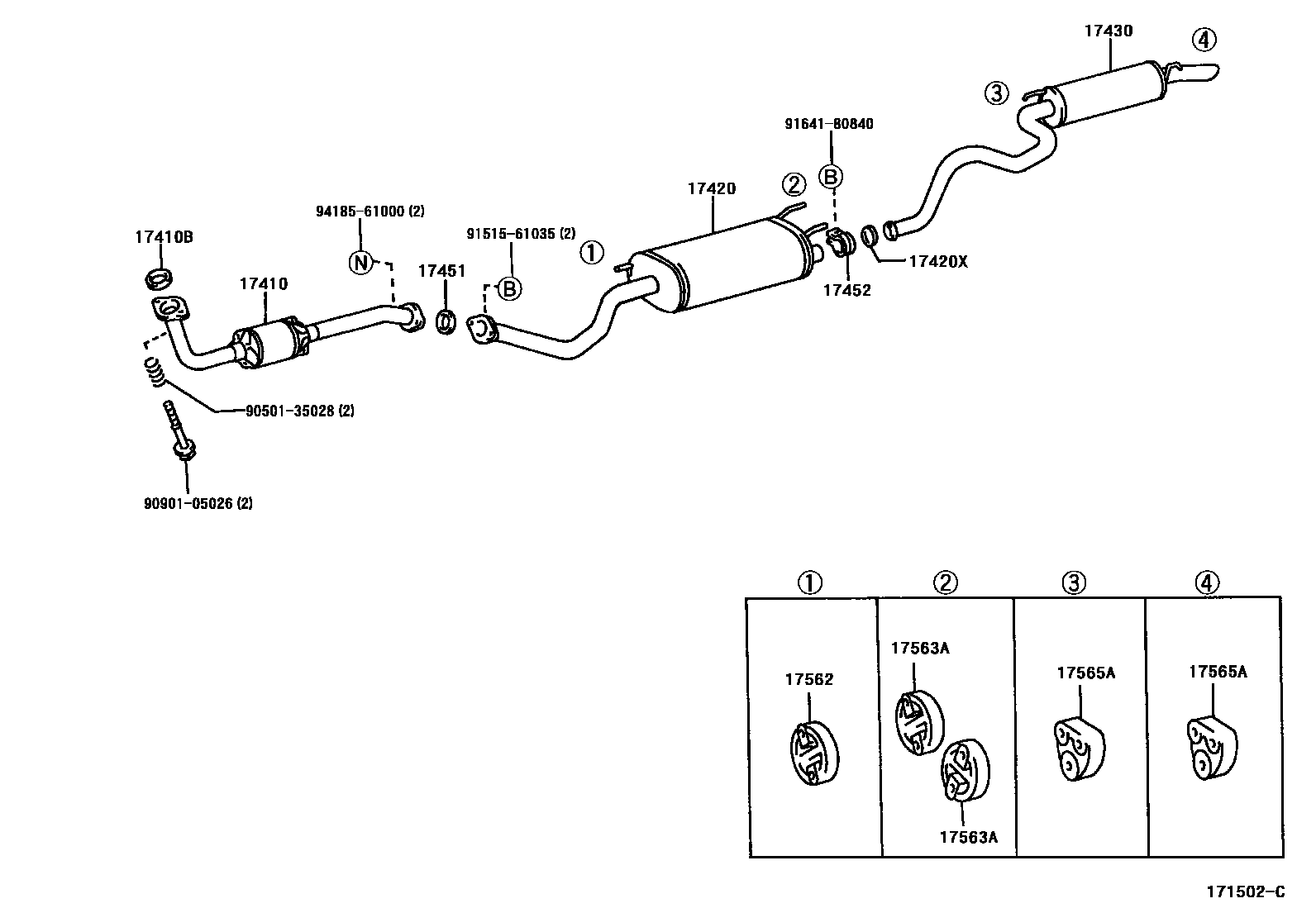

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/M06/N
sub17401-66131
TYPE A:REFER TO ILLUSTRATION
CHINA OR SAUDI ARABIA SPEC
TYPE B:REFER TO ILLUSTRATION
CHINA SPEC
sub17410-66140
*115=TOYOTA/98-01/N,SAUDI ARABIA SPEC
*114=TOYOTA/HA2/Y,W(OXYGEN SENSOR)
(J)
TYPE C:REFER TO ILLUSTRATION
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
sub17403-50151
sub17403-66071
sub17403-17160
sub17403-50151
(J)
sub17403-66071
(J)
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17452CLAMP, EXHAUST PIPE
17562SUPPORT, EXHAUST PIPE, NO.2
NO.1
GULF SPEC;PERU SPEC;SAUDI ARABIA SPEC,NO.1
SAUDI ARABIA OR PERU SPEC,NO.1
SAUDI ARABIA SPEC,NO.1
NO.2
SAUDI ARABIA SPEC,NO.2
SAUDI ARABIA OR PERU SPEC,NO.2
GULF SPEC;PERU SPEC;SAUDI ARABIA SPEC,NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
9050135028
main90501-35028
9090105026
main90901-05026
9151561035
main91515-61035
9164180840
main91641-80840
9418561000
main94185-61000
15 parts on this diagram · 11 diagrams in section
