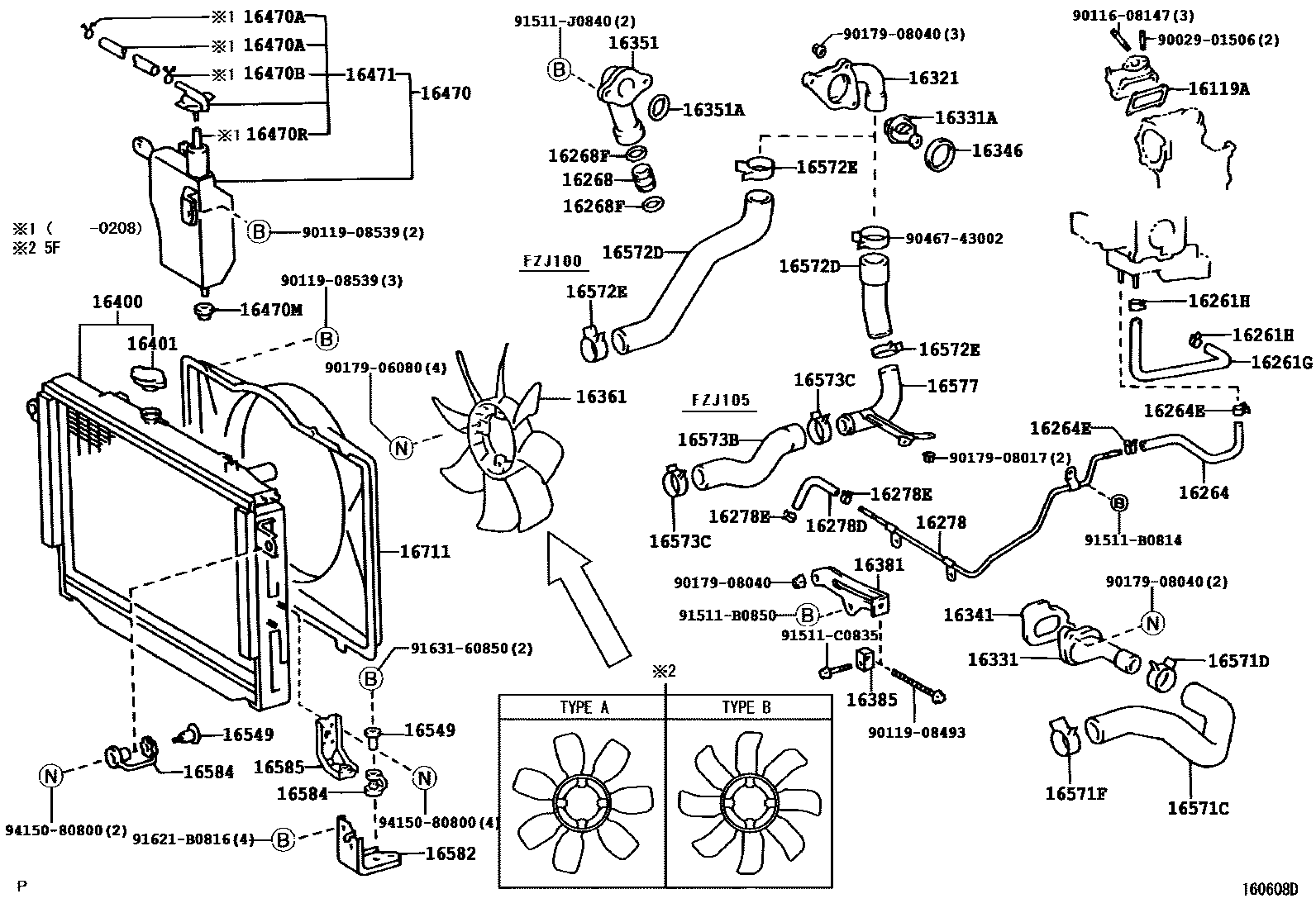

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1

16119AGASKET, THERMOSTAT GUIDE

main16119-66020i1FZFE..FZJ100..CHI199801-200606

16261HOSE, WATER BY-PASS

main16261-17010i1HDT..HDJ100;1HZ..HZJ105..LHD..GEN199801-200505

main16261-50090i2UZFE..UZJ100..5FC..CHI199801-200506

16261GHOSE, WATER BY-PASS, NO.1

main16261-66050i1FZFE..FZJ105..STD..ARL199801-200606

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-13001i1FZFE..FZJ10#199801-200505

sub96135-51300

main96135-51300i1FZFE..FZJ100..CHI200309-200606

16264HOSE, WATER BY-PASS, NO.2

main16264-17011i1HDT..HDJ100;1HZ..HZJ105..LHD..GEN199801-200505

main16264-66030i1FZFE..FZJ10#..GCC,GEN199801-200606

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1FZFE..FZJ10#199801-200505

sub96135-51300

main96135-51300i1FZFE..FZJ10#..GCC,GEN200309-200606

16268PIPE, WATER BY-PASS, NO.1

main16268-17010i1HZ..HZJ105199801-200505

main16268-17020i1HD#..HDJ100199801-200505

main16268-66010i1FZFE..FZJ100..CHI199801-200606

16268FRING, O(FOR WATER BY-PASS PIPE)

main90301-29006i1FZFE..FZJ100..CHI199801-200606

16278PIPE, WATER BY-PASS, NO.2

main16278-17010i1H#..HDJ100,HZJ105199801-200505

main16278-66011i1FZFE..FZJ10#..GCC,GEN199801-200606

16278DHOSE, WATER BY-PASS

main99555-10200i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

*H,L=160

16278ECLIP(FOR WATER BY-PASS HOSE)

main90467-13001i1FZFE..FZJ10#199801-200505

sub96135-51300

main96135-51300i1FZFE..FZJ100..CHI200309-200606

16321INLET, WATER

main16321-17010i1H#..HDJ100,HZJ105199801-200505

main16321-50020i2UZFE..UZJ100..LHD199801-200506

main16321-66010i1FZFE..FZJ10#199801-200302

sub16321-66011

main16321-66011i1FZFE..FZJ100..CHI200302-200606

16331OUTLET, WATER

main16304-17010i1HDT..HDJ100..5F199801-200208

main16304-17020i1HDT..HDJ100..4FC199801-200208

main16304-17030i1HZ..HZJ105..4FC199801-200208

main16304-17040i1HDFTE..HDJ100200008-200505

main16331-17030i1HZ..HZJ105199801-200505

main16331-66040i1FZFE..FZJ10#..GCC,GEN199801-200606

16331ATHERMOSTAT

main90916-03089i1H#..HDJ100,HZJ105199801-200505

*WAX 76-90

main90916-03100i2UZFE..UZJ100..ARL199801-200607

*WAX 82-95

main90916-03117i1FZFE..FZJ100..CHI199801-200606

*WAX 82-95

main90916-03138i2UZFE..UZJ100..CHI200607

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-17010i1H#..HDJ100,HZJ105199801-200505

main16341-66030i1FZFE..FZJ100..CHI199801-200606

16346GASKET, THERMOSTAT

main16346-50010i2UZFE..UZJ100..CHI199801-200506

main16346-66020i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

16351OUTLET, WATER BY-PASS

main16351-66010i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

16351ARING, O(FOR WATER BY-PASS OUTLET)

main90301-29006i1FZFE..FZJ105..STD..ARL199801-200606

16361FAN

main16361-17030i1HDFTE..HDJ100..GEN;1HZ..HZJ105..RHD..GEN;1HZ..HZJ105..LHD..LUB199808-200505

RUSSIA SPEC

main16361-17030i1H#..HDJ100,HZJ105..ARL,GEN199801-200208

main16361-17030i1HZ..HZJ105..LHD..SOB..GEN199808-200308

COLD SPEC

main16361-17040i1H#..HDJ100,HZJ105..ARL,GCC199801-200602

main16361-50040i2UZFE..UZJ100..CHI199801-200506

main16361-62010i1FZFE..FZJ100..CHI200208-200602

TYPE A:REFER ILLUST.

main16361-62010i1FZFE..FZJ10#..5F..(GCC,GEN)200505-200602

main16361-66020i1FZFE..FZJ10#..5F..(GCC,GEN)200512-200702

main16361-66020i1FZFE..FZJ10#199801-200606

TYPE B:REFER ILLUST.

main16361-66030i1FZFE..FZJ100..4FC200702

16381BAR, FAN BELT ADJUSTING

main16381-17010i1HDT,1HZ..HDJ100,HZJ105199801-200505

main16381-17020i1HZ..HZJ105..ARL199801-200505

12V 120A

main16381-17020i1HDFTE..HDJ100200008-200208

main16381-66030i1FZFE..FZJ10#..GCC,GEN199801-200505

ALTERNATOR 12V 80A

main16381-66040i1FZFE..FZJ100..CHI200309-200606

main16381-66040i1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL199801-200505

ALTERNATOR 12V 100A

16385SLIDER, FAN BELT ADJUSTING

main16385-17010i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

16400RADIATOR ASSY

main16400-17320i1HDFTE..HDJ100..5F200008-200208

sub16400-17321

main16400-17321i1HDFTE..HDJ100..5F200208-200708

MARK 1732

main16400-17330i1HDFTE..HDJ100..4FC200008-200208

sub16400-17331

main16400-17331i1HDFTE..HDJ100..5FC200208-200708

MARK 1733

sub16400-17390

main16400-17370i1HZ..HZJ105..ARL200301-200708

MARK 1737

main16400-50200i2UZFE..UZJ100..5F199801-200208

sub16400-50201

main16400-50201i2UZFE..UZJ100..5F..CHI200208-200505

main16400-50210i2UZFE..UZJ100..4FC199801-200208

sub16400-50211

main16400-50211i2UZFE..UZJ100..CHI200208-200411

sub16400-50212

main16400-50212i2UZFE..UZJ100..5FC..(ARL,GCC,GEN)200411-200608

sub16400-50360

main16400-50360i2UZFE..UZJ100..5FC..CHI200609

main16400-66110i1HDT..HDJ100..5F199801-200208

sub16400-66111

main16400-66111i1FZFE..FZJ100..5F..CHI200208-200410

sub16400-66112

main16400-66112i1FZFE..FZJ100..5F..CHI200411-200606

sub16400-17380

main16400-66120i1HDT..HDJ100..4FC199801-200208

sub16400-66121

main16400-66130i1FZFE..FZJ105..5F199801-200208

sub16400-66131

main16400-66131i1FZFE..FZJ105200208-200708

MARK 6613

main16400-66131i1FZFE..FZJ105200505

main16400-66140i1FZFE..FZJ105..4FC199801-200208

main16400-66170i1FZFE..FZJ100..4FC..GCC200208-200410

sub16400-66171

main16400-66171i1FZFE..FZJ100..4FC..CHI200411-200606

16401CAP SUB-ASSY, RADIATOR

main16401-50210i1FZFE..FZJ10#..GCC,GEN200411-200708

sub16401-67150

main16401-67150i2UZFE..UZJ100..CHI199801-200411

16470TANK ASSY, RADIATOR RESERVE

main16470-50100i2UZFE..UZJ100..ARL,GCC,GEN199801-200506

main16470-66030i1FZFE..FZJ100..CHI199801-200606

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1FZFE..FZJ10#199801-200208

*H,L=240

main90445-12078i1HD#,1HZ..HDJ100,HZJ105199801-200208

L=600(*H,L=450)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2UZFE..UZJ100199801-200208

16470MGROMMET

main90480-25025i1FZFE..FZJ10#..GCC,GEN199801-200606

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-50100i2UZFE..UZJ100199801-200208

L=240

main16472-66030i1FZFE..FZJ10#199801-200208

L=309

16471CAP SUB-ASSY, RESERVE TANK

main16405-50020i2UZFE..UZJ100..CHI199801-200506

main16405-66030i1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN199801-200606

16549COLLAR, RADIATOR SUPPORT, NO.2

main16549-50010i2UZFE..UZJ100..CHI199801-200606

UPPER BRACKET SIDE

main16549-50010i1HD#,1HZ..HDJ100,HZJ105199801-200505

NO.1

main16549-61010i1HD#,1HZ..HDJ100,HZJ105199801-200505

NO.2

main16549-61010i1FZFE..FZJ10#..GCC,GEN199801-200606

LOWER

16571CHOSE, RADIATOR, NO.1

main16571-17010i1HDT,1HZ..HDJ100,HZJ105199801-200505

main16571-17080i1HDFTE..HDJ100200008-200505

main16571-50150i2UZFE..UZJ100..ARL,GCC,GEN199801-200506

main16571-66040i1FZFE..FZJ105..STD..ARL199801-200606

16571DCLIP, RADIATOR HOSE, NO.1

main90467-41002i2UZFE..UZJ100..ARL,GCC,GEN200208-200606

sub90466-41008

main90467-41006i1HD#,1HZ..HDJ100,HZJ105199801-200505

sub90467-41002

16571FCLAMP OR CLIP(FOR WATER HOSE)

main90467-41002i2UZFE..UZJ100..ARL,GCC,GEN200208-200606

sub90466-41008

main90467-42001i1H#..HDJ100,HZJ105199801-200505

sub90467-41002

16572DHOSE, RADIATOR, NO.2

main16572-17130i1HDFTE..HDJ100199801-200505

main16572-17140i1HZ..HZJ105199801-200505

main16572-50150i2UZFE..UZJ100..CHI199801-200506

main16572-66021i1FZFE..FZJ105199801-200505

main16572-66030i1FZFE..FZJ100..CHI199801-200606

16572ECLIP, RADIATOR HOSE, NO.2

main90467-41006i1FZFE..FZJ105199801-200505

sub90467-41002

main90467-43002i1FZFE..FZJ100199801-200606

16573BHOSE, RADIATOR, NO.3

main16573-66020i1FZFE..FZJ105199801-200505

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-41006i1FZFE..FZJ105199801-200505

PIPE SIDE

sub90467-41002

main90467-43002i1FZFE..FZJ105199801-200505

RADIATOR SIDE

16577PIPE, RADIATOR, NO.7

main16577-66011i1FZFE..FZJ105199801-200505

16582BRACKET, RADIATOR, NO.1

main16582-50010i2UZFE..UZJ100..LHD199801-200606

16584INSULATOR, RADIATOR MOUNTING

main16584-61020i1H#..HDJ100,HZJ105199801-200606

LOWER

main16584-61020i1HD#,1HZ..HDJ100,HZJ105199801-200505

NO.2

main16584-66010i1H#..HDJ100,HZJ105199801-200606

UPPER BRACKET SIDE

main16584-66010i1FZFE..FZJ10#..GCC,GEN199801-200505

NO.1

16585BRACKET, RADIATOR, NO.3

main16585-61020i2UZFE..UZJ100..CHI199801-200606

16711SHROUD, FAN

main16711-17100i1HDFTE..HDJ100199801-200505

main16711-17110i1HZ..HZJ105199801-200505

main16711-50090i2UZFE..UZJ100..CHI199801-200506

main16711-66040i1FZFE..FZJ100199801-200606

main16711-66050i1FZFE..FZJ105199801-200505

9002901506

main90029-01506

9011608147

main90116-08147

9011908493

main90119-08493

9011908539

main90119-08539

9017906080

main90179-06080

9017908017

main90179-08017

9017908040

main90179-08040

9046743002

main90467-43002

91511B0814

main91511-B0814

91511B0850

main91511-B0850

91511C0835

main91511-C0835

91511J0840

main91511-J0840

91621B0816

main91621-B0816

9163160850

main91631-60850

9415080800

main94150-80800
