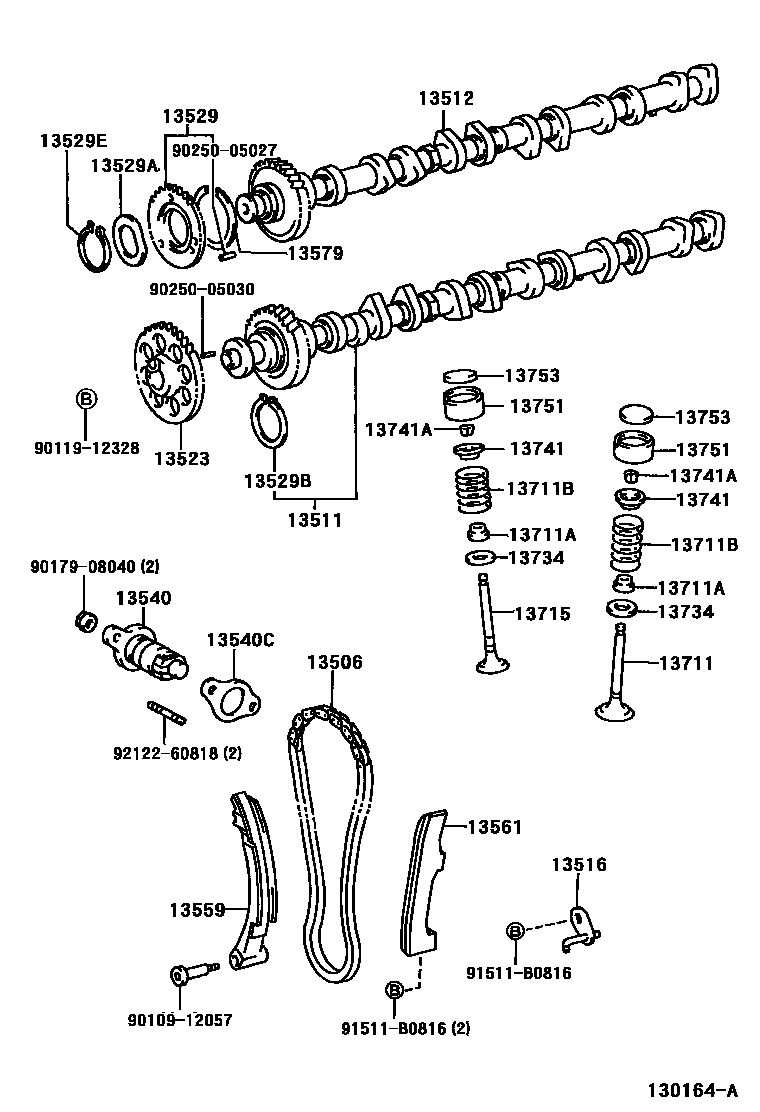

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1

13506CHAIN SUB-ASSY

main13506-66010i1FZFE..FZJ10#¥7,200199801-200606

13511CAMSHAFT

main13501-17010i1HZ..HZJ105¥38,700199801-200505

main13501-17020i1HDT..HDJ100¥61,500199801-200208

main13501-50050i2UZFE..UZJ100..ARL¥55,700199801-200506

main13501-66030i1FZFE..FZJ10#..GCC,GEN¥65,400199801-200606

main13511-17040i1HDFTE..HDJ100¥61,500200008-200505

sub13511-17041¥61,500

13512CAMSHAFT, NO.2

main13502-50030i2UZFE..UZJ100..LHD¥43,700199801-200506

main13502-66020i1FZFE..FZJ10#..GCC,GEN¥65,400199801-200606

13516JET, OIL

main13516-66011i1FZFE..FZJ100..CHI¥770199801-200606

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-66020i1FZFE..FZJ10#¥3,030199801-200606

13529GEAR, CAMSHAFT SUB

main13529-50900i2UZFE..UZJ100..ARL¥2,640199801-200506

main13529-62901i1FZFE..FZJ100..CHI¥3,480199801-200606

13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)

main90206-42001i2UZFE..UZJ100..LHD¥230199801-200606

13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)

main90520-41004i2UZFE..UZJ100..ARL,GCC,GEN¥230199801-200506

main90520-47002i1FZFE..FZJ10#..GCC,GEN¥220199801-200606

13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)

main90520-41004i1FZFE..FZJ100..CHI¥230199801-200606

13540TENSIONER ASSY, CHAIN, NO.1

main13540-17011i1H#..HDJ100,HZJ105¥5,500199801-200505

main13540-66011i1FZFE..FZJ10#..GCC,GEN¥4,110199801-200606

13540CGASKET(FOR CHAIN TENSIONER)

main13552-66010i1FZFE..FZJ10#..GCC,GEN¥480199801-200606

13559SLIPPER, CHAIN TENSIONER

main13559-66011i1FZFE..FZJ10#¥4,000199801-200606

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-66010i1FZFE..FZJ10#¥4,240199801-200606

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-50020i2UZFE..UZJ100..ARL,GCC,GEN¥740199801-200606

main13579-62010i1FZFE..FZJ10#..GCC,GEN¥910199801-200505

sub13579-50020¥740

13711VALVE, INTAKE

main13711-17010i1HZ..HZJ105¥1,430199801-200505

main13711-17020i1HDFTE..HDJ100¥2,920200008-200208

sub13711-17021¥2,900

main13711-17021i1HDFTE..HDJ100¥2,900200208-200505

main13711-50060i2UZFE..UZJ100..ARL¥1,950199801-200505

main13711-50070i2UZFE..UZJ100..CHI¥1,950199801-200506

main13711-66020i1FZFE..FZJ10#..GCC,GEN¥3,860199801-200606

main13711-66030i1FZFE..FZJ105..ARL¥1,950199801-200208

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02096i1FZFE..FZJ10#..GCC,GEN¥450199801-200606

INTAKE SIDE

main90913-02096i1HDFTE..HDJ100¥450200008-200208

main90913-02105i1FZFE..FZJ100..CHI¥450199801-200606

EXHAUST SIDE

main90913-02109i1HDT,1HZ..HDJ100,HZJ105¥270199801-200505

main90913-02112i2UZFE..UZJ100..ARL¥270199801-200506

EXHAUST

main90913-02113i2UZFE..UZJ100..CHI¥450199801-200506

INTAKE

13711BSPRING, COMPRESSION(FOR INNER)

main90501-29043i2UZFE..UZJ100..CHI¥320199801-200408

sub90501-29059¥300

main90501-29059i2UZFE..UZJ100..ARL,GCC,GEN¥300200408-200506

main90501-35026i1HDFTE..HDJ100¥440200008-200505

main90501-38006i1FZFE..FZJ10#..GCC,GEN¥390199801-200606

main90504-49001i1HDT,1HZ..HDJ100,HZJ105¥510199801-200505

13715VALVE, EXHAUST

main13715-17010i1HDT..HDJ100¥3,160199801-200208

main13715-17030i1HDFTE..HDJ100¥3,890200008-200505

main13715-50060i2UZFE..UZJ100..ARL¥2,760200208-200409

MARK U,M

main13715-50060i2UZFE..UZJ100..ARL¥2,760200005-200008

main13715-50070i2UZFE..UZJ100¥2,760199801-200506

main13715-50070i2UZFE..UZJ100..ARL¥2,760200409-200505

MARK U,Y

main13715-54040i1HZ..HZJ105¥2,000199811-200505

main13715-66020i1FZFE..FZJ10#..GCC,GEN¥3,860199801-200606

main13715-66030i1FZFE..FZJ105..ARL¥2,790199801-200208

13734SEAT, VALVE SPRING

main13734-62020i1HDFTE..HDJ100¥60199801-200506

main13734-66020i1FZFE..FZJ10#¥170199801-200606

13741RETAINER, VALVE SPRING

main13741-17010i1HDFTE..HDJ100¥280200008-200505

main13741-50030i2UZFE..UZJ100..5FC..CHI¥380199801-200506

main13741-54020i1HZ..HZJ105¥260199801-200505

main13741-66020i1FZFE..FZJ10#..GCC,GEN¥500199801-200606

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i1HZ..HZJ105¥200199801-200505

main90913-03027i1FZFE..FZJ10#..GCC,GEN¥120199801-200606

main90913-03028i2UZFE..UZJ100..ARL,GCC,GEN¥270199801-200506

13751LIFTER, VALVE

main13751-50030i2UZFE..UZJ100¥1,400199801-199810

sub13751-50031¥1,360

main13751-50031i2UZFE..UZJ100..ARL¥1,360199810-200506

main13751-54010i1HZ..HZJ105¥1,860199801-200505

main13751-66020i1FZFE..FZJ10#..GCC,GEN¥1,360199801-200606

13753SHIM, VALVE ADJUSTING

main13753-17040i1HZ..HZJ105¥390199801-200505

T=2.40

main13753-17090i1HZ..HZJ105¥390199801-200505

T=2.35

main13753-17100i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=2.45

main13753-22020i2UZFE..UZJ100..LHD¥520199801-200708

T=2.000,MARK 00,OD=11

main13753-22030i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.020,MARK 02,OD=11

main13753-22040i2UZFE..UZJ100..CHI¥520199801-200708

T=2.040,MARK 04,OD=11

main13753-22050i2UZFE..UZJ100..LHD¥520199801-200708

T=2.060,MARK 06,OD=11

main13753-22060i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.080,MARK 08,OD=11

main13753-22070i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.100,MARK 10,OD=11

main13753-22080i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.120,MARK 12,OD=11

main13753-22090i2UZFE..UZJ100..CHI¥520199801-200708

T=2.140,MARK 14,OD=11

main13753-22100i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.160,MARK 16,OD=11

main13753-22110i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.180,MARK 18,OD=11

main13753-22120i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.200,MARK 20,OD=11

main13753-22130i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.220,MARK 22,OD=11

main13753-22140i2UZFE..UZJ100..ARL¥520199801-200708

T=2.240,MARK 24,OD=11

main13753-22150i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.260,MARK 26,OD=11

main13753-22160i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.280,MARK 28,OD=11

main13753-22170i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.300,MARK 30,OD=11

main13753-22180i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.320,MARK 32,OD=11

main13753-22190i2UZFE..UZJ100..CHI¥520199801-200708

T=2.340,MARK 34,OD=11

main13753-22200i2UZFE..UZJ100..CHI¥520199801-200708

T=2.360,MARK 36,OD=11

main13753-22210i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.380,MARK 38,OD=11

main13753-22220i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.400,MARK 40,OD=11

main13753-22230i2UZFE..UZJ100..CHI¥520199801-200708

T=2.420,MARK 42,OD=11

main13753-22240i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.440,MARK 44,OD=11

main13753-22250i2UZFE..UZJ100..CHI¥520199801-200708

T=2.460,MARK 46,OD=11

main13753-22260i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.480,MARK 48,OD=11

main13753-22270i2UZFE..UZJ100..CHI¥520199801-200708

T=2.500,MARK 50,OD=11

main13753-22280i2UZFE..UZJ100..CHI¥520199801-200708

T=2.520,MARK 52,OD=11

main13753-22290i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.540,MARK 54,OD=11

main13753-22300i2UZFE..UZJ100..ARL¥520199801-200708

T=2.560,MARK 56,OD=11

main13753-22310i2UZFE..UZJ100..CHI¥520199801-200708

T=2.580,MARK 58,OD=11

main13753-22320i2UZFE..UZJ100..ARL¥520199801-200708

T=2.600,MARK 60,OD=11

main13753-22330i2UZFE..UZJ100..ARL¥520199801-200708

T=2.620,MARK 62,OD=11

main13753-22340i2UZFE..UZJ100..ARL¥520199801-200708

T=2.640,MARK 64,OD=11

main13753-22350i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.660,MARK 66,OD=11

main13753-22360i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.680,MARK 68,OD=11

main13753-22370i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.700,MARK 70,OD=11

main13753-22380i2UZFE..UZJ100..ARL¥520199801-200708

T=2.720,MARK 72,OD=11

main13753-22390i2UZFE..UZJ100..LHD¥520199801-200708

T=2.740,MARK 74,OD=11

main13753-22400i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.760,MARK 76,OD=11

main13753-22410i2UZFE..UZJ100..ARL,GCC,GEN¥520199801-200708

T=2.780,MARK 78,OD=11

main13753-22420i2UZFE..UZJ100..5FC..CHI¥520199801-200708

T=2.800,MARK 80,OD=11

main13753-54010i1HZ..HZJ105¥390199801-200505

T=2.50,MARK=T01

main13753-54060i1HZ..HZJ105¥390199801-200505

T=2.60,MARK=T06

main13753-54110i1HZ..HZJ105¥390199801-200505

T=2.70,MARK=T11

main13753-54160i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=2.80,MARK=T16

main13753-54210i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=2.90,MARK=T21

main13753-54260i1HZ..HZJ105¥390199801-200505

T=3.00,MARK=T26

main13753-54310i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=3.10,MARK=T31

main13753-54420i1HZ..HZJ105¥390199801-200505

T=2.55,MARK=T42

main13753-54430i1HZ..HZJ105¥390199801-200505

T=2.65,MARK=T43

main13753-54440i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=2.75,MARK=T44

main13753-54450i1HZ..HZJ105¥390199801-200505

T=2.85,MARK=T45

main13753-54460i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=2.95,MARK=T46

main13753-54470i1HDT,1HZ..HDJ100,HZJ105¥390199801-200505

T=3.05,MARK=T47

main13753-54480i1HZ..HZJ105¥390199801-200505

T=3.15,MARK=T48

main13753-66020i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=2.50

main13753-66040i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=2.55

main13753-66060i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=2.60

main13753-66080i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=2.65

main13753-66100i1FZFE..FZJ100..CHI¥630199801-200606

T=2.70

main13753-66120i1FZFE..FZJ100..CHI¥630199801-200606

T=2.75

main13753-66140i1FZFE..FZJ100..CHI¥630199801-200606

T=2.80

main13753-66160i1FZFE..FZJ10#¥630199801-200606

T=2.85

main13753-66180i1FZFE..FZJ100..CHI¥630199801-200606

T=2.90

main13753-66200i1FZFE..FZJ100..CHI¥630199801-200606

T=2.95

main13753-66220i1FZFE..FZJ100..CHI¥630199801-200606

T=3.00

main13753-66240i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=3.05

main13753-66260i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=3.10

main13753-66280i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=3.15

main13753-66300i1FZFE..FZJ100..CHI¥630199801-200606

T=3.20

main13753-66320i1FZFE..FZJ100..CHI¥630199801-200606

T=3.25

main13753-66340i1FZFE..FZJ10#..GCC,GEN¥630199801-200606

T=3.30

9010912057

main90109-12057¥510

9011912328

main90119-12328¥500

9017908040

main90179-08040¥100

9025005027

main90250-05027¥80

9025005030

main90250-05030¥130

91511B0816

main91511-B0816¥90

9212260818

main92122-60818¥160

30 parts on this diagram · 4 diagrams in section
