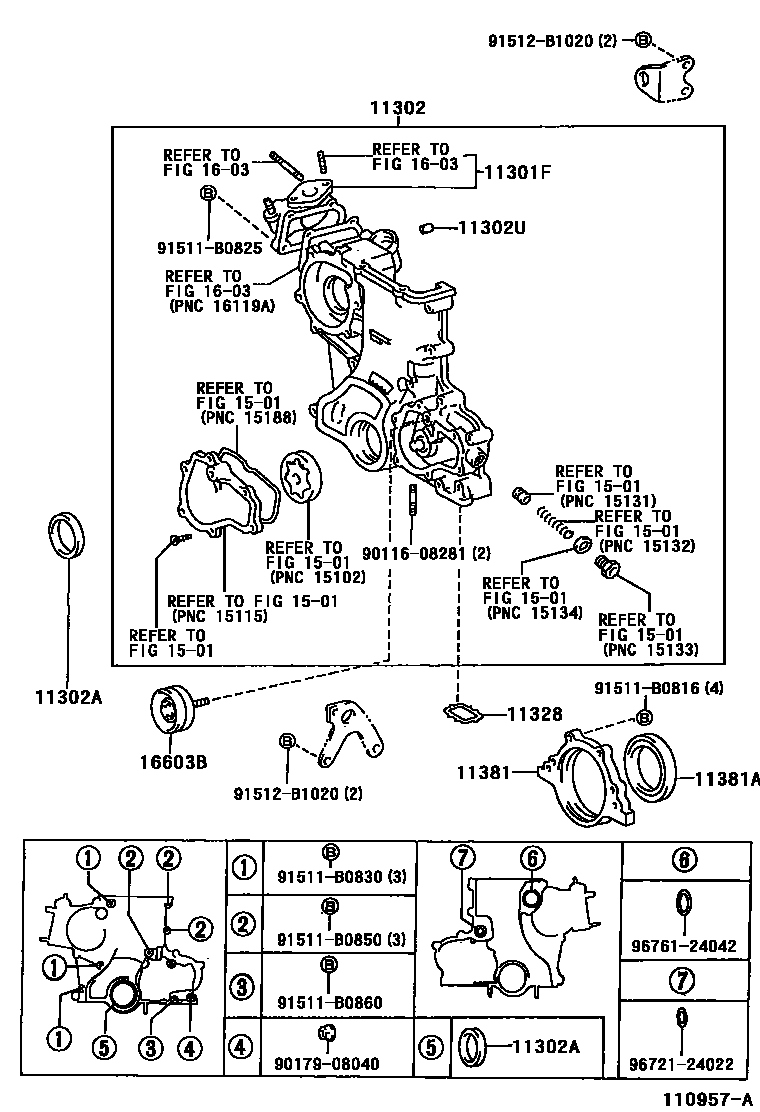

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-17030i1HDT,1HZ..HDJ100,HZJ105199801-200505

main11301-17040i1HDFTE..HDJ100200008-200108

main11301-17041i1HDFTE..HDJ100200108-200505

11301FPLATE, WATER PUMP THERMOSTAT GUIDE

main16127-66020i1FZFE..FZJ10#199801-200606

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-66020i1FZFE..FZJ10#..GCC,GEN199801-200606

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-52022i1FZFE..FZJ10#199801-200606

main90311-58006i1HZ..HZJ105199801-200505

NO.1

main90311-58007i1H#..HDJ100,HZJ105199801-200505

NO.2

main90311-65003i1HDFTE..HDJ100200008-200505

NO.1

11302UPIN, RING

main90253-11021i1FZFE..FZJ10#199801-200606

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-17030i1HDT..HDJ100199801-200208

main11328-17040i1HDFTE..HDJ100200008-200505

main11328-66020i1FZFE..FZJ100..CHI199801-200606

11381RETAINER, ENGINE REAR OIL SEAL

main11381-17010i1H#..HDJ100,HZJ105199801-200505

main11381-50021i2UZFE..UZJ100..LHD199801-200506

main11381-66020i1FZFE..FZJ10#199801-199908

main11381-66021i1FZFE..FZJ10#..GCC,GEN199908-200606

11381ASEAL, ENGINE REAR OIL

main90311-95008i1H#..HDJ100,HZJ105199801-200505

main90311-95012i2UZFE..UZJ100..CHI199801-200506

main90311-99009i1FZFE..FZJ100..CHI199801-200606

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16603BPULLEY SUB-ASSY, IDLER

main16603-66010i1FZFE..FZJ10#..GCC,GEN199801-200606

9011608281

main90116-08281

9017908040

main90179-08040

91511B0816

main91511-B0816

91511B0825

main91511-B0825

91511B0830

main91511-B0830

91511B0850

main91511-B0850

91511B0860

main91511-B0860

91512B1020

main91512-B1020

9672124022

main96721-24022

9676124042

main96761-24042

21 parts on this diagram · 4 diagrams in section
