SHORT BLOCK ASSEMBLY

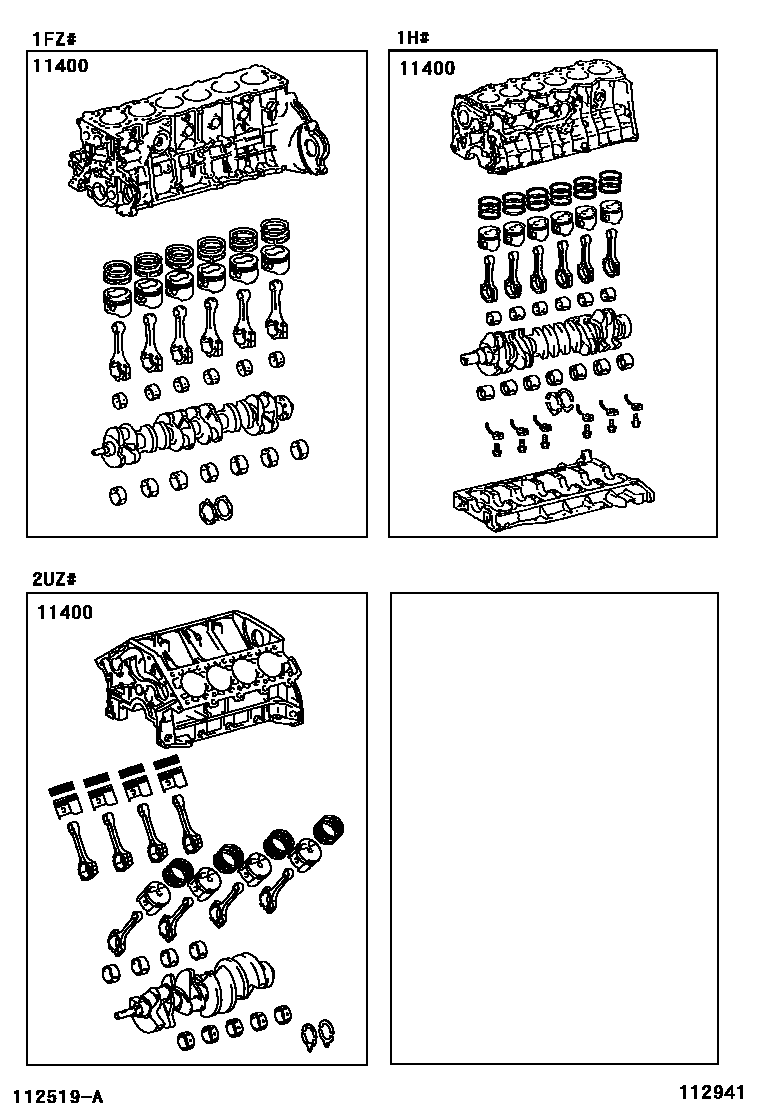

Parts diagram

11400BLOCK ASSY, SHORT

main11400-17073i199801-200208

main11400-17110i200008-200505

main11400-17120i199801-200505

main11400-50120i199801-199903

main11400-50121i199903-200008

main11400-50130i199801-199903

main11400-50131i199903-200110

main11400-50160i200208-200505

main11400-50170i200110-200506

main11400-66050i199801-200606

1 parts on this diagram · 1 diagram in section
