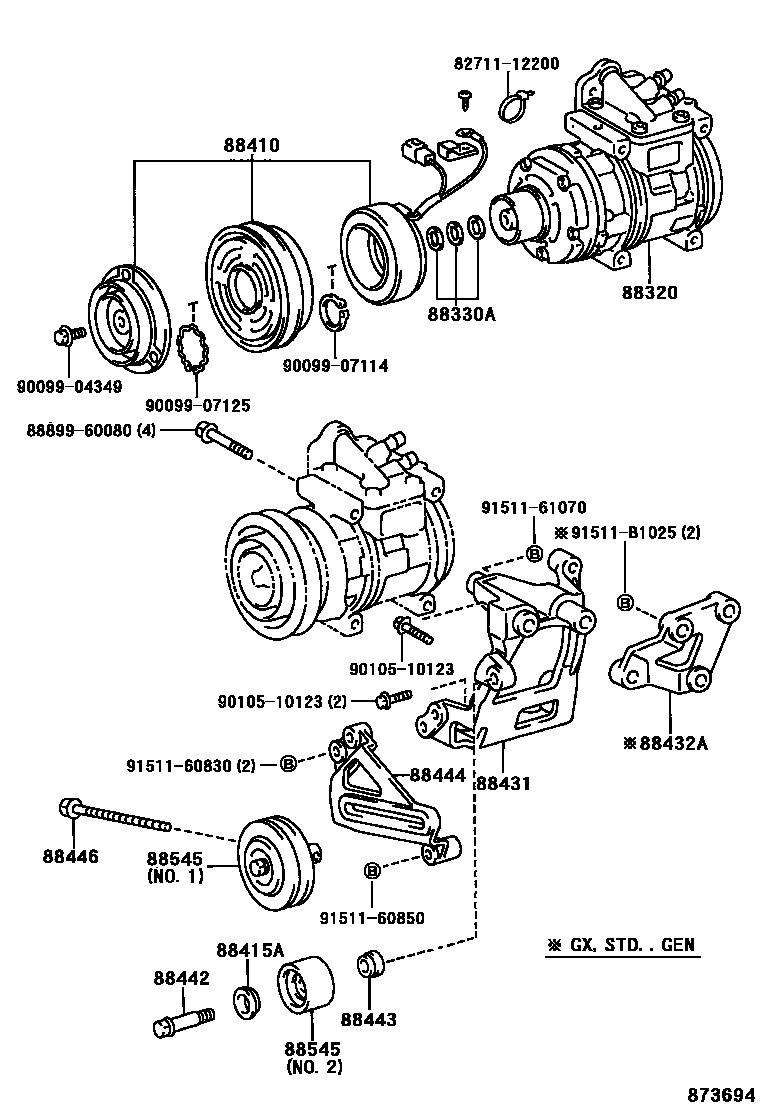

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88320COMPRESSOR ASSY, COOLER

main88320-60330iFJ80..GCC199001-199201

sub88320-60H92

main88320-60340iHZJ80..STD;HDJ80,HZJ80..LUB..ARL199001-199305

SINGLE AIR CONDITIONER

sub88320-35H91

main88320-60350iHDJ80,HZJ80..(GX,VX)..GEN199001-199305

DUAL AIR CONDITIONER

sub88320-60351

main88320-60360iHZJ80..GCC199001-199305

sub88320-60361

main88320-60370iFJ80..ARL,GEN199001-199208

sub88320-60371

main88320-60450iFZJ80..GEN199201-199305

sub88320-22H91

main88320-60460iFZJ80..GCC199201-199305

sub88320-60H92

main88320-60560iHDJ80,HZJ80..(GX,VX)..GEN199305-199501

SINGLE AIR CONDITIONER

main88320-60580iFZJ80..ARL,GEN199305

main88320-60590iFZJ80..GCC199305-199801

sub88320-60750

main88320-60600iHZJ80..GCC199305-199801

sub88320-26H91

main88320-60610iHDJ80..LHD;HDJ80..RHD..5F..GEN;HZJ80..5F..(GX,VX)..GEN199305-200103

DUAL AIR CONDITIONER

sub88320-26H91

main88320-60610iHDJ80,HZJ80..RHD..4FC..GEN199609-200103

sub88320-26H91

main88320-60630iHDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(GX,VX)..GEN199501-199801

SINGLE AIR CONDITIONER

sub88320-60H91

main88320-60630iHZJ80..STD;HDJ80,HZJ80..LUB..ARL199501-200103

sub88320-60H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

88410CLUTCH ASSY, MAGNET

main88410-22270iFZJ80..GCC199201-199305

main88410-22480iHDJ80,HZJ80..ARL,GEN199501-200103

main88410-26110iFZJ80..ARL,GEN199305

main88410-35120iHZJ80..STD;HDJ80,HZJ80..LUB..ARL199001-199305

SINGLE AIR CONDITIONER

main88410-35140iHDJ80,HZJ80..(GX,VX)..GEN199001-199305

DUAL AIR CONDITIONER

main88410-35150iHZJ80..GCC199001-199305

main88410-60190iFJ80199001-199208

sub88410-35160

main88410-60290iFZJ80..GEN199201-199305

main88410-60310iHZJ80..STD;HDJ80,HZJ80..LUB..ARL199305-199501

SINGLE AIR CONDITIONER

main88410-60320iHZJ80..GCC199305-199501

main88410-60330iFZJ80..GCC199305-199801

main88410-60370iHDJ80,HZJ80..(GX,VX)..GEN199305-199501

DUAL AIR CONDITIONER

main88410-60380iHZJ80..GCC199501-199801

88415ACOVER, DUST

main88415-36050iFJ80..GX,VX;FJ80..STD..(GCC,GEN)199001-199208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60130iFJ80..GX..ARL..CBR199003-199201

SINGLE DEALER OPT

sub88431-60131

main88431-60130iFJ80..CBR199001-199208

sub88431-60131

main88431-60131iFJ80..GX..ARL..CBR199003-199201

DUAL MANUAL AIR CONDITIONER

main88431-60140iFJ80..EFI199001-199208

main88431-60150iHDJ80,HZJ80..DSL,TD2199001-200103

main88431-60160iFJ80..GCC199001-199003

sub88431-60161

main88431-60161iFJ80..GCC199003-199201

main88431-60200iFZJ80..ARL,GEN199201-199208

main88431-60210iFZJ80..GCC199201-199801

main88431-60260iHDJ80..TD4199501-199801

88432AATTACHMENT, COMPRESSOR

main88437-60270iFJ80..(GX,STD)..GEN199001-199201

88442SHAFT, IDLE PULLEY

main88442-36010iFJ80..EFI199001-199208

88443COLLAR, IDLE PULLEY

main88443-36010iFJ80..EFI199001-199208

88444BRACKET, IDLE PULLEY

main88444-60050iHDJ80..TD4;HZJ80..GCC199501-199801

main88444-60090iFJ80..(GX,STD)..ARL199001-199208

main88444-60100iHDJ80,HZJ80..(GX,STD)..ARL199001-199501

main88444-60110iHDJ80,HZJ80..(ARL,GEN)..(DSL,TD2)199501-200103

88446BOLT, IDLE PULLEY

main88446-35010iFJ80,HZJ80..GX..ARL199101-199501

SINGLE DEALER OPT

main88446-35010iFJ80,HZJ80..(GX,STD)..ARL199001-199101

main88446-35040iFZJ80..(GX,STD)..ARL;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI199208

main88446-60030iHZJ80..STD..ARL199001-200103

88545PULLEY ASSY, IDLE

main88440-12160iFJ80..STD..ARL199101-199201

SINGLE DEALER OPT

main88440-12160iFJ80..(GX,STD)..(ARL,GEN)199001-199101

main88440-12160iFJ80..GX,VX;FJ80..STD..(GCC,GEN)199001-199101

NO.1

main88440-12160iFJ80..CBR199201-199208

SINGLE DEALER OPT,NO.1

main88440-26090iFZJ80199201-199208

main88440-35010iHZJ80..STD..ARL199108-199501

SINGLE DEALER OPT

main88440-35010iHDJ80,HZJ80199001-200103

main88440-36100iFJ80..EFI199001-199208

NO.2

main88440-36100iFJ80..(GX,VX)..CBR;FJ80..STD..(GCC,GEN)199101-199201

main88440-60040iHDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL199101-199910

main88440-60040iHDJ80..GX199001-199101

SINGLE DEALER OPT

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510123

main90105-10123

9151160830

main91511-60830

9151160850

main91511-60850

9151161070

main91511-61070

91511B1025

main91511-B1025

21 parts on this diagram · 6 diagrams in section
