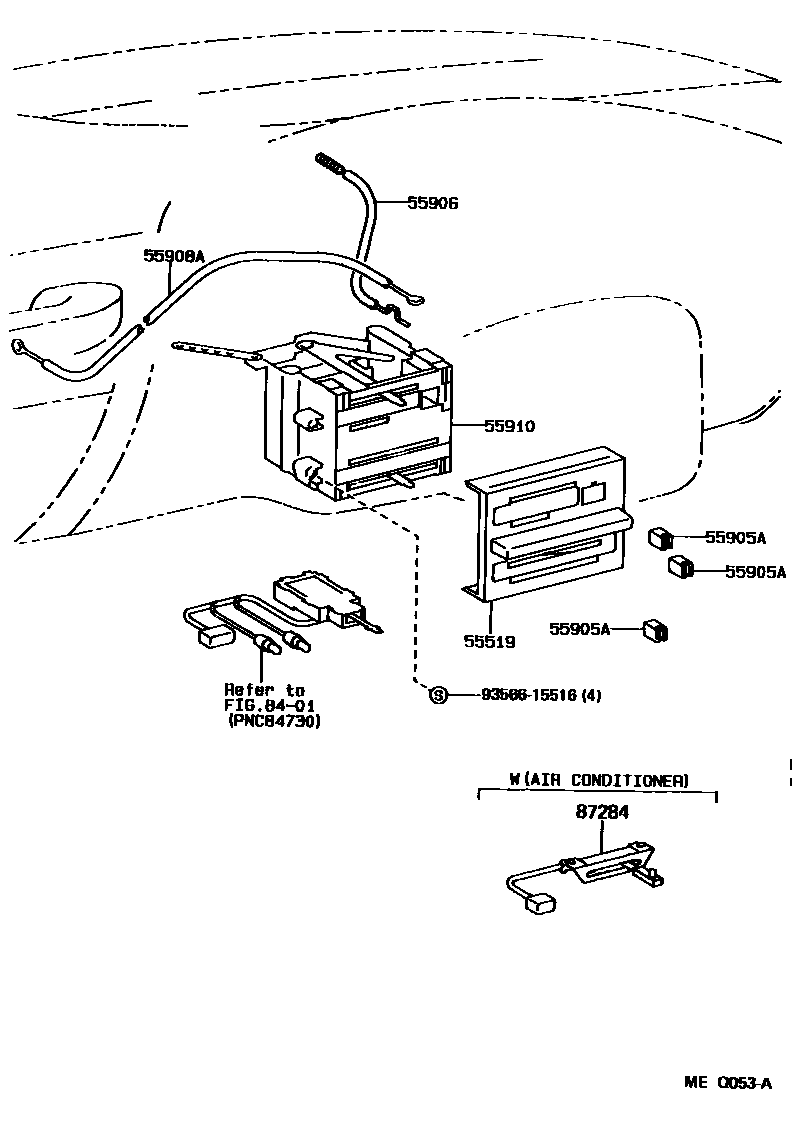

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL---W(BOOST VENTI0002 1FRONT CONTROL---W(HEATER) 0003 1FRONT CONTROL---W(HEATER),PUS0004 1FRONT DUCT 0005 1REAR HEATER DUCT 0006 1REAR AIR CONDITIONER DUCT 0007 1AUTO AIR CONDITIONER SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-60010iFZJ80,HZJ80..VX..GCC199001-199801

W(AUTO AIR CONDITIONER)

main55519-60010iHDJ80..VX..TD4199501-199801

W(DUAL AIR CONDITIONER)

main55519-60020iFZJ80,HDJ80,HZJ80..VX..(ARL,GEN)199001-199208

main55519-60030iFJ80,HZJ80..RHD..GEN199001-199201

W(HEATER)

sub55519-60031

main55519-60031iHZJ80..RHD..STD..GEN199201-199901

W(HEATER)

main55519-60040iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199001-199201

W(HEATER)

sub55519-60041

main55519-60041iFZJ80..LUB..STD;FZJ80,HZJ80..(GX,STD)..GCC199201-200109

W(HEATER)

main55519-60041iFZJ80..LUB..STD;FZJ80,HZJ80..(GX,STD)..GCC199208

main55519-60050iFJ80..RHD..STD..GEN199001-199201

W(HEATER & MANUAL AIR CONDITIONER)

sub55519-60051

main55519-60050iHZJ80..RHD..STD..GEN199001-199201

W(DUAL MANUAL AIR CONDITIONER)

sub55519-60051

main55519-60050iHZJ80..RHD..STD..GEN199001-199201

W(HEATER & SINGLE MANUAL AIR CONDITIONER)

sub55519-60051

main55519-60050iFJ80..RHD..STD..GEN199108-199201

W(HEATER & SINGLE AIR CONDITIONER)

sub55519-60051

main55519-60060iFJ80,HZJ80..GX..GCC199001-199201

W(MANUAL AIR CONDITIONER)

sub55519-60061

main55519-60060iHZJ80..LHD..GX..GEN;FJ80..LHD..(GX,STD)..GEN199001-199201

W(HEATER & MANUAL AIR CONDITIONER)

sub55519-60061

main55519-60060iFJ80,HZJ80..GX..GCC199001-199201

W(HEATER & SINGLE MANUAL AIR CONDITIONER)

sub55519-60061

main55519-60060iFJ80,HZJ80..LHD..GX..GEN199108-199201

W(HEATER & SINGLE AIR CONDITIONER)

sub55519-60061

main55519-60070iFJ80,HZJ80..RHD..GEN199001-199201

sub55519-60071

main55519-60071iFZJ80,HZJ80..RHD..(GX,STD)..GEN199201-200103

main55519-60080iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199001-199201

sub55519-60081

main55519-60081iFZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199201-199801

main55519-60090iFJ80,HZJ80..RHD..STD..GEN199001-199201

W(MANUAL AIR CONDITIONER)

sub55519-60091

main55519-60090iFJ80,HZJ80..RHD..GX..GEN199001-199201

W(SINGLE MANUAL AIR CONDITIONER)

sub55519-60091

main55519-60100iFJ80,HZJ80..LHD..GX..GEN199001-199201

W(SINGLE MANUAL AIR CONDITIONER)

sub55519-60101

main55519-60100iFJ80,HZJ80..LHD..GX..GEN199001-199201

W(MANUAL AIR CONDITIONER)

sub55519-60101

55905AKNOB, HEATER CONTROL

main55905-12080iHZJ80..RHD..5F..SOB..GX199201-199801

SOUTH AFRICA SPEC

main55905-12080iFJ80..RHD..GEN;HZJ80..RHD..STD..GEN199003-199108

SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)

main55905-12080iFZJ80..RHD..CBR;HZJ80..RHD..5F..SOB..GX199608-199801

W(REAR HEATER)

main55905-60020iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

main55905-89115iFZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN199001-199608

W(HEATER)

main55905-89115iHZJ80..GX;FZJ80..STD199305-199801

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-60030iFJ80,HDJ80,HZJ80..GX,STD199001-199201

main55906-60031iFZJ80,HZJ80..LHD..(GX,STD)199201-199501

main55906-60040iFJ80,HDJ80,HZJ80..RHD..(GX,STD)199005-199201

main55906-60041iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)199201-199501

main55906-60070iHZJ80..4FC199501-199901

W(HEATER)

main55906-60080iFZJ80,HZJ80..LHD..(GX,STD)199501

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60030iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

main55908-60060iFZJ80,HDJ80,HZJ80..GX,STD199501-199801

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60010iFJ80,HDJ80,HZJ80..(GX,STD)..ARL199001-199005

W(HEATER)

sub55910-60011

main55910-60011iFJ80,HDJ80,HZJ80..(GX,STD)..ARL199005-199201

W(HEATER)

sub55910-60012

sub55906-60041

sub55909-60022

main55910-60012iFZJ80,HZJ80..RHD..(GX,STD)..GEN199201-199409

W(HEATER)

sub55910-60090

main55910-60012iFZJ80..RHD..STD199201-199208

COLD SPEC & W(HEATER & *AIC)

sub55910-60090

main55910-60020iFJ80,HZJ80..GX..GCC199001-199005

W(HEATER)

sub55910-60021

main55910-60021iFJ80,HZJ80..GX..GCC199005-199201

W(HEATER)

sub55910-60022

sub55906-60031

sub55907-60031

sub55909-60032

main55910-60022iFZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199201-199409

W(HEATER)

sub55910-60100

main55910-60022iFZJ80..LUB..STD;FZJ80,HZJ80..(GX,STD)..GCC199201-199208

COLD SPEC & W(HEATER & *AIC)

sub55910-60100

main55910-60030iFJ80,HZJ80..RHD..GEN199001-199005

sub55910-60031

main55910-60031iFJ80,HZJ80..RHD..GEN199005-199201

sub55910-60032

sub55906-60041

main55910-60032iFZJ80,HZJ80..RHD..(GX,STD)..GEN199201-199409

sub55910-60110

main55910-60040iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199001-199005

sub55910-60041

main55910-60041iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199005-199201

sub55910-60042

sub55906-60031

main55910-60042iFZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199201-199409

sub55910-60120

main55910-60050iFJ80,HZJ80..RHD..GEN199001-199005

W(MANUAL AIR CONDITIONER)

sub55910-60051

main55910-60051iFJ80,HZJ80..RHD..GEN199005-199201

W(MANUAL AIR CONDITIONER)

sub55910-60052

sub55906-60041

main55910-60052iFZJ80,HZJ80..RHD..(GX,STD)..GEN199201-199409

W(MANUAL AIR CONDITIONER)

sub55910-60130

main55910-60060iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199001-199005

W(MANUAL AIR CONDITIONER)

sub55910-60061

main55910-60061iFJ80..STD..GCC;FJ80,HZJ80..LHD..(GX,STD)..GEN199005-199201

W(MANUAL AIR CONDITIONER)

sub55910-60062

sub55906-60031

main55910-60062iFZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199201-199409

W(MANUAL AIR CONDITIONER)

sub55910-60140

main55910-60090iHZJ80..4FC;FZJ80,HDJ80,HZJ80..(GX,STD)..ARL199409-199901

main55910-60090iFZJ80,HZJ80..RHD..5F..(GX,STD)..GEN199409-199801

W(HEATER)

main55910-60100iFZJ80..LUB..STD;FZJ80..GX..GEN..EFI;FZJ80,HZJ80..(GX,STD)..GCC199409

main55910-60100iFZJ80..LHD..GX..GEN..CBR;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199409-200109

W(HEATER)

main55910-60100iHZJ80..LHD..LUB..GX199608-199801

COLD SPEC & W(HEATER & *AIC)

main55910-60110iFZJ80,HZJ80..RHD..5F..(GX,STD)..GEN199409-199801

main55910-60120iFZJ80..LHD..GX..GEN..CBR;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199409-199801

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-60010iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-200103

main88032-60020iFZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199001-199801

9356615516

main93566-15516

8 parts on this diagram · 7 diagrams in section
