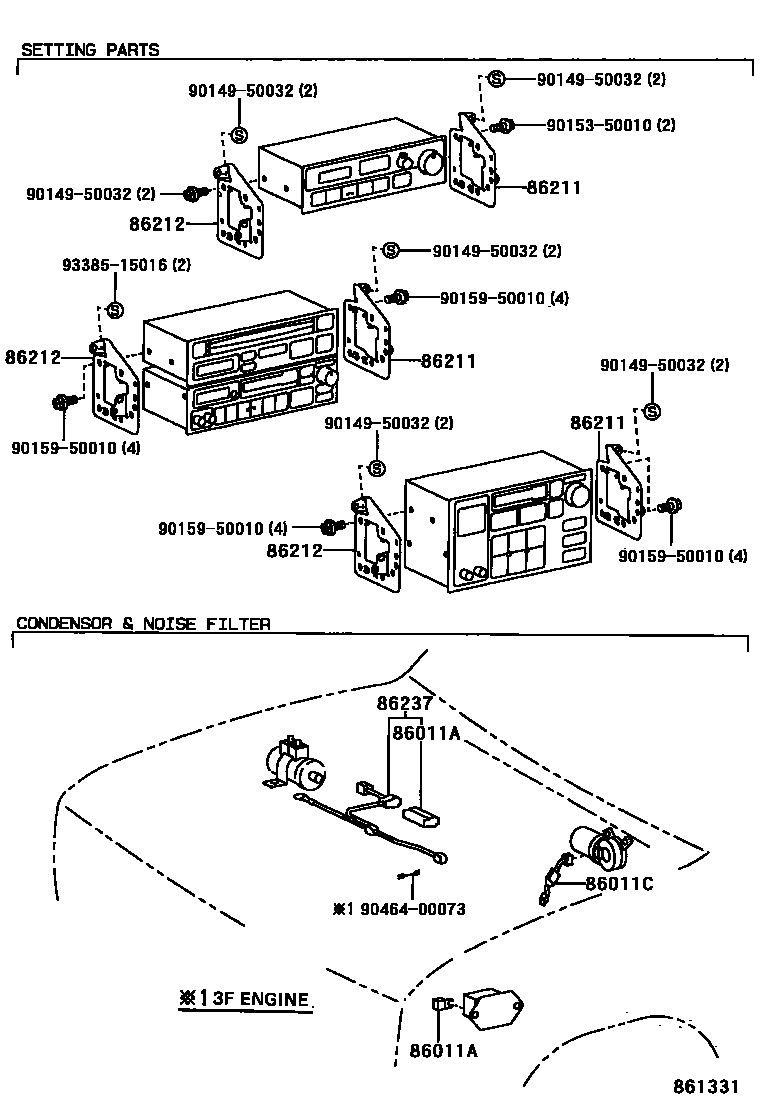

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

86011ACONDENSER, RADIO SETTING

main86516-60160iFJ80..GCC,GEN199107-199201

IGNITION COIL

main86516-60160iFJ80..CBR199107-199208

main86516-90K01iFJ80199001-199208

IGNITION COIL

main90980-04040iFJ80..GCC,GEN199001-199201

REGULATOR

main90980-04084iFZJ80199201-200109

main90980-04110iFZJ80..EFI199208

FENDER

86011CFILTER, NOISE

main90980-05073iFJ80,HDJ80,HZJ80199001-199201

86211BRACKET, RADIO, NO.1

main86211-60050iFZJ80,HDJ80,HZJ80199001-199208

86212BRACKET, RADIO, NO.2

main86212-60050iFZJ80,HDJ80,HZJ80199001-199208

86237WIRE, CONDENSER

main86237-60010iFJ80..CBR199107-199208

main86237-90K01iFJ80199001-199208

9014950032

main90149-50032

9015350010

main90153-50010

9015950010

main90159-50010

9046400073

main90464-00073

9338515016

main93385-15016

10 parts on this diagram · 6 diagrams in section
