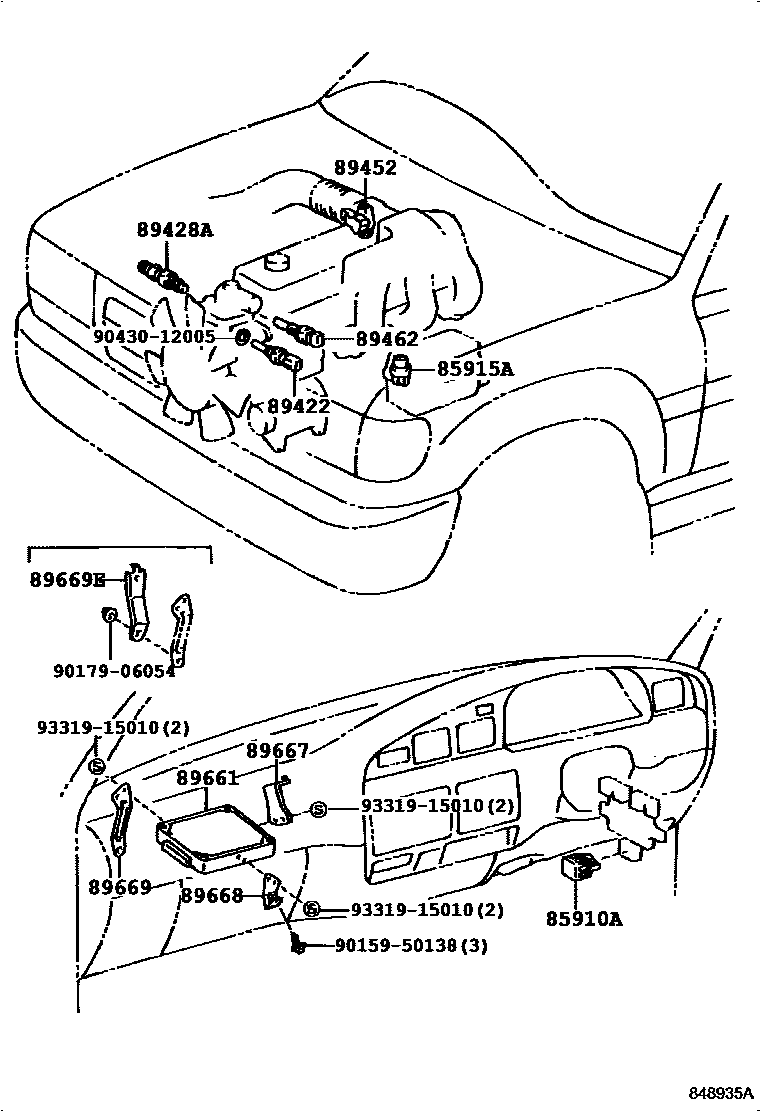

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iFJ80..EFI199001-199501

main90987-02004iFZJ80..EFI199501-199909

85915ARELAY, MAIN

main90987-02004iFJ80..EFI199001-199909

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iFJ80..EFI199001-199208

main89422-35010iFZJ80..4FC199208-199909

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-60060iFJ80..EFI199001-199208

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iFJ80..EFI199001-199208

main89452-22090iFZJ80..EFI199208-200612

89462SWITCH, START INJECTOR TIME

main89462-20040iFJ80..EFI199001-199208

89661COMPUTER, ENGINE CONTROL

main89661-60070iFJ80..EFI199001-199208

main89661-60190iFZJ80..4FC..ARL199208-199501

main89661-60200iFZJ80..5F..EFI199208-199501

main89661-60210iFZJ80..LHD..EFI199208-199501

main89661-60310iFZJ80..4FC..ARL199501-199801

main89661-60320iFZJ80..5F..ARL199501-199801

main89661-60330iFZJ80..LHD..4FC199501-199909

main89661-60340iFZJ80..LHD..5F..EFI199501-199909

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60040iFZJ80..LHD..EFI199208-199501

main89667-60050iFJ80..EFI199001-199501

main89667-60100iFZJ80..ARL199501-199801

main89667-60110iFZJ80..LHD..EFI199501-199909

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60040iFZJ80..LHD..EFI199208-199501

main89668-60050iFJ80..EFI199001-199501

main89668-60080iFZJ80..ARL199501-199801

main89668-60110iFZJ80..LHD..EFI199501-199909

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-60030iFZJ80..LHD..EFI199208-199501

main89669-60040iFZJ80..ARL199001-199501

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89667-60060iFJ80..EFI199001-199501

main89667-60070iFZJ80..GEN..EFI199208-199501

9015950138

main90159-50138

9017906054

main90179-06054

9043012005

main90430-12005

9331915010

main93319-15010

15 parts on this diagram · 3 diagrams in section
