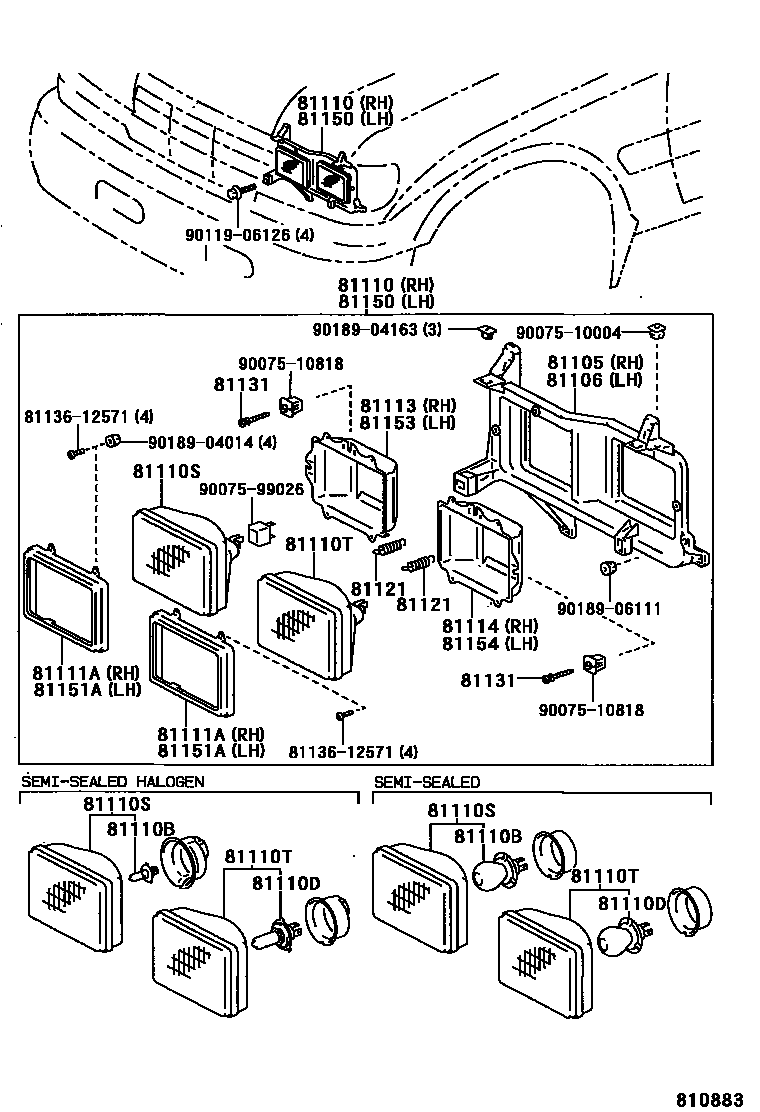

HEADLAMP

0001 14-SEALED BEAM UNIT TYPE 0002 12-RECTANGULAR TYPE

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-60340iHDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F..(ARL,GEN);FZJ80,HDJ80..VX..GEN..(EFI,TD2)199001-199501

main81105-60342iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(ARL,GEN)..(CBR,DSL);FZJ80,HDJ80..(GX,STD)..(ARL,GEN)..(EFI,TD4)199501-199909

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-60160iHDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F..(ARL,GEN);FZJ80,HDJ80..VX..GEN..(EFI,TD2)199001-199501

main81106-60162iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(ARL,GEN)..(CBR,DSL);FZJ80,HDJ80..(GX,STD)..(ARL,GEN)..(EFI,TD4)199501-199909

81110HEADLAMP ASSY, RH

main81110-60320iFJ80,HZJ80..RHD..GEN199001-199109

SEALED HALOGEN WHITE

sub81110-60321

main81110-60321iFZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

SEALED HALOGEN WHITE

sub81130-60321

sub90981-05028

sub90981-05066

main81110-60322iFZJ80,HZJ80..RHD..5F..GEN199501-199909

SEALED HALOGEN WHITE

sub81130-60322

sub90981-05028

sub90981-05066

main81110-60330iFJ80,HDJ80,HZJ80..LHD..GEN199001-199109

SEMI-SEALED YELLOW

sub81110-60331

main81110-60331iFZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HDJ80,HZJ80..LHD..GEN199109-199501

SEMI-SEALED YELLOW

sub81110-60H03

main81110-60332iFZJ80..4FC..GEN;HZJ80..LHD..GEN;FZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80..LHD..(GX,VX)..GEN..(CBR,TD2)199501-199909

SEMI-SEALED YELLOW

sub81110-60H04

main81110-60340iFJ80,HZJ80..LHD..(GX,STD)..GEN199001-199109

sub81110-60341

main81110-60341iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199109-199501

main81110-60342iFZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199909

main81110-60350iFJ80,HZJ80..RHD..GEN199001-199109

sub81110-60351

main81110-60351iFZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

sub81130-60321

sub90981-05034

sub90981-05H14

sub90981-05H15

main81110-60352iFZJ80,HZJ80..RHD..5F..GEN199501-199909

main81110-60380iFJ80,HDJ80,HZJ80..VX..GEN199001-199109

4-RECTANGULAR HEAD LAMP TYPE

sub81110-60381

main81110-60380iHZJ80..LHD..MTM..GX..GEN199001-199109

SEMI-SEALED HALOGEN WHITE

sub81110-60381

main81110-60381iFZJ80,HZJ80..LHD..(GX,STD)..GEN199109-199501

SEMI-SEALED HALOGEN WHITE

main81110-60382iFZJ80..STD..EFI199501-199909

SEMI-SEALED HALOGEN WHITE

main81110-60420iFJ80..STD..GCC199001-199109

sub81110-60421

main81110-60421iFJ80,FZJ80..STD..GCC199109-199310

sub81110-60422

main81110-60422iFZJ80..STD..GCC199310-199501

main81110-60423iFZJ80..LHD..SOB..STD..GEN199510-199511

CHINESE SPEC

sub81110-60424

main81110-60423iFZJ80..STD..GCC199501-199511

sub81110-60424

main81110-60424iFZJ80..STD..GCC199511-199801

main81110-60424iFZJ80..LHD..SOB..STD..GEN199511-200109

CHINESE SPEC

main81110-60470iFJ80..VX..GCC199001-199109

EXTERIOR PACKAGE(J SET OR K SET)

sub81110-60471

main81110-60471iFZJ80,HZJ80..5F..VX..GCC199109-199305

EXTERIOR PACKAGE(J SET OR K SET)

sub81110-60472

main81110-60472iFZJ80,HZJ80..GX..GCC199305-199310

EXTERIOR PACKAGE(J SET OR K SET OR L SET)

sub81110-60473

main81110-60473iFZJ80,HZJ80..VX..GCC199310-199501

EXTERIOR PACKAGE(J SET OR K SET OR L SET)

main81110-60474iFZJ80,HZJ80..GX..GCC199501-199511

EXTERIOR PACKAGE(K SET OR M SET)

sub81110-60475

main81110-60474iFZJ80,HZJ80..LHD..5F..LUB..GX..GEN199510-199511

CHINESE SPEC

sub81110-60475

main81110-60475iFZJ80..VX..GEN..CBR;FZJ80..4FC..VX..GEN199511

CHROME PLATED

main81110-60475iFZJ80,HZJ80..LHD..5F..LUB..GX..GEN199511-199801

CHINESE SPEC

main81110-60475iHDJ80,HZJ80..LHD..VX..GEN199608-199801

HALOGEN WHITE

main81110-60500iFJ80,HZJ80..RHD..GEN199001-199109

SEMI-SEALED HALOGEN WHITE

sub81110-60501

main81110-60501iFZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

SEMI-SEALED HALOGEN WHITE

main81110-60501iFZJ80,HDJ80..RHD..VX..GEN199201-199208

main81110-60502iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..(GX,STD)..ARL199501-200103

SEMI-SEALED HALOGEN WHITE

main81110-60690iFJ80..VX..GCC199001-199109

sub81110-60691

main81110-60691iFZJ80,HZJ80..VX..GCC199109-199305

sub81110-60692

main81110-60692iFZJ80,HZJ80..VX..GCC199305-199310

sub81110-60693

main81110-60693iFZJ80,HZJ80..VX..GCC199310-199501

main81110-60694iFZJ80,HZJ80..GX..GCC199508-199511

EXTERIOR PACKAGE(P SET)

sub81110-60695

main81110-60694iFZJ80,HZJ80..VX..GCC199501-199511

sub81110-60695

main81110-60695iFZJ80..GX..GCC..EFI199608-199801

EXTERIOR PACKAGE(P OR X OR Y SET)

main81110-60695iFZJ80,HZJ80..VX..GCC199511-199801

GOLD PAINTED

main81110-60695iFZJ80..GX..GCC..CBR199602-199702

LIMITED EDITION(SAUDI ARABIA)

main81110-60740iFJ80,HDJ80..VX..ARL199001-199109

sub81110-60741

main81110-60741iFZJ80,HDJ80..VX..ARL199109-199305

sub81110-60742

main81110-60742iFZJ80,HDJ80..VX..ARL199305-199310

sub81110-60743

main81110-60743iFZJ80,HDJ80..VX..ARL199310-199501

main81110-60744iFZJ80,HDJ80..VX..ARL199501-199801

main81110-6A040iHZJ80..RHD..5F..SOB..GX199608-199901

MALAYSIA CKD SPEC

main81110-6A060iHDJ80..RHD..5F..TD2199608-199909

HALOGEN WHITE

main81110-6A060iHDJ80,HZJ80..RHD..4FC..GEN199609-200103

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13014iFZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HDJ80,HZJ80..LHD..GEN199001-199909

12V 45/40W,YELLOW

sub90981-13H00

main90981-13017iFJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN)199001-199909

12V 55W,*HAL *WH

main90981-13017iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199001-199201

12V 55W,*HAL *WH,VENEZUELA CKD SPEC

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13014iFZJ80..4FC..GEN;HZJ80..LHD..GEN;FZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80..LHD..(GX,VX)..GEN..(CBR,TD2)199208-199909

12V 45/40W,YELLOW

sub90981-13H00

main90981-13015iFZJ80..4FC..STD199302-199909

12V 60/55W,*HAL *WH,SEMI-SEALED HALOGEN,WHITE

sub90981-13058

main90981-13015iFJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN)199001-199302

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13015iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199001-199201

12V 60/55W,*HAL *WH,VENEZUELA CKD SPEC

sub90981-13058

main90981-13058iFZJ80..LHD..VX..GEN199302-199501

12V 60/55W,HALOGEN,VENEZUELA CKD SPEC

main90981-22004iFZJ80..VX..ARL;FZJ80,HZJ80..GCC;HZJ80..RHD..SOB..GX;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..VX..(ARL,GEN)199302-199909

12V 60/55W,*HAL *WH

sub90981-13055

main90981-22004iFZJ80..LHD..SOB..STD..GEN;FZJ80,HZJ80..LHD..5F..LUB..GX..GEN199510-200109

12V 60/55W,*HAL *WH,CHINA SPEC

sub90981-13055

81110SSEALED BEAM UNIT, NO.1

main90981-05010iFZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HDJ80,HZJ80..LHD..GEN199001-199909

12V 45/40W,*YSB

sub90981-05H01

main90981-05034iFZJ80..(GX,STD)..GEN;HZJ80..5F..(GX,STD)..GEN199001-199909

12V 50W,*WB

sub90981-05028

main90981-05047iHZJ80..4F..STD;FJ80,HDJ80..GEN;HZJ80..(4FC,5F)..GEN199001-199909

12V 55W,*HWS

main90981-05065iFZJ80,HZJ80..RHD..5F..(GX,STD)..GEN199001-199909

12V 70W,*WB

sub90981-05028

81110TSEALED BEAM UNIT, NO.2

main90981-05011iFZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HDJ80,HZJ80..LHD..GEN199001-199909

12V 45/40W

sub90981-05H02

main90981-05013iFZJ80,HZJ80..LHD..(GX,STD)..GEN199001-199909

12V 60/55W

main90981-05013iHZJ80..LHD..STD;FJ80..LHD..(GX,STD)..GEN;HZJ80..LHD..(4FC,5F)..GX..GEN199001-199208

12V 60/55W,*HWS

main90981-05014iFZJ80,HZJ80..RHD..5F..(GX,STD)..GEN199201-200103

12V 60/55W,*WSB

main90981-05014iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-199208

12V 60/55W,*WSB,*HWS

main90981-05035iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199001-199909

12V 40/60W,*WB

main90981-05041iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-199909

12V 40/60W,*WB

sub90981-05H14

sub90981-05H15

main90981-05066iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)199001-199801

12V 55/65W,*WB

sub90981-05H14

sub90981-05H15

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20360iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)199001-199909

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-22391iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(ARL,GEN)..(CBR,DSL);FZJ80,HDJ80..(GX,STD)..(ARL,GEN)..(EFI,TD2,TD4)199001-199909

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-22391iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(ARL,GEN)..(CBR,DSL);FZJ80,HDJ80..(GX,STD)..(ARL,GEN)..(EFI,TD2,TD4)199001-199909

81121SPRING, HEADLAMP TENSION

main81121-14320iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(ARL,GEN)..(CBR,DSL);FZJ80,HDJ80..(GX,STD)..(ARL,GEN)..(EFI,TD2,TD4)199001-199909

81131SCREW, HEADLAMP ADJUSTING

main81131-28050iHDJ80..5F;FZJ80..4FC..STD199001-199909

81150HEADLAMP ASSY, LH

main81150-60140iFJ80,HZJ80..RHD..GEN199001-199109

SEALED HALOGEN WHITE

sub81150-60141

main81150-60141iFZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

SEALED HALOGEN WHITE

sub81170-60141

sub90981-05028

sub90981-05066

main81150-60142iFZJ80,HZJ80..RHD..5F..GEN199501-199909

SEALED HALOGEN WHITE

sub81170-60142

sub90981-05028

sub90981-05066

main81150-60150iFJ80,HDJ80,HZJ80..LHD..GEN199001-199109

SEMI-SEALED YELLOW

sub81150-60151

main81150-60151iFZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN;FJ80,HDJ80,HZJ80..LHD..GEN199109-199501

SEMI-SEALED YELLOW

sub81150-60H03

main81150-60152iFZJ80..4FC..GEN;HZJ80..LHD..GEN;FZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80..LHD..(GX,VX)..GEN..(CBR,TD2)199501-199909

SEMI-SEALED YELLOW

sub81150-60H04

main81150-60160iFJ80,HZJ80..LHD..(GX,STD)..GEN199001-199109

sub81150-60161

main81150-60161iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199109-199501

main81150-60162iFZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199909

main81150-60170iFJ80,HZJ80..RHD..GEN199001-199109

sub81150-60171

main81150-60171iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

sub81170-60141

sub90981-05034

sub90981-05H14

sub90981-05H15

main81150-60172iFZJ80,HZJ80..RHD..5F..GEN199501-199909

sub81170-60142

sub90981-05034

sub90981-05H14

sub90981-05H15

main81150-60200iHZJ80..LHD..STD;FJ80..LHD..(GX,STD)..GEN;HZJ80..LHD..(4FC,5F)..GX..GEN199001-199109

SEMI-SEALED HALOGEN WHITE

sub81150-60201

main81150-60200iFJ80,HDJ80,HZJ80..VX..GEN199001-199109

sub81150-60201

main81150-60201iFJ80,FZJ80,HDJ80,HZJ80..LHD..VX..GEN199109-199501

SEMI-SEALED HALOGEN WHITE

main81150-60202iFZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199909

SEMI-SEALED HALOGEN,WHITE

main81150-60202iFZJ80..STD..EFI199909

SEMI-SEALED HALOGEN WHITE

main81150-60240iFJ80..STD..GCC199001-199109

sub81150-60241

main81150-60241iFZJ80..STD..GCC199109-199310

sub81150-60242

main81150-60242iFZJ80..STD..GCC199310-199501

main81150-60243iFZJ80..STD..GCC199501-199511

sub81150-60244

main81150-60243iFZJ80..LHD..SOB..STD..GEN199510-199511

CHINA SPEC

sub81150-60244

main81150-60244iFZJ80..STD..GCC199511-199801

main81150-60244iFZJ80..LHD..SOB..STD..GEN199511-200109

CHINA SPEC

main81150-60290iFJ80..VX..GCC199001-199109

EXTERIOR PACKAGE(J SET OR K SET)

sub81150-60291

main81150-60291iFZJ80,HZJ80..5F..VX..GCC199109-199305

EXTERIOR PACKAGE(J SET OR K SET)

sub81150-60292

main81150-60292iFZJ80,HZJ80..VX..GCC199305-199310

EXTERIOR PACKAGE(J SET OR K SET OR L SET)

sub81150-60293

main81150-60293iFZJ80,HZJ80..VX..GCC199310-199501

EXTERIOR PACKAGE(J SET OR K SET OR L SET)

main81150-60294iFZJ80,HZJ80..GX..GCC199501-199511

EXTERIOR PACKAGE(K SET OR M SET)

sub81150-60295

main81150-60294iFZJ80,HZJ80..LHD..5F..LUB..GX..GEN199510-199511

CHINA SPEC

sub81150-60295

main81150-60295iFZJ80..VX..GEN..CBR;FZJ80..4FC..VX..GEN199511

CHROME PLATED

main81150-60295iFZJ80,HZJ80..LHD..5F..LUB..GX..GEN199511-199801

CHINA SPEC

main81150-60295iHDJ80,HZJ80..LHD..VX..GEN199608-199801

main81150-60320iFJ80,HZJ80..RHD..GEN199001-199109

SEMI-SEALED HALOGEN WHITE

sub81150-60321

main81150-60321iFZJ80,HZJ80..RHD..(GX,STD)..GEN199109-199501

SEMI-SEALED HALOGEN WHITE

main81150-60321iFZJ80,HDJ80..RHD..VX..GEN199201-199208

main81150-60322iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..(GX,STD)..ARL199501-200103

SEMI-SEALED HALOGEN,WHITE

main81150-60510iFJ80..VX..GCC199001-199109

sub81150-60511

main81150-60511iFJ80,FZJ80,HZJ80..VX..GCC199109-199305

sub81150-60512

main81150-60512iFZJ80,HZJ80..VX..GCC199305-199310

sub81150-60513

main81150-60513iFZJ80,HZJ80..VX..GCC199310-199501

main81150-60514iFZJ80,HZJ80..VX..GCC199501-199511

sub81150-60515

main81150-60514iFZJ80,HZJ80..GX..GCC199508-199511

EXTERIOR PACKAGE(P SET)

sub81150-60515

main81150-60515iFZJ80..GX..GCC..EFI;FZJ80,HZJ80..VX..GCC199511-199801

GOLD PAINTED

main81150-60515iFZJ80..GX..GCC..CBR199602-199702

LIMITED EDITION(SAUDI ARABIA)

main81150-60560iFJ80,HDJ80..VX..ARL199001-199109

sub81150-60561

main81150-60561iFZJ80,HDJ80..VX..ARL199109-199305

sub81150-60562

main81150-60562iFZJ80,HDJ80..VX..ARL199305-199310

sub81150-60563

main81150-60563iFZJ80,HDJ80..VX..ARL199310-199501

main81150-60564iFZJ80,HDJ80..VX..ARL199501-199801

main81150-60750iHZJ80..RHD..5F..SOB..GX199608-199901

MALAYSIA SPEC

main81150-60780iHZJ80..4FC;HDJ80..RHD..TD2199608-200103

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20360iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)199001-199909

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-22391iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)199001-199909

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-22391iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(ARL,GEN)..(CBR,DSL)199001-199909

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9007510004

main90075-10004

9007510818

main90075-10818

9007599026

main90075-99026

9011906126

main90119-06126

9018904014

main90189-04014

9018904163

main90189-04163

9018906111

main90189-06111

24 parts on this diagram · 2 diagrams in section
