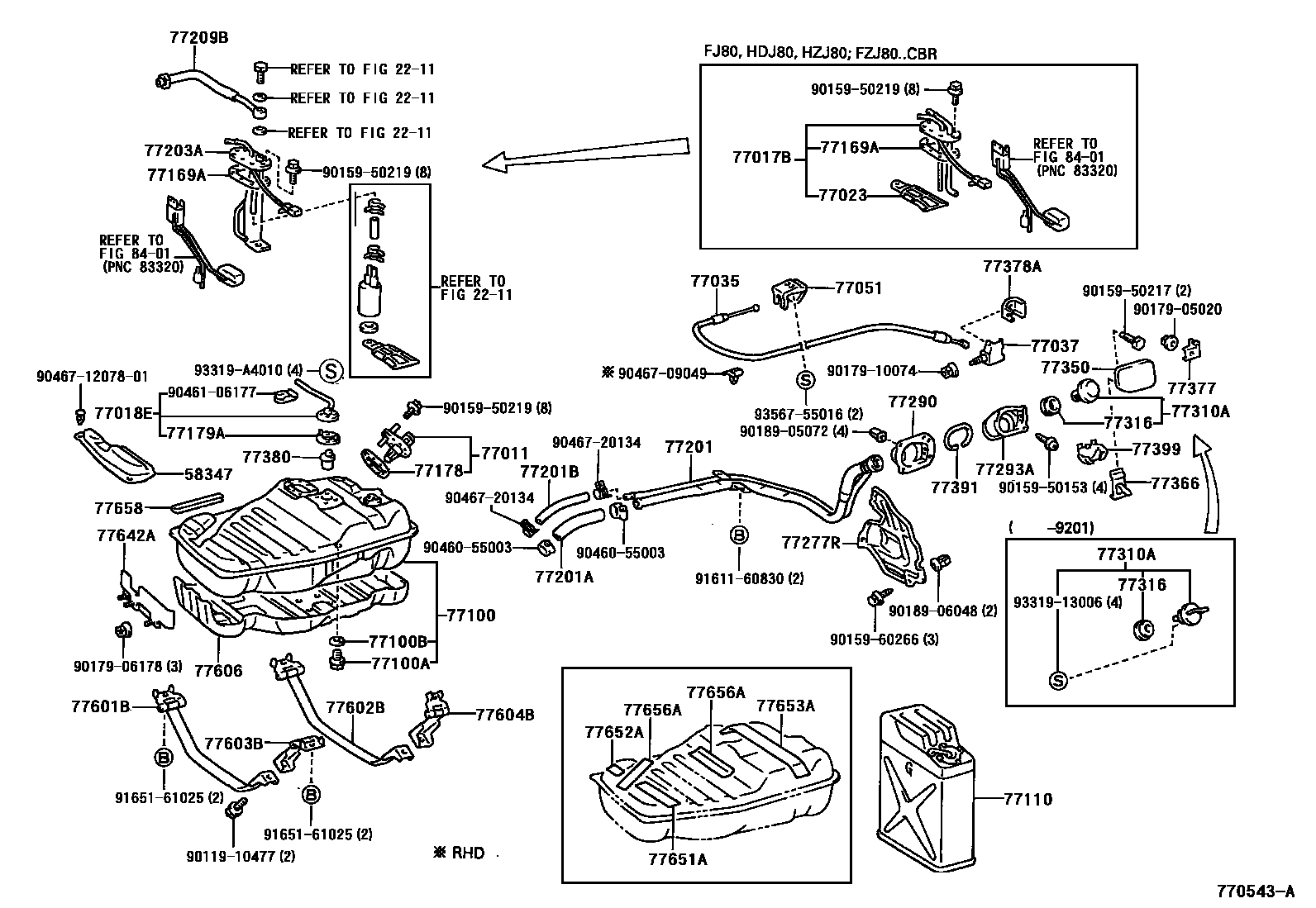

FUEL TANK & TUBE

0001 1 0002 1W(SUB-TANK) 0003 1 0004 1W(SUB-TNK) 0005 1 0006 1W(SUB-TANK) 0007 1 0008 1W(SUB-TANK) 0009 1 0010 1 0011 1W(SUB-TANK) 0012 1 0013 1W(SUB-TANK) 0014 1 0015 1 0016 1W(SUB-TANK) 0017 1W(SUB-TANK) 0018 1GEN..CBR(CHINESE SPEC) 0020 1W(SUB-TANK) GEN..CBR(CHINESE0022 1GEN..EFI(VWNEZUELA SPEC) 0024 1W(SUB-TANK)

2211

58347INSULATOR, FUEL TANK HEAT

main58347-60010iFJ80..EFI199001-199208

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-60030iFZJ80,HDJ80,HZJ80199001-199208

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-60100iFJ80..CBR199001-199208

W(SUB TANK),SUB-TANK

main77017-60110iHDJ80..ARL;HDJ80..LHD;HDJ80..RHD..5F..GEN199001-199811

W(SUB TANK),SUB-TANK

main77017-60110iHDJ80..RHD..4FC..TD2199610-200103

SUB-TANK

main77017-60120iHZJ80..ARL,GEN;HZJ80..VX..GCC199108-199208

W(SUB TANK & FUEL WARNING LAMP),SUB-TANK

main77017-60120iHZJ80..GX..ARL;HZJ80..5F..(GCC,GEN)199001-199811

W(SUB TANK),SUB-TANK

main77017-60120iHZJ80..STD..ARL199501-199801

SUB-TANK

main77017-60130iFJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC199001-199208

sub77017-60140

main77017-60130iFJ80..RHD..GX..GEN199003-199201

MAIN-TANK

sub77017-60140

main77017-60140iFJ80..STD..ARL199003-199008

W(SUB TANK & FUEL WARNING LAMP),MAIN-TANK

main77017-60140iFJ80..VX..CBR;FJ80..4FC..GX..GCC;FJ80..GX..(ARL,GEN)..CBR199001-199208

W(SUB TANK),MAIN-TANK

main77017-60140iFJ80..STD..ARL199008-199208

MAIN-TANK

main77017-60140iFJ80..STD..ARL;FJ80..5F..GX..GCC199001-199201

W(FUEL WARNING LAMP)

main77017-60150iHDJ80..ARL;HDJ80..LHD;HDJ80..RHD..5F..GEN199001-199811

main77017-60150iHDJ80..RHD..4FC..TD2199610-200103

MAIN-TANK

main77017-60160iHZJ80..STD;HZJ80..GX..GCC199001-199208

sub77017-60170

main77017-60160iHZJ80..STD199001-199208

W(SUB TANK),MAIN-TANK

sub77017-60170

main77017-60170iHZJ80199208-199811

W(SUB TANK),MAIN-TANK

main77017-60170iHZJ80..STD..ARL199001-199208

W(SUB TANK & FUEL WARNING LAMP),MAIN-TANK

main77017-60170iHZJ80..STD..ARL199008-199801

MAIN-TANK

main77017-60170iHZJ80..4FC199001-199901

main77017-60170iHZJ80..GCC199001-199108

W(FUEL WARNING LAMP)

main77017-60170iHZJ80..RHD..5F..STD..GEN199108-199208

MALAYSIA SPEC

main77017-60270iFZJ80..STD..GEN;FZJ80..(GX,STD)..GCC199201-199208

W(SUB TANK),MAIN-TANK

sub77017-60280

main77017-60280iFZJ80..LUB..STD199201-199811

W(SUB TANK),MAIN-TANK

sub77017-60900

main77017-60280iFZJ80..VX..GCC;FZJ80..(GX,VX)..GEN199201-199208

W(SUB TANK & FUEL WARNING LAMP),MAIN-TANK

sub77017-60900

main77017-60280iFZJ80..VX..GCC;FZJ80..(GX,VX)..GEN199201-199208

W(SPEED METER & COMBIMETER)

sub77017-60900

main77017-60290iFZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR199201-199811

W(SUB TANK),SUB-TANK

main77017-60300iFZJ80..SOB..EFI;FZJ80..LHD..LUB..EFI199208-199907

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12031iFJ80..STD..(ARL,GEN);FJ80..5F..(GX,STD)..GCC199001-199208

W(SUB TANK),SUB TANK

main77023-12031iFJ80..(GX,VX)..CBR199001-199208

W(SUB TANK),SUB-TANK

main77023-12031iFJ80..RHD..GX..GEN199003-199201

SUB TANK

main77023-32010iFJ80..(GX,VX)..CBR199001-199208

W(SUB TANK),MAIN-TANK

main77023-32010iFJ80..CBR199001-199208

W(SUB TANK),MAIN TANK

main77023-32010iFJ80..RHD..GX..GEN199003-199201

MAIN TANK

main77023-36010iHZJ80199001-200103

main77023-60010iHDJ80199001-200103

main77023-60020iFZJ80199201-200109

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60010iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-200103

main77035-60020iFZJ80,HDJ80,HZJ80..LHD199001-199208

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iFZJ80,HDJ80,HZJ80199001-199208

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-03iFJ80,FZJ80,HDJ80,HZJ80199001-200109

BLUISH GRAY,TRIM1#

sub77051-30060

main77051-30060-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub77051-30060

main77051-30060-E2iFZJ80..LHD..SOB..STD..GEN;HDJ80,HZJ80..RHD..5F..(STD,VX)..GEN199501-200612

OAK,TRIM4#

sub77051-30060

77100TANK ASSY, FUEL

main77001-60908iFZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI199208-199907

W(SUB TANK),MAIN-TANK

main77001-69015iHZJ80..GX..GCC199108-199208

W(SUB TANK & FUEL WARNING LAMP),MAIN-TANK

sub77001-69026

main77001-69015iFJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199208

W(SUB TANK),MAIN-TANK

sub77001-69026

main77001-69015iFJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199208

sub77001-69026

main77001-69035iFJ80..EFI199001-199208

sub77001-69036

main77001-69036iFZJ80..EFI199208

main77001-69055iHZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2199108-199201

W(SUB TANK & FUEL WARNING LAMP),SUB-TANK

main77001-69055iHZJ80..ARL,GEN;FJ80,HDJ80..CBR,TD2199001-199501

W(SUB TANK),SUB-TANK

main77001-69055iHDJ80..4FC199306-200103

SUB-TANK

main77001-69065iFZJ80..CBR199208-200103

MAIN-TANK

main77100-60912iHZJ80..VX..GCC;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..(ARL,GEN)..(CBR,DSL,TD2)199201-199208

W(SUB TANK & FUEL WARNING LAMP),SUB-TANK

sub77100-60928

sub77654-60040

main77100-60912iHZJ80..GX..GCC199201-199208

W(SUB TANK),SUB-TANK

sub77100-60928

sub77654-60040

77100APLUG(FOR FUEL TANK)

main90105-12018iFJ80,HDJ80,HZJ80199001-199208

main90105-12116iFZJ80199201-199208

77100BGASKET(FOR FUEL TANK)

main90430-12245iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77110TANK ASSY, AUXILIARY FUEL

main77110-60011iHDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN)199001-199811

W(SUB FUEL TANK)

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iHDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR199001-199811

W(SUB TANK),SUB-TANK

main77169-14020iFZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI199208-199907

main77169-14020iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

main77169-60010iFZJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199811

W(SUB TANK),MAIN-TANK

main77169-60010iHZJ80..4FC199811-199901

main77169-60010iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

MAIN-TANK

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-35030iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60310iHDJ80,HZJ80;FJ80..GCC,GEN199001-199201

W(SUB TANK)

main77201-60311iHDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199201-199501

W(SUB TANK)

main77201-60312iFZJ80..4FC199501-199907

W(SUB TANK)

main77201-60312iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

main77201-60320iFJ80..ARL..CBR199001-199201

W(SUB TANK)

main77201-60321iFJ80..CBR199201-199501

W(SUB TANK)

main77201-60322iFZJ80..ARL199501-199801

W(SUB TANK)

main77201-60330iHDJ80,HZJ80;FJ80..GCC,GEN199001-199201

main77201-60331iFZJ80,HDJ80,HZJ80..5F..(CBR,DSL,TD2)199201-200109

main77201-60340iFJ80..ARL199001-199201

main77201-60350iFZJ80..ARL199201-199801

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-60090iFZJ80,HDJ80,HZJ80199001-200103

MARK=TANK

main95311-13013iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199501

*H,L=130,W(SUB TANK)

sub95311-13022

main95311-13022iHZJ80..GX..ARL;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN);FZJ80..LHD..SOB..STD;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2)199501-199907

*H,L=130,W(SUB TANK)

main95311-13022iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

*H,L=130

77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)

main95311-13022iFJ80,FZJ80,HDJ80,HZJ80199001-200103

L=220

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-66010iFZJ80..ARL;FZJ80..VX..GCC..EFI;FZJ80..4FC..(GX,VX)..GEN199501

sub23206-66900

main23206-66030iFZJ80..ARL;FZJ80..VX..GCC..EFI;FZJ80..4FC..(GX,VX)..GEN199501

W(SUB TANK)

77209BTUBE SUB-ASSY, FUEL PUMP

main23091-61020iFZJ80..ARL;FZJ80..VX..GCC..EFI;FZJ80..4FC..(GX,VX)..GEN199501

main23091-66010iFZJ80..ARL;FZJ80..VX..GCC..EFI;FZJ80..4FC..(GX,VX)..GEN199501

W(SUB TANK)

77277TUBE, FUEL RETURN, NO.1

main77255-60470iFZJ80199201-199208

main77255-60471iFZJ80..CBR199208-200109

main77255-60490iFZJ80..EFI199208

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main77290-60020iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

sub77290-60010

main77290-60020iFZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199801

W(SUB TANK)

sub77290-60010

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-60050iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77310ACAP ASSY, FUEL TANK

main77310-12100iFJ80199001-199201

main77310-12150iHDJ80,HZJ80199808-200103

main77310-35061iHDJ80,HZJ80199001-199201

main77310-35070iFZJ80..GCC,GEN199201-199803

sub77310-48010

main77310-35080iFZJ80..ARL199201-199801

sub77310-12140

main77310-35110iHDJ80,HZJ80199201-199808

sub77310-12150

main77310-48010iFZJ80199803

77316GASKET, FUEL TANK CAP

main77316-12050iFJ80,HDJ80,HZJ80199001-199201

main77316-16010iFJ80,FZJ80,HDJ80,HZJ80199201-199208

77350LID ASSY, FUEL FILLER OPENING

main77350-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77378ACOVER, FUEL FILLER OPENING LID LOCK

main77378-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77391RING, FUEL INLET BOX

main77391-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77399HANGER, FUEL TANK CAP

main77399-22010iFJ80,HDJ80,HZJ80199001-199201

main77399-60010iFJ80,FZJ80,HDJ80,HZJ80199201-199208

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-60140iFZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199907

W(SUB TANK),SUB-TANK

main77601-60140iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

main77601-60150iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199907

W(SUB TANK),MAIN-TANK

main77601-60150iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

MAIN-TANK

main77601-60150iFZJ80..5F..VX;FZJ80..STD..EFI199907

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60050iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

main77602-60050iFZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199907

W(SUB TANK),SUB-TANK

main77602-60060iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199907

W(SUB TANK),MAIN-TANK

main77602-60060iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

MAIN-TANK

main77602-60060iFZJ80..5F..VX;FZJ80..STD..EFI199907

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60050iFJ80,HDJ80,HZJ80199001-199208

main77606-60070iFZJ80199201-199208

77642APROTECTOR, FUEL TANK, NO.2

main77642-60020iFJ80..EFI199001-199208

77651ACUSHION, FUEL TANK, NO.1

main77651-60080iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199907

W(SUB TANK),SUB-TANK

main77651-60080iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

main77651-60090iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199907

W(SUB TANK),MAIN-TANK

main77651-60090iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

MAIN-TANK

main77651-60090iHZJ80..4FC;FZJ80..5F..VX;FZJ80..STD..EFI199811

77652ACUSHION, FUEL TANK, NO.2

main77652-60040iFZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199907

W(SUB TANK),SUB-TANK

main77652-60040iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

main77652-60050iHDJ80;HZJ80..5F;FZJ80..LHD..SOB..STD;FZJ80..(ARL,GCC)..EFI;FZJ80..LHD..(GX,VX)..CBR;FZJ80..4FC..(GX,VX)..GEN199001-199208

W(SUB TANK),MAIN-TANK

sub77653-36010

main77652-60050iFZJ80,HDJ80,HZJ80199208-199501

sub77653-36010

77653ACUSHION, FUEL TANK, NO.3

main77653-60040iFZJ80..ARL;HDJ80,HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD199001-199907

W(SUB TANK),MAIN-TANK

main77653-60040iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

MAIN-TANK

main77653-60040iHZJ80..4FC;FZJ80..5F..VX;FZJ80..STD..EFI199811

main77653-60050iFZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199907

W(SUB TANK),SUB-TANK

main77653-60050iHZJ80..STD..ARL;HDJ80..RHD..4FC..TD2199501-200103

SUB-TANK

77656ACUSHION, FUEL TANK, NO.4

main77654-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199208

80X262

main77655-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

80X330

77658MOULDING, FUEL TANK EDGE

main77658-60040iFJ80,FZJ80,HDJ80,HZJ80199001-199305

8401

9011910477

main90119-10477

9015950153

main90159-50153

9015950217

main90159-50217

9015950219

main90159-50219

9015960266

main90159-60266

9017905020

main90179-05020

9017906178

main90179-06178

9017910074

main90179-10074

9018905072

main90189-05072

9018906048

main90189-06048

9046055003

main90460-55003

9046106177

main90461-06177

9046709049

main90467-09049

904671207801

main90467-1207801

9046720134

main90467-20134

9161160830

main91611-60830

9165161025

main91651-61025

9331913006

main93319-13006

93319A4010

main93319-A4010

9356755016

main93567-55016

66 parts on this diagram · 21 diagrams in section
