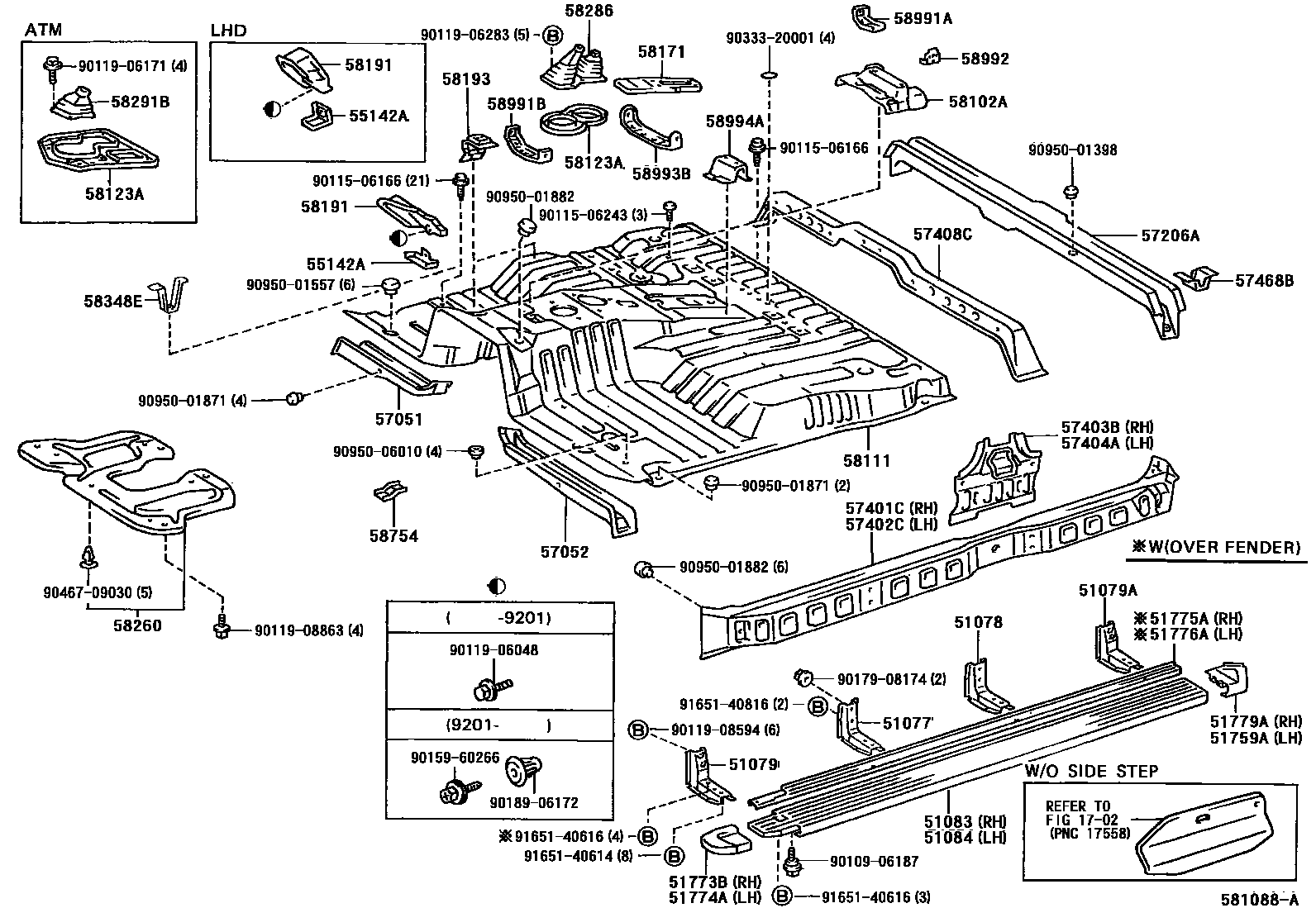

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

1702

51077BRACKET SUB-ASSY, SIDE STEP, NO.2

main51077-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51077-60020×2iFZJ80,HDJ80,HZJ80199208-199501

main51077-60030×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

main51077-60040×2iFZJ80..5F..STD199909-200409

main51077-60050×2iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI199610-200409

51078BRACKET SUB-ASSY, SIDE STEP, NO.3

main51077-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51077-60020×2iFZJ80,HDJ80,HZJ80199208-199501

main51077-60030×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

main51077-60040×2iFZJ80..STD199909-200409

main51077-60050×2iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI199610-200409

51079BRACKET SUB-ASSY, SIDE STEP

main51079-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51079-60020×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

main51079-60030×2iFZJ80..5F..STD199909-200409

main51079-60040×2iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI199610-200409

51079ABRACKET SUB-ASSY, SIDE STEP, NO.3

main51078-60010×2iFZJ80,HDJ80,HZJ80199208-199501

main51078-60020×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

main51078-60030×2iFZJ80..5F..STD199909-200409

main51078-60040×2iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199501-200409

W(*OF)

main51079-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

51083STEP SUB-ASSY, RH

main51083-60020iFZJ80,HDJ80,HZJ80199208-199501

main51083-60030iHZJ80..RHD..STD..GEN199501-199901

51084STEP SUB-ASSY, LH

main51084-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51084-60030iHZJ80..RHD..STD..GEN199501-199901

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51759-60050iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI199610-200409

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51773-60050iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200409

W(*OF)

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51774-60050iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200409

W(*OF)

51775ACOVER, REAR STEP, RH

main51775-60010iFZJ80,HDJ80..GX,VX;HZJ80..5F..(GX,VX)199208-200409

51776APLATE, SIDE STEP, LH

main51776-60010iFZJ80,HDJ80..GX,VX;HZJ80..5F..(GX,VX)199208-200409

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main51779-60050iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200409

W(*OF)

55142ABRACKET, FOOT REST MOUNTING, NO.2

main55142-60010iFJ80,HDJ80,HZJ80..RHD..(GX,VX)199001-199201

sub90159-60266

sub90189-06172

main55142-60020iHDJ80,HZJ80..LHD..LUB;FJ80..LHD..5F..(GX,VX)..GEN;FJ80..(4F,4FC)..(GX,VX)..CBR199001-199201

sub90159-60266

sub90189-06172

main55142-60030iHDJ80..RHD..GEN199201-199208

W(FR & RR HEATER) & W(COOL BOX)

main55142-60040iFZJ80..VX..GEN..EFI199208-199801

W/O(*AIC)

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main57051-60021iFZJ80..VX..GEN..EFI199208-199801

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main57052-60021iFZJ80..VX199909

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-60010iFJ80,HZJ80..RHD..GEN199001-199201

main57206-60020iFJ80,HDJ80,HZJ80..5F..(GX,STD)..ARL199001-199201

W(FRONT SEAT BELT (ELR 3-2-3 BENCH))

main57206-60021iFZJ80,HZJ80..5F..GX..ARL199208-199501

main57206-60030iFJ80,HZJ80..LHD..4FC..GX;FJ80,HDJ80,HZJ80..LHD..VX199001-199201

W(FRONT SEPARATE SEAT OR COOL BOX)

main57206-60060iHZJ80..GX..ARL;FJ80,HDJ80..RHD..5F..GX;FJ80,HZJ80..RHD..SOB..GEN199011-199103

W(FRONT SEAT BELT(SEPARATE SEAT ELR)

main57206-60061iHZJ80..STD..ARL199608

W(FRONT SEPARATE SEAT)

main57206-60070iFJ80,HZJ80..LHD..MTM..(GX,STD)199001-199201

main57206-60080iFZJ80,HZJ80..LHD..5F..(GX,STD)199201-199208

main57206-60091iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES)

sub57206-60081

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main57401-60022iFZJ80,HDJ80,HZJ80199501

main57401-60050iFZJ80,HDJ80,HZJ80199208-199501

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60022iFZJ80,HDJ80,HZJ80199208

main57402-60040iFJ80,HDJ80,HZJ80199001-199108

main57402-60041iFJ80,FZJ80,HDJ80,HZJ80199108-199208

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60010iFZJ80,HDJ80,HZJ80199208

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main57408-60011iFZJ80,HDJ80,HZJ80199208-199511

main57408-60012iFZJ80..VX..GEN..EFI199511-199801

57468BBRACKET, FRONT SEAT, REAR

main57468-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main57468-60011×2iFZJ80,HDJ80,HZJ80199208-199501

main57468-60012×2iFZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4199501

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60040iFZJ80,HDJ80..RHD..4FC..VX199501-200103

main58102-60050iFZJ80..VX199909

58111PAN, FRONT FLOOR

main58111-60010iFJ80,FZJ80,HDJ80,HZJ80..RHD..MTM199001-199208

sub58111-60230

main58111-60020iFZJ80,HDJ80,HZJ80..RHD..5F..GX199201-199208

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60021iFZJ80,HDJ80..RHD..5F..VX199208-199501

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60022iFZJ80,HZJ80..RHD..5F..GX..GEN199501-199801

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60030iFJ80,FZJ80,HDJ80,HZJ80..RHD..MTM199001-199208

W(FR & RR HEATER)

main58111-60031iFZJ80,HDJ80,HZJ80..RHD..5F199208-199501

W(FR & RR HEATER)

main58111-60040iHZJ80..GX..ARL;HZJ80..SOB..GX..GEN;FJ80,HDJ80..RHD..5F..GX199001-199103

W(COOL BOX & FR & RR HEATER)

main58111-60041iFZJ80,HDJ80..RHD..5F..VX199208-199501

W(COOL BOX & FR & RR HEATER)

main58111-60042iFZJ80,HZJ80..RHD..5F..GX..GEN199501-199801

W(COOL BOX & FR & RR HEATER)

main58111-60070iFJ80,HDJ80..4FC..ARL199001-199208

sub58111-60250

main58111-60080iFJ80,HDJ80..4FC..ARL199001-199208

W(COOL BOX)

main58111-60081iFZJ80,HDJ80..4FC..ARL199208-199501

W(COOL BOX)

main58111-60082iHDJ80..RHD..4FC..TD2199610-200103

main58111-60090iFJ80..GX..EFI;HDJ80..4FC..ARL199001-199201

W(FR & RR HEATER)

main58111-60091iFZJ80,HDJ80..4FC..ARL199208-199501

W(FR & RR HEATER)

main58111-60100iFJ80..VX..EFI199001-199201

W(FR & RR HEATER & COOL BOX)

main58111-60101iFZJ80,HDJ80..4FC..ARL199208-199501

W(COOL BOX & FR & RR HEATER)

main58111-60102iFZJ80,HDJ80..4FC..GX..ARL199501-199801

W(COOL BOX & FR & RR HEATER)

main58111-60110iFJ80,FZJ80,HDJ80,HZJ80..LHD..MTM199001-199208

sub58111-60270

main58111-60120iFZJ80,HZJ80..LHD..5F..GX199201-199208

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60121iFZJ80,HZJ80..LHD..5F..GX199208-199501

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60122iFZJ80,HZJ80..LHD..5F..GX199501-199801

W(FRONT SEPARATE SEAT & COOL BOX)

main58111-60130iFJ80,FZJ80,HDJ80,HZJ80..LHD..MTM..GEN199001-199208

W(FR & RR HEATER)

sub58111-60280

main58111-60140iFZJ80,HZJ80..LHD..5F..GX..GEN199201-199208

W(FR & RR HEATER & COOL BOX)

main58111-60141iFZJ80,HZJ80..LHD..5F..GX..GEN199208-199501

W(COOL BOX & FR & RR HEATER)

main58111-60142iHDJ80,HZJ80..LHD..5F..LUB..VX199501-199801

W(COOL BOX & FR & RR HEATER)

main58111-60170iFJ80,HDJ80,HZJ80..LHD..4FC199001-199208

sub58111-60290

main58111-60180iFJ80,HDJ80,HZJ80..LHD..4FC199001-199208

W(COOL BOX)

main58111-60181iFZJ80,HDJ80..LHD..4FC199208-199501

W(COOL BOX)

main58111-60182iFZJ80..4FC..VX..GEN199501-199801

W(COOL BOX)

main58111-60190iFJ80,HDJ80,HZJ80..4FC..GEN199001-199208

W(FR & RR HEATER)

sub58111-60300

main58111-60200iFJ80,HDJ80,HZJ80..4FC..GEN199001-199208

W(FR & RR HEATER & COOL BOX)

main58111-60201iFZJ80,HDJ80..4FC..GEN199208-199501

W(COOL BOX & FR & RR HEATER)

main58111-60202iFZJ80,HDJ80..LHD..4FC..GEN199501-199801

W(COOL BOX & FR & RR HEATER)

main58111-60232iFZJ80,HDJ80,HZJ80..RHD..5F199208-200103

main58111-60242iFZJ80,HDJ80,HZJ80..RHD..5F199501-199801

W(FR & RR HEATER)

main58111-60252iHDJ80..4FC..ARL;FZJ80,HZJ80..RHD..4FC199208-199901

main58111-60262iFZJ80,HDJ80..4FC..ARL199501-199801

W(FR & RR HEATER)

main58111-60272iFZJ80..LHD..SOB..STD..GEN199208-199901

main58111-60282iFZJ80..5F..VX..GEN..EFI199208-199801

W(FR & RR HEATER)

main58111-60292iFZJ80..4FC..VX..GEN199208-199801

main58111-60302iFZJ80,HDJ80..LHD..4FC..GEN199208-199801

W(FR & RR HEATER)

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60010iFZJ80..5F..VX199909

main58123-60020iFZJ80..4FC..VX199909

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

58191FOOTREST, FRONT FLOOR

main58191-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX)199001-199208

main58192-60020iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199201-199208

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-60010iHDJ80..LHD;FZJ80..GX..GEN..EFI;HDJ80..VX..ARL..TD2;FZJ80..VX..GCC..EFI;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..CBR,DSL;FZJ80,HDJ80..(GX,STD)..(ARL,GCC)..(EFI,TD2,TD4)199208-200109

58260COVER ASSY, TRANSMISSION, FRONT

main58260-60070iFJ80,HDJ80,HZJ80..5F..ARL199108-199208

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-60030iFJ80,HDJ80,HZJ80..RHD..MTM199001-199109

main58280-60031iFJ80,FZJ80,HDJ80,HZJ80..RHD..MTM199109-199208

main58280-60040iFJ80,HDJ80,HZJ80..LHD..MTM199001-199105

main58280-60041iFJ80,HDJ80,HZJ80..LHD..MTM199105-199108

58291BBOOT, TRANSFER SHIFT LEVER

main58290-60010iFJ80,HDJ80,HZJ80..4FC199001-199208

58348EBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-60010iFZJ80..5F..GEN..EFI199711-199801

58754PLATE, ENGINE SERVICE COVER CATCH

main58754-60010iHDJ80..RHD..GEN;FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)199001-199208

58991ABRACKET, CONSOLE BOX MOUNTING, UPPER RH

main58991-60030iFZJ80..VX199909

58991BBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-60010iHDJ80..4FC;HDJ80..5F..VX;FJ80,HZJ80..4FC..GX;FJ80,FZJ80,HZJ80..VX199001-199208

58992BRACKET, CONSOLE BOX MOUNTING, UPPER LH

main58992-60020iFZJ80..STD..EFI199501-199909

58993BBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60010iFJ80,FZJ80,HDJ80,HZJ80..5F..VX199001-199208

main58993-60011iHZJ80..RHD..5F..SOB..GX;FZJ80,HZJ80..STD..(ARL,GCC)199608

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-60010iFJ80..RHD..LUB;HZJ80..GX..ARL;HZJ80..RHD..GEN;FZJ80,HDJ80..RHD;FJ80..RHD..STD..GEN199001-199208

main58997-60010iFZJ80..STD..GCC199608-199801

W(FRONT SEPARATE SEAT)

9010906187

main90109-06187

9011506166

main90115-06166

9011506243

main90115-06243

9011906048

main90119-06048

9011906171

main90119-06171

9011906283

main90119-06283

9011908594

main90119-08594

9011908863

main90119-08863

9015960266

main90159-60266

9017908174

main90179-08174

9018906172

main90189-06172

9033320001

main90333-20001

9046709030

main90467-09030

9095001398

main90950-01398

9095001557

main90950-01557

9095001871

main90950-01871

9095001882

main90950-01882

9095006010

main90950-06010

9165140614

main91651-40614

9165140616

main91651-40616

9165140816

main91651-40816

60 parts on this diagram · 1 diagram in section
