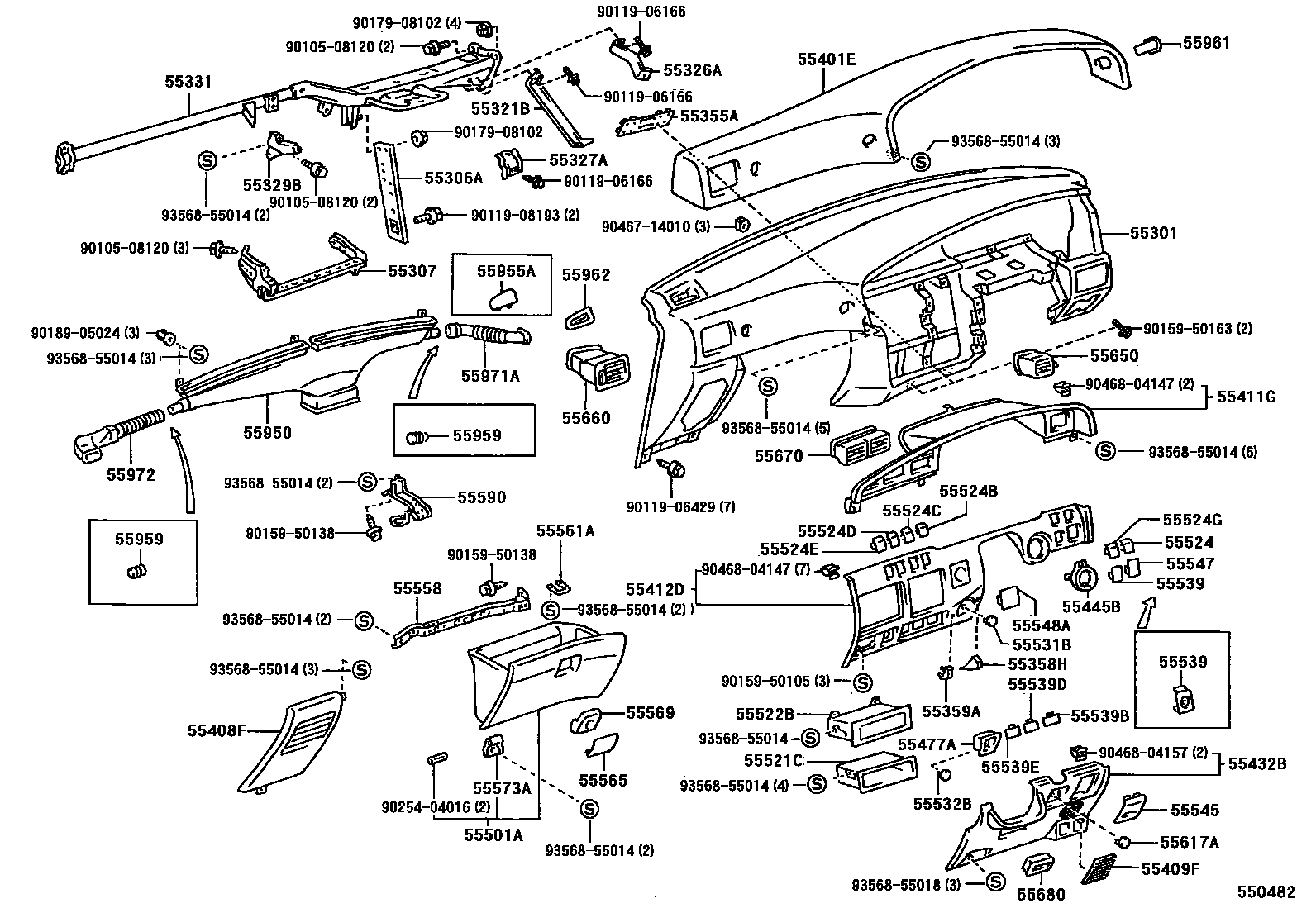

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-60120-03iFZJ80,HZJ80..LHD..(GX,STD);FZJ80,HDJ80,HZJ80..LHD..VX..GEN199208-199308

BLUISH GRAY,TRIM1#

main55311-60120-06iFJ80,FZJ80,HDJ80,HZJ80..LHD199002-199208

SABLE,TRIM4#

main55311-60130-03iFZJ80,HDJ80,HZJ80..RHD199208-199308

BLUISH GRAY,TRIM1#

main55311-60130-06iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

SABLE,TRIM4#

main55311-60150-03iFJ80..VX..GCC199001-199002

BLUISH GRAY,TRIM1#

main55311-60150-06iFJ80..VX..GCC199001-199002

SABLE,TRIM4#

main55311-60160-03iFJ80,HDJ80..VX..ARL199001-199002

W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1#

main55311-60160-06iFJ80,HDJ80..VX..ARL199001-199002

W(AUTO AIR CONDITIONER),SABLE,TRIM4#

main55311-60330-B0iFZJ80,HZJ80..VX..GCC199208-199308

BLUISH GRAY,TRIM1#

main55311-60330-E0iFZJ80,HDJ80,HZJ80..LHD199308-199501

SABLE,TRIM4#

main55311-60340-B0iFZJ80,HDJ80..VX..ARL199208-199501

W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1#

main55311-60340-E0iFZJ80,HDJ80..VX..ARL199208-199501

W(AUTO AIR CONDITIONER),SABLE,TRIM4#

main55311-60390-B0iFZJ80,HDJ80,HZJ80..LHD199501-199605

BLUISH GRAY,TRIM1#

sub91631-40618

main55311-60390-E0iFZJ80,HZJ80..VX..GCC199605-199608

OAK,TRIM4#

sub91631-40618

main55311-60400-B0iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..RHD..(GX,STD)199608-200103

BLUISH GRAY,TRIM1#

main55311-60400-E0iFZJ80,HDJ80,HZJ80..RHD199501-199608

OAK,TRIM4#

main55311-60590-B0iHDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..ARL199608-200103

W(*80),BLUISH GRAY,TRIM1#

main55311-60590-E0iFZJ80,HDJ80,HZJ80..ARL199608-199801

W(*80),OAK,TRIM4#

main55311-60600-B0iFZJ80,HDJ80,HZJ80..LHD199608-199801

BLUISH GRAY,TRIM1#

main55311-60600-E0iFZJ80..STD..EFI199901-199909

OAK,TRIM4#

main55311-60720-B0iFZJ80,HZJ80..LHD..(GX,STD);FZJ80,HDJ80,HZJ80..LHD..VX..GEN199605-199608

BLUISH GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main55306-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main55306-60030iFZJ80,HDJ80,HZJ80..LHD199208-199501

W(MECHNICAL WINCH)

main55306-60040iFJ80,FZJ80,HDJ80,HZJ80..RHD..GEN199001-199208

W(MECHNICAL WINCH)

main55306-60050iFZJ80,HDJ80,HZJ80..LHD199501

main55306-60060iFZJ80,HDJ80,HZJ80..RHD199501-200103

main55306-60070iFZJ80,HDJ80,HZJ80..LHD199501-199801

W(MECHNICAL WINCH)

main55306-60080iHDJ80,HZJ80..RHD..5F..GEN199501-199801

W(MECHNICAL WINCH)

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main55307-60020iFZJ80,HDJ80,HZJ80..RHD199208-199501

main55307-60030iFZJ80..EFI199909

main55307-60040iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..RHD..(CBR,DSL,EFI,TD4)199501-200103

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-60020iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main55321-60030iFZJ80,HDJ80,HZJ80..RHD199208-199501

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-60020iFZJ80,HDJ80,HZJ80..RHD199208-199501

main55326-60080iFZJ80,HDJ80,HZJ80..RHD199501-200103

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55329BSTAY, INSTRUMENT PANEL, NO.4

main55329-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main55329-60020iFZJ80,HDJ80,HZJ80..RHD199208-199501

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-60010iFZJ80,HDJ80,HZJ80..LHD199208-199501

main55330-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main55330-60030iFZJ80,HDJ80,HZJ80..LHD199501-199909

main55330-60040iFZJ80,HDJ80,HZJ80..RHD199501-199608

main55330-60050iFZJ80..EFI199909

main55330-60090iFZJ80,HDJ80..RHD..4FC..VX199608-200103

55355APLATE, INSTRUMENT PANEL

main55355-60010iFZJ80,HDJ80,HZJ80..ARL,GEN199208-199308

55358HPROTECTOR, INSTRUMENT PANEL

main55358-60050iFJ80..RHD..GEN199003-199201

55359APROTECTOR, INSTRUMENT PANEL, NO.2

main55359-60020iFJ80..RHD..GEN199003-199201

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60010-03iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199001-199208

BLUISH GRAY,TRIM1#

main55401-60010-06iFZJ80,HZJ80..LHD..5F..(GX,STD)..GEN199208-199501

SABLE,TRIM4#

main55401-60020-03iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-199208

BLUISH GRAY,TRIM1#

main55401-60020-06iFZJ80,HZJ80..RHD..(GX,STD)..GEN199208-199501

SABLE,TRIM4#

main55401-60030-03iFZJ80,HZJ80..GCC;FZJ80..GX..GEN..EFI;FZJ80,HDJ80,HZJ80..LHD..VX..GEN199208-199501

W(ASSIST GRIP),BLUISH GRAY,TRIM1#

main55401-60030-06iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199001-199208

SABLE,TRIM4#

main55401-60040-03iFZJ80,HZJ80..RHD..(GX,STD)..GEN199208-199501

W(ASSIST GRIP),BLUISH GRAY,TRIM1#

main55401-60040-06iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-199208

W(ASSIST GRIP),SABLE,TRIM4#

main55401-60050-03iFJ80,FZJ80..LHD..(GX,STD)..GEN199001-199208

COLD SPEC,BLUISH GRAY,TRIM1#

main55401-60050-06iFZJ80..LHD..(GX,STD)..GEN..CBR199208-199501

COLD SPEC,SABLE,TRIM4#

main55401-60060-03iFJ80..RHD..GEN199001-199108

COLD SPEC,BLUISH GRAY,TRIM1#

main55401-60060-06iFJ80..RHD..GEN199001-199108

COLD SPEC,SABLE,TRIM4#

main55401-60070-03iFZJ80..LHD..VX..GEN;FZJ80..GX..GEN..EFI199208-199501

COLD SPEC & W(ASSIST GRIP),BLUISH GRAY,TRIM1#

main55401-60070-06iFJ80,FZJ80..LHD..(GX,STD)..GEN199001-199208

COLD SPEC & W(ASSIST GRIP),SABLE,TRIM4#

main55401-60080-03iFJ80,FZJ80..RHD..(GX,STD)..GEN199001-199208

COLD SPEC & W(ASSIST GRIP),BLUISH GRAY,TRIM1#

main55401-60080-06iFZJ80..RHD..CBR199208-199501

SABLE,TRIM4#

main55401-60110-B0iFZJ80..CBR199909-200109

BLUISH GRAY,TRIM1#

main55401-60110-E0iFZJ80..STD..EFI199901-199909

OAK,TRIM4#

main55401-60120-B0iFZJ80,HZJ80..RHD..5F..GEN199501-199901

BLUISH GRAY,TRIM1#

main55401-60120-E0iFZJ80,HZJ80..RHD..5F..GEN199501-199901

OAK,TRIM4#

main55401-60130-B0iFZJ80,HDJ80,HZJ80..LHD199501-199801

W(ASSIST GRIP),BLUISH GRAY,TRIM1#

main55401-60130-E0iFZJ80,HDJ80,HZJ80..LHD199501-199801

W(ASSIST GRIP),OAK,TRIM4#

main55401-60140-B0iHZJ80..ARL;FZJ80,HDJ80..RHD..(EFI,TD2,TD4)199501-199608

BLUISH GRAY,TRIM1#

main55401-60140-E0iHZJ80..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..(GX,STD)..ARL199608-199901

OAK,TRIM4#

main55401-60150-B0iHZJ80..GCC;FZJ80..(GX,STD)..GCC199608-199801

BLUISH GRAY,TRIM1#

main55401-60150-E0iFZJ80,HDJ80..VX199608

W(*80,DRIVER & PASSENGER & SIDE),OAK,TRIM4#

main55401-60160-B0iHDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..ARL199608-200103

W(*80),BLUISH GRAY,TRIM1#

main55401-60160-E0iFZJ80,HDJ80,HZJ80..ARL199608-199801

W(*80),OAK,TRIM4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60010-03iFZJ80,HDJ80,HZJ80..LHD..VX199208-199501

BLUISH GRAY,TRIM1#

main55408-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD..VX199001-199208

SABLE,TRIM4#

main55408-60020-03iFZJ80,HDJ80..RHD..VX199208-199501

BLUISH GRAY,TRIM1#

main55408-60020-06iFZJ80,HDJ80..RHD..VX199208-199501

SABLE,TRIM4#

main55472-60010-03iFZJ80,HZJ80..LHD..(GX,STD)199208-199501

BLUISH GRAY,TRIM1#

main55472-60010-06iFJ80,FZJ80,HZJ80..LHD..(GX,STD)199001-199208

SABLE,TRIM4#

main55472-60020-03iFZJ80,HDJ80,HZJ80..RHD..(GX,STD)199208-199501

BLUISH GRAY,TRIM1#

main55472-60020-06iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)199001-199208

SABLE,TRIM4#

main55472-60030-B0iFZJ80,HDJ80,HZJ80199501-199909

BLUISH GRAY,TRIM1#

main55472-60030-E0iHDJ80..LHD;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..CBR,DSL,EFI,TD4199501-199901

OAK,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60010-B0iFZJ80,HDJ80,HZJ80..VX199208-199501

BLUISH GRAY,TRIM1#

main55409-60010-E0iFZJ80,HDJ80,HZJ80..VX199208-199501

SABLE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-60010iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

W(DIGITAL CLOCK)

main55411-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX)199001-199208

W(DIGITAL CLOCK)

main55411-60030iFJ80,FZJ80,HZJ80..LHD..STD199001-199208

W/O(CLOCK)

main55411-60040iFZJ80,HZJ80..RHD..GX..GEN199208-199501

W/O(CLOCK)

main55411-60060iHZJ80..SOB..GX..GEN;FZJ80..RHD..LUB..CBR199208-199501

SOUTH AFRICA SPEC & W(DIGITAL CLOCK)

main55411-60080iFZJ80..RHD..GX..CBR;HZJ80..SOB..GX..GEN199208-199501

SOUTH AFRICA SPEC

main55411-60110iFZJ80,HDJ80,HZJ80..LHD199501

main55411-60120iFZJ80,HDJ80,HZJ80..RHD199501-200103

main55411-60140iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C.)

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-60050iFJ80..RHD..GEN199003-199201

SOUTH AFRICA SPEC

main55412-60010iFZJ80,HDJ80,HZJ80..LHD199208-199501

main55412-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main55412-60090iFZJ80,HDJ80,HZJ80..LHD199501

main55412-60100iFZJ80,HDJ80,HZJ80..RHD199501-200103

main55412-60170iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C.)

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-60010-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55432-60010-06iFZJ80,HDJ80,HZJ80..LHD199208-199501

SABLE,TRIM4#

main55432-60020-03iFZJ80,HDJ80,HZJ80..RHD199208-199501

BLUISH GRAY,TRIM1#

main55432-60020-06iFJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)199001-199208

SABLE,TRIM4#

main55432-60180-B0iFZJ80,HDJ80,HZJ80..LHD199501-199909

BLUISH GRAY,TRIM1#

main55432-60180-E0iFZJ80,HDJ80,HZJ80..LHD199501-199901

OAK,TRIM4#

main55432-60190-03iFJ80..RHD..GEN199003-199201

SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#

main55432-60190-06iFJ80..RHD..GEN199003-199201

SOUTH AFRICA SPEC,SABLE,TRIM4#

main55432-60270-B0iFZJ80,HDJ80,HZJ80..RHD199501-199901

BLUISH GRAY,TRIM1#

main55432-60270-E0iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..RHD..(CBR,DSL,EFI,TD4)199501-199901

OAK,TRIM4#

main55480-60010-03iFJ80,FZJ80,HDJ80,HZJ80..LHD..VX199001-199208

BLUISH GRAY,TRIM1#

main55480-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD..VX199001-199208

SABLE,TRIM4#

main55480-60020-03iFJ80,FZJ80,HDJ80..RHD..VX199001-199208

BLUISH GRAY,TRIM1#

main55480-60020-06iFJ80,FZJ80,HDJ80..RHD..VX199001-199208

SABLE,TRIM4#

main55480-60090-03iFZJ80..RHD..VX199201-199208

SOUTH AFRICA SPEC & W(*PCM),BLUISH GRAY,TRIM1#

main55480-60090-06iFZJ80..RHD..VX199201-199208

SOUTH AFRICA SPEC & W(*PCM),SABLE,TRIM4#

main55480-60170-03iFZJ80..RHD..CBR199208-199501

SOUTH AFRICA SPEC OR W(*PCM),BLUISH GRAY,TRIM1#

main55480-60170-06iFZJ80..RHD..CBR199208-199501

SOUTH AFRICA SPEC OR W(*PCM),SABLE,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-60010iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

main55445-60030iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199208

main55445-60050-B0iFZJ80,HDJ80,HZJ80..VX199501-199909

BLUISH GRAY,TRIM1#

main55445-60050-E0iHDJ80..LHD;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..VX..(CBR,DSL,EFI,TD4)199501-199901

OAK,TRIM4#

main55445-60060-B0iFZJ80..VX;FZJ80,HZJ80..SOB199909

BLUISH GRAY,TRIM1#

main55445-60060-E0iFZJ80..STD..EFI199901-199909

OAK,TRIM4#

main55445-60070-B0iFZJ80,HDJ80,HZJ80..GX,STD199505-199710

BLUISH GRAY,TRIM1#

main55445-60070-E0iFZJ80,HDJ80,HZJ80..GX,STD199505-199710

OAK,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-60050-03iFJ80,HDJ80,HZJ80..LHD199001-199010

BLUISH GRAY,TRIM1#

main55501-60050-06iFJ80,HDJ80,HZJ80..LHD199001-199010

SABLE,TRIM4#

main55501-60051-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55501-60051-06iFZJ80,HDJ80,HZJ80..LHD199208-199501

SABLE,TRIM4#

main55501-60060-03iFJ80,HDJ80,HZJ80..RHD199001-199108

BLUISH GRAY,TRIM1#

main55501-60060-06iFJ80,HDJ80,HZJ80..RHD199001-199108

SABLE,TRIM4#

main55501-60061-B0iFJ80,FZJ80,HDJ80,HZJ80..RHD199108-199208

BLUISH GRAY,TRIM1#

main55501-60061-E0iFJ80,FZJ80,HDJ80,HZJ80..RHD199108-199208

SABLE,TRIM4#

main55501-60110-B0iFZJ80,HDJ80,HZJ80199501-199608

BLUISH GRAY,TRIM1#

main55501-60110-E0iFZJ80,HDJ80,HZJ80199501-199608

OAK,TRIM4#

main55501-60150-B0iFZJ80,HDJ80,HZJ80199608-199909

BLUISH GRAY,TRIM1#

main55501-60150-E0iHDJ80..LHD;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..CBR,DSL,EFI,TD4199608-199901

OAK,TRIM4#

55521CCOVER, STEREO OPENING

main55521-14050iHDJ80..ARL;HDJ80..LHD..5F;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..5F..LUB;HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);HDJ80,HZJ80..4FC..GEN;199310

main55521-14050-01iHDJ80..GEN;FZJ80,HZJ80;FJ80,HDJ80..GX,STD199201-199208

BLACK,TRIM1#,4#

55522BCOVER, RADIO TUNER OPENING

main55522-32010iFJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..GEN199001-199208

sub55522-20070

55524COVER, SWITCH BACE HOLE

main55524-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55524BCOVER, SWITCH BASE HOLE

main55524-60010iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199208

55524CCOVER, SWITCH BASE HOLE, NO.4

main55524-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199208

55524DCOVER, SWITCH BASE HOLE, NO.5

main55524-60010iHDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN)199208-199305

55524ECOVER, SWITCH BASE HOLE, NO.6

main55524-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55524GCOVER, SWITCH BASE HOLE, NO.2

main55524-60010iHDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F;FZJ80,HDJ80..VX..(GCC,GEN)..(EFI,TD2)199208-199501

55531BCOVER, CHOKE KNOB HOLE

main55477-10010-11iFZJ80,HDJ80,HZJ80..LHD199103-199208

BLACK,TRIM1#,4#

main55477-10050iHDJ80,HZJ80..LHD199001-199103

main55617-10010-11iFZJ80..RHD;FJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2)199001-199208

BLACK,TRIM1#,4#

main55617-10010-22iFZJ80,HDJ80,HZJ80..RHD199208-199501

BLACK,TRIM1#,4#

55532BCOVER, CIGAR LIGHTER HOLE

main55477-95J00iFJ80,FZJ80,HZJ80..STD199001-199208

55539COVER, SPARE SWITCH HOLE

main55536-60010iHDJ80;FZJ80,HZJ80..VX;FZJ80,HZJ80..(GX,STD)..ARL199501

main55539-32010-11iFJ80,FZJ80,HZJ80..(GX,STD)..(GCC,GEN)199001-199208

BLACK,TRIM1#,4#

sub55539-32030

main55539-32010-C0iFZJ80,HZJ80..(GX,STD)..(GCC,GEN)199308-199501

BLACK,TRIM1#,4#

sub55539-32030

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-32010-11iFZJ80,HDJ80,HZJ80199208-199308

BLACK,TRIM1#,4#

sub55539-32030

main55539-32010-C0iHDJ80..RHD..4FC..TD2199610-199901

BLACK,TRIM1#

sub55539-32030

55539DCOVER, SPARE SWITCH HOLE

main55539-32010-11iFJ80,FZJ80,HDJ80,HZJ80199001-199208

BLACK,TRIM1#,4#

sub55539-32030

main55539-32010-C0iFZJ80..4FC;FZJ80..5F..VX199909

BLACK,TRIM4#

sub55539-32030

55539ECOVER, SPARE SWITCH HOLE

main55539-32010-11iFJ80,FZJ80,HDJ80,HZJ80199001-199208

BLACK,TRIM1#,4#

sub55539-32030

main55539-32010-C0iHDJ80..ARL;HDJ80..LHD;FZJ80,HZJ80;HDJ80..RHD..5F..GEN199308-199901

BLACK,TRIM1#,4#

sub55539-32030

55545COVER, FUSE BOX OPENING

main55540-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main55545-60040-B0iFZJ80,HDJ80,HZJ80199501-199605

BLUISH GRAY,TRIM1#

main55545-60040-E0iFZJ80,HDJ80,HZJ80199501-199605

OAK,TRIM4#

main55545-60050-B0iFZJ80,HDJ80,HZJ80..CBR,DSL,TD2199909-200109

BLUISH GRAY,TRIM1#

main55545-60050-E0iFZJ80..EFI199901

OAK,TRIM4#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00iFZJ80,HDJ80,HZJ80..GX,STD199208-199608

main55547-95J00-C0iFZJ80,HDJ80,HZJ80..GX,STD199608-199901

BLACK,TRIM1#,4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-60010iFZJ80,HDJ80,HZJ80..LHD199208-199501

main55558-60020iFZJ80,HDJ80,HZJ80..RHD199208-199501

main55558-60030iFZJ80,HDJ80,HZJ80..LHD199501

main55558-60040iFZJ80,HDJ80,HZJ80..RHD199501-200103

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main55561-60030iFZJ80,HDJ80,HZJ80199501-199512

main55561-60060iFZJ80,HDJ80,HZJ80199512

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-89101-13iFZJ80,HDJ80,HZJ80199208-199909

BLUISH GRAY,TRIM1#

main55565-89101-16iFZJ80,HDJ80,HZJ80199208-199501

SABLE,TRIM4#

main55565-89101-E1iFZJ80..EFI199901

OAK,TRIM4#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-89101-13iFZJ80,HDJ80,HZJ80..CBR,DSL,TD2199909-200109

BLUISH GRAY,TRIM1#

main55569-89101-16iFZJ80,HDJ80,HZJ80199208-199501

SABLE,TRIM4#

main55569-89101-E1iHDJ80..LHD;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..CBR,DSL,EFI,TD4199501-199901

OAK,TRIM4#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-32010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main55596-60010iFZJ80,HDJ80,HZJ80..GX,VX199501

55617ACOVER, THROTTLE KNOB HOLE

main55617-10010-11iFJ80,FZJ80199001-199208

BLACK,TRIM1#,4#

main55617-10010-22iFZJ80199208-199901

BLACK,TRIM1#,4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-60010iFZJ80,HDJ80,HZJ80..LHD199208-199501

main55650-60020iFZJ80,HDJ80,HZJ80..RHD199208-199501

main55650-60050iFZJ80,HDJ80,HZJ80..LHD199501

main55650-60060iFZJ80,HDJ80,HZJ80..RHD199501-200103

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-60010-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55660-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

SABLE,TRIM4#

main55660-60020-03iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

BLUISH GRAY,TRIM1#

main55660-60020-06iFZJ80,HDJ80,HZJ80..RHD199208-199501

SABLE,TRIM4#

main55660-60040-03iFJ80,FZJ80..RHD..GEN;HZJ80..RHD..STD..GEN199003-199208

SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#

main55660-60040-06iFZJ80..RHD..CBR;HZJ80..SOB..GX..GEN199208-199501

SOUTH AFRICA SPEC,SABLE,TRIM4#

main55660-60070iFZJ80,HDJ80,HZJ80..LHD199501

sub55660-60090

main55660-60080iFZJ80,HDJ80,HZJ80..RHD199501-200103

main55660-60100iFZJ80..RHD..CBR;HZJ80..RHD..5F..SOB..GX199501-199801

SOUTH AFRICA SPEC

main55660-60120iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C.)

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main55670-60030iFZJ80,HDJ80,HZJ80..LHD199501

main55670-60040iFZJ80,HDJ80,HZJ80..RHD199501-200103

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-89101iFZJ80..4FC..STD199909

sub55680-17050

main55680-89101-C0iFZJ80..5F;HDJ80..LHD;FZJ80..4FC..(GX,VX);HDJ80..RHD..5F..TD2;HDJ80,HZJ80..DSL,TD4199501

BLACK,TRIM1#,4#

sub55680-17050

55950NOZZLE ASSY, DEFROSTER

main55950-60010iFZJ80,HDJ80,HZJ80..LHD199208-199501

main55950-60020iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main55950-60040iFZJ80,HDJ80,HZJ80..LHD199501

main55950-60050iFZJ80,HDJ80,HZJ80..RHD199501-200103

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-60020-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55955-60020-06iFZJ80,HDJ80,HZJ80..LHD199208-199501

SABLE,TRIM4#

main55955-60030-03iFZJ80,HDJ80,HZJ80..RHD..GEN199208-199501

BLUISH GRAY,TRIM1#

main55955-60030-06iFJ80,HDJ80,HZJ80..RHD199001-199006

SABLE,TRIM4#

main55955-60040-B0iFZJ80,HDJ80,HZJ80..LHD199501-199801

BLUISH GRAY,TRIM1#

main55955-60040-E0iFZJ80,HDJ80,HZJ80..LHD199501-199901

OAK,TRIM4#

main55955-60050-B0iFZJ80,HDJ80,HZJ80..RHD..GEN199501-200103

BLUISH GRAY,TRIM1#

main55955-60050-E0iHZJ80..RHD..GEN;FZJ80,HDJ80..RHD..5F..GEN199501-199901

OAK,TRIM4#

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iFZJ80,HDJ80,HZJ80..DSL,EFI,TD2199901

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-60010-03iFZJ80..LHD..GEN199208-199501

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60010-06iFJ80,FZJ80..LHD..GEN199001-199208

COLD SPEC,SABLE,TRIM4#

main55961-60020-03iFZJ80..RHD..CBR199208-199501

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60020-06iFZJ80..RHD..CBR199208-199501

SABLE,TRIM4#

main55961-60040-B0iFZJ80..CBR199909-200109

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60040-E0iFZJ80..EFI199901-199909

COLD SPEC,OAK,TRIM4#

main55961-60050-B0iFZJ80..RHD..CBR199501-199801

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60050-E0iFZJ80..RHD..CBR199501-199801

OAK,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-60010-03iFJ80,FZJ80..LHD..GEN199001-199208

COLD SPEC,BLUISH GRAY,TRIM1#

main55962-60010-06iFJ80,FZJ80..LHD..GEN199001-199208

COLD SPEC,SABLE,TRIM4#

main55962-60020-03iFZJ80..RHD..CBR199208-199501

BLUISH GRAY,TRIM1#

main55962-60020-06iFZJ80..RHD..CBR199208-199501

SABLE,TRIM4#

main55962-60030-B0iFZJ80..CBR199909-200109

COLD SPEC,BLUISH GRAY,TRIM1#

main55962-60030-E0iFZJ80..EFI199901-199909

COLD SPEC,OAK,TRIM4#

main55962-60040-B0iFZJ80..RHD..CBR199501-199801

BLUISH GRAY,TRIM1#

main55962-60040-E0iFZJ80..RHD..CBR199501-199801

OAK,TRIM4#

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-60010iFZJ80..LHD..GEN199208-199501

COLD SPEC

main55971-60020iHDJ80..RHD;FJ80,HZJ80..ARL199006-199208

main55971-60040iFZJ80..CBR199909-200109

COLD SPEC

main55971-60050iFZJ80..RHD..CBR199501-199801

COLD SPEC

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-60010iFJ80..GEN199001-199006

main55972-60020iHZJ80..LHD..LUB..GX199501-199801

COLD SPEC

9010508120

main90105-08120

9011906166

main90119-06166

9011906429

main90119-06429

9011908193

main90119-08193

9015950105

main90159-50105

9015950138

main90159-50138

9015950163

main90159-50163

9017908102

main90179-08102

9018905024

main90189-05024

9025404016

main90254-04016

9046714010

main90467-14010

9046804147

main90468-04147

9046804157

main90468-04157

9356855014

main93568-55014

9356855018

main93568-55018

70 parts on this diagram · 7 diagrams in section
