FRONT FENDER APRON & DASH PANEL

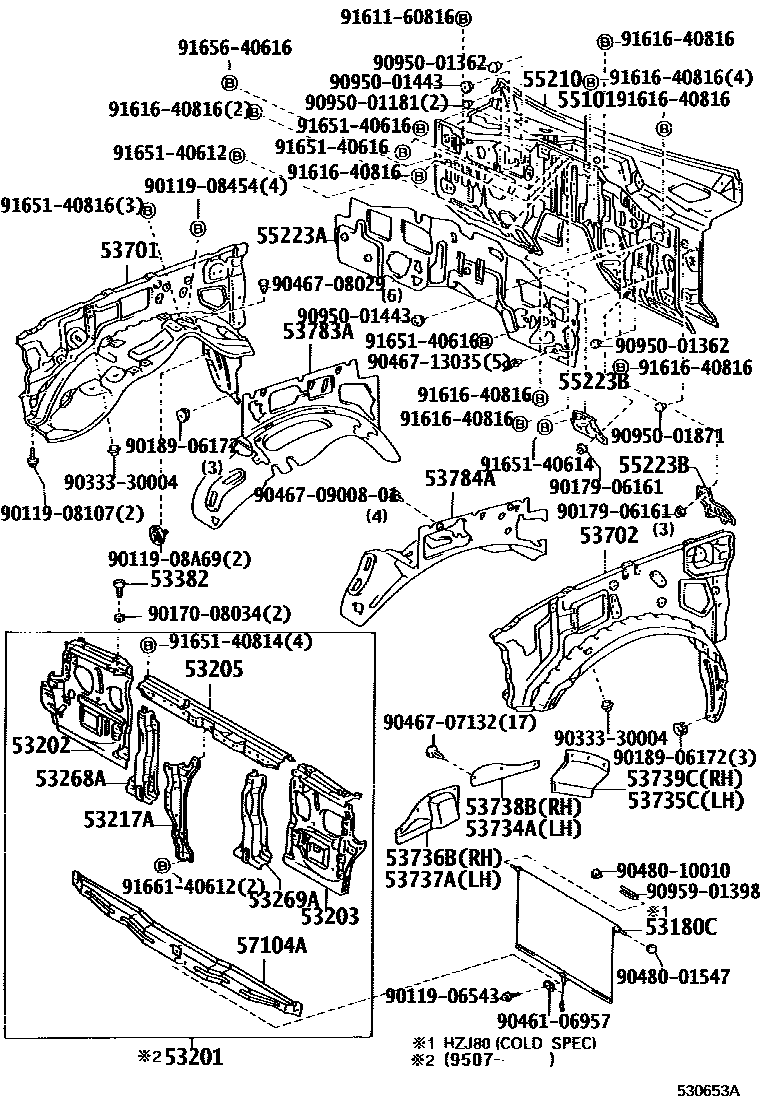

Parts diagram
53180CSHUTTER ASSY, RADIATOR
main53180-60010i199505-199801
W(*AIC)
main53180-60020i199501-199801
COLD SPEC
53201SUPPORT SUB-ASSY, RADIATOR
main53210-60070i199501-199507
sub53210-60071
main53210-60071i199507
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-60020i199001-199201
sub53202-60100
main53202-60100i199201-199305
sub53202-60101
main53202-60100i199305-199501
W(BODY RUST PROTECTING)
sub53202-60101
main53202-60101i199305-199507
sub53202-60102
main53202-60102i199507
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-60020i199001-199501
sub53203-60021
main53203-60021i199501-199507
sub53203-60022
main53203-60022i199507
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53216-60020i199001-199501
sub53216-60021
main53216-60021i199501
53217ABRACE, HOOD LOCK SUPPORT
main53217-60020i199001-199501
main53217-60070i199501
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
main53268-60010i199001-199208
main53268-60020i199001-199003
*GIS
sub53268-60010
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
main53269-60010i199001-199208
main53269-60020i199001-199003
*GIS
sub53269-60010
53382BUMPER, HOOD, FRONT
main53382-60010i199001-199111
sub53382-60011
main53382-60011i199111-199208
53701APRON SUB-ASSY, FRONT FENDER, RH
main53710-60020i199001-199201
sub53710-60110
main53710-60040i199001-199201
W(OVER FENDER & MUD GUARD)
sub53710-60110
main53710-60070i199001-199201
sub53710-60160
main53710-60080i199001-199201
W(OVER FENDER & MUD GUARD)
sub53710-60160
main53710-60110i199201-199208
main53710-60160i199201-199208
sub53710-60162
main53710-60162i199208-199501
sub53710-60163
main53710-60163i199501-199603
main53710-60164i199603
sub53710-60163
53702APRON SUB-ASSY, FRONT FENDER, LH
main53720-60020i199001-199201
sub53720-60100
main53720-60040i199001-199201
W(OVER FENDER & MUD GUARD)
sub53720-60100
main53720-60070i199001-199201
sub53720-60150
main53720-60080i199001-199201
W(OVER FENDER & MUD GUARD)
sub53720-60150
main53720-60100i199201-199208
main53720-60150i199201-199208
W(BODY RUST PROTECTING)
sub53720-60151
main53720-60151i199201-199501
sub53720-60152
main53720-60152i199501-199603
main53720-60153i199603
sub53720-60152
53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH
main53738-60010i199208-199604
main53738-60011i199604-200612
53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH
main53735-60010i199001-199208
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
main53736-60010i199001-199208
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
main53737-60010i199001-199208
53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
main53738-60010i199001-199604
main53738-60011i199604-200612
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
main53739-60010i199001-199208
53783AINSULATOR, APRON FRONT FENDER, RH
main53783-60010i199108-199208
sub53783-60011
main53783-60011i199208-199501
sub53783-60012
53784AINSULATOR, APRON FRONT FENDER, LH
main53784-60010i199108-199208
sub53784-60011
main53784-60011i199208-199501
55101PANEL SUB-ASSY, DASH
main55101-60150i199001-199108
sub55101-6B630
main55101-60150i199001-199201
W(FRONT HEATER & *AIC)
sub55101-6B630
main55101-60160i199001-199201
W(*MW & *AIC & FROT HEATER)
main55101-60170i199001-199201
W(FRONT HEATER)
main55101-60200i199001-199201
W(*AIC)
main55101-60230i199001-199201
W(*MW)
main55101-60240i199001-199201
main55101-60270i199001-199201
main55101-60280i199001-199201
W(*MW & FRONT HEATER)
main55101-60290i199001-199201
W(FRONT HEATER)
main55101-60300i199001-199201
W(*MW & *AIC)
main55101-60310i199001-199201
W(*AIC)
main55101-60320i199001-199201
W(*MW)
main55101-60330i199001-199108
sub55101-6B640
main55101-60330i199001-199201
W(*AIC(DUAL))
sub55101-6B640
main55101-60340i199001-199201
W(MECHANICAL WINCH & *AIC)
main55101-60350i199001-199208
sub55101-60351
sub91656-40616
main55101-60351i199208-199501
main55101-60352i199501-199801
sub55101-60382
sub90950-01882
sub91611-B0816
main55101-60360i199001-199208
W(FRONT HEATER)
sub55101-60361
sub91656-40616
main55101-60361i199208-199501
W(FRONT HEATER)
main55101-60362i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-60412
sub90950-01882
sub91611-B0816
main55101-60362i199501-199608
W(FRONT HEATER)
sub55101-60412
sub90950-01882
sub91611-B0816
main55101-60370i199001-199208
W(*AIC)
sub55101-60371
sub91656-40616
main55101-60371i199208-199501
W(*AIC)
main55101-60372i199501-199801
W(*AIC)
sub55101-60432
sub90950-01882
main55101-60380i199001-199208
W(*MW)
sub55101-60381
sub91656-40616
main55101-60381i199208-199501
W(*MW)
main55101-60382i199501-199801
W(*MW)
main55101-60390i199001-199208
sub55101-60391
sub91656-40616
main55101-60391i199208-199501
main55101-60392i199501-199801
sub55101-60452
sub90950-01882
sub91611-B0816
main55101-60400i199001-199201
W(FRONT HEATER & *AIC)
sub55101-60480
main55101-60400i199001-199108
sub55101-60480
main55101-60410i199001-199208
W(*MW & FRONT HEATER)
sub55101-60411
sub91656-40616
main55101-60411i199208-199501
W(*MW & FRONT HEATER)
main55101-60412i199501-199608
W(*MW & FRONT HEATER)
main55101-60420i199001-199208
W(FRONT HEATER)
sub55101-60421
sub91656-40616
main55101-60421i199208-199501
W(FRONT HEATER)
main55101-60422i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-60492
sub90950-01882
sub91611-B0816
main55101-60422i199501-199608
W(FRONT HEATER)
sub55101-60492
sub90950-01882
sub91611-B0816
main55101-60430i199001-199208
W(*MW & *AIC)
sub55101-60431
sub91656-40616
main55101-60431i199208-199501
W(*MW & *AIC)
sub55101-6A471
main55101-60432i199501-199801
W(*MW & *AIC)
main55101-60440i199001-199208
W(*AIC)
sub55101-60441
sub91656-40616
main55101-60441i199208-199501
W(*AIC)
main55101-60442i199501-199801
W(*AIC)
sub55101-60502
sub90950-01882
main55101-60450i199001-199208
W(*MW)
sub55101-60451
sub91656-40616
main55101-60451i199208-199501
W(*MW)
main55101-60452i199501-199801
W(*MW)
main55101-60460i199001-199201
W(*MW & *AIC & FROT HEATER)
sub55101-6A470
main55101-60462i199501-199608
W(*MW & *AIC & FROT HEATER)
sub55101-6A472
main55101-60470i199001-199108
sub55101-60530
main55101-60470i199001-199201
W(*AIC(DUAL)) OR W(HEATER & *AIC)
sub55101-60530
main55101-60470i199001-199201
W(*AIC(DUAL))
sub55101-60530
main55101-60480i199201-199208
W(FRONT HEATER & *AIC)
sub55101-60481
sub91656-40616
main55101-60480i199108-199208
sub55101-60481
sub91656-40616
main55101-60481i199208-199501
W(FRONT HEATER & *AIC)
main55101-60482i199501-199801
sub55101-6A472
sub90950-01882
main55101-60482i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A472
sub90950-01882
main55101-60490i199001-199208
W(*MW & FRONT HEATER)
sub55101-60491
sub91656-40616
main55101-60491i199208-199501
W(*MW & FRONT HEATER)
main55101-60492i199501-199608
W(*MW & FRONT HEATER)
main55101-60500i199001-199208
W(*MW & *AIC)
sub55101-60501
sub91656-40616
main55101-60501i199208-199501
W(*MW & *AIC)
main55101-60502i199501-199801
W(*MW & *AIC)
main55101-60510i199201-199208
W(*MW & *AIC & FRONT HEATER)
sub55101-60511
sub91656-40616
main55101-60510i199001-199201
W(MECHANICAL WINCH & *AIC)
sub55101-60511
sub91656-40616
main55101-60511i199208-199501
W(*MW & *AIC & FRONT HEATER)
main55101-60512i199501-199608
W(*MW & *AIC & FRONT HEATER)
sub55101-6C770
main55101-60520i199001-199011
sub55101-60521
main55101-60521i199011-199108
sub55101-6B241
main55101-60530i199201-199208
W(FRONT HEATER & *AIC)
sub55101-60531
sub91656-40616
main55101-60530i199108-199208
sub55101-60531
sub91656-40616
main55101-60531i199208-199501
W(FRONT HEATER & *AIC)
main55101-60532i199501-199901
sub55101-6C770
sub90950-01882
main55101-60532i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6C770
sub90950-01882
main55101-60560i199001-199108
main55101-60640i199001-199201
W(*MW & FRONT HEATER)
main55101-60650i199001-199201
W(*MW & *AIC)
main55101-60660i199001-199201
main55101-60670i199001-199201
W(FRONT HEATER)
main55101-60680i199001-199201
W(*AIC)
main55101-60690i199001-199201
W(*MW)
main55101-60700i199001-199201
main55101-60710i199001-199201
W(FRONT HEATER & *AIC)
main55101-60710i199001-199201
W(*AIC)
main55101-60720i199001-199201
W(*MW)
main55101-60720i199001-199201
W(*MW & FRONT HEATER)
main55101-60730i199001-199201
W(FRONT HEATER)
main55101-60740i199001-199201
W(*MW & *AIC)
main55101-60750i199001-199201
W(*AIC)
main55101-60760i199001-199201
W(*MW)
main55101-60770i199001-199201
W(*MW & *AIC & FROT HEATER)
main55101-60770i199001-199201
W(*MW & *AIC)
main55101-60780i199001-199010
W(*AIC)
main55101-60780i199001-199010
W(DUAL *AIC)
main55101-60780i199001-199201
W(*AIC(DUAL))
main55101-60790i199001-199201
main55101-60800i199001-199201
W(*MW & FRONT HEATER)
main55101-60800i199001-199010
W(*MW)
main55101-60820i199001-199201
W(*MW & *AIC)
main55101-60840i199001-199010
W(*MW & *AIC)
main55101-60840i199001-199201
W(MECHANICAL WINCH & *AIC)
main55101-60840i199001-199010
W(*MW)
main55101-60850i199001-199201
W(*AIC)
main55101-60862i199208-199501
W(*AIC)
main55101-60863i199501-199801
W(*AIC)
main55101-60870i199001-199201
W(*MW)
main55101-6A010i199001-199201
W(*MW & *AIC)
main55101-6A022i199208-199501
W(*MW)
main55101-6A022i199208-199501
W(*MW & *AIC)
main55101-6A023i199501-199801
W(*MW & *AIC)
main55101-6A023i199501-199801
W(*MW)
main55101-6A030i199001-199201
W/O REAR HEATER & W(FR & RR HEATER)
sub55101-6A031
sub91656-40616
main55101-6A030i199001-199208
sub55101-6A031
sub91656-40616
main55101-6A031i199208-199501
main55101-6A032i199501-199801
sub55101-6A062
sub90950-01882
main55101-6A040i199001-199201
sub55101-6A041
sub91656-40616
main55101-6A040i199001-199208
W(FRONT HEATER)
sub55101-6A041
sub91656-40616
main55101-6A041i199208-199501
W(FRONT HEATER)
main55101-6A042i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-6C730
main55101-6A042i199501-199608
W(FRONT HEATER)
sub55101-6C730
main55101-6A050i199001-199208
W(*AIC)
sub55101-6A051
sub91656-40616
main55101-6A051i199208-199501
W(*AIC)
main55101-6A052i199501-199801
W(*AIC)
main55101-6A060i199001-199208
W(*MW)
sub55101-6A061
sub91656-40616
main55101-6A061i199208-199501
W(*MW)
main55101-6A062i199501-199801
W(*MW)
main55101-6A070i199001-199208
sub55101-6A071
sub91656-40616
main55101-6A071i199208-199501
main55101-6A072i199501-199801
sub55101-6A142
sub90950-01882
main55101-6A080i199001-199201
W(FRONT HEATER & *AIC)
sub55101-6A170
main55101-6A080i199001-199201
W(*AIC)
sub55101-6A170
main55101-6A090i199001-199201
W(*MW)
sub55101-6A091
sub91656-40616
main55101-6A090i199001-199208
W(*MW & FRONT HEATER)
sub55101-6A091
sub91656-40616
main55101-6A091i199208-199501
W(*MW & FRONT HEATER)
main55101-6A092i199501-199608
W(*MW & FRONT HEATER)
main55101-6A100i199001-199208
W(FRONT HEATER)
sub55101-6A101
sub91656-40616
main55101-6A100i199201-199208
sub55101-6A101
sub91656-40616
main55101-6A101i199208-199501
W(FRONT HEATER)
main55101-6A102i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-6C740
main55101-6A102i199501-199801
sub55101-6C740
main55101-6A102i199501-199608
W(FRONT HEATER)
sub55101-6C740
main55101-6A120i199001-199208
W(*MW & *AIC)
sub55101-6A121
sub91656-40616
main55101-6A121i199208-199501
W(*MW & *AIC)
main55101-6A122i199501-199801
W(*MW & *AIC)
main55101-6A130i199001-199208
W(*AIC)
sub55101-6A131
sub91656-40616
main55101-6A131i199208-199501
W(*AIC)
main55101-6A132i199501-199801
W(*AIC)
main55101-6A140i199001-199208
W(*MW)
sub55101-6A141
sub91656-40616
main55101-6A141i199208-199501
W(*MW)
main55101-6A142i199501-199801
W(*MW)
main55101-6A150i199001-199201
W(*MW & *AIC & FROT HEATER)
sub55101-6A230
main55101-6A150i199001-199201
W(*MW & *AIC)
sub55101-6A230
main55101-6A160i199001-199201
W(*AIC(DUAL))
sub55101-6A250
main55101-6A160i199011-199201
W(REAR TRANSVERSE SEAT & FRONT HEATER & *AIC)
sub55101-6A250
main55101-6A160i199010-199011
sub55101-6A250
main55101-6A170i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6A171
sub91656-40616
main55101-6A171i199208-199501
W(FRONT HEATER & *AIC)
main55101-6A172i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A232
sub90950-01882
main55101-6A180i199201-199208
W(*MW)
sub55101-6A181
sub91656-40616
main55101-6A180i199001-199208
W(*MW & FRONT HEATER)
sub55101-6A181
sub91656-40616
main55101-6A181i199208-199501
W(*MW)
main55101-6A181i199208-199501
W(*MW & FRONT HEATER)
main55101-6A182i199501-199608
W(*MW & FRONT HEATER)
main55101-6A182i199501-199801
W(*MW)
main55101-6A210i199001-199208
W(*MW & *AIC)
sub55101-6A211
sub91656-40616
main55101-6A211i199208-199501
W(*MW & *AIC)
main55101-6A212i199501-199801
W(*MW & *AIC)
main55101-6A220i199001-199201
W(MECHANICAL WINCH & *AIC)
sub55101-6A360
main55101-6A230i199201-199208
W(*MW & *AIC & FROT HEATER)
sub55101-6A231
sub91656-40616
main55101-6A231i199208-199501
W(*MW & *AIC & FROT HEATER)
main55101-6A232i199501-199608
W(*MW & *AIC & FROT HEATER)
main55101-6A240i199001-199010
W(*AIC)
main55101-6A250i199201-199208
W(REAR TRANSVERSE SEAT & FRONT HEATER & *AIC)
sub55101-6A251
sub91656-40616
main55101-6A250i199201-199208
W(*AIC)
sub55101-6A251
sub91656-40616
main55101-6A250i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6A251
sub91656-40616
main55101-6A251i199208-199501
W(FRONT HEATER & *AIC)
main55101-6A251i199208-199501
W(*AIC)
main55101-6A252i199501-199801
W(*AIC)
sub55101-6A362
sub90950-01882
main55101-6A252i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A362
sub90950-01882
main55101-6A260i199001-199208
W(*MW)
sub55101-6A261
sub91656-40616
main55101-6A261i199208-199501
W(*MW)
main55101-6A270i199001-199010
W(*MW)
main55101-6A290i199001-199208
sub55101-6A291
sub91656-40616
main55101-6A291i199208-199501
main55101-6A340i199001-199208
W(MECHANICAL WINCH & *AIC)
sub55101-6A341
sub91656-40616
main55101-6A340i199201-199208
W(*MW)
sub55101-6A341
sub91656-40616
main55101-6A341i199208-199501
W(*MW & *AIC)
main55101-6A341i199208-199501
W(*MW)
main55101-6A350i199001-199010
W(*MW & *AIC)
main55101-6A360i199201-199208
W(*MW & *AIC)
sub55101-6A361
sub91656-40616
main55101-6A360i199201-199208
W(*MW & *AIC & FRONT HEATER)
sub55101-6A361
sub91656-40616
main55101-6A361i199208-199501
W(*MW & *AIC & FRONT HEATER)
main55101-6A361i199208-199501
W(*MW & *AIC)
main55101-6A362i199501-199801
W(*MW)
main55101-6A362i199501-199801
W(*MW & *AIC)
main55101-6A362i199501-199608
W(*MW & *AIC & FRONT HEATER)
main55101-6A381i199011-199208
W(*AIC)
sub55101-6A382
sub91656-40616
main55101-6A382i199208-199501
W(*AIC)
main55101-6A390i199001-199208
W(*MW)
sub55101-6A391
sub91656-40616
main55101-6A391i199208-199501
W(*MW)
main55101-6A431i199011-199208
W(*MW & *AIC)
sub55101-6A432
sub91656-40616
main55101-6A432i199208-199501
W(*MW & *AIC)
main55101-6A440i199001-199208
W(*AIC)
sub55101-6A441
sub91656-40616
main55101-6A441i199208-199501
W(*AIC)
main55101-6A460i199001-199208
W(MECHANICAL WINCH & *AIC)
sub55101-6A461
sub91656-40616
main55101-6A461i199208-199501
W(*MW & *AIC)
main55101-6A470i199201-199208
W(*MW & *AIC & FROT HEATER)
sub55101-6A471
sub91656-40616
main55101-6A471i199208-199501
W(*MW & *AIC & FROT HEATER)
main55101-6A490i199001-199201
W(*MW)
main55101-6A500i199001-199201
main55101-6A580i199001-199208
sub55101-6A581
sub91656-40616
main55101-6A581i199208-199501
main55101-6A590i199001-199010
main55101-6A630i199201-199208
sub55101-6A631
sub91656-40616
main55101-6A630i199001-199208
W(*AIC)
sub55101-6A631
sub91656-40616
main55101-6A631i199208-199501
W(*AIC)
main55101-6B241i199108-199208
sub55101-6B242
sub91656-40616
main55101-6B242i199208-199501
main55101-6B243i199501-199608
main55101-6B260i199108-199208
sub55101-6B261
sub91656-40616
main55101-6B261i199208-199501
main55101-6B270i199201-199208
W(*MW & *AIC)
sub55101-6B271
sub91656-40616
main55101-6B360i199011-199108
sub55101-6B650
main55101-6B380i199011-199108
sub55101-6B390
main55101-6B390i199108-199208
sub55101-6B391
sub91656-40616
main55101-6B391i199208-199501
main55101-6B392i199501-199608
main55101-6B400i199011-199201
main55101-6B410i199011-199201
W(FRONT HEATER)
sub55101-6B281
main55101-6B420i199011-199201
W(*AIC)
main55101-6B430i199011-199201
W(*MW)
main55101-6B440i199011-199201
W(*AIC(DUAL))
sub55101-60861
main55101-6B440i199011-199201
W(*AIC)
sub55101-60861
main55101-6B450i199011-199201
W(*MW)
main55101-6B450i199011-199201
W(*MW & FRONT HEATER)
main55101-6B460i199011-199201
W(*MW & *AIC)
main55101-6B470i199011-199201
W(*MW & *AIC)
sub55101-6A021
main55101-6B470i199011-199201
W(*MW)
sub55101-6A021
main55101-6B470i199011-199201
W(MECHANICAL WINCH & *AIC)
sub55101-6A021
main55101-6B480i199011-199208
main55101-6B490i199011-199208
W(FRONT HEATER)
main55101-6B500i199011-199208
W(*AIC)
main55101-6B510i199011-199208
W(*MW)
main55101-6B520i199011-199201
W(*AIC(DUAL))
sub55101-6B570
main55101-6B530i199011-199208
W(*MW & FRONT HEATER)
main55101-6B540i199011-199208
W(*MW & *AIC)
main55101-6B550i199011-199201
W(MECHANICAL WINCH & *AIC)
sub55101-6B600
main55101-6B562i199501-199801
W(*AIC)
main55101-6B570i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6B571
sub91656-40616
main55101-6B580i199011-199208
W(*MW)
sub55101-6B581
sub91656-40616
main55101-6B581i199208-199501
W(*MW)
main55101-6B582i199501-199801
W(*MW)
main55101-6B592i199501-199801
W(*MW & *AIC)
main55101-6B600i199201-199208
W(*MW & *AIC & FRONT HEATER)
sub55101-6B601
sub91656-40616
main55101-6B620i199011-199208
sub55101-6B621
sub91656-40616
main55101-6B621i199208-199501
main55101-6B622i199501-199801
main55101-6B630i199108-199208
main55101-6B640i199108-199208
main55101-6B650i199108-199208
main55101-6B651i199208-199501
main55101-6B652i199501-199608
main55101-6B661i199208-199501
W(*MW & *AIC)
sub55101-6B271
main55101-6B670i199201-199208
W(*AIC)
main55101-6B671i199208-199501
W(*AIC)
sub55101-6B261
main55101-6B680i199201-199208
W(*MW)
main55101-6B681i199208-199501
W(*MW)
main55101-6B690i199201-199208
sub55101-6B691
sub91656-40616
main55101-6B691i199208-199501
main55101-6B700i199201-199208
W(*MW & *AIC & FROT HEATER)
sub55101-6B701
sub91656-40616
main55101-6B701i199208-199501
W(*MW & *AIC & FROT HEATER)
main55101-6B710i199201-199208
W(*MW & *AIC)
sub55101-6B711
sub91656-40616
main55101-6B710i199201-199208
W(*MW & *AIC & FRONT HEATER)
sub55101-6B711
sub91656-40616
main55101-6B711i199208-199501
W(*MW & *AIC)
main55101-6B711i199208-199501
W(*MW & *AIC & FRONT HEATER)
main55101-6B720i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6B721
sub91656-40616
main55101-6B721i199208-199501
W(FRONT HEATER & *AIC)
main55101-6B722i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A472
sub90950-01882
sub91611-B0816
main55101-6B730i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6B731
sub91656-40616
main55101-6B730i199201-199208
W(*AIC)
sub55101-6B731
sub91656-40616
main55101-6B731i199208-199501
W(FRONT HEATER & *AIC)
main55101-6B731i199208-199501
W(*AIC)
main55101-6B732i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6C770
sub90950-01882
sub91611-B0816
main55101-6B732i199501-199801
sub55101-6C770
sub90950-01882
sub91611-B0816
main55101-6B740i199201-199208
W(*MW & FRONT HEATER)
sub55101-6B741
sub91656-40616
main55101-6B741i199208-199501
W(*MW & FRONT HEATER)
main55101-6B750i199201-199208
W(*MW & FRONT HEATER)
sub55101-6B751
sub91656-40616
main55101-6B750i199201-199208
W(*MW)
sub55101-6B751
sub91656-40616
main55101-6B751i199208-199501
W(*MW & FRONT HEATER)
main55101-6B751i199208-199501
W(*MW)
main55101-6B760i199201-199208
W(FRONT HEATER)
sub55101-6B761
sub91656-40616
main55101-6B761i199208-199501
W(FRONT HEATER)
main55101-6B762i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
main55101-6B762i199501-199608
W(FRONT HEATER)
main55101-6B770i199201-199208
W(FRONT HEATER)
sub55101-6B771
sub91656-40616
main55101-6B771i199208-199501
W(FRONT HEATER)
main55101-6B772i199501-199608
W(FRONT HEATER)
main55101-6B772i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
main55101-6B780i199201-199208
W(*AIC)
sub55101-6B781
sub91656-40616
main55101-6B781i199208-199501
W(*AIC)
main55101-6B782i199501-199801
W(*AIC)
main55101-6B790i199201-199208
W(*AIC)
sub55101-6B791
sub91656-40616
main55101-6B791i199208-199501
W(*AIC)
main55101-6B792i199501-199801
W(*AIC)
main55101-6B800i199201-199208
sub55101-6B801
sub91656-40616
main55101-6B801i199208-199501
main55101-6B802i199501-199801
main55101-6B810i199201-199208
sub55101-6B811
sub91656-40616
main55101-6B811i199208-199501
main55101-6B812i199501-199801
main55101-6B820i199201-199208
W(*MW)
sub55101-6B821
sub91656-40616
main55101-6B820i199201-199208
W(*MW & *AIC)
sub55101-6B821
sub91656-40616
main55101-6B821i199208-199501
W(*MW)
main55101-6B821i199208-199501
W(*MW & *AIC)
main55101-6B830i199201-199208
W(*MW & *AIC & FROT HEATER)
sub55101-6B831
sub91656-40616
main55101-6B830i199201-199208
W(*MW & *AIC)
sub55101-6B831
sub91656-40616
main55101-6B831i199208-199501
W(*MW & *AIC & FROT HEATER)
main55101-6B831i199208-199501
W(*MW & *AIC)
main55101-6B832i199501-199801
W(*MW & *AIC)
sub55101-6A232
sub91611-B0816
main55101-6B832i199501-199608
W(*MW & *AIC & FROT HEATER)
sub55101-6A232
sub91611-B0816
main55101-6B840i199201-199208
W(*MW & *AIC)
sub55101-6B841
sub91656-40616
main55101-6B840i199201-199208
W(*MW & *AIC & FRONT HEATER)
sub55101-6B841
sub91656-40616
main55101-6B841i199208-199501
W(*MW & *AIC & FRONT HEATER)
main55101-6B841i199208-199501
W(*MW & *AIC & FOOT REST)
main55101-6B841i199208-199501
W(*MW & *AIC)
main55101-6B842i199501-199801
W(*MW & *AIC) & H PACKAGE
sub55101-6A362
sub91611-B0816
main55101-6B842i199501-199608
W(*MW & *AIC & FRONT HEATER)
sub55101-6A362
sub91611-B0816
main55101-6B842i199501-199801
W(*MW)
sub55101-6A362
sub91611-B0816
main55101-6B842i199501-199801
W(*MW & *AIC)
sub55101-6A362
sub91611-B0816
main55101-6B850i199201-199208
W(*AIC)
sub55101-6B851
sub91656-40616
main55101-6B851i199208-199501
W(*AIC)
main55101-6B860i199201-199208
W(*AIC)
sub55101-6B861
sub91656-40616
main55101-6B860i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6B861
sub91656-40616
main55101-6B861i199208-199501
W(FRONT HEATER & *AIC)
main55101-6B861i199208-199501
W(*AIC)
main55101-6B862i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A232
sub90950-01882
sub91611-B0816
main55101-6B862i199801-200109
sub55101-6A232
sub90950-01882
sub91611-B0816
main55101-6B862i199501-199801
W(*AIC)
sub55101-6A232
sub90950-01882
sub91611-B0816
main55101-6B870i199201-199208
W(*AIC)
sub55101-6B871
sub91656-40616
main55101-6B870i199201-199208
W(FRONT HEATER & *AIC)
sub55101-6B871
sub91656-40616
main55101-6B871i199208-199501
W(*AIC & FOOT REST)
main55101-6B871i199208-199501
W(FRONT HEATER & *AIC)
main55101-6B871i199208-199501
W(*AIC)
main55101-6B872i199501-199801
W(*AIC)
sub55101-6A362
sub90950-01882
sub91611-B0816
main55101-6B872i199501-199801
W(*AIC) & H PACKAGE
sub55101-6A362
sub90950-01882
sub91611-B0816
main55101-6B872i199501-199608
W(FRONT HEATER & *AIC)
sub55101-6A362
sub90950-01882
sub91611-B0816
main55101-6B880i199201-199208
W(*MW)
sub55101-6B881
sub91656-40616
main55101-6B881i199208-199501
W(*MW)
main55101-6B890i199201-199208
W(*MW & FRONT HEATER)
sub55101-6B891
sub91656-40616
main55101-6B890i199201-199208
W(*MW)
sub55101-6B891
sub91656-40616
main55101-6B891i199208-199501
W(*MW & FRONT HEATER)
main55101-6B891i199208-199501
W(*MW)
main55101-6B892i199501-199605
W(*MW & FRONT HEATER)
main55101-6B892i199501-199801
W(*MW)
main55101-6C010i199201-199208
W(*MW & FRONT HEATER)
sub55101-6C011
sub91656-40616
main55101-6C010i199201-199208
W(*MW)
sub55101-6C011
sub91656-40616
main55101-6C011i199208-199501
W(*MW & FRONT HEATER)
main55101-6C011i199208-199501
W(*MW)
main55101-6C011i199208-199501
W(*MW & FOOT REST)
main55101-6C012i199501-199801
W(*MW)
main55101-6C012i199501-199801
W(*MW) & H PACKAGE
main55101-6C012i199501-199608
W(*MW & FRONT HEATER)
main55101-6C020i199201-199208
sub55101-6C021
sub91656-40616
main55101-6C021i199208-199501
main55101-6C030i199201-199208
W(FRONT HEATER)
sub55101-6C031
sub91656-40616
main55101-6C031i199208-199501
W(FRONT HEATER)
main55101-6C032i199501-199608
W(FRONT HEATER)
sub55101-6B892
sub90950-01882
main55101-6C032i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-6B892
sub90950-01882
main55101-6C032i199501-199801
sub55101-6B892
sub90950-01882
main55101-6C040i199201-199208
W(FRONT HEATER)
sub55101-6C041
sub91656-40616
main55101-6C041i199208-199501
W(FOOT REST) & W/O *AIC
main55101-6C041i199208-199501
W(FRONT HEATER)
main55101-6C042i199501-199801
W(FOOT REST) & W/O *AIC
sub55101-6C012
sub90950-01882
main55101-6C042i199608-199801
W(FRONT HEATER) OR W(FRONT & REAR HEATER)
sub55101-6C012
sub90950-01882
main55101-6C042i199501-199608
W(FRONT HEATER)
sub55101-6C012
sub90950-01882
main55101-6C050i199201-199208
W(*MW & *AIC)
sub55101-6C051
sub91656-40616
main55101-6C051i199208-199501
W(*MW & *AIC)
main55101-6C052i199501-199801
W(*MW & *AIC)
main55101-6C060i199201-199208
W(*MW & *AIC)
sub55101-6C061
sub91656-40616
main55101-6C061i199208-199501
W(*MW & *AIC)
main55101-6C062i199501-199801
W(*MW & *AIC)
main55101-6C070i199201-199208
W(*AIC)
sub55101-6C071
sub91656-40616
main55101-6C071i199208-199501
W(*AIC)
main55101-6C072i199501-199801
W(*AIC)
sub55101-6C052
sub90950-01882
main55101-6C080i199201-199208
W(*AIC)
sub55101-6C081
sub91656-40616
main55101-6C081i199208-199501
W(*AIC)
main55101-6C082i199501-199801
W(*AIC)
sub55101-6C062
sub90950-01882
main55101-6C090i199201-199208
W(*MW)
sub55101-6C091
sub91656-40616
main55101-6C091i199208-199501
W(*MW)
main55101-6C092i199501-199801
W(*MW)
main55101-6C100i199201-199208
W(*MW)
sub55101-6C101
sub91656-40616
main55101-6C101i199208-199501
W(*MW)
main55101-6C102i199501-199801
W(*MW)
main55101-6C110i199201-199208
sub55101-6C111
sub91656-40616
main55101-6C111i199208-199501
main55101-6C112i199501-199801
sub55101-6C092
sub90950-01882
main55101-6C120i199201-199208
sub55101-6C121
sub91656-40616
main55101-6C121i199208-199501
main55101-6C122i199501-199801
sub55101-6C102
sub90950-01882
main55101-6C130i199201-199208
W(*MW)
sub55101-6C131
sub91656-40616
main55101-6C131i199208-199501
W(*MW)
main55101-6C140i199201-199208
W(*MW)
sub55101-6C141
sub91656-40616
main55101-6C141i199208-199501
W(*MW)
main55101-6C150i199201-199208
W(*MW & *AIC)
sub55101-6C151
sub91656-40616
main55101-6C151i199208-199501
W(*MW & *AIC)
main55101-6C160i199201-199208
W(*MW & *AIC)
sub55101-6C161
sub91656-40616
main55101-6C161i199208-199501
W(*MW & *AIC)
main55101-6C410i199501-199801
main55101-6C430i199501-199801
W(*AIC)
main55101-6C450i199501-199801
W(*MW)
main55101-6C480i199208-199501
W(*MW)
main55101-6C481i199501-199801
W(*MW)
main55101-6C500i199208-199501
main55101-6C501i199501-199801
sub55101-6C481
sub90950-01882
main55101-6C680i199501-199801
W(*MW & *AIC)
main55101-6C690i199501-199801
main55101-6C700i199501-199801
W(*AIC)
main55101-6C710i199501-199801
W(*MW)
main55101-6C720i199501-199801
W(*MW & *AIC)
sub55101-6C760
main55101-6C790i199608-199801
sub55101-6D040
sub90950-01882
sub91611-B0816
main55101-6C830i199608-199801
sub55101-6D040
sub90950-01882
main55101-6C880i199608-199801
55210INSULATOR ASSY, DASH PANEL
main55210-60010i199001-199206
sub55210-60011
main55210-60011i199206-199409
sub55210-60012
main55210-60012i199501-200103
main55210-60020i199001-199206
sub55210-60021
main55210-60021i199206-199409
sub55210-60022
main55210-60022i199501
55223AINSULATOR, DASH PANEL, OUTER
main55223-60010i199108-199201
sub55223-60100
main55223-60100i199201-199208
sub55223-60101
main55223-60101i199208-199501
sub55223-60102
main55223-60102i199501-199801
main55223-60110i199201-199208
sub55223-60111
main55223-60111i199208-199501
sub55223-60112
main55223-60112i199501
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55225-60010i199001-199208
main55225-60020i199001-199208
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-60020i199001-199305
sub57104-60021
main57104-60020i199305-199501
W(BODY RUST PROTECTING)
sub57104-60021
main57104-60021i199305-199508
sub57104-60022
main57104-60022i199508
9011906543
main90119-06543
9011908107
main90119-08107
9011908454
main90119-08454
9011908A69
main90119-08A69
9017008034
main90170-08034
9017906161
main90179-06161
9018906172
main90189-06172
9033330004
main90333-30004
9046106957
main90461-06957
9046707132
main90467-07132
9046708029
main90467-08029
904670900801
main90467-0900801
9046713035
main90467-13035
9048001547
main90480-01547
9048010010
main90480-10010
9095001181
main90950-01181
9095001362
main90950-01362
9095001443
main90950-01443
9095001871
main90950-01871
9095901398
main90959-01398
9161160816
main91611-60816
9161640816
main91616-40816
9165140612
main91651-40612
9165140614
main91651-40614
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165640616
main91656-40616
9166140612
main91661-40612

53 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
