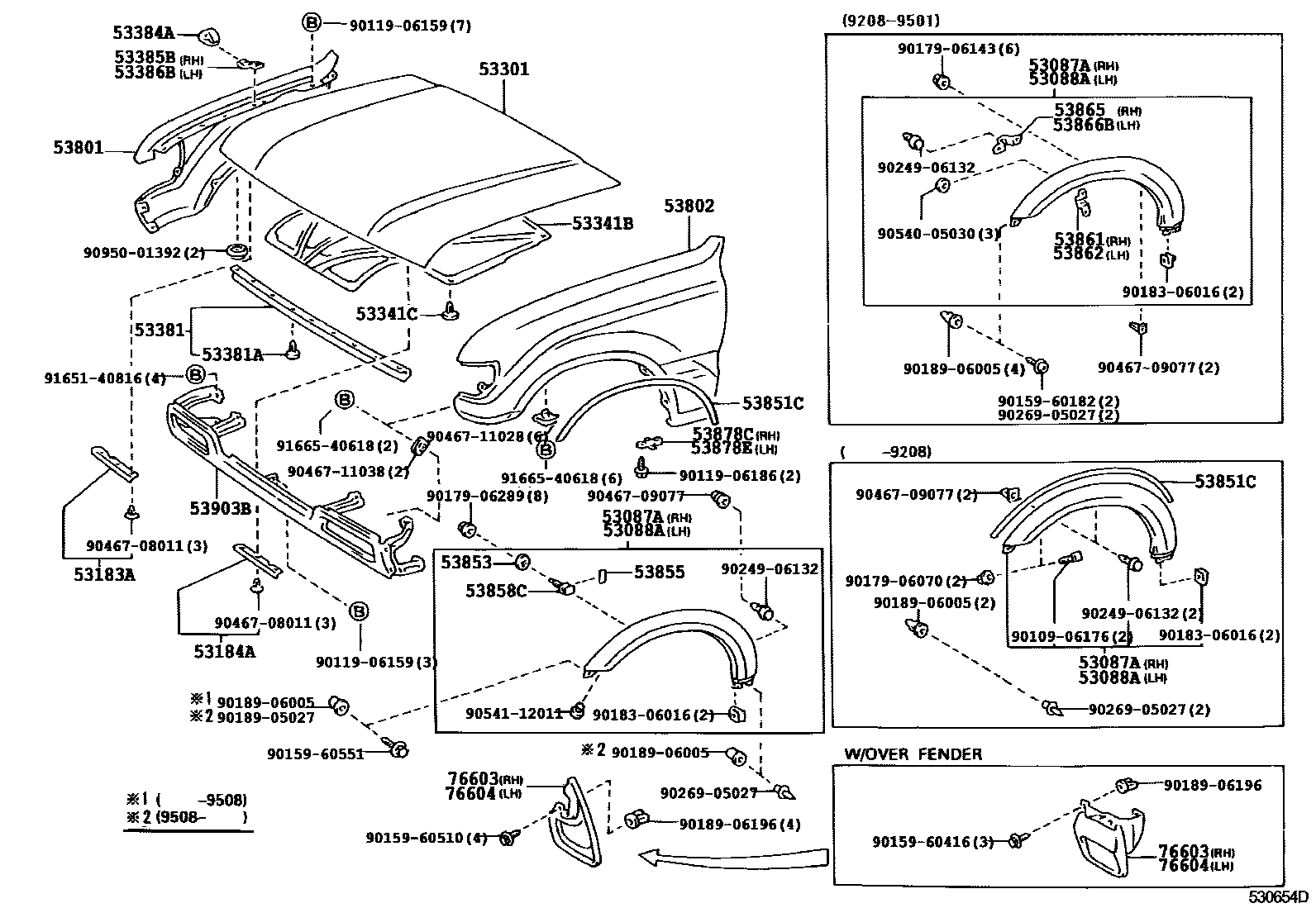

HOOD & FRONT FENDER
53087AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH
main53087-60906iHZJ80..LUB;HDJ80..LHD..LUB;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..GEN..CBR;FZJ80,HDJ80..GX..(ARL,GEN)..(EFI,TD4)199501-199801
53088AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH
main53088-60906iFZJ80..(GX,VX)..GCC;FZJ80..RHD..GX..CBR;FZJ80..5F..VX..GEN..EFI;FZJ80,HDJ80..RHD..4FC..VX;HDJ80,HZJ80..LHD..SOB..(GX,VX)199501-199801
53301HOOD SUB-ASSY
sub53301-60250
sub53301-60280
W(HOOD EMBLEM)
main53301-60280iHDJ80..LHD;HZJ80..5F..GEN;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80..SOB..STD..GEN;FZJ80..(GX,VX)..GEN..CBR199501-199801
W(HOOD EMBLEM)
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
sub53801-60063
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
main53801-60080iFJ80..4FC..GX..GCC;FJ80..MTM..SOB..(GX,VX);HZJ80..(GX,VX)..(GCC,GEN);FJ80,HDJ80..LUB..(GCC,GEN)199001-199206
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
sub53801-60081
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
sub53801-60082
main53801-60082iHZJ80..GCC;FZJ80..GX..CBR;HZJ80..LHD..LUB;FZJ80..VX..GEN..CBR;HZJ80..RHD..5F..GX..GEN199508-199801
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
sub53801-60101
W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
sub53801-60102
W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53801-60121
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53801-60122
main53801-60122iFZJ80..ARL;FZJ80..4FC..GEN;HDJ80,HZJ80..LHD..LUB;HDJ80,HZJ80..RHD..5F..(GX,VX)..(DSL,TD2);FZJ80,HDJ80..(GX,VX)..(ARL,GEN)..(CBR,TD4)199508-199801
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
main53801-60140iFZJ80..STD..GCC;FZJ80,HZJ80..(GX,STD)..GEN;FJ80,HDJ80,HZJ80..5F..GX..ARL199001-199206
W(SIDE TURN SIGNAL LAMP)
sub53801-60141
W(SIDE TURN SIGNAL LAMP)
sub53801-60142
W(SIDE TURN SIGNAL LAMP)
W(ANTENNA & SIDE TURN SIGNAL LAMP)
sub53801-60171
W(ANTENNA & SIDE TURN SIGNAL LAMP)
sub53801-60172
W(ANTENNA & SIDE TURN SIGNAL LAMP)
main53801-60190iFJ80..4FC..GX..GCC;FJ80,HDJ80..LHD..LUB;FJ80..MTM..SOB..(GX,VX);FZJ80,HZJ80..LHD..(GX,VX)199001-199208
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
sub53801-60193
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
W(ANTENNA HOLE & OVER FENDER & SIDE PROTECTION MOULDING)
main53801-60280iFJ80..4FC..GX..GCC;HZJ80..(GX,VX)..GEN;FJ80..LUB..(GCC,GEN);FJ80..MTM..SOB..(GX,VX)199001-199208
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER )
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER)
sub53801-60283
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER)
main53801-60290iFJ80..4FC..GX..GCC;FJ80,HDJ80..LHD..LUB;FJ80..MTM..SOB..(GX,VX);FZJ80,HZJ80..LHD..(GX,VX)199001-199206
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53801-60291
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53801-60292
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
W(WINCH)
sub53801-60681
W(WINCH)
W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & WINCH)
sub53801-60691
W(SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH)
sub53801-60701
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & WINCH)
sub53801-60711
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & SNORKEL AIR CLEANER & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH)
W(SIDE PROTECTION MOULDING & TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER& WINCH)
W(SIDE PROTECTION MOULDING & TURN SIGNAL LAMP & SNORKEL AIR CLEANER & OVER FENDER& WINCH)
W(ANTENNA & SIDE TURN SIGNAL LAMP & WINCH)
sub53801-60741
W(ANTENNA & SIDE TURN SIGNAL LAMP & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH & ANTENNA)
sub53801-60751
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH & ANTENNA)
53802FENDER SUB-ASSY, FRONT LH
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
main53802-60072iHDJ80..RHD;HZJ80..GX,VX;FZJ80..5F..GX;FZJ80..4FC..ARL;FZJ80..VX..GEN..CBR199501-199508
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
sub53802-60073
main53802-60073iHDJ80..RHD;FZJ80..5F..GX;FZJ80..4FC..ARL;HZJ80..5F..(GX,VX);FZJ80..VX..GEN..CBR199508-200103
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & ANTENNA)
W(SIDE TURN SIGNAL LAMP)
W(ANTENNA & SIDE TURN SIGNAL LAMP)
sub53802-60151
W(ANTENNA & SIDE TURN SIGNAL LAMP)
sub53802-60152
W(ANTENNA & SIDE TURN SIGNAL LAMP)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER)
sub53802-60173
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53802-60221
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53802-60222
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53802-60231
main53802-60231iHDJ80..RHD;HZJ80..GX,VX;FZJ80..5F..GX;FZJ80..4FC..ARL;FZJ80..VX..GEN..CBR199206-199508
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
sub53802-60232
main53802-60232iHDJ80..TD4;HZJ80..GCC;FZJ80..5F..GX;FZJ80..4FC..ARL;HZJ80..LHD..LUB;FZJ80..VX..GEN..CBR;HDJ80,HZJ80..RHD..5F..(GX,VX)..(DSL,TD2)199508-199801
W(ANTENNA HOLE & SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP)
W(WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH)
sub53802-60581
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH)
W(ANTENNA & SIDE TURN SIGNAL LAMP & WINCH)
sub53802-60601
W(ANTENNA & SIDE TURN SIGNAL LAMP & WINCH)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH & ANTENNA)
sub53802-60611
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & WINCH & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH & ANTENNA)
W(SIDE PROTECTION MOULDING & SIDE TURN SIGNAL LAMP & OVER FENDER & WINCH & ANTENNA)
53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1
BLACK,183 ,26P
BLACK,181 ,183 ,202 ,26P ,8H6
main53851-60020-02iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
MAROON,20R ,27P ,3H4
MAROON,20R ,27P ,3H4 ,3H7
BEIGE,4E9 ,4K1 ,4L6
main53851-60020-05iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
BEIGE,4K1
main53851-60020-08iFZJ80..GX;FJ80..GX..GCC;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2)199001-199208
WHITE,045
sub53851-60070
BLACK,183 ,26P ,26W ,6M1
sub53851-60080
main53851-60070iFZJ80..LHD..GX;HZJ80..GX..GCC;FZJ80,HDJ80..GX..ARL;HDJ80,HZJ80..LUB..(DSL,TD2)199501-199506
L PACKAGE & W(*OF) OR M PACKAGE & W(*OF)
sub53851-60090
sub53852-60030
main53851-60070iFZJ80..LHD..GX;HZJ80..GX..GCC;FZJ80,HDJ80..GX..ARL;HDJ80,HZJ80..LUB..(DSL,TD2)199501-199506
W(*OF)
sub53851-60090
sub53852-60030
main53851-60090iHDJ80..TD2;HZJ80..LUB;FZJ80..LHD..GX..CBR;HZJ80..LHD..SOB..GX;FZJ80,HDJ80..GX..(ARL,GEN)..(EFI,TD4)199506-200407
RH
main53851-60090iFZJ80..VX..GEN..CBR;FZJ80..RHD..GX..CBR;FZJ80..GX..GCC..EFI;FZJ80..4FC..VX..GEN;HZJ80..RHD..5F..SOB..GX199506-200407
W(*OF),RH
L PACKAGE & W(*OF) OR M PACKAGE & W(*OF),RH
W PACKAGE & W(*OF),RH
N PACKAGE & W(*OF),WHITE,045,RH
sub53852-60040
N PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,RH
sub53852-60040
W(*OF),BLACK,1A6 ,2AB ,2AC ,2AD ,6M1 ,8K0,RH
sub53852-60040
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),BLACK,202 ,6M1 ,8K0,RH
sub53852-60040
N PACKAGE & W(*OF),BLACK,202 ,6M1 ,8K0,RH
sub53852-60040
P PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,2AD ,6M1 ,8K0,RH
sub53852-60040
P PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,RH
sub53852-60040
ENDEAVOUR EDITION(AUSTRALIA),BLACK,202 ,6M1 ,8K0,RH
sub53852-60040
ENDEAVOUR EDITION(AUSTRALIA),MAROON,3H4,RH
sub53852-60040
P PACKAGE & W(*OF),MAROON,3H4,RH
sub53852-60040
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),MAROON,3H4,RH
sub53852-60040
N PACKAGE & W(*OF),BEIGE,4M7,RH
sub53852-60040
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),BEIGE,4M7,RH
sub53852-60040
RH
LH
W(*OF),LH
L PACKAGE & W(*OF) OR M PACKAGE & W(*OF),LH
W PACKAGE & W(*OF),LH
N PACKAGE & W(*OF),WHITE,045,LH
WHITE,045,LH
W(*OF),WHITE,045,LH
P PACKAGE & W(*OF),WHITE,045,LH
N PACKAGE & W(*OF),BLACK,202 ,6M1 ,8K0,LH
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),BLACK,202 ,6M1 ,8K0,LH
W(*OF),BLACK,202 ,6M1 ,8K0,LH
W(*OF),BLACK,1A6 ,2AB ,2AC ,2AD ,6M1 ,8K0,LH
BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,LH
N PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,LH
ENDEAVOUR EDITION(AUSTRALIA),BLACK,202 ,6M1 ,8K0,LH
P PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,LH
P PACKAGE & W(*OF),BLACK,1A6 ,2AB ,2AC ,2AD ,6M1 ,8K0,LH
W(*OF),MAROON,3H4,LH
N PACKAGE & W(*OF),MAROON,3H4,LH
MAROON,3H4,LH
ENDEAVOUR EDITION(AUSTRALIA),MAROON,3H4,LH
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),MAROON,3H4,LH
P PACKAGE & W(*OF),MAROON,3H4,LH
W(*OF),BEIGE,4M7,LH
P PACKAGE & W(*OF),BEIGE,4M7,LH
N PACKAGE & W(*OF),BEIGE,4M7,LH
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),BEIGE,4M7,LH
N PACKAGE & W(*OF),WHITE,045,LH
sub53852-60060
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),WHITE,045,LH
sub53852-60060
ENDEAVOUR EDITION(AUSTRALIA),WHITE,045,LH
sub53852-60060
ENDEAVOUR EDITION(AUSTRALIA),GRAY ME,1A6 ,2AB ,2AC,LH
sub53852-60060
W(*OF),GRAY ME,1A6 ,2AB ,2AC ,2AD,LH
sub53852-60060
N PACKAGE & W(*OF),GRAY ME,1A6 ,2AB ,2AC,LH
sub53852-60060
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),GRAY ME,1A6 ,2AB ,2AC,LH
sub53852-60060
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),GRAY ME,1A6 ,2AB ,2AC ,2AD,LH
sub53852-60060
N PACKAGE & W(*OF),BEIGE ME,4M7,LH
sub53852-60060
P PACKAGE & W(*OF) OR Y PACKAGE & W(*OF),BEIGE ME,4M7,LH
sub53852-60060
W(*OF),BEIGE ME,4M7,LH
sub53852-60060
ENDEAVOUR EDITION(AUSTRALIA),BEIGE ME,4M7,LH
sub53852-60060
LH
LIMITED EDITION(G.C.C.),LH
53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3
W(*OF)
53855PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53861BRACKET, FRONT WHEEL OPENING, NO.1
53862BRACKET, FRONT WHEEL OPENING, NO.2
53865BRACKET, FRONT WHEEL OPENING, NO.3
53866BBRACKET, FRONT WHEEL OPENING, NO.4
53878CSPACER, FRONT FENDER
53878ESPACER, FRONT FENDER
53903BPANEL SUB-ASSY, FRONT END
W(WINCH)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
W(*OF & SIDE STEP)
main76603-60011iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200407
W(*OF & SIDE STEP)
W(*OF)
main76603-60021iHDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..GEN;FZJ80,HDJ80..LUB..ARL;FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN)..(CBR,DSL)199208-199801
W(*OF)
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
W(*OF & SIDE STEP)
main76604-60011iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200407
W(*OF & SIDE STEP)
W(*OF)
main76604-60021iHDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..GEN;FZJ80,HDJ80..LUB..ARL;FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN)..(CBR,DSL)199208-199801
W(*OF)
9010906176
main90109-06176
9011906159
main90119-06159
9011906186
main90119-06186
9015960182
main90159-60182
9015960416
main90159-60416
9015960510
main90159-60510
9015960551
main90159-60551
9017906070
main90179-06070
9017906143
main90179-06143
9017906289
main90179-06289
9018306016
main90183-06016
9018905027
main90189-05027
9018906005
main90189-06005
9018906196
main90189-06196
9024906132
main90249-06132
9026905027
main90269-05027
9046708011
main90467-08011
9046709077
main90467-09077
9046711028
main90467-11028
9046711038
main90467-11038
9054005030
main90540-05030
9054112011
main90541-12011
9095001392
main90950-01392
9165140816
main91651-40816
9166540618
main91665-40618
52 parts on this diagram · 1 diagram in section
