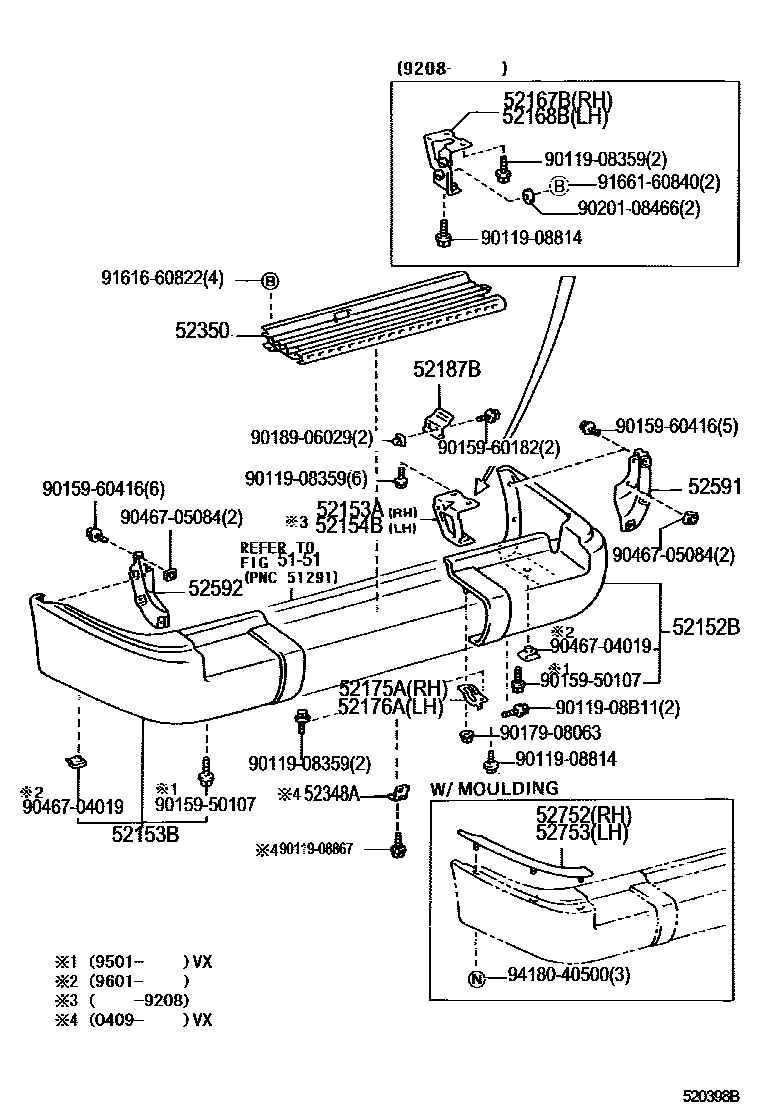

REAR BUMPER & BUMPER STAY

5151

52152BEXTENSION, REAR BUMPER, RH

main52106-60090iHZJ80..4FC;HDJ80..GX..TD4;FZJ80,HZJ80..STD;FZJ80..GX..GCC..EFI;HZJ80..LHD..SOB..GX..GEN199001-200409

main52106-60090iFZJ80..VX..GEN..CBR;FZJ80..4FC..VX..GEN199705-200409

VENEZUELA SPEC

main52106-60100iFZJ80,HDJ80,HZJ80..GX199001-199501

main52106-60160iFJ80..LUB..VX;FJ80..5F..SOB..VX;FZJ80,HDJ80,HZJ80..VX199001-199501

main52106-60210iFZJ80..4FC..VX..GEN199501-200103

main52106-60250iFZJ80,HZJ80..VX..GCC199609-199712

LIMITED EDITION(G.C.C.)

sub52106-60090

main52106-60260iFZJ80..VX200409

52153ASTAY, REAR BUMPER SIDE, RH

main52153-60140iFJ80,FZJ80,HDJ80,HZJ80199001-199208

52153BEXTENSION, REAR BUMPER, LH

main52107-60060iHZJ80..4FC;HDJ80..GX..TD4;FZJ80,HZJ80..STD;FZJ80..GX..GCC..EFI;HZJ80..LHD..SOB..GX..GEN199001-200409

main52107-60060iFZJ80..VX..GEN..CBR;FZJ80..4FC..VX..GEN199705-200409

VENEZUELA SPEC

main52107-60070iFZJ80,HDJ80,HZJ80..GX199001-199501

main52107-60130iFJ80..LUB..VX;FJ80..5F..SOB..VX;FZJ80,HDJ80,HZJ80..VX199001-199501

main52107-60180iFZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..VX..(CBR,DSL,TD2,TD4)199501-200103

main52107-60220iFZJ80,HZJ80..VX..GCC199609-199712

LIMITED EDITION(G.C.C.)

sub52107-60060

main52107-60230iFZJ80..VX200409

52154BSTAY, REAR BUMPER SIDE, LH

main52154-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60020iFZJ80,HDJ80,HZJ80199208

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60020iFZJ80,HDJ80,HZJ80199208

52175ABRACKET, REAR BUMPER ARM MOUNTING, RH

main52175-60010iFJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC199001-199511

sub52175-60040

main52175-60040iFZJ80,HDJ80,HZJ80199511

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52176-60010iFJ80..LUB;FJ80..4FC..GX..GCC;FJ80..MTM..SOB..(GX,VX);FZJ80,HDJ80,HZJ80..GX,VX199001-199511

sub52176-60030

main52176-60030iFZJ80,HDJ80,HZJ80199511

52187BGUIDE, REAR BUMPER LOCATION

main52187-60010iFJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC199001-199211

52348ABRACKET, BACK STEP FRAME, NO.2

main52348-60020iFZJ80..VX200409

52350STEP ASSY, REAR BUMPER

main52350-60010iFZJ80..VX200409

main52351-60010iFJ80,HDJ80,HZJ80..LUB..(ARL,GEN)199001-199511

W(SPARE WHEEL CARRIER(BACK DOOR))

sub52351-60011

main52351-60010iFJ80,HDJ80,HZJ80..LUB..(ARL,GEN)199001-199008

W(SPARE WHEEL CARRIER)

sub52351-60011

main52351-60011iHDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GCC,GEN)199511-199801

W(SPARE WHEEL CARRIER(BACK DOOR))

sub52351-60021

main52351-60020iFZJ80,HDJ80,HZJ80..LUB199001-199511

sub52351-60021

main52351-60021iFZJ80..VX..GEN..EFI199511-200409

main52351-60030iFZJ80,HZJ80..SOB..GCC199001-199511

W(SPARE WHEEL CARRIER(BACK DOOR))

sub52351-60031

main52351-60030iFJ80,HZJ80..SOB..(ARL,GEN)199001-199208

sub52351-60031

main52351-60031iFZJ80,HZJ80..5F..SOB..GEN199511-199801

W(SPARE WHEEL CARRIER(BACK DOOR))

sub52351-60041

main52351-60031iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES)

sub52351-60041

main52351-60040iFJ80,HZJ80..SOB..(ARL,GEN)199001-199103

W(SPARE WHEEL CARRIER)

sub52351-60041

main52351-60040iFJ80,FZJ80,HZJ80..SOB..(ARL,GCC)199008-199208

sub52351-60041

main52351-60040iFJ80,FZJ80,HZJ80..SOB..GEN199103-199511

W(SPARE WHEEL CARRIER(FLOOR))

sub52351-60041

main52351-60041iHDJ80..SOB;HZJ80..4FC;FZJ80,HZJ80..SOB..(ARL,GCC)199511-199901

main52351-60041iFZJ80,HZJ80..5F..SOB..GEN199511-200109

W(SPARE WHEEL CARRIER(FLOOR))

52591SEAL, REAR BUMPER SIDE, RH

main52591-60010iFJ80..LUB;FJ80..MTM..SOB;FZJ80,HDJ80,HZJ80;FJ80..4FC..GX..GCC199001-199208

52592SEAL, REAR BUMPER SIDE, LH

main52592-60010iFZJ80,HDJ80,HZJ80199001-199208

52752MOULDING, REAR BUMPER SIDE, RH

main52752-60010iFJ80..LUB;FJ80..4FC..GX..GCC;FJ80..MTM..SOB..(GX,VX);FZJ80,HDJ80,HZJ80..GX,VX199001-199501

52753MOULDING, REAR BUMPER SIDE, LH

main52753-60010iFZJ80,HDJ80,HZJ80..GX,VX199001-199501

9011908359

main90119-08359

9011908814

main90119-08814

9011908867

main90119-08867

9011908B11

main90119-08B11

9015950107

main90159-50107

9015960182

main90159-60182

9015960416

main90159-60416

9017908063

main90179-08063

9018906029

main90189-06029

9020108466

main90201-08466

9046704019

main90467-04019

9046705084

main90467-05084

9161660822

main91616-60822

9166160840

main91661-60840

9418040500

main94180-40500

31 parts on this diagram · 1 diagram in section
