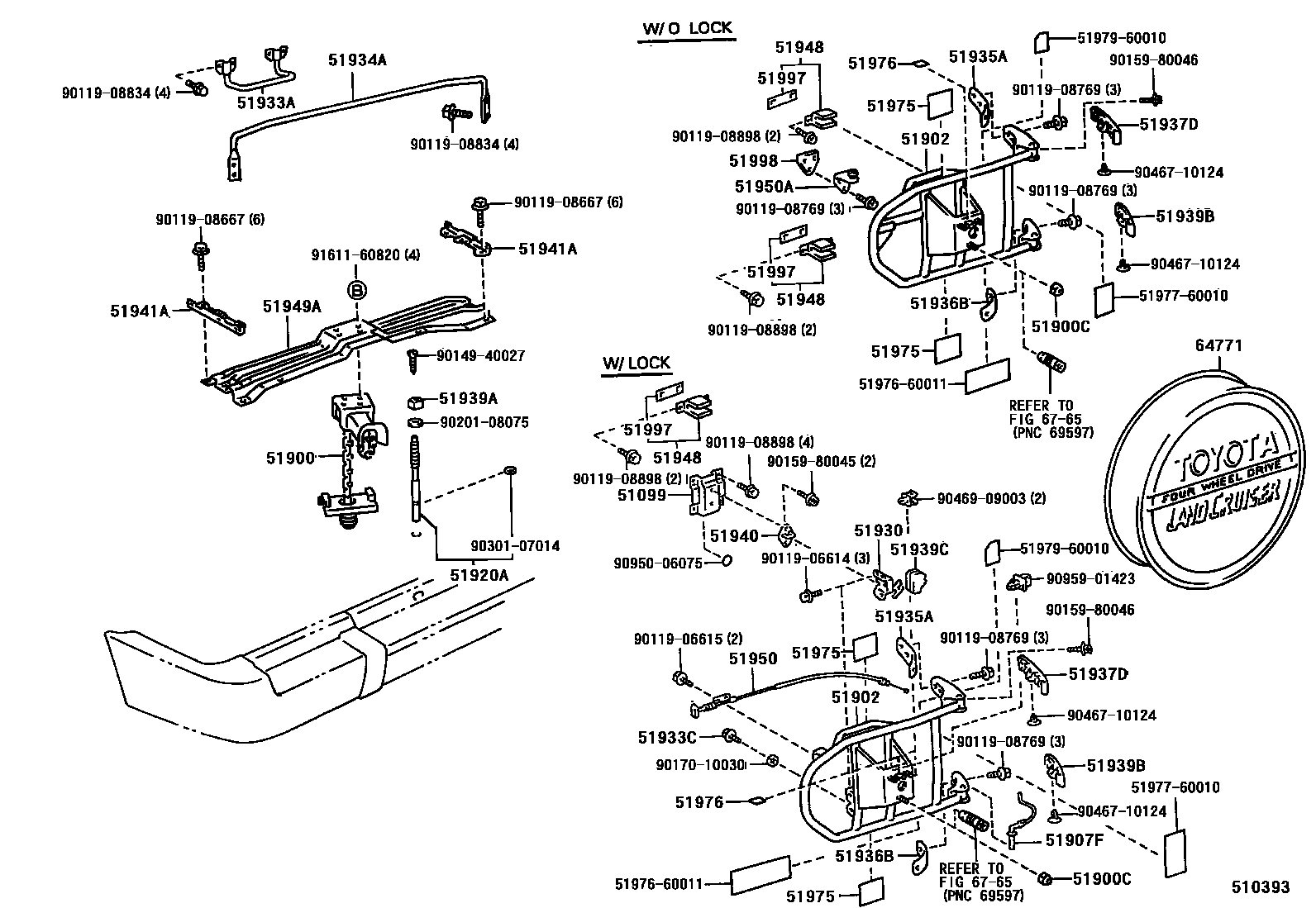

SPARE WHEEL CARRIER
51900CARRIER ASSY, SPARE WHEEL
W(265/75R15 TIRE)
W(ALUMINUM WHEEL)
W(SPARE WHEEL CARRIER(FLOOR) & ALUMINUM WHEEL & 31X10.50R15LT-6 TIRE)
W(SPARE WHEEL CARRIER(FLOOR))
W(31X10.50R15LT-6 TIRE)
W(SPARE WHEEL CARRIER(FLOOR) & ALUMINUM WHEEL & 31X10.50R15LT-6 TIRE)
main51900-60140iHZJ80..STD,VX;HZJ80..LUB..GX;FJ80,FZJ80,HDJ80..LUB;FJ80,FZJ80..SOB..(STD,VX);FJ80,FZJ80,HZJ80..SOB..GX..GCC199001-199208
W(SPARE WHEEL CARRIER(FLOOR) OR 31X10.5R15LT-6 TIRE)
sub51900-60171
51900CNUT, SPARE WHEEL, HUB
W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK))
W(SPARE WHEEL CARRIER(BACK DOOR & FLOOR W/L0CK))
W(SPARE WHEEL CARRIER(BACK DOOR))
W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)
main90942-01077iHDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GX,VX)..GEN..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR))
main90942-01077iHDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GX,VX)..GEN..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL)
main90942-01077iHDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..LUB..(GX,VX)..GEN..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK))
W(SPARE WHEEL CARRIER (BACK DOOR))
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK))
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/O LOCK))
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR))
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK)
W(ALUMINUM WHEEL)
W(ALUMINIUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR W/LOCK))
W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK))
W(SPARE WHEEL CARRIER(BACK DOOR W/LOCK)
W(SPARE WHEEL CARRIER(BACK DOOR & FLOOR W/L0CK))
W(SPARE WHEEL CARRIER(BACK DOOR))
51902CARRIER SUB-ASSY, SPARE WHEEL
sub51903-60081
sub51903-60082
sub51903-60083
sub51903-60091
sub51903-60092
51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER
51920ASHAFT ASSY, SPARE WHEEL CARRIER DRIVE
51930LOCK ASSY, SPARE WHEEL CARRIER
51933ASTOPPER, SPARE WHEEL, NO.1
51933CSTOPPER, SPARE WHEEL
51934ASTOPPER, SPARE WHEEL, NO.2
51935ACUSHION, SPARE WHEEL CARRIER HINGE, UPPER
51936BCUSHION, SPARE WHEEL CARRIER HINGE, LOWER
51937DCOVER, SPARE WHEEL CARRIER HINGE, UPPER
51939ACAP, SPARE WHEEL CARRIER HANDLE
51939BCOVER, SPARE WHEEL CARRIER LOCK
51939CCOVER, SPARE WHEEL CARRIER HINGE
51940STRIKER ASSY, SPARE WHEEL CARRIER LOCK
51941ABRACKET, SPARE WHEEL CARRIER
RH
LH
51948STOPPER, SPARE WHEEL CARRIER AUXILIARY
51949ACROSSMEMBER, SPARE WHEEL CARRIER
51950CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL
51950AROLLER ASSY, SPARE WHEEL CARRIER GUIDE
SWING OUT BACK DOOR EDITION(PHILIPPINES)
51975FILM, SPARE WHEEL CARRIER
51976FILM, SPARE WHEEL CARRIER, NO.2
51997PAD, SPARE WHEEL STOPPER
sub51997-60040
51998PAD, SPARE WHEEL BRACKET
SWING OUT BACK DOOR EDITION(PHILIPPINES)
64771COVER, SPARE WHEEL
W(31X10.50R15LT-6 TIRE)
W(265/75R15)
W(P235/75R15 TIRE)
main64771-60250iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199208-199909
W(275/70R16)
6765
5197660011FILM, SPARE WHEEL CARRIER, NO.2
main51976-60011
5197760010PROTECTOR, REAR TRANSPORT HOOK EDGE
main51977-60010
5197960010
main51979-60010
9011906614
main90119-06614
9011906615
main90119-06615
9011908667
main90119-08667
9011908769
main90119-08769
9011908834
main90119-08834
9011908898
main90119-08898
9014940027
main90149-40027
9015980045
main90159-80045
9015980046
main90159-80046
9017010030
main90170-10030
9020108075
main90201-08075
9030107014
main90301-07014
9046710124
main90467-10124
9046909003
main90469-09003
9095006075
main90950-06075
9095901423
main90959-01423
9161160820
main91611-60820
48 parts on this diagram · 1 diagram in section
