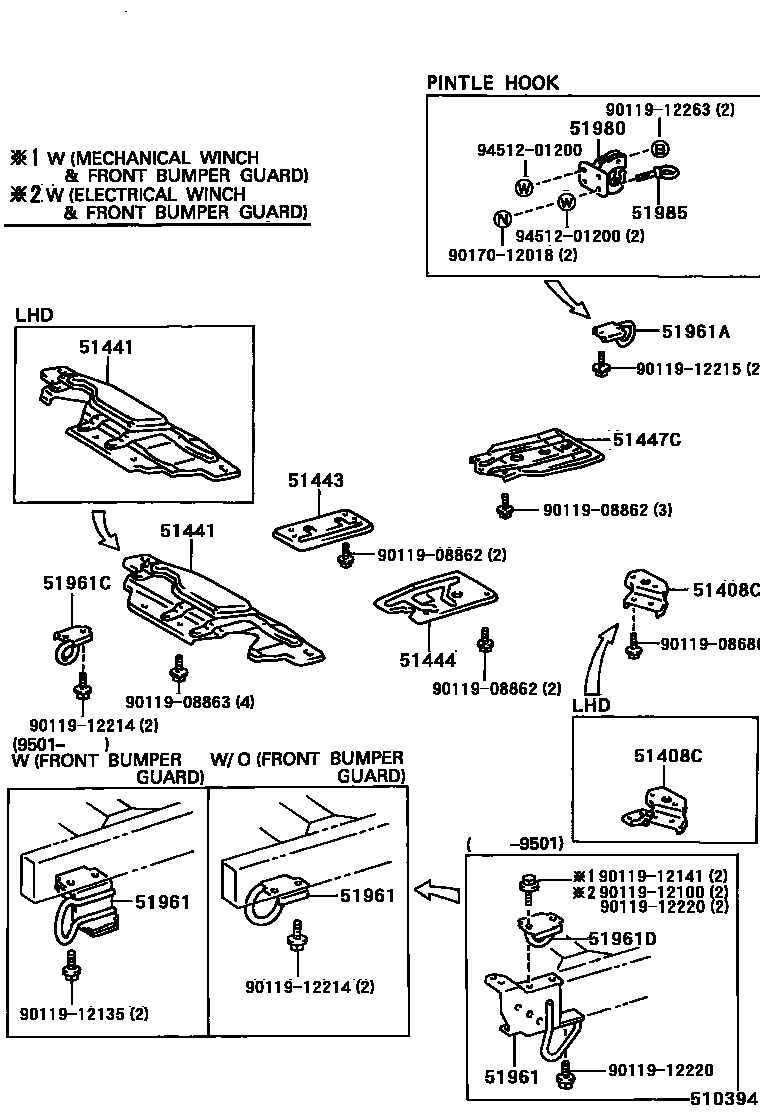

SUSPENSION CROSSMEMBER & UNDER COVER

51408CBRACKET SUB-ASSY, FUEL FILLER MOUNTING

main51408-60020iHDJ80,HZJ80..LHD199001-199801

main51418-60020iHDJ80,HZJ80..RHD199001-200103

51441COVER, ENGINE UNDER, NO.1

main51440-60050iHDJ80,HZJ80..5F..ARL199108-199403

main51441-60140iFJ80,HDJ80,HZJ80..LHD199001-199201

main51441-60150iFJ80,HZJ80..RHD..GEN;FJ80,HDJ80..4FC..ARL199001-199201

main51441-60190iFZJ80,HDJ80,HZJ80..LHD199201-199208

main51441-60200iFJ80,HDJ80..4FC..ARL;FZJ80,HDJ80,HZJ80..RHD..GEN199201-200103

51443COVER, ENGINE UNDER, REAR RH

main51443-60130iFJ80,FZJ80,HDJ80,HZJ80199001-199501

51444COVER, ENGINE UNDER, REAR LH

main51444-60090iFJ80,HDJ80,HZJ80..ARL,GEN199001-199208

51447CPROTECTOR, TRANSFER CASE

main51447-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

51961HOOK, NO.1

main38307-60010iFZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN)199208-199501

RH

main38307-60010iFZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..GEN199208-199501

W(WINCH),RH

main38307-60020iFZJ80..RHD..GX..CBR199501-199801

W(ELECTRICAL WINCH),RH

main38307-60020iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

W(WINCH & FRONT BUMPER GUARD),RH

main38307-60020iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..STD..(GCC,GEN)199501-199811

RH

main38307-60020iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..STD..(GCC,GEN)199501-199811

W(WINCH),RH

main38308-60010iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

LH

main38308-60010iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

W(WINCH),LH

main38308-60020iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

W(WINCH & FRONT BUMPER GUARD),LH

main38308-60020iFZJ80..RHD..GX..CBR199501-199801

W(ELECTRICAL WINCH),LH

main38308-60020iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..STD..(GCC,GEN)199501-199811

LH

main38308-60020iHDJ80..RHD..4FC..TD2;FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..STD..(GCC,GEN)199501-199811

W(WINCH),LH

main51963-60020iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

W(FRONT BUMPER GUARD),RH

sub51963-60021

main51963-60021iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199811

W(FRONT BUMPER GUARD),RH

main51964-60020iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

W(FRONT BUMPER GUARD),LH

sub51964-60021

main51964-60021iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199811

W(FRONT BUMPER GUARD),LH

51961AHOOK, NO.3

main51961-60100iFJ80,HDJ80,HZJ80199001-199007

sub51967-60010

main51967-60010iFJ80,FZJ80,HDJ80,HZJ80199007-199208

51961CHOOK, FRONT

main51961-60100iFJ80,HDJ80,HZJ80199001-199007

sub51967-60010

main51967-60010iFJ80,FZJ80,HDJ80,HZJ80199007-199208

51961DSPACER, FRONT HOOK

main51961-60180iFZJ80,HZJ80..(GX,VX)..GCC199208-199501

51980HOOK ASSY, PINTLE

main51980-60010iFJ80,FZJ80,HDJ80,HZJ80..GCC,GEN199001-199510

sub51980-60011

main51980-60011iHDJ80..LHD;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..GCC,GEN199510-199801

sub51980-60012

sub90119-12263

sub90201-12019

main51980-60012iFZJ80,HZJ80..SOB199801-200109

51985HOOK, EYELET PINTLE

main51985-60011iHDJ80..LHD;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..GCC,GEN199001-200109

9011908686

main90119-08686

9011908862

main90119-08862

9011908863

main90119-08863

9011912100

main90119-12100

9011912135

main90119-12135

9011912141

main90119-12141

9011912214

main90119-12214

9011912215

main90119-12215

9011912220

main90119-12220

9011912263

main90119-12263

9017012018

main90170-12018

9451201200

main94512-01200

23 parts on this diagram · 1 diagram in section
