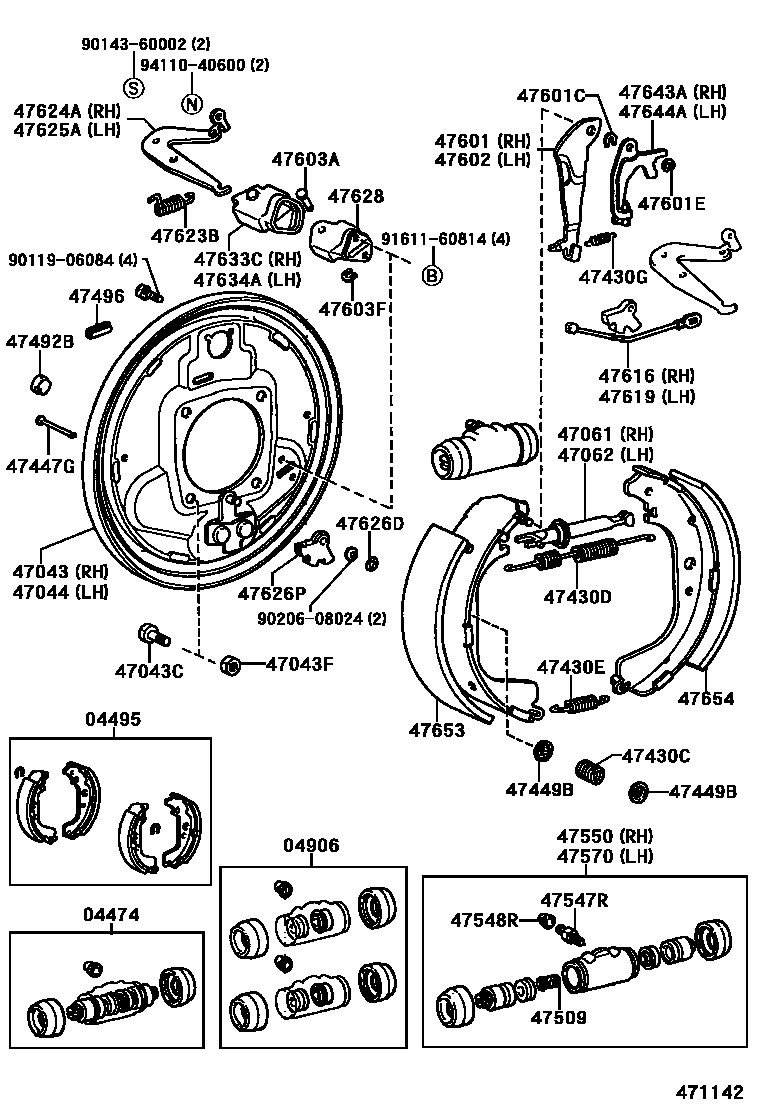

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-35100iHZJ80;FZJ80,HDJ80..GCC,GEN199511-200109

main04474-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-199511

sub04474-35100

sub90029-60009

04495SHOE KIT, REAR BRAKE

main04495-60011iFJ80,HDJ80,HZJ80..GCC,GEN199001-199009

sub04495-60060

main04495-60011iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199009-199012

VENEZUELA SPEC

sub04495-60060

main04495-60060iHDJ80;FZJ80,HZJ80..STD199909-200109

MARK NBK LN508

sub04495-60070

main04495-60060iFJ80,HDJ80,HZJ80..(GX,STD)..ARL199001-199009

SOUTH AFRICA SPEC

sub04495-60070

main04495-60060iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199009-199909

sub04495-60070

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iHZJ80..GX..ARL;HZJ80..RHD..STD;FJ80,HDJ80..RHD..(GX,STD)199001-200109

main04906-35130iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199009-199201

VENEZUELA SPEC

main04906-60050iHZJ80..GX..ARL;HZJ80..RHD..STD;FJ80,HDJ80..RHD..(GX,STD)199001-199208

W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK)

sub04906-35130

main04906-60050iHZJ80;FZJ80..STD..EFI;FZJ80,HDJ80..GCC,GEN199208-199511

sub04906-35130

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60080iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199001-199201

VENEZUELA SPEC

main47043-60090iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-199208

main47043-60110iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199208-200109

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12021iHDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2)199001-199101

*12-1.25PX33-21

sub90101-12175

main90101-12175iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199101-200109

*12-1.25PX33-21

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-12119iHDJ80;FZJ80,HZJ80..STD199208-200109

main94115-71200iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-199208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60030iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199001-199201

VENEZUELA SPEC

main47044-60040iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-199208

main47044-60060iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199208-200109

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-60011iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-60011iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iHDJ80;FZJ80,HZJ80..STD199001-200109

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iFZJ80..CBR199001-200109

RH

main90506-26014iHDJ80;FZJ80,HZJ80..STD199001-200109

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iHDJ80;FZJ80,HZJ80..STD199001-200109

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iHDJ80;FZJ80,HZJ80..STD199001-200109

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199208-200109

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-199511

main90029-60009iHZJ80;FZJ80,HDJ80..GCC,GEN199511-200109

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199001-200109

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-60120iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199001-200109

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-60120iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iFZJ80..CBR200009-200109

main47611-60010iHDJ80;FZJ80,HZJ80..STD199001-200009

sub47611-35040

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-35040iHDJ80;FZJ80,HZJ80..STD200009-200109

main47612-60010iHDJ80;FZJ80,HZJ80..STD199001-200009

sub47612-35040

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

main90213-06013iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47616WIRE, PARKING BRAKE, RH

main47616-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47619WIRE, PARKING BRAKE, LH

main47616-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47624ACRANK, PARKING BRAKE BELL, RH

main47624-60010iHZJ80;FZJ80..STD..ARL;FZJ80,HDJ80..GCC,GEN199001-200109

47625ACRANK, PARKING BRAKE BELL, LH

main47625-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47626DRING, E(FOR PARKING BRAKE SEGMENTAL PULLEY)

main96160-00600iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47626PPULLEY, PARKING BRAKE SEGMENTAL

main47626-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-35020iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-35020iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..CBR,DSL199001-200109

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-60010iFJ80,HDJ80,HZJ80..GCC,GEN199001-199009

main47655-60010iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199009-199201

VENEZUELA SPEC

main47655-60040iFJ80,HDJ80,HZJ80..(GX,STD)..ARL199001-199208

SOUTH AFRICA SPEC

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-60010iFJ80,HDJ80,HZJ80..GCC,GEN199001-199009

main47655-60010iFJ80..LHD..(4FC,5F)..LUB..GX..GEN199009-199201

VENEZUELA SPEC

main47655-60040iFJ80,HDJ80,HZJ80..(GX,STD)..ARL199001-199208

SOUTH AFRICA SPEC

9011906084

main90119-06084

9014360002

main90143-60002

9020608024

main90206-08024

9161160814

main91611-60814

9411040600

main94110-40600

47 parts on this diagram · 1 diagram in section
