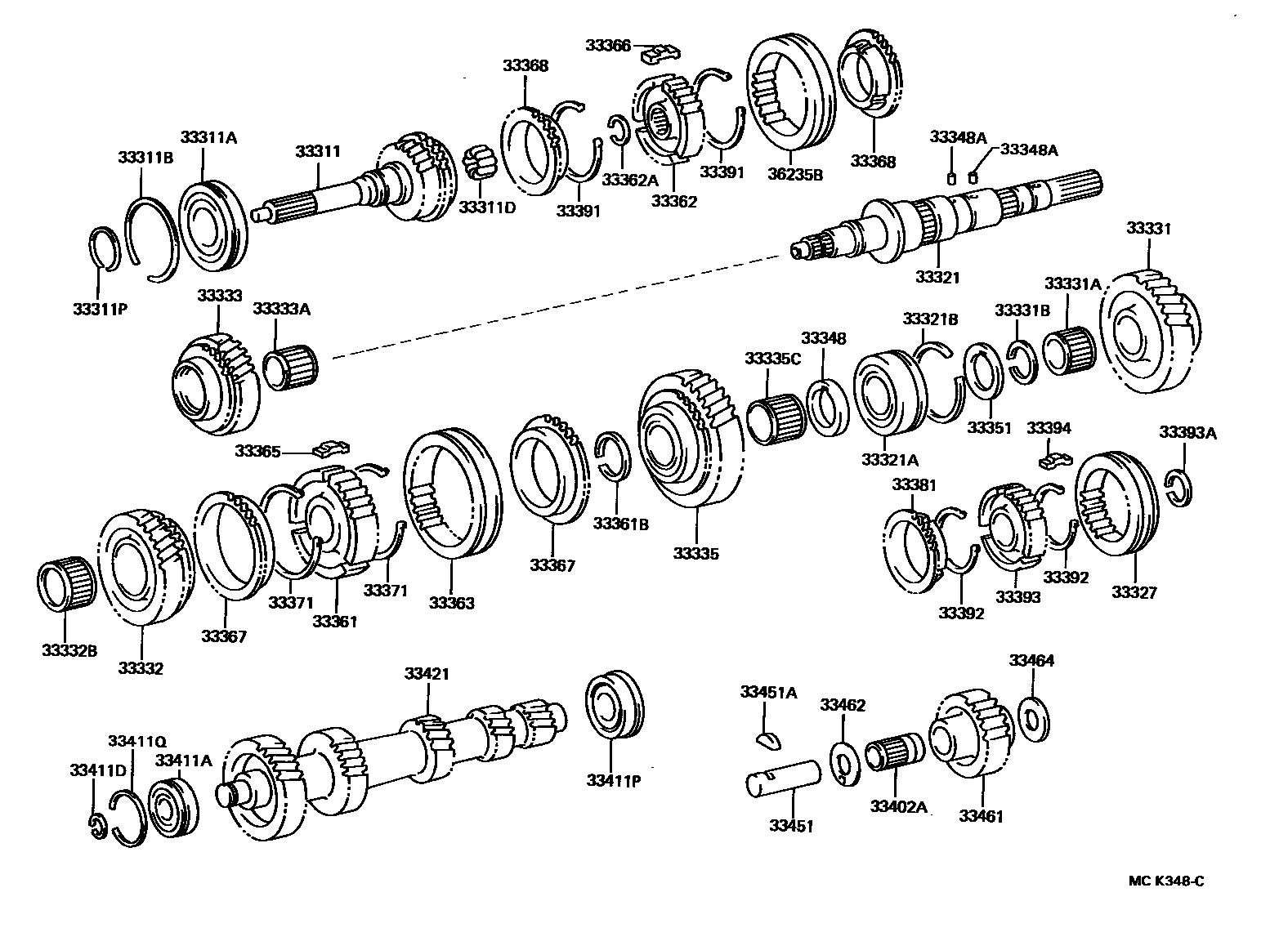

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
sub33301-60022
TYPE B:REFER TO ILLUSTRATION,W(2-4 SELECTOR)
TYPE B:REFER TO ILLUSTRATION
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
ID=106.1,OD=115.64
T=2.36-2.46
33311DBEARING, INPUT SHAFT
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.50-2.55,MARK A
T=2.55-2.60,MARK B
T=2.60-2.65,MARK C
T=2.65-2.70,MARK D
T=2.70-2.75,MARK E
T=2.75-2.80,MARK F
33321SHAFT, OUTPUT
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
ID=106.1,OD=115.64
33327SLEEVE, TRANSMISSION HUB, NO.4
33331ABEARING (FOR REVERSE GEAR)
main90364-44003iFZJ80..5F..LUB;HDJ80..5F..ARL;HDJ80..LHD..5F;FZJ80..RHD..STD;HZJ80..LHD..STD;HZJ80..5F..(GX,VX);FZJ80..5F..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL)199001-199909
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
33331BRING, SET (FOR REVERSE GEAR)
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
W(*ELC & PTO DRIVE GEAR & 5.50FX15 DISC WHEEL)
33335GEAR, 1ST
sub33335-60110
sub33335-60100
main33335-60100iHDJ80..LHD..5F;FZJ80..STD..GCC;FZJ80..RHD..STD;FZJ80..5F..SOB..(GX,VX);FZJ80,HDJ80..5F..LUB..(CBR,EFI,TD4)199610-199909
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION,W(2-4 SELECTOR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33351WASHER, REVERSE GEAR THRUST
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
T=3.10-3.15,MARK E
T=3.15-3.20,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
T=2.05-2.10,MARK 7
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
33363SLEEVE, TRANSMISSION HUB, NO.1
TYPE B:REFER TO ILLUSTRATION,NO.2
TYPE B:REFER TO ILLUSTRATION,W(2-4 SELECTOR),NO.2
sub33363-60041
sub33363-60051
main33363-60051iHDJ80..5F;FZJ80..LUB..CBR;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..5F..SOB..(GX,VX);FZJ80..5F..LUB..(GX,VX)..EFI199706-200303
TYPE A:REFER TO ILLUSTRATION
sub33363-60052
TYPE B:REFER TO ILLUSTRATION,NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
TYPE B:REFER TO ILLUSTRATION,NO.2
TYPE A:REFER TO ILLUSTRATION
NO.2
TYPE B:REFER TO ILLUSTRATION,NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
4TH GEAR SIDE
3RD GEAR SIDE
3RH GEAR SIDE
3RD GEAR SIDE
3RD GEAR SIDE
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33381RING, 2ND SYNCHRONIZER OUTER
main33381-60010iFZJ80..5F..LUB;HDJ80..5F..ARL;HDJ80..LHD..5F;FZJ80..RHD..STD;HZJ80..LHD..STD;HZJ80..5F..(GX,VX);FZJ80..5F..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL)199001-199909
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
33393HUB, TRANSMISSION CLUTCH, NO.3
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
sub33393-37010
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60-2.65,MARK E
T=2.65-2.70,MARK F
33394KEY, SYNCHROMESH SHIFTING, NO.3
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.45-2.50,MARK A
T=2.50-2.55,MARK B
T=2.55-2.60,MARK C
T=2.60-2.65,MARK D
T=2.65-2.70,MARK E
T=2.70-2.75,MARK F
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=1.60-1.70
33421GEAR, COUNTER
sub33421-60101
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
TYPE B:REFER TO ILLUSTRATION
33462WASHER, REVERSE IDLER THRUST
33464WASHER, REVERSE IDLER THRUST, NO.2
49 parts on this diagram · 5 diagrams in section
