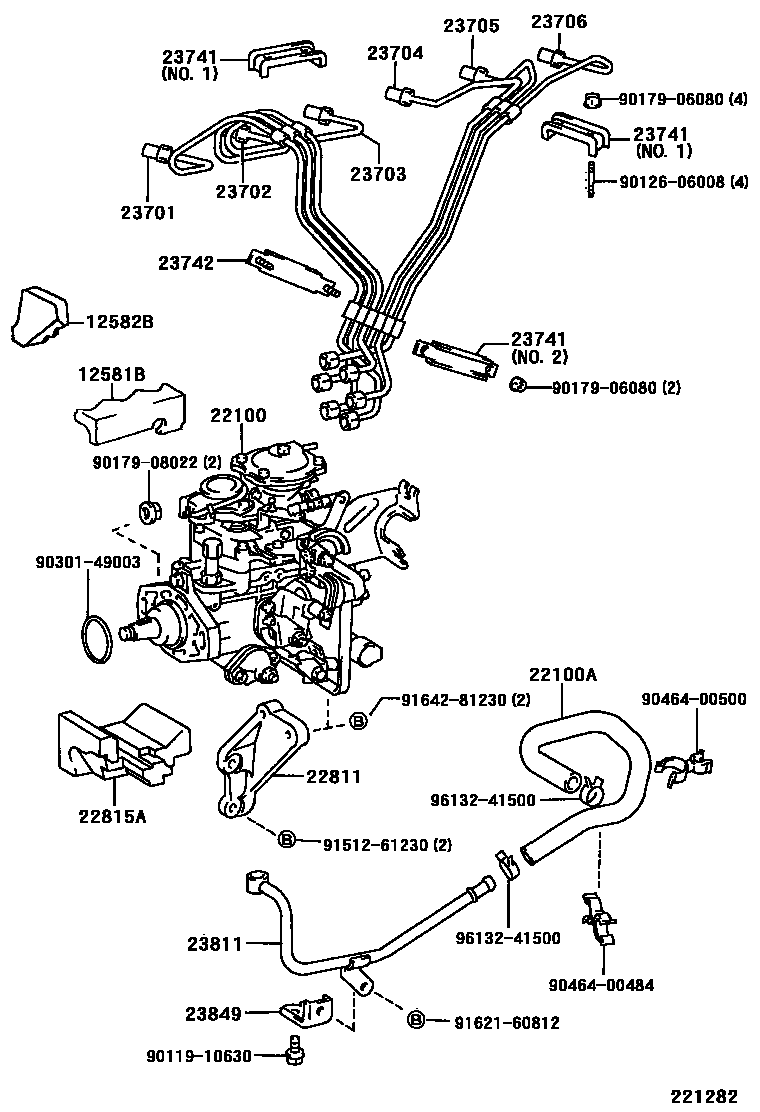

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

12581BINSULATOR, CYLINDER BLOCK, NO.1

main12581-17010i1HZ..HZJ80..ARL199108-199801

sub12581-17011

12582BINSULATOR, CYLINDER BLOCK, NO.2

main12582-17010i1HDFT..HDJ80199501-199801

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17020i1HZ..HZJ80..STD..ARL199001-199208

W(TACHOMETER PICK UP)

main22100-17050i1HZ..HZJ80..STD..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17060

main22100-17060i1HZ..HZJ80..MTM..(GX,VX)..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-17060i1HZ..HZJ80..RHD..5F..STD..GEN199108-199208

W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICKUP)

main22100-17070i1HZ..HZJ80..4FC199001-199208

main22100-17090i1HZ..HZJ80..4FC199001-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-17150i1HDT..HDJ80..5F..GEN199001-199104

main22100-17151i1HDT..HDJ80..5F..GEN199104-199208

main22100-17160i1HDT..HDJ80..5F..GEN199001-199104

W(HIGH ALTITUDE COMPENSATOR)

main22100-17161i1HDT..HDJ80..5F..GEN199104-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-17180i1HDT..HDJ80..4FC199001-199208

main22100-17190i1HDT..HDJ80..4FC..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-17300i1HDT..HDJ80..5F..ARL199001-199104

main22100-17301i1HDT..HDJ80..5F..ARL199104-199208

main22100-17310i1HZ..HZJ80..STD;1HZ..HZJ80..GX..GCC199001-199208

sub22100-17320

main22100-17320i1HZ..HZJ80..VX..GCC;1HZ..HZJ80..MTM..(GX,VX)..GEN199001-199208

main22100-17320i1HZ..HZJ80..GCC199001-199208

W(TACHOMETER PICK UP)

main22100-17450i1HZ..HZJ80..STD..ARL199208-199801

W(TACHOMETER PICK UP)

main22100-17470i1HZ..HZJ80..LHD..GX..GEN199501-199504

COLD AREA SPEC

main22100-17491i1HZ..HZJ80..5F..(GX,VX)..GEN199208-199901

W(HIGH ALTITUDE COMPENSATOR)

main22100-17491i1HZ..HZJ80..5F..(GX,VX)..GEN199208-199901

W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICKUP)

main22100-17500i1HZ..HZJ80..SOB..(GX,STD)..(ARL,GCC)199208-199801

sub22100-17510

main22100-17510i1HZ..HZJ80..GX..GCC199208-199801

W(FUEL SUBTANK)

main22100-17540i1HDT..HDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES)

sub22100-17541

main22100-17550i1HDT..HDJ80..5F..GEN199208-199210

sub22100-17580

main22100-17560i1HDT..HDJ80..5F..GEN199208-199801

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17561

main22100-17561i1HDT..HDJ80..5F199801-199901

W(HIGH ALTITUDE COMPENSATOR)

main22100-17580i1HDT..HDJ80..5F..ARL199208-199801

sub22100-17581

main22100-17581i1HDT..HDJ80..5F199801-200103

main22100-17600i1HDT..HDJ80..4FC199208-199801

sub22100-17601

main22100-17601i1HDT..HDJ80..4FC199801-200103

main22100-17610i1HDT..HDJ80..LHD..4FC199208-199801

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17611

main22100-17680i1HZ..HZJ80..STD..GEN199208-199901

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17491

main22100-17790i1HZ..HZJ80..STD..GEN199208-199901

main22100-17800i1HZ..HZJ80199901-200103

main22100-17800i1HZ..HZJ80..5F..(GX,VX)..GEN199208-199901

W(TACHOMETER PICK UP)

main22100-17890i1HDFT..HDJ80..5F199501-199801

main22100-1B010i1HDFT..HDJ80..4FC199501-199510

sub22100-1B011

main22100-1B011i1HDFT..HDJ80..4FC199510-199801

main22100-1C010i1HZ..HZJ80..LHD..LUB..GX199504-199801

COLD AREA SPEC

main22100-1C020i1HZ..HZJ80..4FC199609-199901

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17010i1HZ..HZJ80199001-199208

main23271-17020i1HDT..HDJ80199001-199208

main23271-17070i1HZ..HZJ80199208-199501

main23271-17080i1HDT..HDJ80199208-199501

main23271-17101i1H#..HDJ80,HZJ80199501-200103

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1HDT,1HZ..HDJ80,HZJ80199001-199505

sub22811-17011

main22811-17011i1HDT,1HZ..HDJ80,HZJ80199505-200103

main22811-17020i1HDFT..HDJ80199501-199801

22815AINSULATOR, INJECTION PUMP

main22815-17010i1HDFT..HDJ80199501-199801

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZJ80199001-200103

main23701-17020i1HDT..HDJ80199001-200103

main23701-17030i1HDT..HDJ80..5F199104-199208

main23701-17050i1HDFT..HDJ80199501-199509

sub23701-17051

main23701-17051i1HDFT..HDJ80199509-199801

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZJ80199001-200103

main23702-17020i1HDT..HDJ80199001-200103

main23702-17030i1HDT..HDJ80..5F199104-199208

main23702-17050i1HDFT..HDJ80199501-199509

sub23702-17051

main23702-17051i1HDFT..HDJ80199509-199801

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZJ80199001-200103

main23703-17020i1HDT..HDJ80..4FC199001-200103

main23703-17030i1HDT..HDJ80..5F199104-199208

main23703-17050i1HDFT..HDJ80199501-199509

sub23703-17051

main23703-17051i1HDFT..HDJ80199509-199801

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZJ80199001-200103

main23704-17020i1HDT..HDJ80..4FC199001-200103

main23704-17030i1HDT..HDJ80..5F199104-199208

main23704-17050i1HDFT..HDJ80199501-199509

sub23704-17051

main23704-17051i1HDFT..HDJ80199509-199801

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-17010i1HZ..HZJ80199001-200103

main23705-17020i1HDT..HDJ80..4FC199001-200103

main23705-17030i1HDT..HDJ80..5F199104-199208

main23705-17050i1HDFT..HDJ80199501-199509

sub23705-17051

main23705-17051i1HDFT..HDJ80199509-199801

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-17010i1HZ..HZJ80199001-200103

main23706-17020i1HDT..HDJ80199001-200103

main23706-17030i1HDT..HDJ80..5F199104-199208

main23706-17050i1HDFT..HDJ80199501-199509

sub23706-17051

main23706-17051i1HDFT..HDJ80199509-199801

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1H#..HDJ80,HZJ80199001-200103

NO.1

main23741-17020i1H#..HDJ80,HZJ80199001-200103

NO.2

main23741-17030i1HDT,1HZ..HDJ80,HZJ80199001-200103

NO.3

main23741-17040i1HDFT..HDJ80199501-199801

NO.1

23742CLAMP, INJECTION PIPE, NO.2

main23742-17010i1HDT,1HZ..HDJ80,HZJ80199001-200103

NO.1

main23742-17020i1HDFT..HDJ80199501-199801

main23742-17020i1H#..HDJ80,HZJ80199001-200103

NO.2

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-17020i1HZ..HZJ80199208-199501

main23811-17030i1HDT..HDJ80199208-199501

main23811-17060i1HD#,1HZ..HDJ80,HZJ80199501-200103

23849SUPPORT, FUEL

main23849-17010i1HD#,1HZ..HDJ80,HZJ80199208-200103

9011910630

main90119-10630

9012606008

main90126-06008

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046400484

main90464-00484

9046400500

main90464-00500

9151261230

main91512-61230

9162160812

main91621-60812

9164281230

main91642-81230

9613241500

main96132-41500

27 parts on this diagram · 5 diagrams in section
