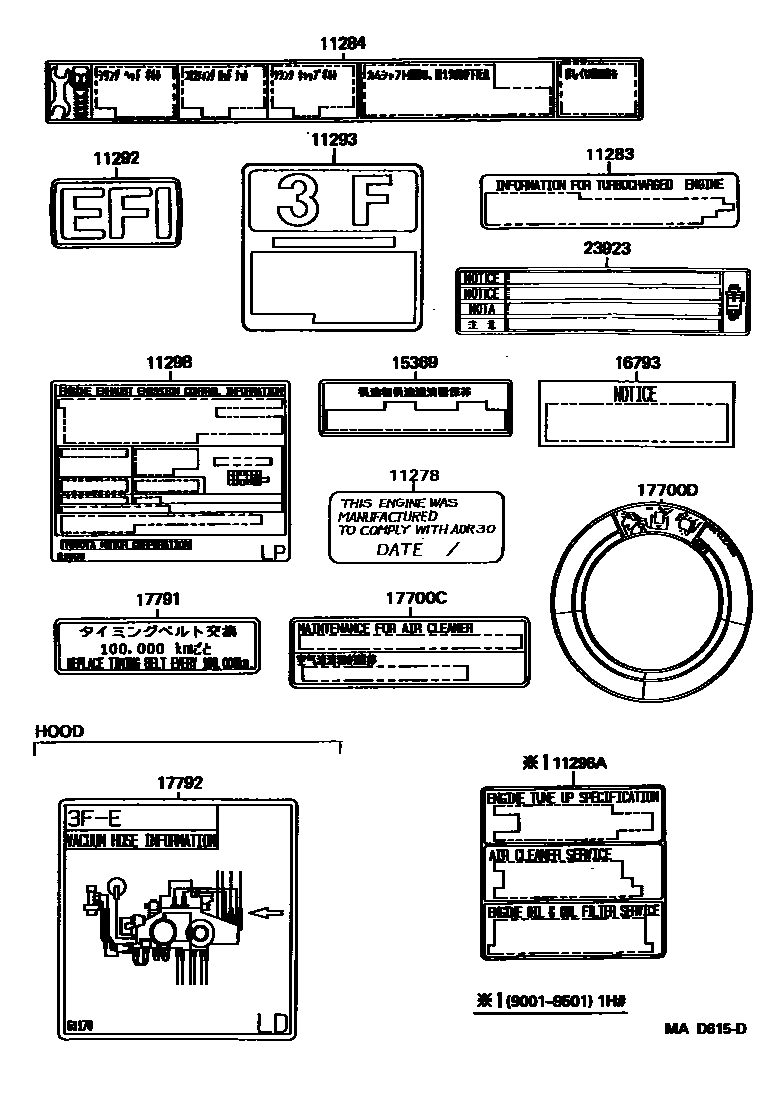

CAUTION PLATE & NAME PLATE (ENGINE)

0001 1 0002 1

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-54020i1H#..HDJ80,HZJ80..ARL199001-199801

11283PLATE, TURBOCHARGER CAUTION

main11294-17010i1HDT..HDJ80199001-199308

11284PLATE, ENGINE BOLT INFORMATION

main11284-17010i1H#..HDJ80,HZJ80199001-199501

sub11297-17010

main11284-17030i1HZ..HZJ80..LHD..(GX,STD)..GEN199001-199502

CHINA SPEC

sub11297-17020

main11284-66010i1FZ#..FZJ80199201-199501

main11297-17010i1HD#,1HZ..HDJ80,HZJ80199501-200103

main11297-17020i1HZ..HZJ80..LHD..LUB..GX199502-199801

CHINA SPEC

11292PLATE, ENGINE NAME, NO.2

main11292-61010i3FE..FJ80199001-199208

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-61040i3F..FJ80199001-199208

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-17030i1H#..HDJ80,HZJ80199001-199604

sub11296-17120

main11296-17040i1HZ..HZJ80..LHD..GX..GEN199001-199608

CHINA SPEC

main11296-17070i1HDFT..HDJ80199501-199604

sub11296-17150

main11296-17120i1HDT,1HZ..HDJ80,HZJ80199604-200103

main11296-17130i1HZ..HZJ80..LHD..LUB..GX199608-199801

CHINA SPEC

main11296-17150i1HDFT..HDJ80199604-199801

main11296-66010i1FZF..FZJ80199201-199909

main11296-66020i1FZF..FZJ80..LHD..LUB..GX..GEN;1FZF..FZJ80..LHD..SOB..STD..GEN199201-199608

CHINA SPEC

main11296-66021i1FZF..FZJ80..LHD..LUB..GX..GEN;1FZF..FZJ80..LHD..SOB..STD..GEN199608-200109

CHINA SPEC

11298PLATE, EMISSION CONTROL INFORMATION

main11298-61090i3FE..FJ80199001-199208

main11298-61100i3F..FJ80..ARL199001-199208

main11298-66020i1FZFE..FZJ80..ARL199208-199501

main11298-66021i1FZFE..FZJ80..ARL199501-199801

15369PLATE, ENGINE OIL CAUTION

main15369-61010i3F..FJ80..LHD..STD..GEN;3F..FJ80..LHD..MTM..LUB..GX..GEN199001-199201

CHINA SPEC

16793PLATE, FAN CAUTION

main16793-61011i3FE..FJ80199001-199208

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07108i1FZF,3F#..FJ80,FZJ80199001-199604

main90917-07108i1FZF..FZJ80..LHD..LUB..GX..GEN;1FZF..FZJ80..LHD..SOB..STD..GEN199604-200109

CHINESE SPEC

17700DPLATE, ENGINE CAUTION

main90917-07109i1FZF,3F#,1H#..FJ80,FZJ80,HDJ80,HZJ80199001-199208

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1H#..HDJ80,HZJ80199001-199808

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-61140i3F..FJ80..5F..GCC199001-199201

main17792-61150i3F..FJ80..4FC..GCC199001-199201

main17792-61160i3F..FJ80..ARL199001-199208

main17792-61170i3FE..FJ80199001-199208

main17792-66010i1FZF..FZJ80..GCC199201-199801

main17792-66020i1FZF..FZJ80..GEN199201-199909

main17792-66041i1FZFE..FZJ80..4FC199909

main17792-66060i1FZFE..FZJ80..ARL199208-199501

main17792-66061i1FZFE..FZJ80..4FC..VX..GEN199711-199909

VENEZUELA SPEC

main17792-66061i1FZFE..FZJ80..ARL,GCC;1FZFE..FZJ80..5F..GEN199501-199909

main17792-66080i1FZFE..FZJ80..GCC199208-199501

main17792-66090i1FZF..FZJ80..LHD..LUB..GX..GEN;1FZF..FZJ80..LHD..SOB..STD..GEN199510-200109

CHINESE SPEC

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-17010i1H#..HDJ80,HZJ80..LHD199001-199308

main23923-17020i1H#..HDJ80,HZJ80..RHD199108-199308

14 parts on this diagram · 2 diagrams in section
