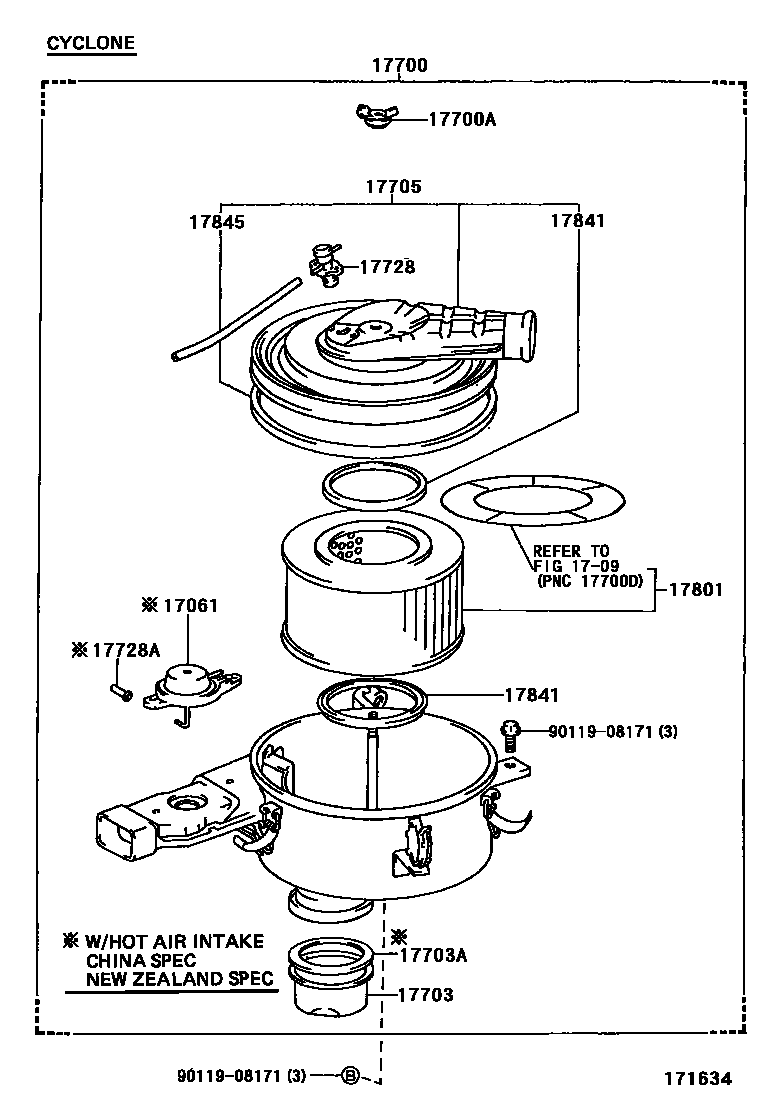

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17061DIAPHRAGM SUB-ASSY

main17061-61040i3F..FJ80..VX;1FZF..FZJ80..VX..GEN;3F..FJ80..4FC..GX..GEN;3F..FJ80..(GX,STD)..GCC;1FZF,3F..FJ80,FZJ80..SOB..GX..GEN;1FZF,3F..FJ80,FZJ80..RHD..(GX,STD)..GEN199001-200109

CYCLON & W(HAI)

main17061-61040i3F..FJ80..VX;1FZF..FZJ80..VX..GEN;3F..FJ80..4FC..GX..GEN;3F..FJ80..(GX,STD)..GCC;1FZF,3F..FJ80,FZJ80..SOB..GX..GEN;1FZF,3F..FJ80,FZJ80..RHD..(GX,STD)..GEN199001-199208

NEW ZEALAND SPEC

main17061-61040i1FZF..FZJ80..LHD..SOB..STD..GEN199201-199401

W(CYCLON & HAI) OR NEW ZEA LAND SPEC

main17061-61040i1FZF..FZJ80..VX..GEN;1FZF..FZJ80..SOB..GX..GEN;1FZF..FZJ80..RHD..(GX,STD)199208-199801

1709

17700CLEANER ASSY, AIR

main17700-17030i1HZ..HZJ80199001-199501

sub17700-17031

main17700-17031i1HZ..HZJ80199501-200103

main17700-17050i1HDT..HDJ80199001-199501

sub17700-17051

main17700-17051i1HDT..HDJ80199501-199608

sub17700-17052

main17700-17052i1HDT..HDJ80199608-200103

main17700-17170i1HDFT..HDJ80199501-199801

main17700-61240i3F..FJ80..GCC,GEN199001-199005

CYCLON & W(HAI)

sub17700-61241

main17700-61240i3F..FJ80..GX..ARL199001-199005

NEW ZEALAND SPEC

sub17700-61241

main17700-61241i3F..FJ80..GCC,GEN199005-199201

CYCLON & W(HAI)

main17700-61241i3F..FJ80..GX..ARL199005-199208

NEW ZEALAND SPEC

main17700-61260i3FE..FJ80199001-199208

main17700-66060i1FZF..FZJ80199201-199501

sub17700-66061

main17700-66061i1FZF..FZJ80199501-199901

main17700-66070i1FZF..FZJ80..RHD..STD;1FZF..FZJ80..(GX,VX)..GEN199201-199501

CYCLON & W(HAI)

sub17700-66071

main17700-66070i1FZF..FZJ80..RHD..STD;1FZF..FZJ80..(GX,VX)..GEN199201-199401

W(CYCLON & HAI) OR NEW ZEA LAND SPEC

sub17700-66071

main17700-66071i1FZF..FZJ80..(GX,VX)..GEN;1FZF..FZJ80..SOB..STD..GEN199501-200109

CYCLON & W(HAI)

main17700-66090i1FZFE..FZJ80199208-199501

main17700-66130i1FZFE..FZJ80199501

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i1FZ#..FZJ80199001-200103

17703CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-68010i3F..FJ80199001-199208

sub17703-17010

17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

main17845-61011i1H#..HDJ80,HZJ80199001-200103

main17845-68030i1FZ#..FZJ80199208

main90430-98001i3F..FJ80..GX..ARL199001-199304

CYCLON & W(HAI)

main90430-98001i3F..FJ80..LHD..STD..GEN;1FZF,3F..FJ80,FZJ80..LHD..MTM..LUB..GX..GEN199001-199208

NEW ZEALAND SPEC

main90430-98001i1FZF..FZJ80..LHD..SOB..STD..GEN199201-199304

W(CYCLON & HAI) OR NEW ZEA LAND SPEC

17705CAP SUB-ASSY, AIR CLEANER

main17705-17010i1HDT..HDJ80199001-200103

main17705-17020i1HZ..HZJ80199001-200103

main17705-17110i1HDFT..HDJ80199501-199801

main17705-61140i3F..FJ80..GX..ARL199001-199208

NEW ZEALAND SPEC

main17705-61140i3F..FJ80..GCC,GEN199001-199201

CYCLON & W(HAI)

main17705-61160i3FE..FJ80199001-199208

main17705-66040i1FZF..FZJ80199201-199901

main17705-66050i1FZF..FZJ80..RHD..STD;1FZF..FZJ80..(GX,VX)..GEN199201-199401

W(CYCLON & HAI) OR NEW ZEALAND SPEC

main17705-66050i1FZF..FZJ80..LHD..SOB..STD..GEN199201-200109

CYCLON & W(HAI)

main17705-66080i1FZFE..FZJ80199208-199501

main17705-66100i1FZFE..FZJ80199501

17728VALVE, THERMOSTATIC

main17728-71010i3F..FJ80..VX;1FZF..FZJ80..VX..GEN;3F..FJ80..4FC..GX..GEN;3F..FJ80..(GX,STD)..GCC;1FZF,3F..FJ80,FZJ80..SOB..GX..GEN;1FZF,3F..FJ80,FZJ80..RHD..(GX,STD)..GEN199001-199208

NEW ZEALAND SPEC

main17728-71010i3F..FJ80..VX;1FZF..FZJ80..VX..GEN;3F..FJ80..4FC..GX..GEN;3F..FJ80..(GX,STD)..GCC;1FZF,3F..FJ80,FZJ80..SOB..GX..GEN;1FZF,3F..FJ80,FZJ80..RHD..(GX,STD)..GEN199001-200109

CYCLON & W(HAI)

main17728-71010i1FZF..FZJ80..LHD..SOB..STD..GEN199201-199401

W(CYCLON & HAI) OR NEW ZEALAND SPEC

main17728-71010i1FZF..FZJ80..VX..GEN;1FZF..FZJ80..SOB..GX..GEN;1FZF..FZJ80..RHD..(GX,STD)199208-199801

17728ABUSH

main90386-03001i3F..FJ80..LHD..STD..GEN;3F..FJ80..LHD..MTM..LUB..GX..GEN199001-199201

CYCLON & W(HAI)

main90386-03001i3F..FJ80..GX..ARL199001-199208

NEW ZEALAND SPEC

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-61030i1FZF,3F#..FJ80,FZJ80199001-200103

17841GASKET, FILTER ELEMENT

main17841-68010i1FZF,3F#..FJ80,FZJ80199001-200103

17845GASKET, AIR CLEANER CAP

main17845-61011i3F..FJ80..GCC,GEN;1FZF..FZJ80..RHD..STD;1FZF..FZJ80..(GX,VX)..GEN199001-199208

NEW ZEALAND SPEC

main17845-61011i3F..FJ80199001-199208

NO.2

main17845-61011i3F..FJ80199001-199801

CYCLON & W(HAI)

main17845-61011i1FZF..FZJ80199201-199208

NO.1

main17845-61011i1FZF..FZJ80199201-200109

W(CYCLON & HAI) OR NEW ZEALAND SPEC

main17845-61011i1FZFE..FZJ80..GX,VX199208-199501

main17845-68010i1FZFE..FZJ80199501-200612

sub17845-61011

main17845-68030i3F..FJ80199001-199208

NO.1

main17845-68030i1HD#,1HZ..HDJ80,HZJ80199208-200103

main17845-68030i1FZF..FZJ80199201-199208

NO.2

9011908171

main90119-08171

13 parts on this diagram · 10 diagrams in section
