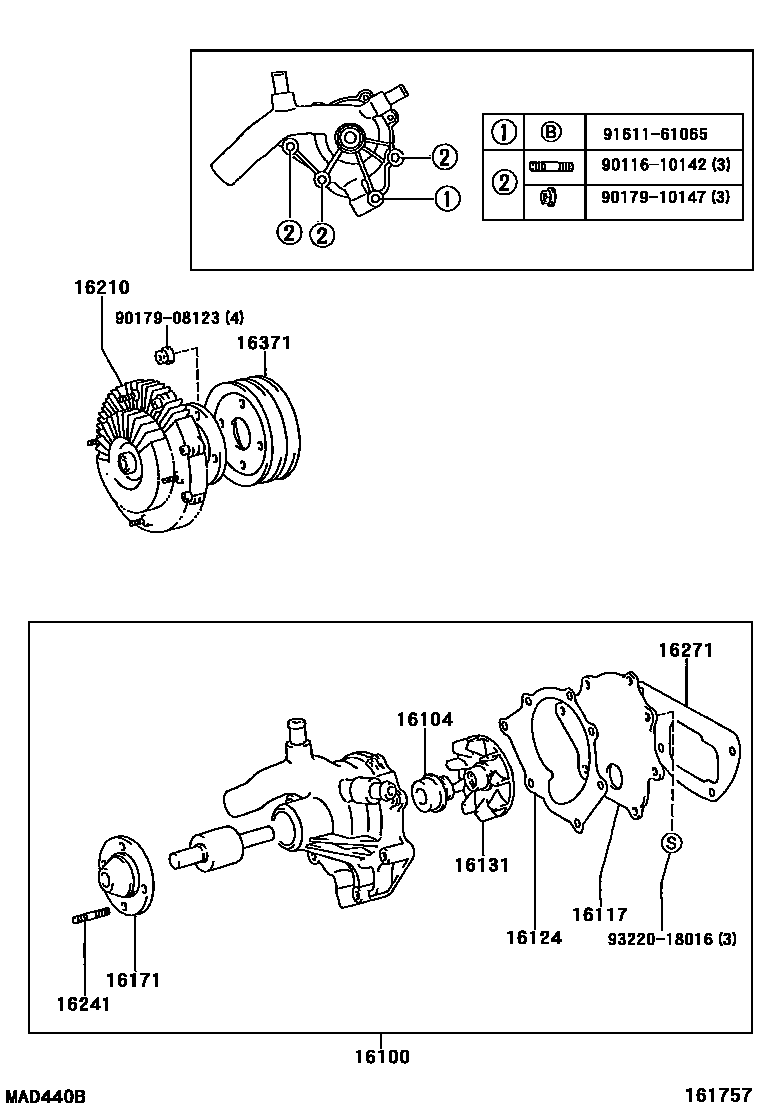

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-19235i1H#..HDJ80,HZJ80199001-200103

main16100-69235i3F..FJ80..STD..GEN199001-199201

main16100-69245i3F..FJ80..STD..GEN199001-199201

W(ENGINE OIL COOLER)

main16100-69255i3F..FJ80..LHD..STD..GEN199001-199201

W(ENGINE OIL COOLER & FLUID COUPLING)

main16100-69255i3F..FJ80..LHD..STD..GEN199001-199201

W(ENGINE OIL COOLER) & W(AIR CONDITIONER)

main16100-69255i3FE..FJ80199001-199201

W(ENGINE OIL COOLER)

main16100-69255i3FE..FJ80199001-199201

TOWING PACKAGE & W(ENGINE OIL COOLER)

main16100-69255i3FE..FJ80199001-199201

VENEZUELA CKD SPEC OR W(ENGINE OIL COOLER)

main16100-69255i3F#..FJ80199201-199208

main16100-69265i3F..FJ80..RHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16100-69265i3F..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199201

W(AIR CONDITIONER) & SOUTH AFRICA SPEC

main16100-69265i3F..FJ80..GX199201-199208

NEW ZEALAND SPEC

main16100-69325i1FZ#..FZJ80199201-199801

main16100-69415i1FZ#..FZJ80199801

16104SEAL SET, WATER PUMP

main16104-70010i3F..FJ80..RHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16104-70010i3F..FJ80..RHD..STD..GEN199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16104-70010i3F#..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199208

16117PLATE, WATER PUMP

main16117-61110i3F#..FJ80199001-199208

16124GASKET, WATER PUMP COVER

main16124-61250i3F#..FJ80199001-199208

16131ROTOR, WATER PUMP

main16131-61110i3F..FJ80..RHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16131-61110i3F..FJ80..RHD..STD..GEN199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16131-61110i3F#..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199208

16171SEAT, WATER PUMP PULLEY

main16171-61071i3F..FJ80..LHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16171-61071i3F..FJ80..LHD..STD..GEN199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16171-61071i3F#..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199208

16210COUPLING ASSY, FLUID

main16210-17010i1HDT..HDJ80;1HZ..HZJ80..4FC;1HZ..HZJ80..GCC199001-200103

main16210-17020i1HZ..HZJ80..ARL,GEN199001-199903

sub16210-17021

main16210-17021i1HZ..HZJ80199903-200103

main16210-61150i3F..FJ80..LHD..STD..GEN199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16210-61150i3F..FJ80..LHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16210-61150i3F..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199208

main16210-61160i3FE..FJ80199001-199208

main16210-66010i1FZ#..FZJ80199201-199801

sub16210-66020

main16210-66020i1FZ#..FZJ80199801

main16210-68030i1HZ..HZJ80..LHD..LUB..GX199501-199801

COLD AREA SPEC

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41050i3FE..FJ80199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

W(ENGINE OIL COOLER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

TOWING PACKAGE & W(ENGINE OIL COOLER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

VENEZUELA CKD SPEC OR W(ENGINE OIL COOLER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

W(ENGINE OIL COOLER) & W(AIR CONDITIONER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

W(ENGINE OIL COOLER & AIR CONDITIONER)

main16198-41050i3F..FJ80..VX;3F..FJ80..4F..LUB;3F..FJ80..RHD..GEN;3F..FJ80..SOB..GX..GEN;3F..FJ80..(GX,STD)..GCC199001-199201

W(AIR CONDITIONER)

main16198-41050i3F#..FJ80199201-199208

NEW ZEALAND SPEC

main90116-08112i1FZ#..FZJ80199208-200103

16271GASKET, WATER PUMP

main16271-17010i1HD#,1HZ..HDJ80,HZJ80199001-200103

main16271-61020i3F#..FJ80199001-199208

main16271-66020i1FZF..FZJ80199201-199208

16371PULLEY, FAN

main16173-61070i3F..FJ80..LHD..STD..GEN199001-199201

W(AIR CONDITIONER)

main16173-61070i3F..FJ80..LHD..STD..GEN199001-199201

SOUTH AFRICA SPEC OR W(AIR CONDITIONER)

main16173-61070i3F#..FJ80..GX,VX;3F..FJ80..STD..(ARL,GCC)199001-199208

main16371-17010i1H#..HDJ80,HZJ80199001-200103

main16371-61020i3F..FJ80..STD..GEN199001-199201

main16371-61030i3F..FJ80..STD..GEN199001-199201

W(POWER STEERING)

main16371-66020i1FZF..FZJ80199201-199208

9011610142

main90116-10142

9017908123

main90179-08123

9017910147

main90179-10147

9161161065

main91611-61065

9322018016

main93220-18016

15 parts on this diagram · 4 diagrams in section
