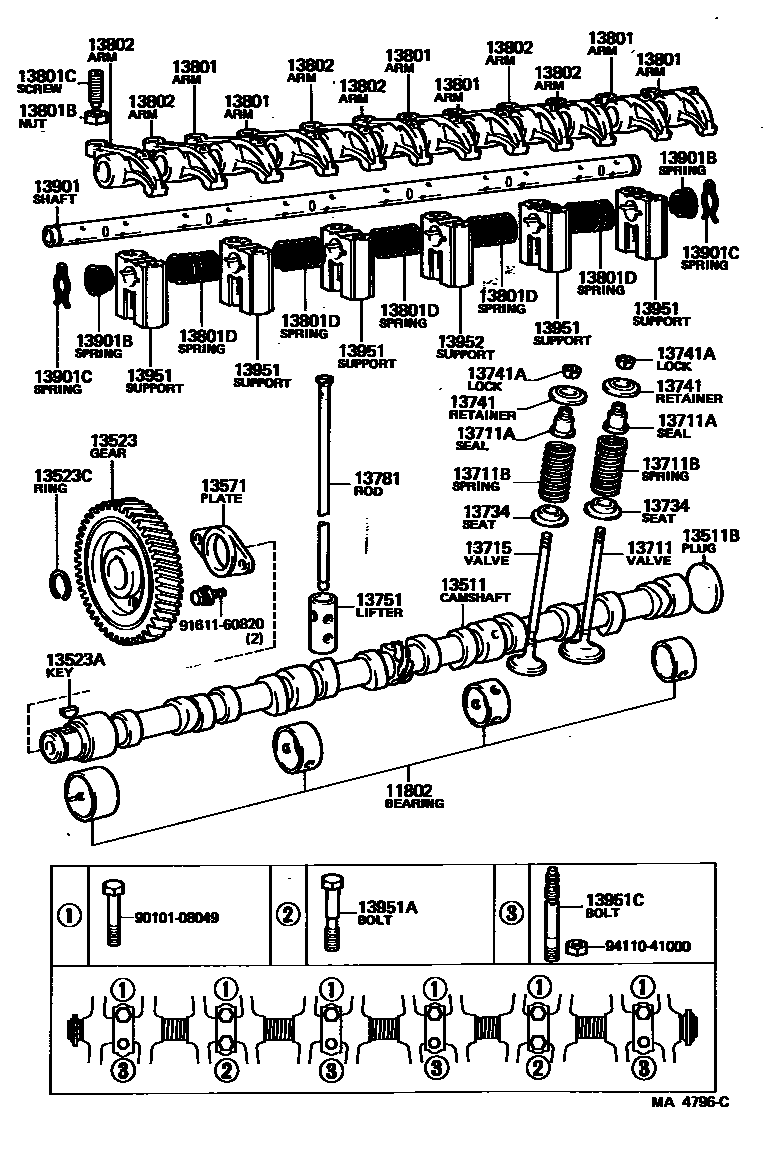

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD
U/S 0.25
U/S 0.50
13511BPLUG, EXPANSION(FOR CAMSHAFT)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523CRING, SNAP CAMSHAFT(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
W/O(EXHAUST EMISSION CONTROL)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
INTAKE
W/O(EXHAUST EMISSION CONTROL)
EXHAUST
13741ALOCK, VALVE SPRING RETAINER
EXHAUST
W/O(EXHAUST EMISSION CONTROL)
INTAKE
13751LIFTER, VALVE
STD
O/S 0.05
13781ROD, VALVE PUSH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*10-1.25PX72-20
*10-1.25PX74-20
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
9010108049
main90101-08049
9161160820
main91611-60820
9411041000
main94110-41000
31 parts on this diagram · 4 diagrams in section
