SHORT BLOCK ASSEMBLY

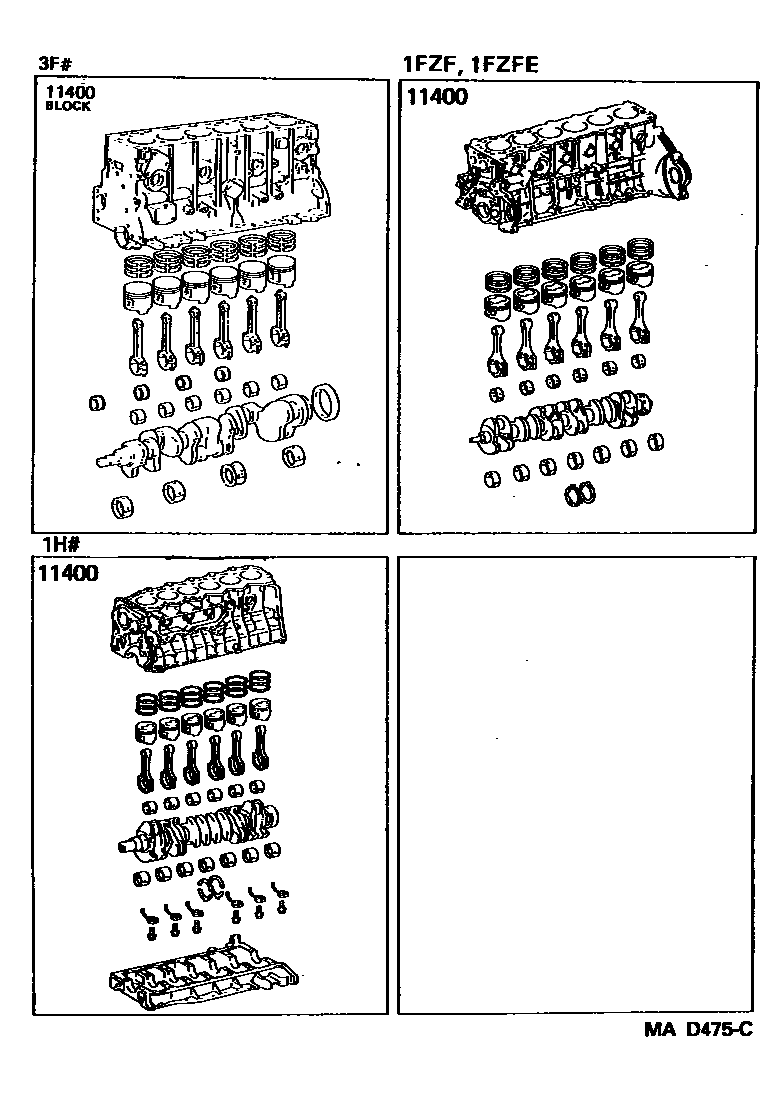

Parts diagram
11400BLOCK ASSY, SHORT
main11400-17010i199001-199411
sub11400-17011
sub91622-G1014
main11400-17011i199411-199705
sub11400-17012
sub90345-52003
main11400-17012i199705-199801
sub11400-17013
main11400-17013i199801-200103
main11400-17020i199001-199411
W(HEATER)
sub11400-17021
sub91622-G1014
main11400-17021i199411-199608
W(HEATER)
sub11400-17022
sub90345-52003
main11400-17021i199608-199705
W(FR HEATER)
sub11400-17022
sub90345-52003
main11400-17021i199411-199705
sub11400-17022
sub90345-52003
main11400-17022i199705-199801
W(FR HEATER)
sub11400-17023
main11400-17023i199801-200103
W(FR HEATER)
main11400-17030i199001-199208
sub11400-17031
sub11400-17080
sub91622-G1014
main11400-17050i199208-199411
sub11400-17051
sub91622-G1014
main11400-17051i199411-199501
sub11400-17052
sub90345-52003
main11400-17070i199301-199411
sub11400-17071
sub91622-G1014
main11400-17071i199411-199705
sub11400-17072
sub90345-52003
main11400-17072i199705-199801
sub11400-17073
sub15407-17020
main11400-17073i199801-200103
main11400-17100i199501-199705
sub11400-17101
sub90345-52003
main11400-17101i199705-199801
sub11400-17102
sub15407-17020
main11400-61122i199001-199208
main11400-66020i199201-199711
LOW OCTANE SPEC
sub11400-66021
sub12315-66022
sub82123-60111
sub90910-09075
main11400-66020i199510-199711
LOW OCTANE OR CHINESE SPEC
sub11400-66021
sub12315-66022
sub82123-60111
sub90910-09075
main11400-66021i199711-199801
LOW OCTANE SPEC
main11400-66021i199711-199901
LOW OCTANE OR CHINESE SPEC
main11400-66021i199901-200109
main11400-66030i199201-199711
sub11400-66031
sub12315-66022
sub82123-60111
sub90910-09075
main11400-66031i199711-199901
main11400-66040i199208-199711
sub11400-66041
sub12315-66022
sub82123-60111
sub90910-09075
main11400-66041i199711

1 parts on this diagram · 1 diagram in section
