HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1REAR WATER PIPING(BENCH SEAT)0006 1REAR WATER PIPING(SEPARATE SE

1503

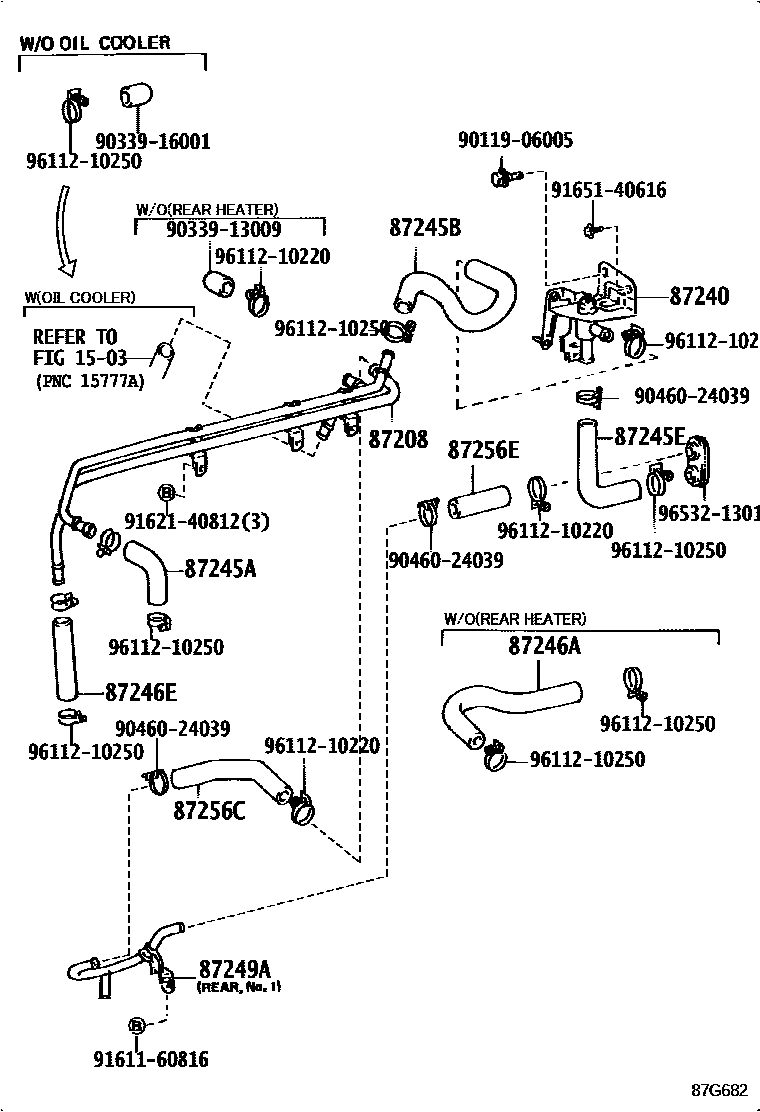

87208PIPE SUB-ASSY, HEATER WATER

main87208-90A13iHJ61198708-199001

main87208-90K06iFJ62198708-199203

87240VALVE ASSY, HEATER WATER

main87240-90A00iHJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD¥3,240198708-199203

87245AHOSE, HEATER WATER, INLET A

main87245-90A18iBJ60¥2,160198708-198808

main87245-90A48iHJ61¥780198708-199001

sub87245-14500¥1,120

main87245-90A51iBJ60¥2,660198808-199001

main87245-90K53iFJ62¥1,340198708-199203

main99556-30500iHJ60..GX,VX;HJ60..RHD..STD¥1,090198708-199001

L=500

87245BHOSE, HEATER WATER, INLET B

main87245-90A27iFJ62¥1,410198708-199203

main87245-90A37iHJ61¥1,190198708-199001

87245EHOSE, HEATER WATER, INLET E

main87245-90A00iHJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD¥810198708-199203

sub87245-14500¥1,120

87246AHOSE, HEATER WATER, OUTLET A

main87245-90A03iHJ60¥1,140198708-199001

main87245-90A28iFJ62¥1,090198708-199203

main87245-90A38iHJ61¥1,480198708-199001

main87245-90A52iBJ60¥2,060198812-199001

main99556-30500iBJ60¥1,090198708-198812

L=500

87246EHOSE, HEATER WATER, OUTLET E

main87245-90A19iHJ60..GX,VX;HJ60..RHD..STD¥1,220198708-199001

main87245-90A36iHJ61¥950198708-199001

main87245-90K36iFJ62¥1,690198708-199203

main99556-30100iBJ60¥220198708-199001

*H,L=60

87249APIPE, HEATER WATER OUTLET, A

main87248-90A24iHJ60..LHD..STD;FJ62,HJ61..ARL,GEN198708-199203

REAR,NO.2

main87248-90A25iHJ61..5F;FJ62..ARL,GEN;HJ60..LHD..STD198708-199203

REAR,NO.1

main87248-90A26iBJ60..GEN198708-199001

REAR,NO.1

main87248-90A27iHJ61..4FC198708-199001

REAR,NO.1

main87248-90A31iHJ60..GX,VX;HJ60..RHD..STD198808-199001

FRONT

main87248-90K18iBJ60..ME198708-198808

FRONT

main87248-90K26iBJ60198808-199001

FRONT

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-90A13iBJ60..GEN¥1,550198708-199001

main87245-90A30iFJ62..ARL,GEN¥1,070198708-199203

main87245-90A33iHJ60..ARL,GEN¥1,420198708-199001

main87245-90A44iHJ61..5F¥1,210198708-199001

main87245-90A45iHJ61..4FC¥1,480198708-199001

sub87245-90A34¥1,550

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-90A32iBJ60..GEN¥1,630198708-199001

main99552-30100iHJ60..ARL,GEN¥210198708-199001

*H,L=100

sub99556-30100¥220

main99556-30100iFJ62,HJ61..ARL,GEN¥220198708-199203

*H,L=60

9011906005

main90119-06005¥80

9033913009

main90339-13009¥240

9033916001

main90339-16001¥180

9046024039

main90460-24039

9161160816

main91611-60816¥230

9162140812

main91621-40812¥100

9165140616

main91651-40616¥60

9611210220

main96112-10220

9611210250

main96112-10250¥240

9653213017

main96532-13017

21 parts on this diagram · 6 diagrams in section
