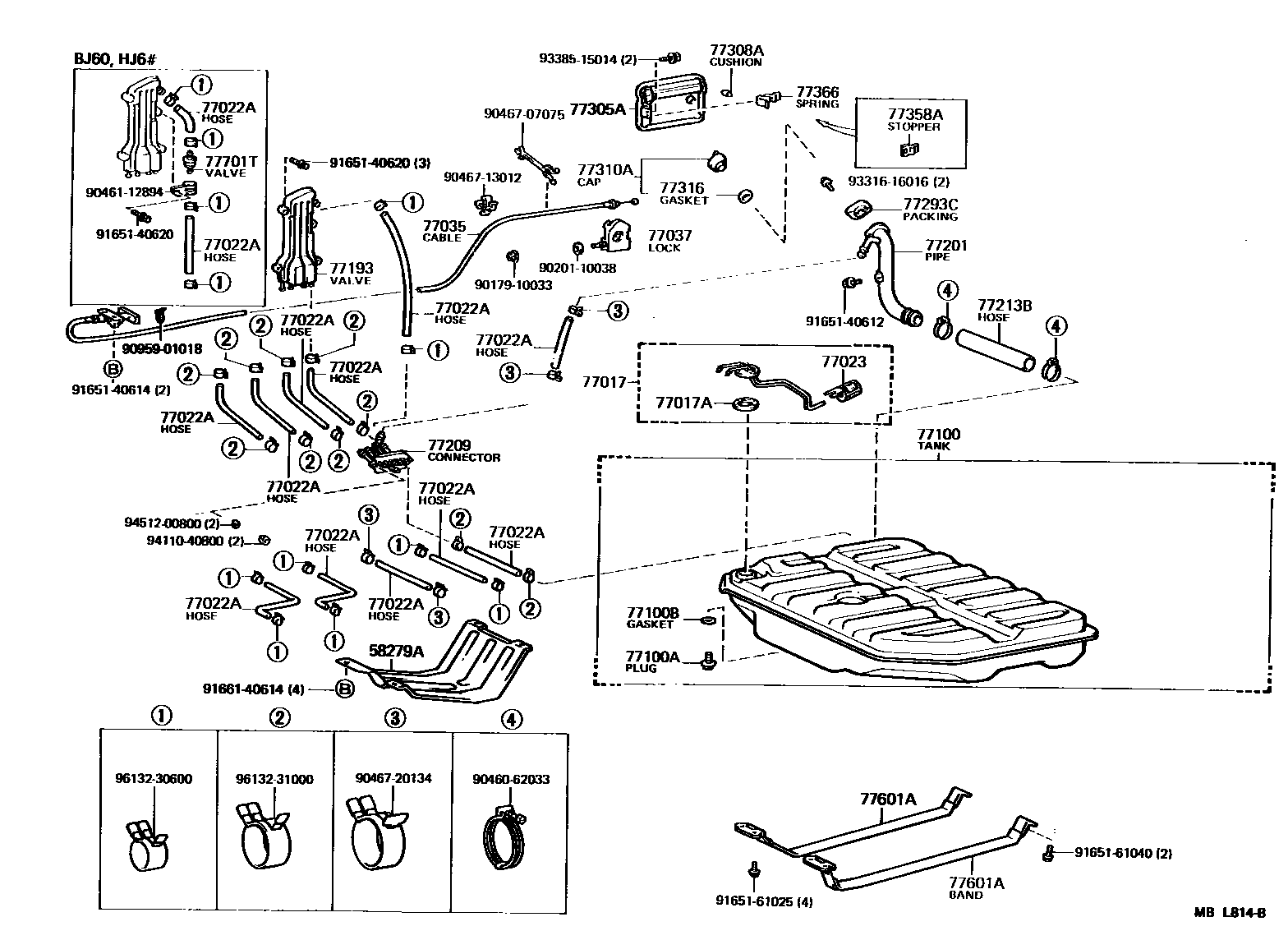

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

58279APROTECTOR, FUEL HOSE

main58279-90A00iBJ60,FJ62,HJ6#198708-199203

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77240-60011iBJ60,HJ60198708-199001

main77240-60030iHJ61198708-199001

main77240-60180iBJ60,FJ62198708-199203

77017AGASKET, FUEL TANK VENT

main77169-14020iBJ60,FJ62,HJ6#198708-199203

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77249-60040iBJ60,FJ62,HJ6#198708-199203

250X312X92

main77249-60050iBJ60,FJ62,HJ6#198708-199203

265X285X70

main90445-22015iFJ62198708-199203

L=150

sub90445-22002

main90445-22904iBJ60,FJ62,HJ6#198708-199203

L=300

main95332-10024iBJ60,FJ62,HJ6#198708-199203

L=300(*H,L=240)

sub95332-10030

main95332-10036iBJ60,FJ62,HJ6#198708-199203

L=400(*H,L=360)

sub95332-10040

main95333-06010iBJ60,HJ6#;FJ62..GEN198708-199203

L=100

main95333-06040iBJ60,FJ62,HJ6#198708-199203

L=400

main95333-06060iFJ62..ARL,ME198708-199001

L=600

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iBJ60,FJ62,HJ6#198708-199203

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-90A00iBJ60,FJ62,HJ6#..RHD198708-199001

main77030-90A01iBJ60,FJ62,HJ60..LHD198708-199203

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iBJ60,FJ62,HJ6#198708-199203

77100TANK ASSY, FUEL

main77001-60230iBJ60,FJ62,HJ6#198708-199005

sub77001-60240

main77001-60241iFJ62199105-199203

77100APLUG(FOR FUEL TANK)

main90105-12018iBJ60,FJ62,HJ6#198708-199203

77100BGASKET(FOR FUEL TANK)

main90430-12245iBJ60,FJ62,HJ6#198708-199203

77193VALVE, FUEL LIQUID VAPOR SEPARATOR

main77193-60031iBJ60,FJ62,HJ6#198708-199203

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60130iHJ6#;BJ60,FJ62..GEN,ME198708-199203

main77201-60150iFJ62..ARL198708-199001

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60041iBJ60,FJ62,HJ6#198708-199203

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60030iBJ60,FJ62,HJ6#198708-199203

77293CPACKING, FUEL TANK OUTER FILLER PIPE

main77293-60030iBJ60,FJ62,HJ6#198708-199203

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-90A01iBJ60,FJ62,HJ6#198708-199203

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iBJ60,FJ62,HJ6#198708-199203

77310ACAP ASSY, FUEL TANK

main77310-12100iFJ62198708-199203

main77310-35061iBJ60,HJ6#198708-199001

77316GASKET, FUEL TANK CAP

main77316-12050iBJ60,FJ62,HJ6#198708-199203

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-12020iBJ60,FJ62,HJ6#198708-199203

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iBJ60,FJ62,HJ6#198708-199203

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60060iBJ60,FJ62,HJ6#198708-199203

RH

main77602-60040iBJ60,FJ62,HJ6#198708-199203

LH

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBJ60,HJ6#;FJ62..GEN198708-199203

9017910033

main90179-10033

9020110038

main90201-10038

9046062033

main90460-62033

9046112894

main90461-12894

9046707075

main90467-07075

9046713012

main90467-13012

9046720134

main90467-20134

9095901018

main90959-01018

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165161025

main91651-61025

9165161040

main91651-61040

9166140614

main91661-40614

9331616016

main93316-16016

9338515014

main93385-15014

9411040800

main94110-40800

9451200800

main94512-00800

9613230600

main96132-30600

9613231000

main96132-31000

43 parts on this diagram · 7 diagrams in section
