MOULDING

62795ACOVER, QUARTER WINDOW MOULDING JOINT, RH

main62795-90A00iBJ60..RHD¥700198708-199203

62795BCOVER, QUARTER WINDOW MOULDING JOINT, LH

main62795-90A00iFJ62,HJ6#..LUB¥700198708-199203

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-90A00iBJ60..RHD¥1,270198708-199203

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-90A00iBJ60..RHD¥850198708-199203

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-90A00iBJ60..RHD¥850198708-199203

sub75533-90A00¥850

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-90A00iBJ60..RHD¥1,540198708-199203

75541CCOVER, WINDSHIELD MOULDING JOINT, UPPER RH

main75541-90A00iBJ60..RHD¥460198708-199203

75542CCOVER, WINDSHIELD MOULDING JOINT, UPPER LH

main75541-90A00iBJ60..RHD¥460198708-199203

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-90A00iBJ60..RHD¥410198708-199203

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-90A00iBJ60..RHD¥2,950198708-199203

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-90A00iBJ60..RHD¥2,950198708-199203

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-90A00iBJ60..RHD¥2,340198708-199203

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-90A00iBJ60..RHD¥2,340198708-199203

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75812-90A00iFJ62,HJ6#..LUB¥1,120198708-199203

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75813-90A00iFJ62,HJ6#..LUB¥1,120198708-199203

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-90A00iFJ62,HJ6#..LUB¥1,180198708-199203

75583COVER, BACK WINDOW MOULDING JOINT, LOWER

main75583-90A00iFJ62,HJ6#..LUB¥340198708-199203

75586AMOULDING, ROOF DRIP, REAR

main75586-90A00iBJ60..RHD¥1,720198708-199203

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-95J00iBJ60,FJ62,HJ60..STD..(ARL,GEN)¥80198708-199001

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75502-60010iBJ60..RHD¥210198708-199203

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-95J00iBJ60,FJ62,HJ60..STD..(ARL,GEN)¥80198708-199001

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75502-60010iBJ60..RHD¥210198708-199203

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-90A00iFJ62..STD..ME;BJ60,FJ62,HJ6#..GX,VX¥1,590198708-199203

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-90A00iFJ62..STD..ME;BJ60,FJ62,HJ6#..GX,VX¥1,590198708-199203

75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH

main75645-90A00iFJ62..STD..ME;BJ60,FJ62,HJ6#..GX,VX¥1,590198708-199203

75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH

main75646-90A00iBJ60..RHD¥1,590198708-199203

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-90A02iFJ62,HJ61..4FC..VX..ARL;FJ62,HJ61..HRF..GX..ARL¥5,100198708-199203

main75710-90A02iFJ62,HJ6#..GX..ARL¥5,100198904

GXL

main75710-90A03iBJ60..RHD¥5,100198708-199203

W(*VW)

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-90A02iFJ62,HJ6#..GX..ARL¥5,100198904

GXL

main75720-90A02iBJ60..RHD¥5,100198708-199203

main75720-90A03iFJ62,HJ6#..LUB..ARL¥5,100198708-199203

W(*VW)

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-90A01iBJ60..RHD;FJ62..STD..ME;BJ60,FJ62,HJ6#..GX,VX¥5,000198708-199203

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-90A01iBJ60..RHD;FJ62..STD..ME;BJ60,FJ62,HJ6#..GX,VX¥5,000198708-199203

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-90A00iBJ60..RHD¥2,570198708-199203

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-90A00iBJ60..RHD¥2,570198708-199203

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-90A00iBJ60..RHD¥1,210198708-199203

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-90A00iBJ60..RHD¥1,210198708-199203

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-90A00iBJ60..RHD¥1,210198708-199203

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-90A00iBJ60..RHD¥1,210198708-199203

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-90A00iBJ60..RHD¥2,080198708-199203

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-90A00iBJ60..RHD¥2,080198708-199203

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-90A00iBJ60..RHD¥1,210198708-199203

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-90A00iBJ60..RHD¥1,210198708-199203

75851MOULDING, ROCKER PANEL, RH

main75850-69015iBJ60..RHD¥7,000198708-199203

75852MOULDING, ROCKER PANEL, LH

main75860-69015iBJ60..RHD¥7,000198708-199203

75867ACLIP, ROCKER PANEL MOULDING

main75867-20020iFJ62..STD..ME;BJ60,HJ6#..GX,VX;FJ62..(GX,VX)..(ARL,GEN)¥260198708-199203

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021¥240

9018904001

main90189-04001¥180

9353064020

main93530-64020¥60

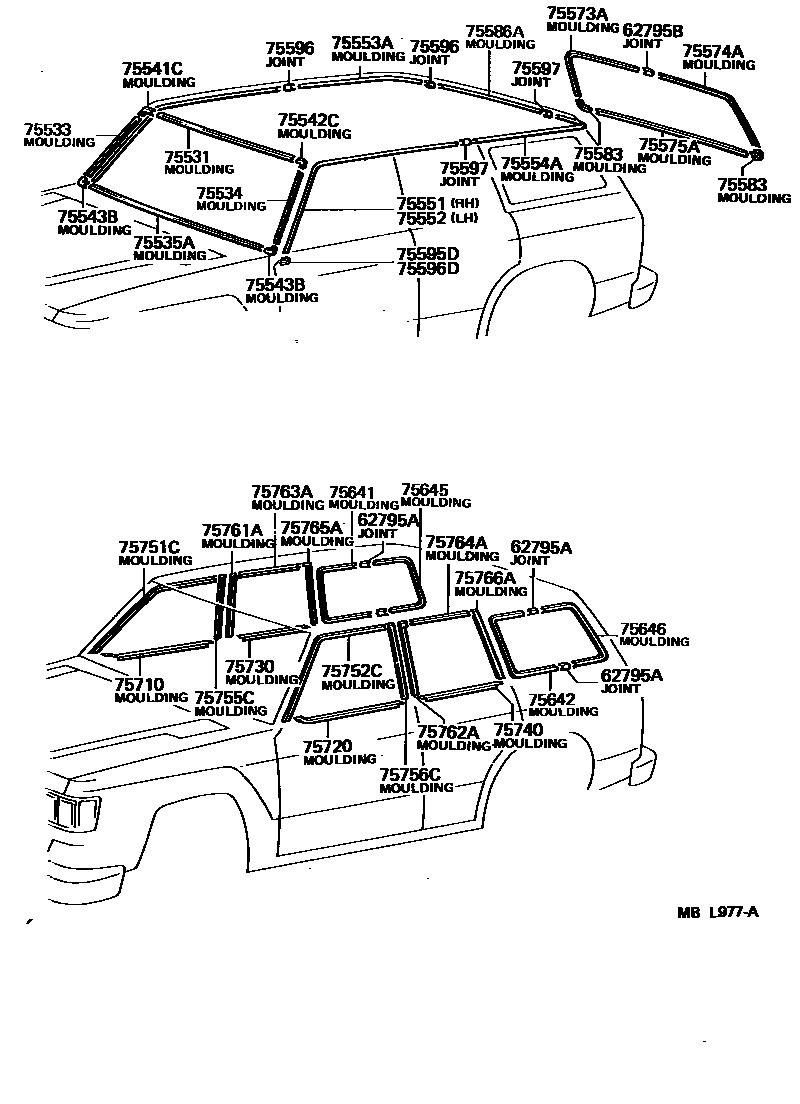

46 parts on this diagram · 1 diagram in section
